説明

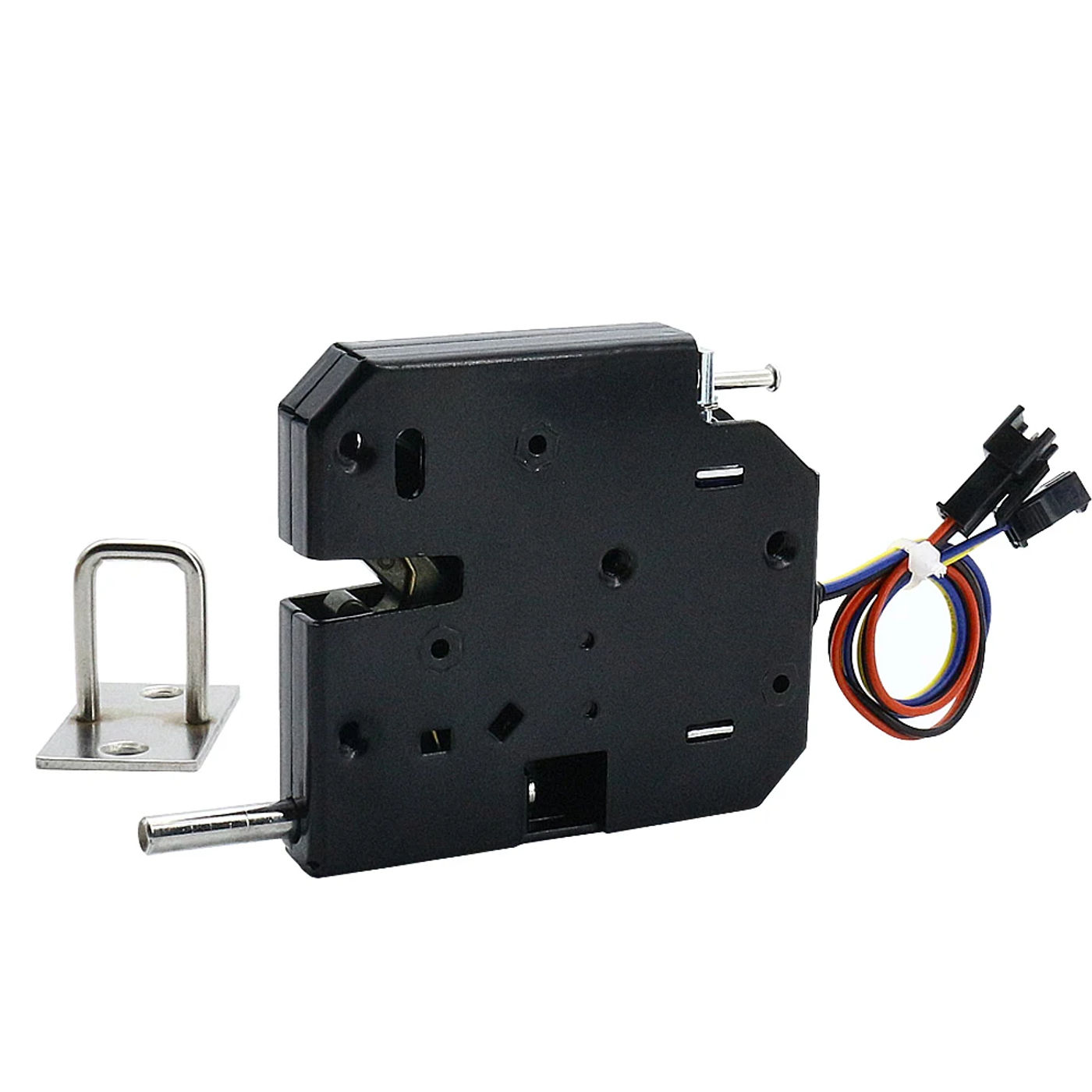

• The electric lock applicable for shipping locks, refrigerated cabinet, mail or newspaper box, self-service lock, ebook counter, changing clothing cupboard etc Adopted steel plate for shell and carbon metal for inner materials Strong and safe to use: The electric lock is principally followed carbon metallic for inside material Strong and safe to apply Security: latch hook can undergo 100kg traction, won&;t apparent everlasting deform permanently, shockproof, anti prying Compact, clean to install, no left, right, front, opposite aspect limitation, and permitting mechanical lash-up unlocking position Self Elastic Design: Elasticity adjustable, appropriate for weight 0~5kg door Specifications: Condition: 100% Brand New Main Material: Carbon Steel Surface Treatment: Plated Electrophoretic Paint Work Mode: Independent kind (Power off and close the door-Locked; Power on-Unlocked) Electrical Parameters: DC12V/2A、5V/2A、24V/1 Power on time: ≤ 1s (can no longer be powered on for a long time) Door opening thrust: ≥ 1500g Mechanical Life: In Designing Load Condition, about 500 000 instances Electromagnet Life: In Rated Working Condition, more than 500 000 instances Strength of Lock Hook: 100kg pressure (no permanent deformation) Ambient Temperature: -20℃~60℃ Size: Approx sixty six x 73 x 13mm Mounting hole: 3-M4 threaded hole Feedback signal line description: this is a quick circuit sign swap It is disconnected when unlocked and linked when lockedPackage Included:1 x Electric Lock ( With detection switch)

•
•
•
•
•
