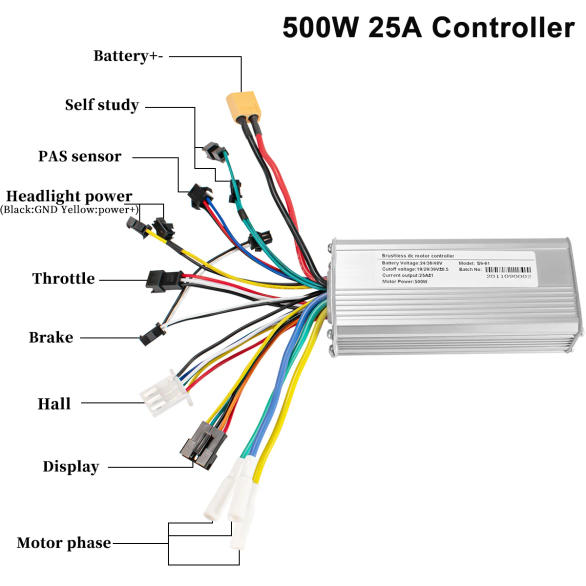

• Features: 【Basic Informaction】Default Suit for Rotate Freewheel, 250-500W are Brushless Gear Motor, 1000/1500W are Gearless Motor【High Quality Material】Wheel Hub Motor,Pure Copper Core, Premium Aluminum Double-walled Rim, High efficiency, Energy Saving and Antioxidant 【Easy Installation】E-Bike Conversion Kit Includes All Necessary Components for Installation, Motor Wheel , Controller, Display, Throttle, Brake levers, PAS 【Reliable Guarantee】We are Engaged in Electric Bike, E-scooter, Cycling Industry for Eight Years, Any Questions Please Feel Free to Contact, We have Professional Team to Answer 250/350W E-bike Conversion Kit Motor: ● Rated Voltage: 36/48V ● Torque: 27-31 for 250W, 31 for 350W ● Rated Speed: 25-28Km/h ● RPM: 207-270 for 250W, 231-270 for 350W ● Spoke Specification: 12g/13g ● Opening Size:Front:100mm Rear:135-142MM ● WaterProof Grade: IP54 Controller: ● Rated Voltage: 24/36/48V ● Rated Power: 250/350W ● Cut-off Voltage: 19/29/39V±0 ● Current Output: 15A±1A ● Size: 85MM*53MM*30MM 500W E-bike Conversion Kit Motor: ● Rated Voltage: 36/48V ● Torque: 61-64 ● Rated Speed: 30-32Km/h ● RPM: 265-325 ● Spoke Specification: 12g/13g ● Opening Size:Front:100mm Rear:135-142MM ● WaterProof Grade: IP54 5 Controller: ●● Rated Voltage: 24/36/48V ● ● Rated Power: 500W ● Cut-off Voltage: 19/29/39V±0 ● Current Output: 25A±1A ● Size: 125MM*50MM*30MM 1000/1500W E-bike Conversion Kit Motor: ● Rated Voltage: 48V ● Torque:57 (1000W), 71-74(1500W) ● Rated Speed: 35-40Km/h(1000W), 45-50Km/h(1500W) ● RPM: 325-331(1000W), 414-487(1500W) ● Spoke Specification: 12g/13g ● Opening Size: Front:100mm Rear:135-142MM KT 30A/35A BLDC Controller: ● Rated voltage : DC36V/48V ● Mosfet : 12 Mosfets ● Maximum current : 30A±1A(For 1000W) 35±1A( For 1500W) ● Brake enter : Low-Level ● Low voltage protection : DC30/40±0 250W/350W/500W Motor Wheel: 26inch 20inch 1000W/1500W Motor Wheel: 500W Controller: 350W Controller:

•
•
•
•
•
