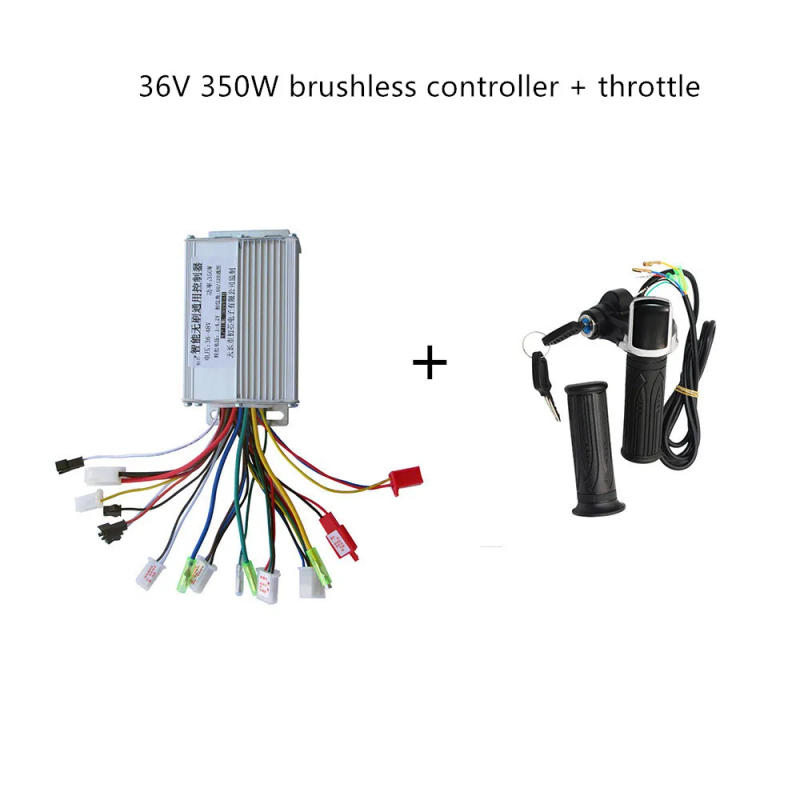

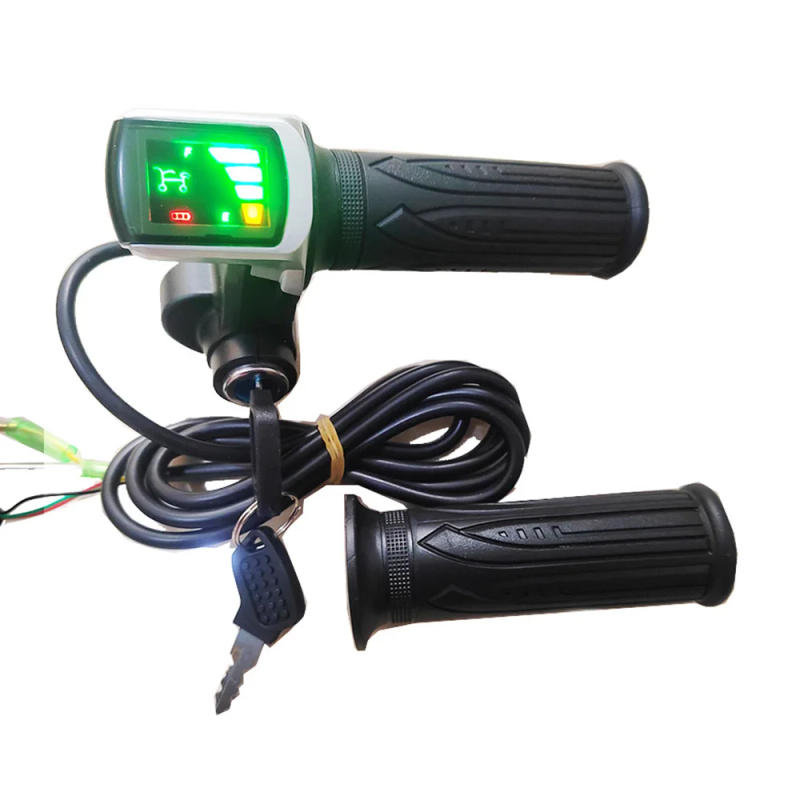

• Tips: The interface of the throttle and the interface of the controller throttle usually are not completely matched When the customer receives the package, he must wire it himself Buyers can see the directions on methods to join wires at the link details web page interface of the accelerator ignition swap needs to be removed,Wiring with controller 36V-48V 350W controller can paintings with hall sensor/hall sensorless Rated Voltage: 36V/48V Low Voltage : 31V/42V±0 Rated Power: 350W Limit Current: 17A 1 meter line 2 motor line three line four alarm line five line 6 line 7 line eight brake 9 energy line 10 speed line 11（2 purple wires battery +，black battery -） 12 brake 一 the motor line (color to color） 二 join the battery line(2 purple wires :battery + , black:battery-) 三 connect the controller throttle line（color to color） 四 join the hall line(if motor without hall line, don’t desire connect) 五 the two self-learning lines, the wheel will ahead or reverse (1 wheel forward ,Separate the self-learning line 2 wheel reverse, Separate the self-learning line Docking the self-learning line again，if wheel ahead ,Separate the self-learning line) 六 purposes can be connected as needed Throttle: ■ Size: (Lx D) 10 cm x 2 cm / 3 ■ Throttle Works Voltage: DC5V ■ Speed Adjusting Signal:0～4 ■ Power exhibit Voltage: DC 24V/350W/500W ■ Power display: ■ Normal: 23V above, 3 Led Green, ■ Half: 23V ~ 20V, Led Yellow, ■ Empty: 20V or less, Led Red ■ Rotation angle: 0 °~ 70 ° ■ Working temperature: -20 ℃~ +50 ℃ ■ Fits traditional 7/8 inches(22) handle bars ■ Cable size is roughly fifty nine inches (1) ■ Quantity: 2 pcs (1 Twist throttle grip and 1 typical grip (matching thumb grip) ) ■ Electric Bike scooter twist throttle accelerator with power display, five led battery indicator

•
•
•
•
•
