説明

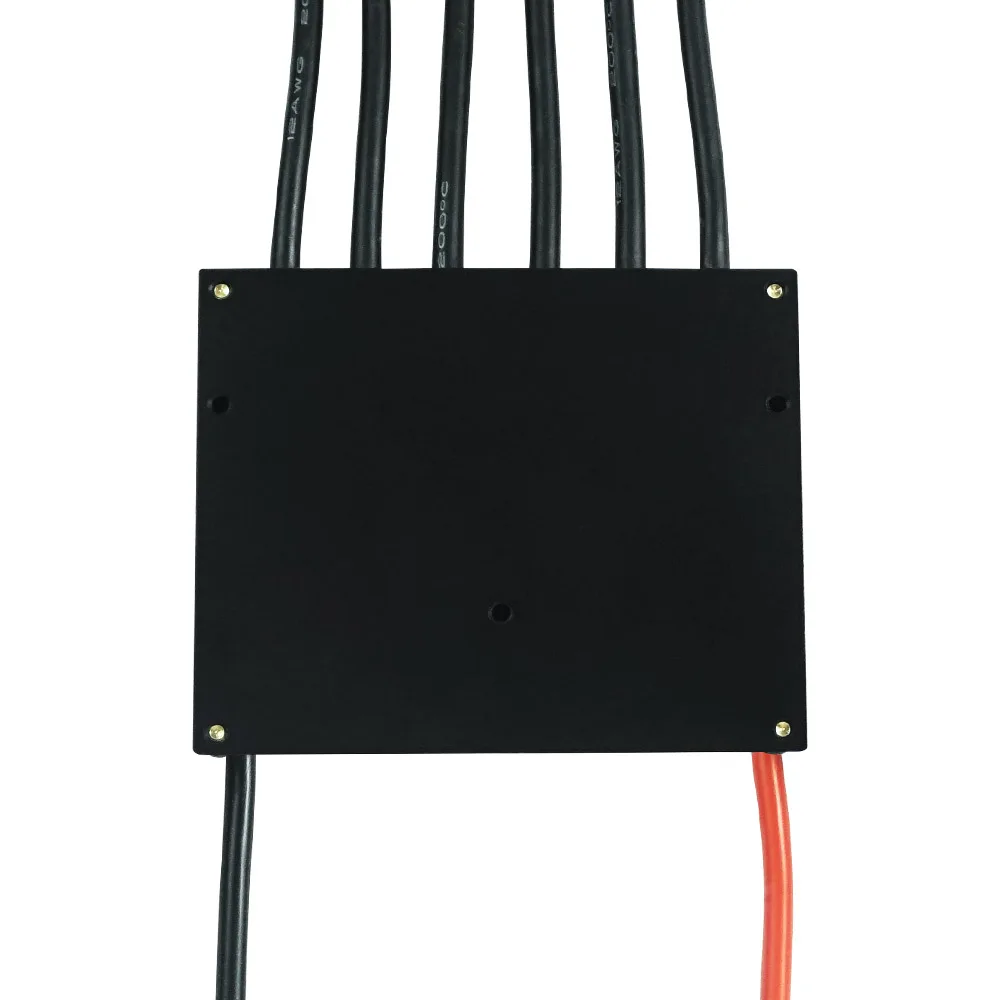

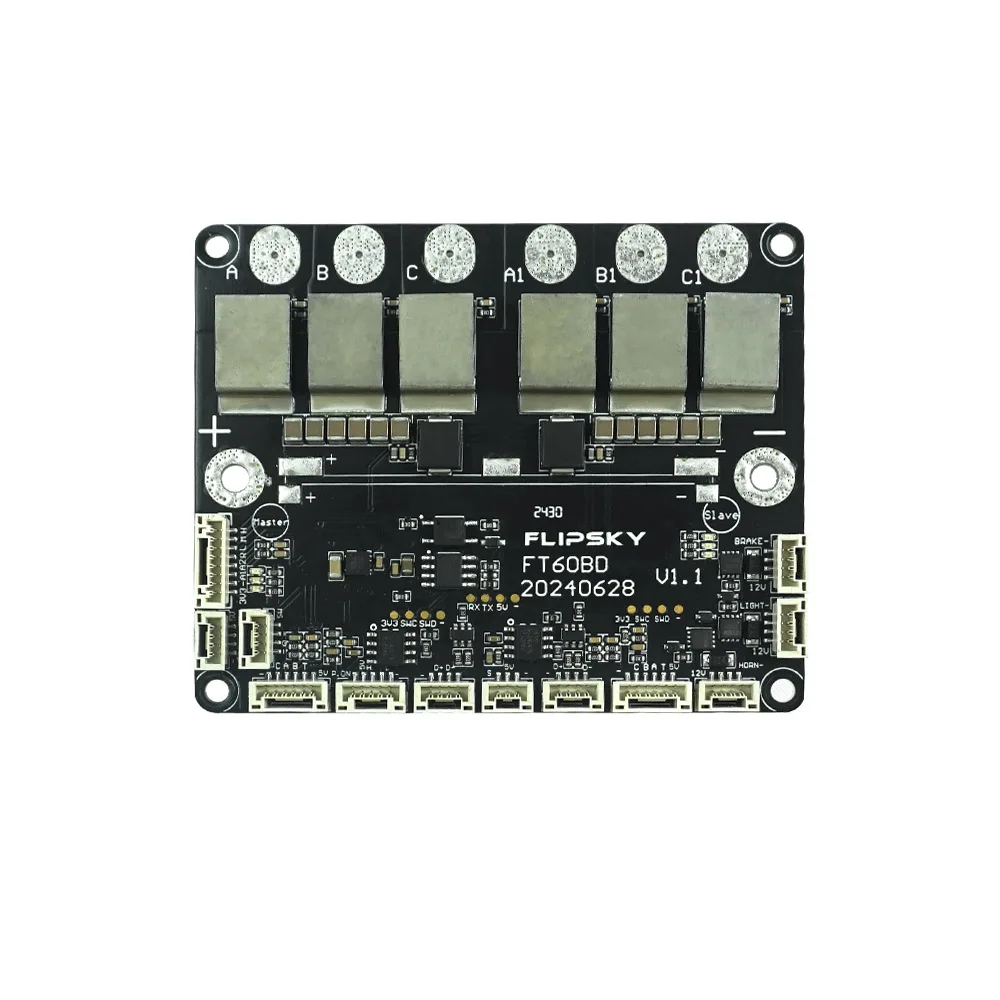

• Specifications : Firmware: V1 or above (firmware update through Flipsky ESC Tool supported) Voltage: 14V-60V (safe for 4S-12S) Continuous Current: 60A / Single; 120A / Dual (Values rely upon the mounting and ambient temperature round the device) Peak Current: 150A / Single; 300A / Dual Communication Ports: USB, CAN, UART, PPM, ADC Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY distant VX4 and VX3Pro solely at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface) BEC: 5V@1A Multiple Speed Gear Levels: Low, Medium, High, Reverse Front Lights, Rear Brake Lights & Horn: Support Programmable: Yes Regenerative Capacity: Yes Slide Poweron & Auto shutdown: Yes Auto poweroff time could be customized Self-resetting switch with green LED button Diameter: 16mm Power Wire Size: 12AWG Motor Wire Size: 12 AWG ESC Size: L85 * W70 * H25mm (including heatsink) Features: Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed 240MHz and the max PWM switching frequency 45KHz improves the motor RPM Programmable through Flipsky ESC Tool to be well matched with multi-types of motor, varied battery voltages and lots of management ways Programmable through Flipsky distant controller VX4 (remote firmware version: VX4_V1 or above) Supporting motor FOC with low operating noise and comfortable starting Supporting Real-time records and fault signals Supporting adaptive variable PWM frequency control Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI) Supporting management types: Current, Duty Cycle, Speed control, Position Control Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection Integrated wise swap function: helps sliding poweron and automated shutdown function; computerized shutdown time is adjustable through Flipsky ESC Tool Supporting extra interface like entrance lights, brake lights and horn fixtures (12V 4A) Supporting multiple typed of motor t emperature sensors resembling NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on Wiring diagram:

•
•
•
•
•
