説明

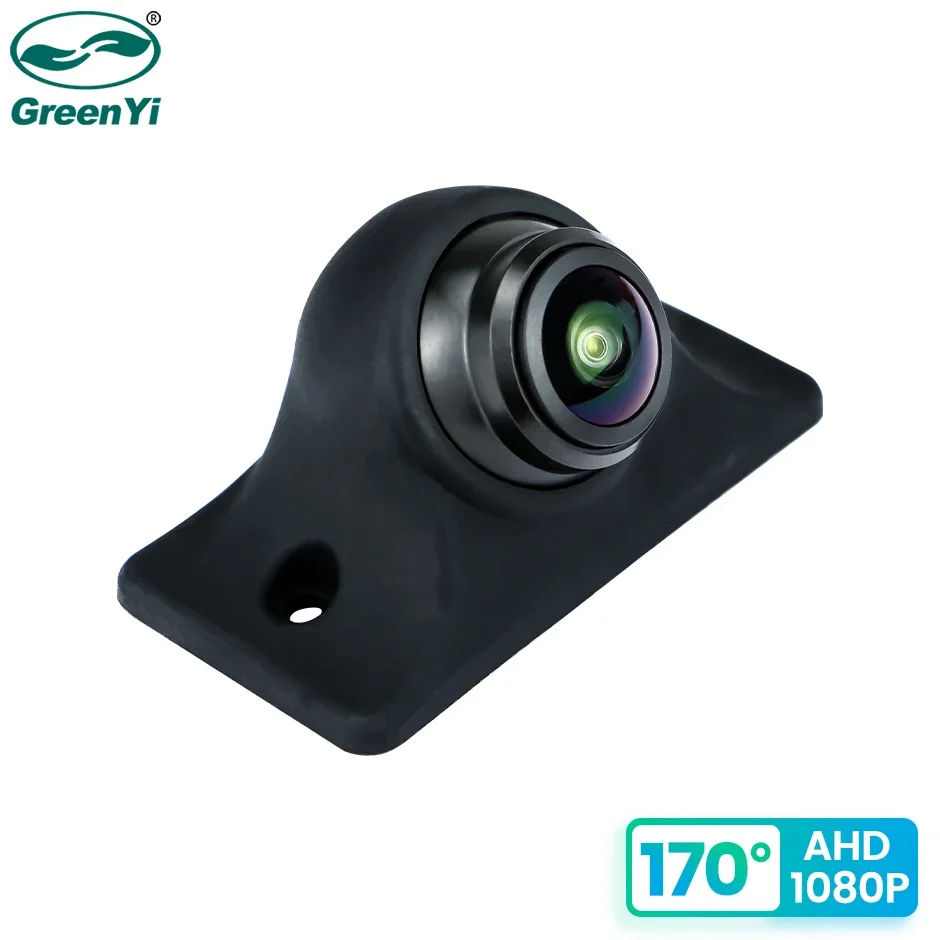

• Tips, About AHD1080P Style: Please examine whether the Android unit supports the AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras will not be supported! Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P Cameras with CVBS video indicators are common for all monitors, yet AHD will solely paintings with AHD monitors! 170° Wide Angle Fisheye Lens - Real 170° AHD1080P Camera Top Starlight Night Vision Starlight evening vision function permits the digicam to be used wisely even at night Waterproof The digital camera is full of water-resistant silicone, Effective chip protection, IP68-Rated for Use in Extreme Conditions Conversion Line Control White: Mirror management Brown: Signal control Green: Parking line switch Pure Copper Cable The video cable is product of advantageous pure copper, which provides higher video transmission quality than cables that can be attracted through magnets Integrated Step-down Module Package 1 GreenYi automobile digital camera 2 Retail field 3 Power cable (6m) four User guide Installation Diagram FAQ： After connecting the rearview camera, the display displays no signal, a black screen, and no picture, what should I do? A) Please check your sign structure (AHD/CVBS), and decide the correct sign to run the digicam B) Please examine your connection, the crimson trigger line should hook up with your opposite light and video display the reverse-in cable C) If your computer screen has an AUX-IN function, you could hook up with the AUX-IN Tip: CVBS cameras can test the functionality of the TV Universal cameras with 4Pin plugs can solely be put in with our cables You can seek the advice of customer service once you come across any problems throughout the installation job After connecting the rearview camera, the display screen shows black and white, what must I do if there is not any color? A) Choosing the wrong digicam system(such as PAL/NTSC) will cause the screen to be black and white Please choose the correct system to run the digicam and restart the digital camera energy CVBS camera is an NTSC system, and the AHD1080P camera is a PAL method B) Please examine whether or not the 6M line is normal, please replace it with another 6M cable to check the digital camera What applications are controlled by means of every single of the three cables of the rearview camera? Brown Cable: Video Signal Control • AHD1080P Camera: Default ( AHD1080P )+( 1920x1080 )+( 170° ) Cut the white cable→ ( CVBS )+( 1280x720 )+( 170° ) White Cable: Mirror Control • The default is the rearview camera (Mirroring) Cut the white cable→ Front view camera ( Non-mirroring ) You also can manually rotate the sphere attitude 90 °, to attain the impact of the aspect digicam Green Cable: Parking Line Control • The camera with the parking line/camera doesn't display the parking line, you might lower the green cable, after which reconnect the camera&;s energy supply, which can change the parking line Does it assist personalized products? Yes, we will customise all types of chips, lenses, colors, accessories, and appearance, please touch us for any curiosity

•
•
•
•
•
