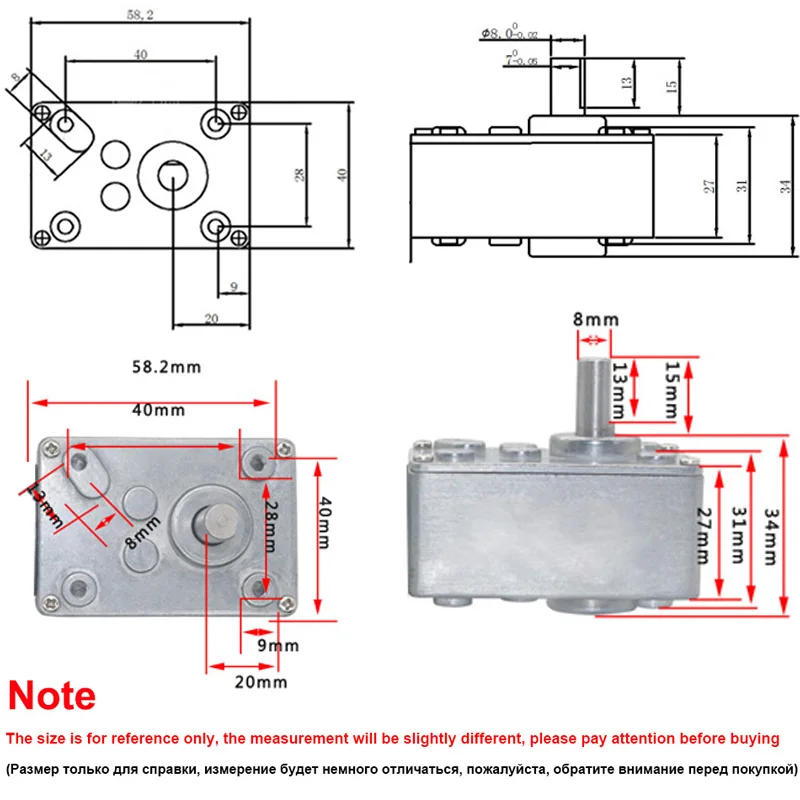

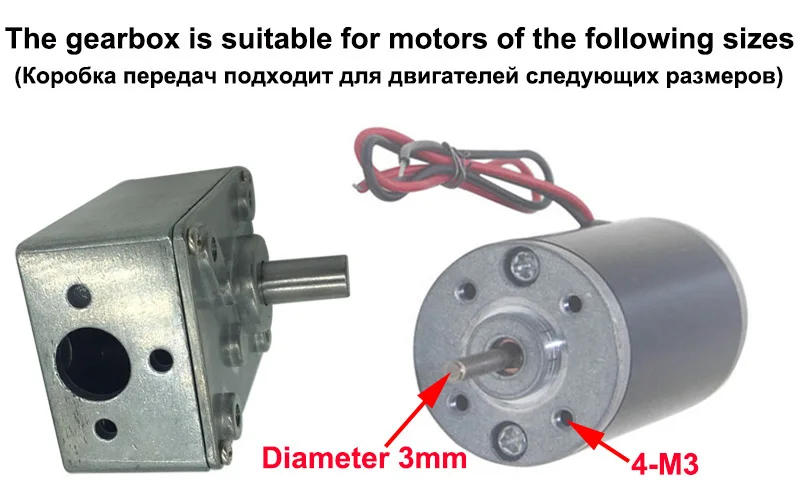

• Gearbox introduction1. Name of the gearbox : A5840 dc gearbox for bug g geared motor2. The options for the discount ratio have : 17 : 1 / 31 : 1 / 50 : 1 / one hundred : 1 / 290 : 1 / 505 : 1Note : Please go away a message when ordering to inform us the discount ratio you've chosen. if we don't get messages from you inside 6 hours after your payment, we are able to send you 17:1 through default, thanks3. This gearbox can withstand a load of 70KG, but after the gearbox and motor are installed, the particular motor torque must be determined in step with your motor.4. Our engineers check results show that the nylon gear and metallic equipment work together, extra wear-resistant, so we despatched to you've metal gears and 1 nylon gear within the gearbox, if you want all the gears are fabricated from metal, please depart a message to inform us, we can ship to you in step with your request.5. If you prefer to successfully set up this gearbox, the diameter of the motor shaft is 3mmThe length is for reference only,the dimension may be barely different,please listen before buyingThe gearbox is appropriate for motors of the ensuing sizesThis link only sells gearboxes, no longer including motors, thanksThe following is the image of the gearbox

•
•
•
•
•
