Note:
1/K1B rotating replace panel distant solely control specified Mi-Light/Miboxer products.
2 safe requires,the kit do not include battery.

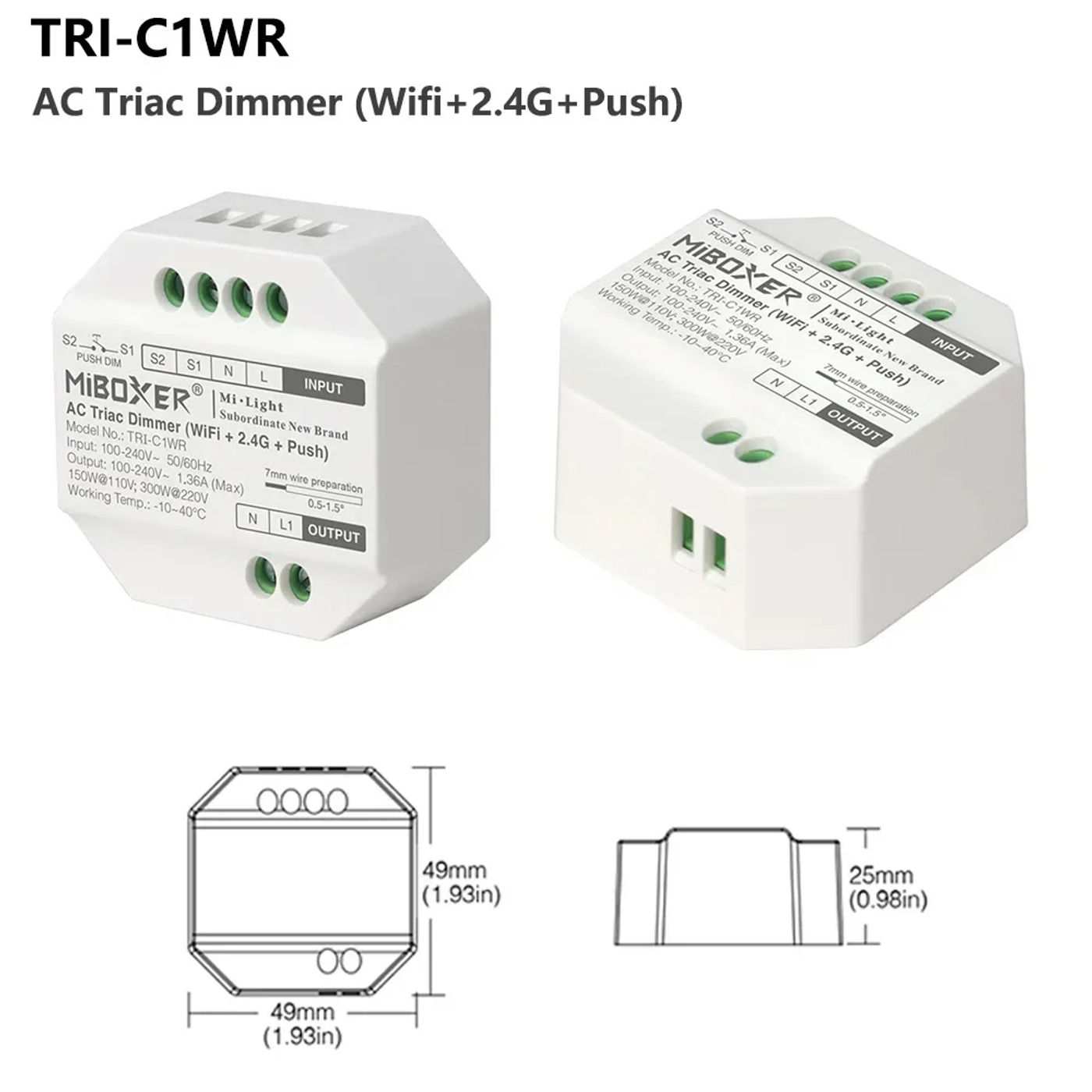

TRI-C1WR AC Triac Dimmer (WiFi+2+Push)

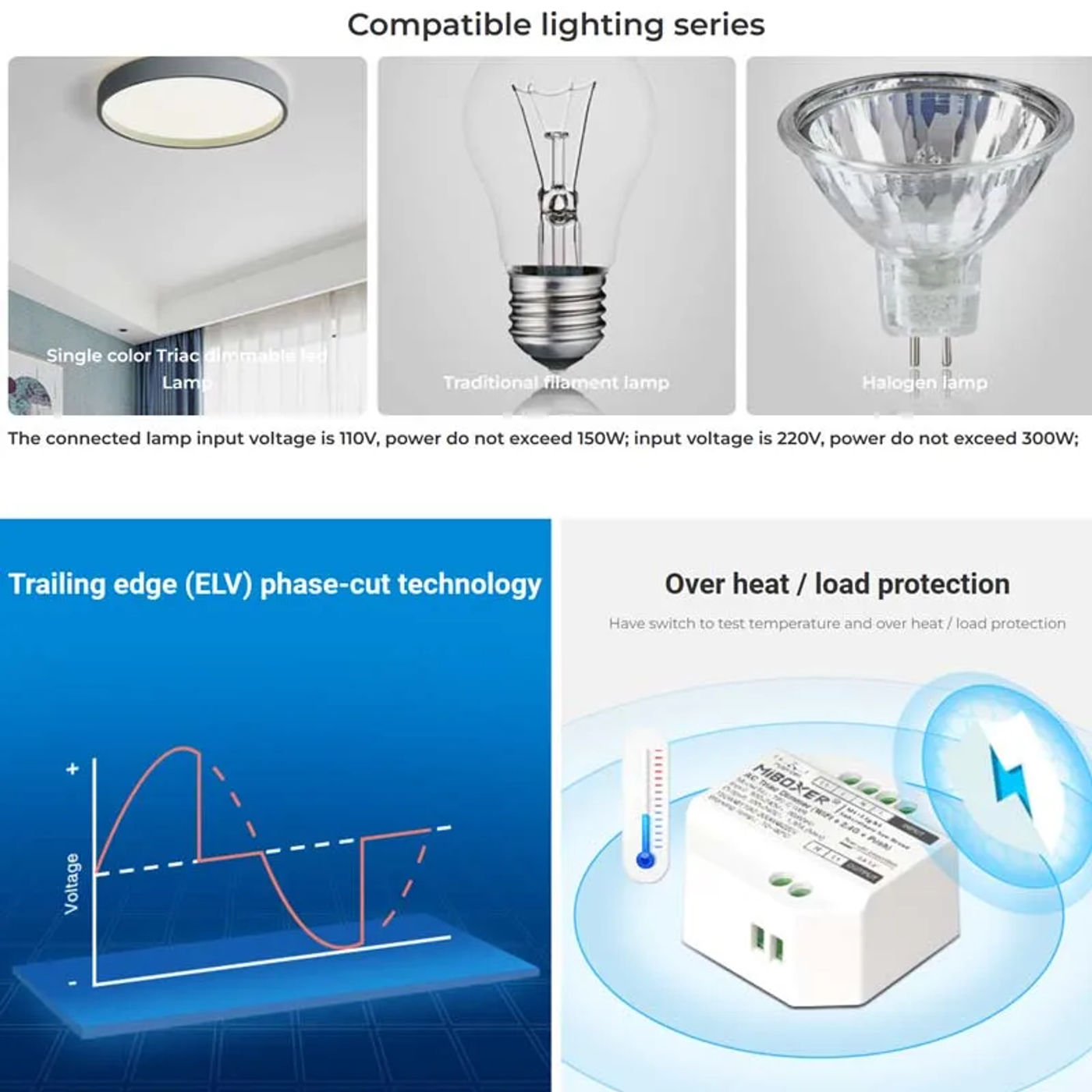

--Supports the management of normal incandescent lamps, halogen lamps, and dimmable LED lamps.

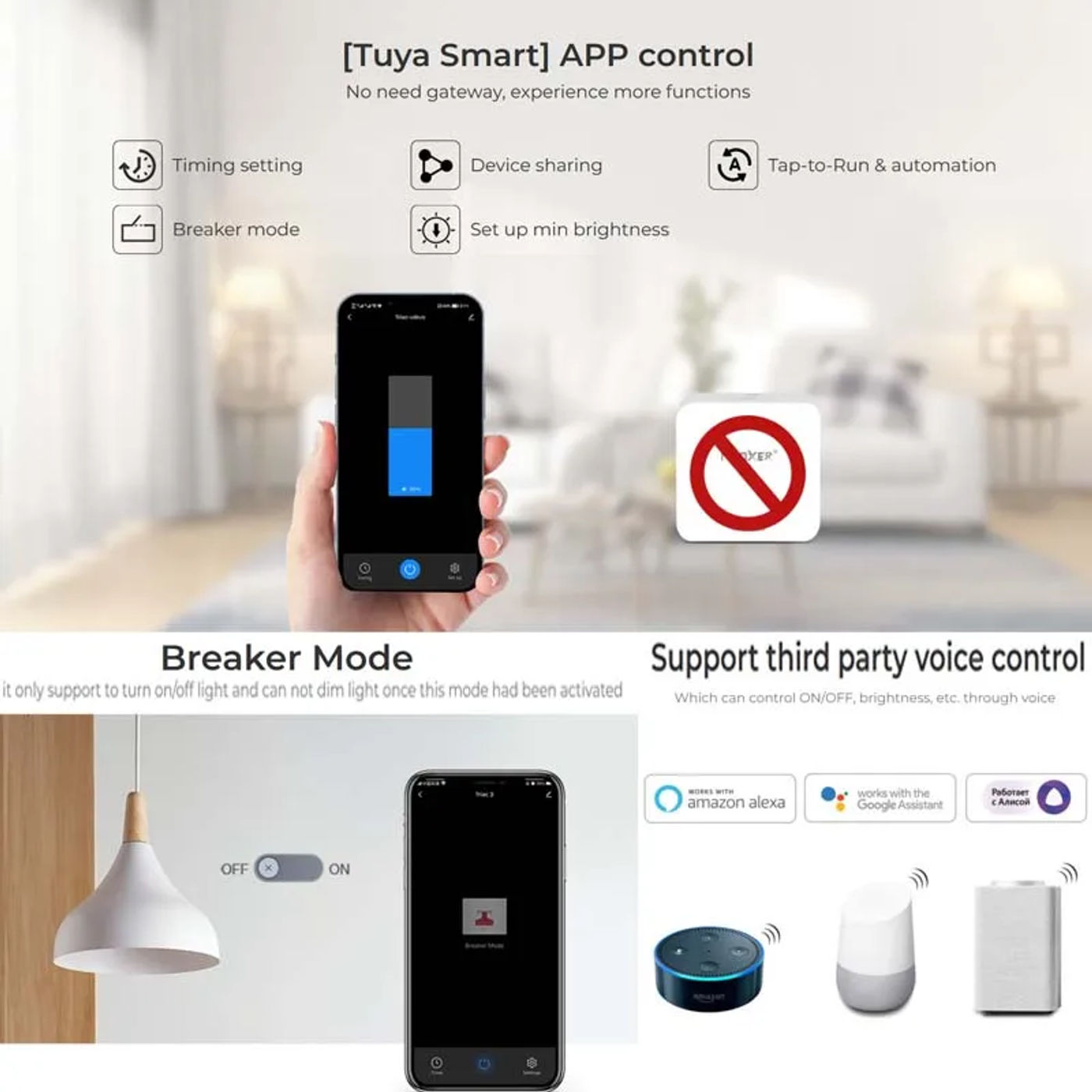

--Compatible with the “Tuya Smart” app , allowing you to regulate the light fixtures out of your smartphone anytime, anywhere.
--You can set the minimum brightness point and modify the brightness per your needs, whether or not you prefer gentle ambient lights or brilliant illumination.
--Our product is well matched with Amazon Alexa and Google Home for voice control.
--Experience the ease and comfort of wise home light fixtures with ease.
Product Parameters:
--Product Name: AC Triac Dimmer(Wifi+2+Push)
--Model No.: TRI-C1WR
--Input Voltage: 100-240V~50/60Hz
--Output Voltage:AC100-240V
--Output Current:Max 1
--Output Power:150W@110V;300W@220V
--Dim Method:WIFI+2+PUSH
--2 RF Control Distance:30M
--Wireless Technology:Wi-Fi IEEE 802/g/n 2
--Working Temperature: -10~40°C
--Size:49*49*25mm

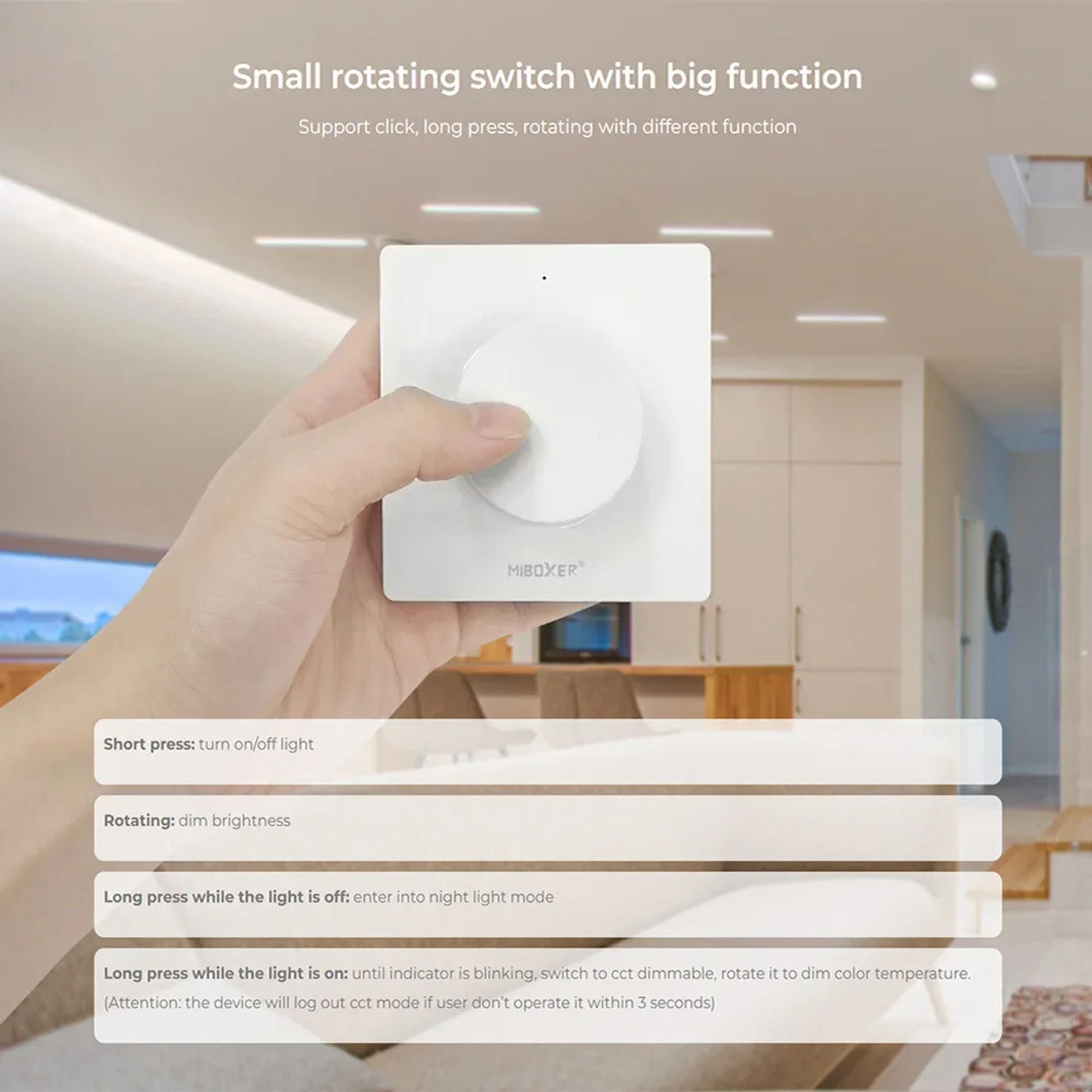

K1/K1B Rotating Switch Panel Remote
It's made by way of 2 wi-fi management know-how with low strength consumption, long distance,
solid ability for anti-interference and quick communication. Power shipping is CR2032 battery, the rotating substitute can dim brightness and coloration temperature, it is compatible for MiBoxer single colour and CCT LED light.
•2 RF wireless transmission technology
•It can management Miboxer/Mi-Light 2 collection merchandise
•Control distance:30m
•Magnetic set up
•Brightness and colour temperature adjustable
K1/K1B Parameters:
--Model No: K1(white) K1B(black)
--Working Voltage: 3V (CR2032 battery)
--Transmitting Power: 6dBm
--Standby Power Consumption: <6uA
--RF: 2
--Control Distance: 30m
--Working Temperature: -10~40℃
--Transmission Frequency:2400-2483
--Modulation Method:GFSK
--Working Temperature:-10~40℃
--Size:86x86x27mm
