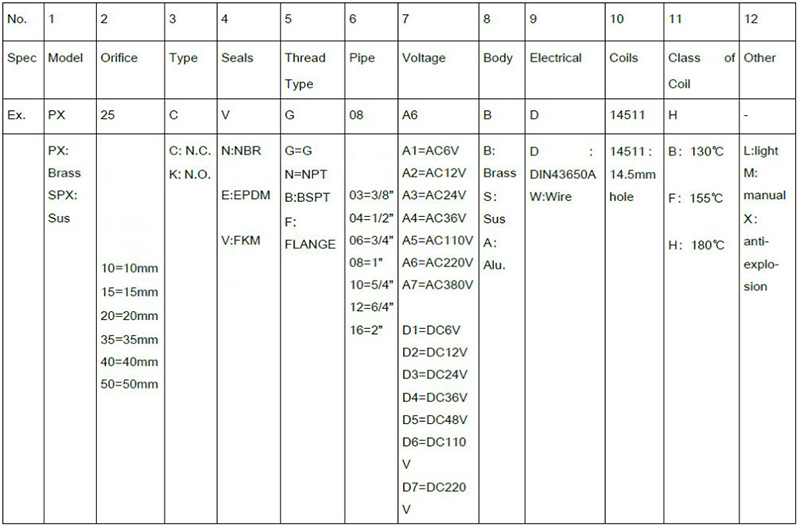

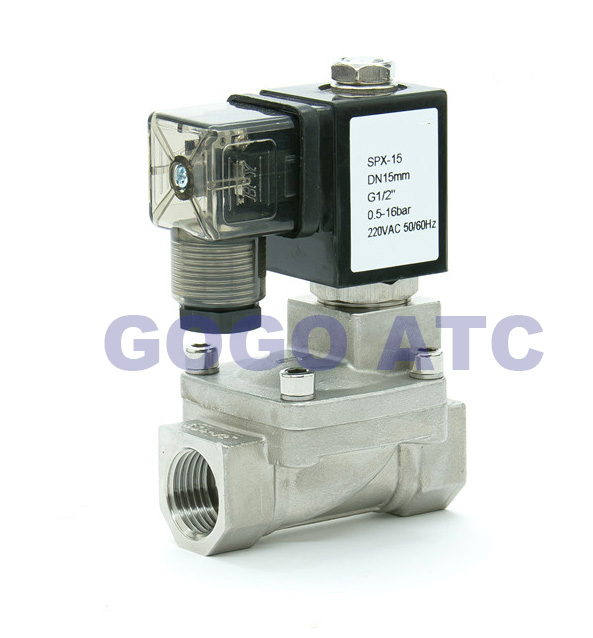

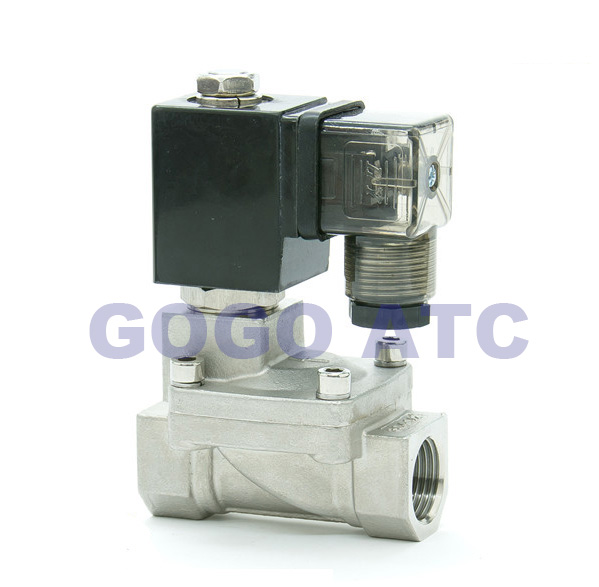

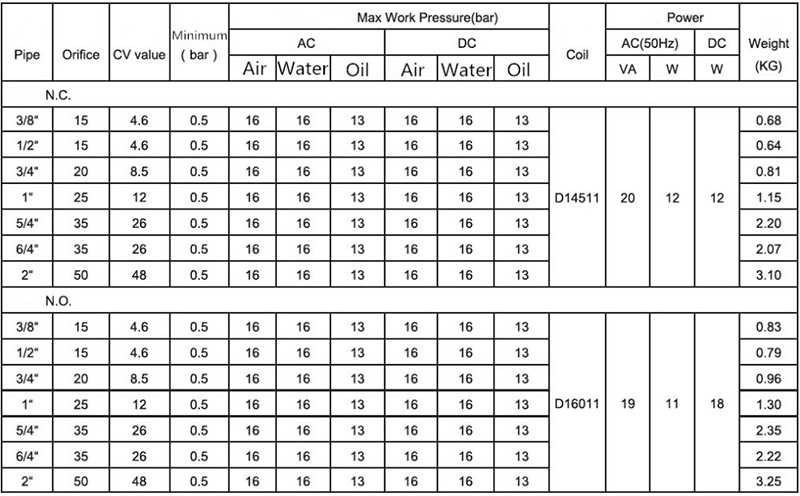

• SPSPX-15 Top Quality Stainless Steel G1/2 inch Orifice 15mm 16 bar Normally Closed Water Solenoid Valve *Select China Post Air Mail Please note* China Post Air Mail exists the problem of excessive threat of packet loss and Long time ,we suggest that you simply use specific transportation(EMS/DHL/Fedex/TNT/UPS) for secure and rapid * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * ** Voltage: 110V AC ,220V AC ,12V DC ,24V DC optional SPX Series Pilot Diaphragm Slenoid valve Model Pipe Orifice Diameter(mm) Principium CV Body material Seal Work Pressure Pilot Diaphragm form SS304 SPX-10 3/8" 15 4 NBR zero SPX-15 1/2" 15 four NBR 0 SPX-20 3/4" 20 8 NBR 0 SPX-25 1" 25 12 NBR zero SPX-35 1-1/4" 35 26 NBR zero SPX-40 1-1/2" 35 26 NBR zero SPX-50 2" 50 48 NBR 0 1 Pattern: Two-port two-position Principium: Pilot Diaphragm kind Control mode: normally close Valve body: brass ,stainless metal Diaphragm material: NBR: ≤80°C ,EPDM≤120°C ,FKM: ≤150°C non-compulsory Working pressure: 0~15bar Max pressure: 25bar Voltage: AC220V AC110V DC12V DC24V Medium: Air ,water ,hot water ,Liquid ,oil ect Application: Medium strain large-flow air water management method 2 3 Product Code 4 Picture five one items valve + a carton

•
•
•
•
•
