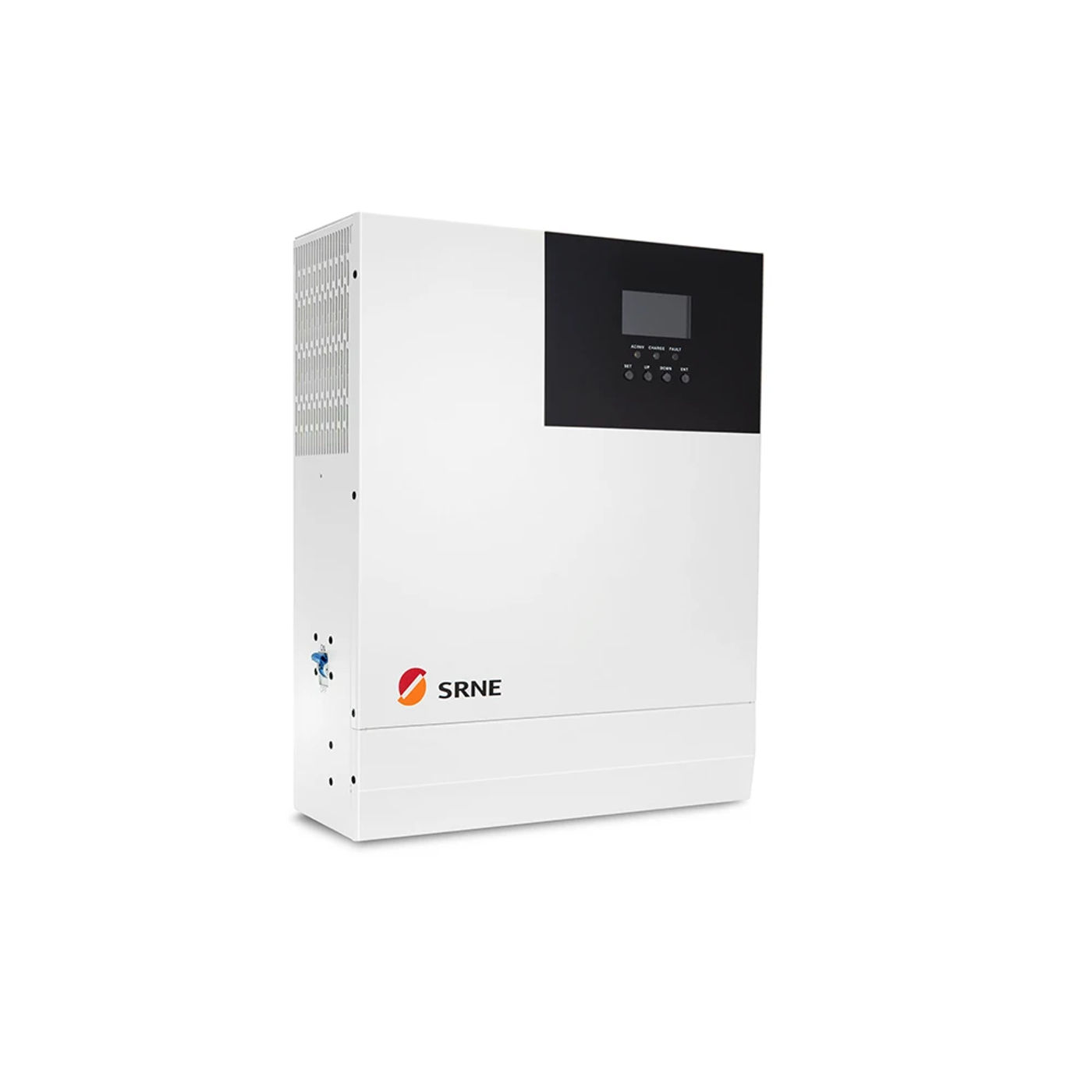

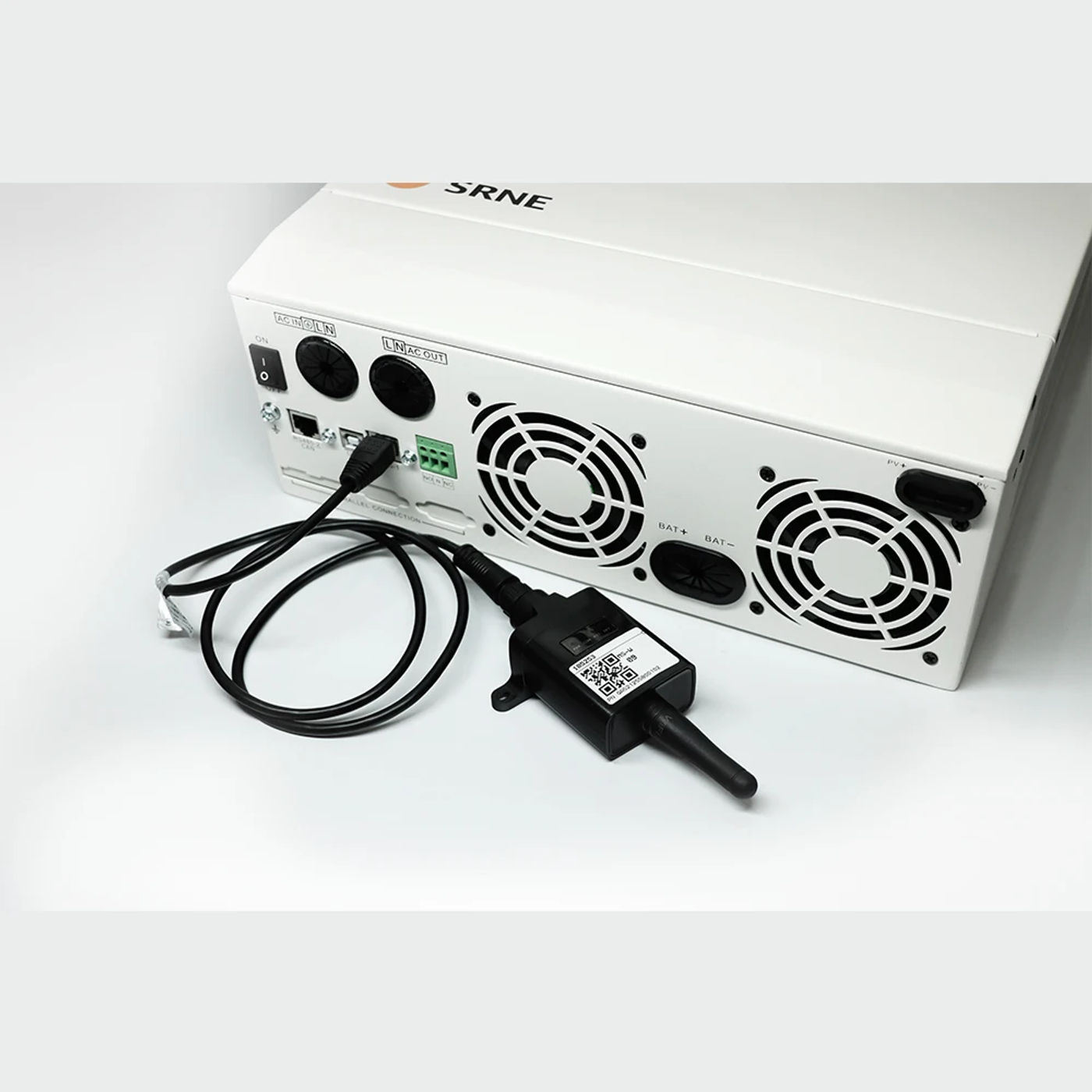

• SRNE 5000W Hybrid Solar Inverter 220V 230V DC 48V Pure Sine Wave Inverter Build-in MPPT 80A Solar Controller PV-input Max 500VDC Support WIFI Module HF4850S80-H Note :The battery means of the proper matching formulation is set in line with the explicit usage standards of the burden and application scenarios, in any other case it will easily lead to inadequate battery means or immoderate waste of strength era For details, please talk to the handbook recommendation or consult online customer support Introduction： 1、HF sequence is a new hybrid solar fee inverter, which integrates solar power storage &means charging calories garage and AC sine wave output Thanks to DSP control and stepped forward control algorithm, it has high response speed, high reliability and high industrialstandard Four charging modes are optional,i Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available,i Inverter and Mains, to fulfill diverse utility standards The photo voltaic charging module applies the newest optimized MPPT technology to quickly tune the maximum strength point of the PV array in any environment and obtain the utmost calories of the photo voltaic panel in genuine time 2、Through a state of the artwork management algorithm, the AC-DC charging module realizes completely digitalvoltage and current double closed loop control, with excessive control precision in a small quantity 3、Wide AC voltage input fluctuate and total input/output protections are designed for secure and dependable battery charging and defense 4、Based on full-digital clever design, the DC-AC inverter module employs progressed SPWM expertise and outputs pure sine wave to transform DC into AC It is right for AC plenty corresponding to household appliances, strength tools, business equipment, and electronic audio and video kit The product comes with a segment LCD display design whichlallows real-time exhibit of the operating data and standing of the components Comprehensive electronic protections keep the whole formula more secure and more steady Feature： 1 electronic voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave 2 output modes: mains bypass and inverter output; uninterrupted power delivery 3 Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid charging four Advanced MPPT know-how with an efficiency of 99% 5 with a LCD display screen and 3 LED indicators for dynamic exhibit of system information and working reputation 6 Manual ON/OFF switch controlling AC output 7 saving mode obtainable to lessen empty load loss 8 Intelligent variable pace fan to effectively deplete heat and increase method life nine Lithium battery activation via PV solar or mains, permitting entry of lead-acid battery and lithium battery 10 protections, adding short circuit protection, over voltage and beneath voltage protection, overload protection, reverse protection, and so forth Overview： Sepecification： Model HF4830S60-H HF4850S80-H AC mode Rated input voltage 220Vac/230Vac Input voltage differ (170Vac~280Vac) ±2%；(90Vac-280Vac) ±2% Frequency 50Hz/ 60Hz (auto-sensing) Frequency Range 47±0±0 (50Hz)/57±0±0 (60Hz); Overload/short circuit defense Breaker Efficiency >95% Conversion time (bypass and inverter) 10ms (Typical value) AC reverse protection yes Maximum bypass overload latest 40A Inverting mode Output voltage waveform Pure sine wave Rated output power(VA) 3000(2600/2700/3000) 5000(4350/4500/4800/5000) Rated output power(W) 3000(2600/2700/3000) 5000(4350/4500/4800/5000) Power element 1 Rated output voltage (Vac) 230Vac（200/208/220/240Vac settable） Output voltage error ±5% Output frequency fluctuate (Hz) 50Hz ± 0/60Hz ± zero Efficiency >90% Overload protection (102%<load<110%) ±10%: reporting error and switch off the output after 5 minutes; (110%<load<125%) ±10%: reporting error and switch off the output after 10 seconds; Load>125% ±10%: reporting error and switch off the output after five seconds; Peak energy 6000VA 10000VA Loaded motor skill 2HP 4HP Output short-circuit defense Breaker Specification of bypass breaker 40A Rated battery input voltage 48V (minimum delivery voltage 44V) Battery voltage vary 40~60Vdc ± zero (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen) Power saving mode Load ≤50W AC payment Battery kind Lead acid or lithium battery Maximum price current 60A Charge recent error ± 5Adc Charge voltage differ 40~60Vdc Short-circuit protection Breaker and blown fuse Breaker specification 40A Overcharge defense Turn off price after 1min alarm Solar charge Maximum PV opencircuit voltage 500Vdc PV operation voltage range 120-500Vdc MPPT voltage fluctuate 120-450Vdc Battery voltage fluctuate 40-60Vdc Maximum output strength 4200W 5000W Charge latest fluctuate of solar energy (settable) 0-60A 0-80A Charge short-circuit protection Blown fuse Wiring protection Inverse wiring defense Authentication specification Specification authentication CE(IEC 62109-1) EMC authentication grade EN61000 Operation temperature fluctuate -15°C to 55°C Storage temperature fluctuate -25°C ~ 60°C Humidity fluctuate 5% to 95% (Conformal coating protection) Noise ≤60dB Thermal dissipation Forced cooling with adjustable air velocity Communication interface USB/RS485 (WiFi/GPRS)/dry node management Dimension (L*W*D) 426mm*322mm*126mm Weight (kg) 10 Link Click Click Package Include： ·All-in-one Solar Charge Inverter*1 ·User Manual *1 ·M5 Screws *4 ·Terminal Blocks *2 Item Pictures：

•
•
•
•
•
