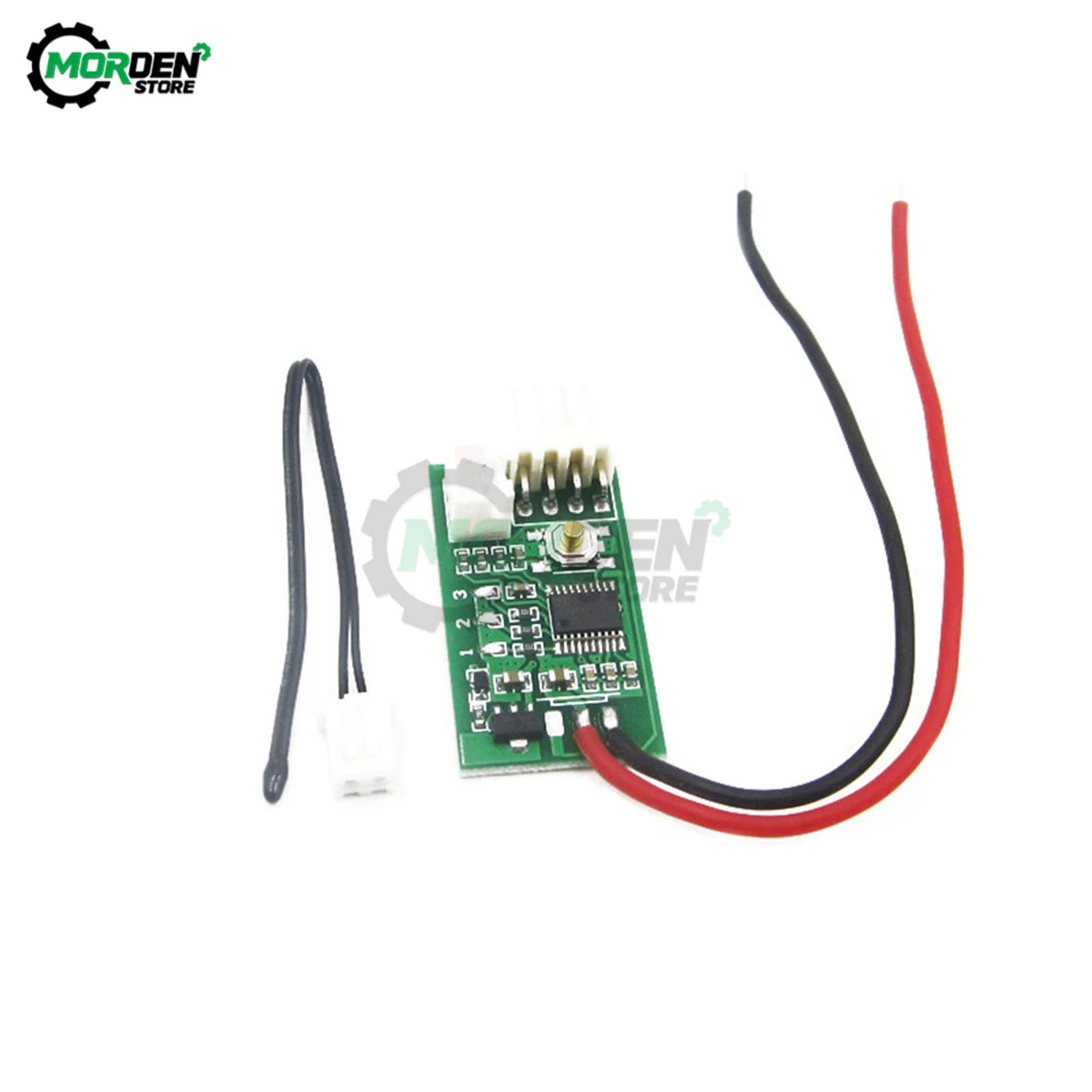

• The controller solely controls the speed of the 4 line common specification Intel PWM fan, don't flip off the fan With complete digital control, correct temperature surroundings and exact control It integrates guide velocity regulation and automatic temperature management and speed legislation function Manual velocity management from 10%-100%, each 5% is a gear Automatic temperature management pace from 30 levels Celsius, there are 49 sorts of temperature zone mixture It supports 3 line to 4 line control, setting parameters mechanically save Parameter Value Operating voltage DC12V can work in 8-18V differ Fan interface 2510-4P lacks 1 bends (special interface for computer 4P fan Consumption current No greater than 20mA Fan recent Less than 3A Drive output differ 10% -100 Operating temperature -10 Celsius to 60 Celsius Temperature probe parameters NTC 50K B=3950 Probe temperature Small black head 120 levels Ring probe a hundred and ten Celsius Board size 34mm*19mm*11mm (excluding prolonged interface) Fan interface extends 8mm Setting parameters default manufacturing facility Low pace 20% Acceleration temperature 30 Celsius Acceleration width 5 Celsius Do not close down the output At this temperature setting, conserving the probe with the palm of the hand will speed up in a couple of minutes If the probe is clamped into the armpit, it will attain full pace in 2 mins three Components:1> Input line: crimson black strength line is only welding 12V wonderful and unfavourable power cord, as ageneral use The three cord connector is equipped with a 2510-3P plug, which is used tomeasure the speed of some leading board three twine fan ports Large 4P interface facilitatespower acquisition from chassis> temperature probe: small black line&;s head is short, low warmth capability It is acceptable fortesting narrow area and air temperature, and the reaction is comparatively fast The ring probeis enclosed inside a ring metallic head with a diameter of four It is suitable for mounting onthe radiator or different heating object floor with screws Manual automatic integration control:3 parameters are adjusted: birth pace po, beginning temperature increase Tu revolutions and Delta TD temperature when the revolutions attain the utmost Po is set after switching on Double click down, single up 1 + 2 burns attain a minimum, 2 + three most revolutions To configure Tu keep 3 seconds, birth flashing slowly Also click and put the value at the table Keep one other three seconds, beginning flashing fast, customise TD> Manual management with out temperature probe Click / double-click (double-click speed not toofast) button up / down equipment Each shift continues after 20 seconds, and the gear isautomatically saved The No 2 indicator flashes quickly in 20 seconds (when the temperaturecontrol is invalid) When the flash is stopped, it indicates that the dossier has been saved The three /1 indicator gentle is always on once you can't continue to increase / now not continue to reducethe position> When the temperature probe is installed, the manual speed is used as the initial lowspeed (bottom line speed) When the temperature exceeds the accelerating temperature, thefan pace speeds up easily with the rise of temperature the temperature reaches and exceeds the sum of the acceleration temperature and theacceleration width (full velocity temperature), the fan runs at full pace the acceleration temperature and acceleration width parameters as proven in theschematic diagram below The quantity 123 represents the indicator gentle at the board (red)and the (white) state is displayed in binary order:

•
•
•
•
•
