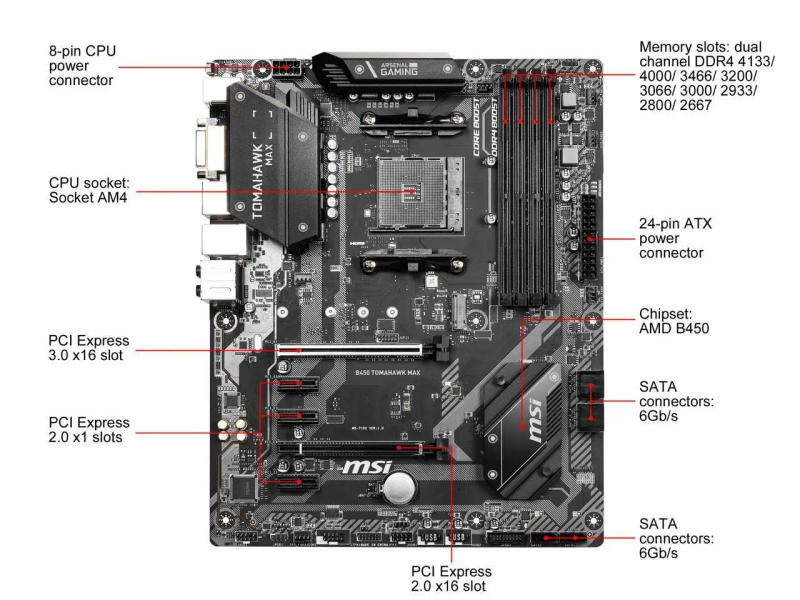

• Supported CPU CPU Socket Type AM4 CPU Type Supports 1st, 2nd and third Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Chipsets Chipset AMD B450 Memory Number of Memory Slots 4×288pin Memory Standard For AMD Ryzen Gen3 (R5/R7/R9): Supports DDR4 4133/ 4000/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by means of A-XMP OC MODE For AMD Other CPU: Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 2667/ 2400/ 2133/ 1866 MHz by way of JEDEC Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3 x16 1 x PCIe 3 x16 slot (PCI_E1) - 1st, 2nd and 3rd Gen AMD Ryzen processors help x16 speed - Ryzen with Radeon Vega Graphics and second Gen AMD Ryzen with Radeon Graphics processors support x8 velocity PCI Express 2 x16 1 x PCIe 2 x16 slot (PCI_E4, supports x4 mode)* * PCI_E4 will run x2 velocity when putting in instruments in PCI_E2/ PCI_E3 slot PCI Express x1 3 x PCIe 2 x1 slots Storage Devices SATA 6Gb/s AMD CPU 2 x SATA 6Gb/s ports* AMD B450 four x SATA 6Gb/s ports * SATA5 and SATA6 ports may be unavailable when installing a M device in M slot M 1 x M slot (Key M) Supports PCIe three x4 (1st, 2d and third Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe three x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/2260/2280/22110 storage instruments SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Supported only by means of CPU with included graphic: 1 x DVI-D port, support a most decision of 1920x1200@60Hz 1 x HDMI 1 port, supports a most decision of 4096x2160@30Hz, 2560x1600@60Hz Only help when utilizing Ryzen with Radeon Vega Graphics and second Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics processors Maximum shared reminiscence of 2048MB Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 7 Channels Onboard LAN LAN Chipset Realtek 8111H Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB three Gen 2 Type-A / 1 x USB 3 Gen 2 Type-C / 2 x USB 2/1 / 2 x USB three Gen 1 Type-A / 6 x Audio Jacks Internal I/O Connectors Onboard USB 2 x USB 2 connectors (support extra 4 USB 2 ports) 1 x USB three Gen1 connectors (support further 2 USB 3 Gen1 ports) Other Connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 304 mm x 243 mm Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V energy connector Features Features Supports 1st, 2nd and third Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 4133(OC) MHz Extended Heatsink Design: MSI prolonged PWM heatsink and enhanced circuit design ensures even high-end processors to run in full pace Lightning Fast Game experience: 1 x TURBO M, AMD Turbo USB three GEN2, Store MI technology Core Boost: With top rate layout and fully electronic power design to assist extra cores and supply larger performance DDR4 Boost: Advanced know-how to deliver natural data alerts for the finest gaming functionality and balance MULTI-GPU: With STEEL ARMOR PCI-E slots Supports 2-Way AMD Crossfire Audio Boost: Reward your ears with studio grade sound quality for probably the most immersive audio experience Flash BIOS Button: Simply use a USB key to flash any BIOS inside seconds, without installing a CPU, reminiscence or graphics card

•
•
•
