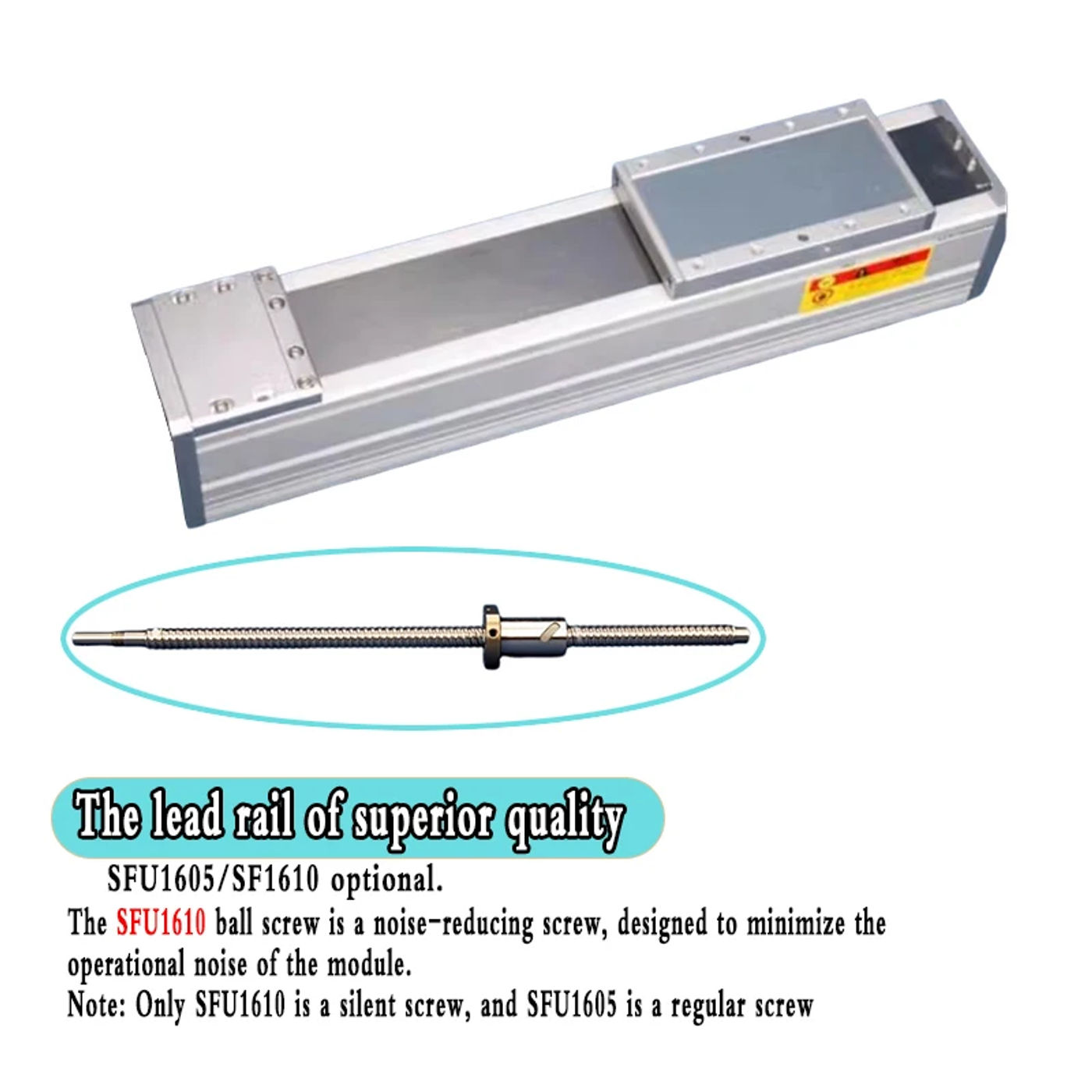

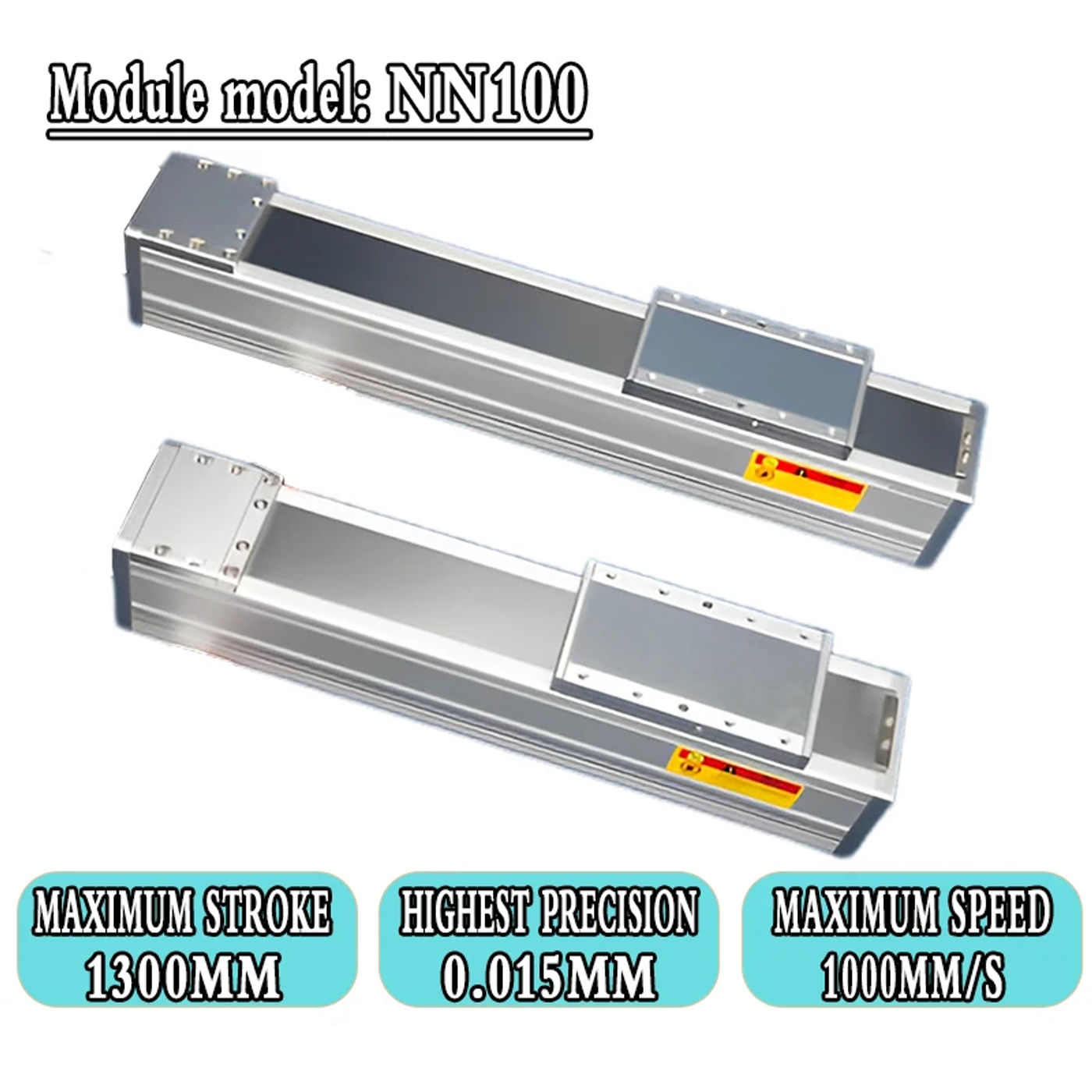

•   1* Sliding table 1* Coupling Model: NN100 Module width: 100mm Module material: Industrial Aluminum Profile Effective Stroke: 100-1300MM  Total slide table length: Effective stroke +240mm Guide: 2*EGH15CA Block: 2*EGR15 Mobile table size:110mm*100mm MAX. Horizontal load:120KG MAX. Vertical load: 50KG Motor bracket: Nema23/Nema34 Stepper motor Or 60mm/80mm Servo motor(If you need other models of motor brackets, you could contact us for customization) Repeat positioning accuracy: 0.015mm Ball screw accuracy: C7 Ball screw material: Bearing Steel Ball screw type: SFU1605/SFU610(If you would like SFU1620 screw, you may contact us for customization) Tips: 1. SFU1605 means screw diameter 16mm, pitch 5mm, the screw rotates once, the slide desk moves 5mm; Max.moving speed(If the motor is 3000rpm):        SFU1605:250mm/s        SFU1610:500mm/s

•
•
•
•
•
