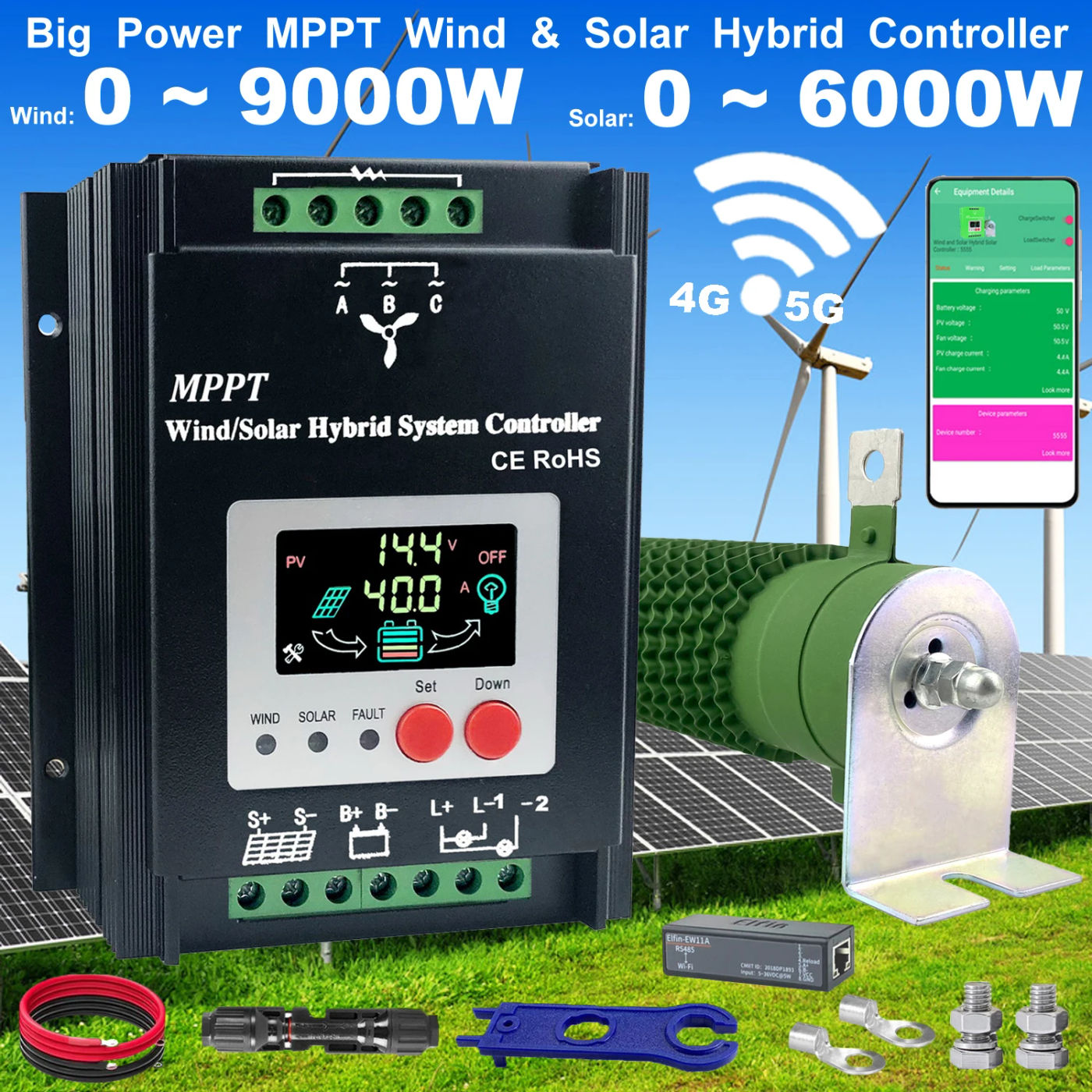

MPPT Wind Solar Hybrid Charge Controller
Wind:0 - 9000W (9KW)
Solar:0 - 6000W (6KW)
12V 24V 48V Auto Match
Remote WiFi communication(Optional)
Product Description:
Product Introduction:
This mannequin is special designed for hybrid wind solar energy formulation fee for street lamp, tracking Home system, power station etc system And it's workable for Lithium , GEL, Lead-acid battery with full fee and discharge defense Large length LCD screen is handy for parameter(from solar, wind and battery) question and adjustment but low power intake It can be flexibly put in in cruise ships, RVs, and land indoors Powerful functions and lightweight size yet excellent heat dissipation are its excellent points
Perfect Protection:
Solar Reversed Charging protection,Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc
High functionality and steady chip control;
Automatically match with 12V/24V/48V auto tournament sealed battery voltage;
Workable for battery: Supports any type of battery( eg: 1 lead-acid cellular / 2 Gel battery / three LiFePo4 / 4Ternary lithium / five custom);
LCD displays voltage and latest of wind, photo voltaic and cargo parameter;
The inside circuit board of the controller is sprayed to stop dust, moisture and static electricity
Wind adopts MPPT enhance charging; exterior dump-load resistance, clever disconnection of Solar charging
Product Parameter:
1 Partial components parameter desk
Model
4000W2020
6000W3030
7000W3535
8000W4040
9000W4545
13000W5080
15000W6090
System Rated Voltage
12V(9V-16VDC) / 24V(18V-32VDC) / 48V(42V-60VDC)
Solar Module
Voc
27(12V) / 55(24V) / 105V(48V)
Vmp
>Vbat+1V
Imp
112A(12V) 84A (24V) 42A (48V)
166A(12V) 125A (24V) 63A (48V)
190A(12V) 146A (24V) 73A (48V)
190A(12V) 166A (24V) 84A (48V)
190A(12V)
190A (24V)
94A (48V)
190A(12V) 190A (24V) 105A (48V)
190A(12V) 190A (24V) 125A (48V)
Workable Power
0W~2000W
0W~3000W
0W~3500W
0W~4000W
0W~4500W
0W~5000W
0W~6000W
Wind Turbine
Rated Voltage
12VAC(20)/ 24VAC (41)/ 48VAC(83)
Rated Current
112A(12V) 84A (24V) 42A (48V)
166A(12V) 125A (24V) 63A (48V)
190A(12V) 146A (24V) 73A (48V)
190A(12V) 166A (24V) 84A (48V)
190A(12V) 190A (24V) 94A (48V)
190A(12V) 190A (24V) 166A (48V)
190A(12V) 190A (24V) 190A (48V)
Workable Power
0W~2000W
0W~3000W
0W~3500W
0W~4000W
0W~4500W
0W~8000W
0W~9000W
Max Open circuit voltage
25(12VAC) / 51(24VAC) / 102(48VAC)
Special Note: The following are the optimal parameter settings, Suggest don't alter
Uunder
Over Discharge Voltage
10 / 21 / 43
Runder
Over Discharge Return
thirteen / 26 / fifty two
Uover
Over Charge Voltage
15 / 31 / sixty two
Rover
Over Charge Return
15 / 30 / 60
BCV
Increase Charge
14 / 28 / 57
Float
Floating Charge
13 / 27 / fifty five
Ufanbraking
Wind Breaking Voltage
25 / fifty one / 102
DC Load output L1 & L2
Out Power
0W~180W
(Per one-way)
0W~700W
(Per one-way)
0W~1400W
(Per one-way)
Rated Voltage
12VDC
24VDC
48VDC
Current Max
Max 60A (per a technique " L+ L1- " or " L+ L2- " Max 30A )
Battery Type
Lead-acid Battery , Gel Battery , LiFePO4 , Ternary lithium , and many others
Operation Mode
Home use or Street mild
Environment
Temperature
1) Working:-20℃~50℃; 2)Storage:-30℃~70℃
Humidity (°C)
10% ~ 90% No condensation
Protection Grade
IP30
2 Battery Parameter
Lead acid battery (single 12V)
System rated voltage / V
12V components (1 string)
24V method (2 strings)
48V system (4 strings)
12V default value
Overvoltage (overcharge) / V
13~17V
26~34V
52~68V
15
Overvoltage go back / V
13~17V
26~34V
52~68V
15V
Increase charging voltage / V
9~15V
18~30V
36~60V
14
Floating fee voltage / V
9~15V
18~30V
36~60V
13
Undervoltage /V
7~13V
14~26V
28~52V
10
Undervoltage return voltage /V
9~15V
18~30V
36~60V
13
Ternary lithium battery (single part 3)
System rated voltage
12V components (default 3 strings)
24V system (default 6 strings)
48V method (default 12 strings)
three string defaults
Overvoltage (overcharge) / V
10~15V
21~30V
42~60V
thirteen
Overvoltage go back / V
10~15V
21~30V
42~60V
12
Increase charging voltage / V
10~15V
21~30V
42~60V
12
Floating charge voltage / V
6~13
12~27V
24~54V
12
Undervoltage /V
6~13
12~27V
24~54V
9
Undervoltage go back voltage /V
6~13
12~27V
24~54V
10
Number of strings
3~4
6~8
14~18
3
Lithium iron phosphate (single part 3)
System rated voltage
12V formulation (default 3 strings)
24V formulation (default 6 strings)
48V formulation (default 12 strings)
4 string defaults
Overvoltage (overcharge) / V
9~12V
18~24V
36~48V
15
Overvoltage return / V
9~12V
18~24V
36~48V
14
Increase charging voltage / V
9~12V
18~24V
36~48V
14
Floating price voltage / V
9~12V
18~24V
36~48V
13
Undervoltage /V
6~12V
12~24V
24~48V
eleven
Undervoltage go back voltage /V
6~12V
12~24V
24~48V
12
Number of strings
3~4
6~8
14~18
four
Details Images:
Note: to grasp about more instruction and model, please touch us for FREE fantastically illustrated user manual(with assorted hybrid contoller product catalogued)
Product Application:
FAQ
1 choose MARS ENERGY as a carrier of products?
(1) Mars Energy is legendary brand at the international market in new calories enterprise We have strong R&D technical teams and professional manufacturing lines;
(2) Mars Energy is a producer specializing in the manufacturing of controller from China It has an entire high quality leadership system and value management advantages;
(3) Mars Energy is a leader in cross-border e-commerce After decades of operation, Mars Energy has accomplished the mixing of the availability chain ,Cheapest shipping charge Fastest to arrive around the world
(4) Mars Energy has established sales and after-sales groups in several countries, which can present pre-sales guidance and after-sales carrier in a local language;
(5) Since becoming in 1999, Mars Energy has received praises from extra and more customers around the globe for its professionalism, responsible attitude and effective
2 to connect these 3 terminals of controller with my wind output wires?
(1) To AC wind turbine, anyone of three wires from wind turbine can be connected with any terminal of wind in your controller For they're non-electrode;
(2) To DC wind output is 2 wires(Positive Negative) , you could connect them with any wind terminals in your controller
3 many connecting methods person can favor when utilizing this controller?
For the wind charging and Solar charging are independent, so user can favor anybody of the ensuing because the connection formula :
(1) Only join wind turbine generator to fee battery;
(2) Only join photo voltaic to price battery;
(3) Connect wind turbine and solar to build a hybrid wind solar energy system to fee battery
4 i solely connect wind turbine as generator to charge battery when i get my controller?
Yes, you can to accomplish that But for the main aim of such controller designs for low strength consumption equipment charging, such as: road lighting and monitoring and so forth So establish hybrid wind photo voltaic components can get better charging warrantly Because most of low-power wind turbine is installed in or near to the residential place, wind technology efficiency is not high because of the low wind velocity and brief operating time
5 to connect my formula after I get this controller?
We strongly put forward user to put in air swap between all DC and AC input or output Then please activate the breaker/ air swap on this order:
(1) First turn on the breaker between battery and controller;
(2) Second switch on the breaker between wind and controller;
(3) Third activate the breaker between DC load and controller;
(4) Final switch on the breaker between Solar and controller
Remark: If you prefer to shut down the system, please continue within the opposite order as above
6 i have to set up extra mild preserving for my power system?
Yes, it's best approach to install additional gentle conserving
7 the controller to operate when the wind velocity is just too fast?
(1) For the output voltage or current from wind generator which beyond the security range, the controller will routinely switch on the brake and step by step slow down Meanwhile, the sell off load will begin to eat excess recent immediately
(2) But when encountering strong storm weather, corresponding to hurricane, typhoon, it is strongly commended to put down the wind turbine straight
eight to design hybrid wind solar power system voltage, 12V, 24V, 48V, which one is better to me?
(1) The method voltage is similar to the voltage of the battery pack;
(2) Once the battery voltage designed, the enter voltage from wind turbine generator and solar modules needs to be matched according to the specifications within the parameter table;
(3) Therefore, customers can not simply suppose that extra decrease voltage design, can get more greater charging current but ignore that the excessive current has exceeded the working differ of the controller or battery to damage the controller or battery
9 designed in MPPT
(1) Wind turbine charging followed booster MPPT technology, which makes under low wind speed, the Wind turbine&;s electrical energy can nonetheless be used;
(2) In the high wind velocity or the Wind turbine of energy is past the scope of the battery and load absorption, the controller directly released the step-less unloading function,protection formulation of the package
10 the wind generator is connected to the controller, why its running speed becomes very slow immediately?
(1) The battery reaches the floating voltage;
(2) The rated output voltage of the wind generator is far increased than the battery, since the speed of the wind generator is proportional to the output voltage, and the voltage is dragged by way of the battery, so the rate will be very low;
eleven wind generator sell off load when the controller exhibits small current?
The controller preserve the all method via detecting battery voltage, charging latest and temperature and so on When the battery attain floating payment voltage or high temperature, the wind generator will unload load, no matter how much charging latest it is
12 there displaying no charging latest on LCD screen however the wind is running or the solar is working?
Only when the input voltage of solar panels or wind generator larger than battery then it will charge the prerequisite is that the battery is correctly linked and not completely charged
13 the LCD does not mild up?
For the ability of controller comes from battery or photo voltaic when its working So please check solar input or battery as follows
(1) The battery didn&;t connect the controller well, please check the battery and controller connection
(2) Battery is damaged, please examine and replace the battery;
(3) In good solar day the solar input is workable or not
