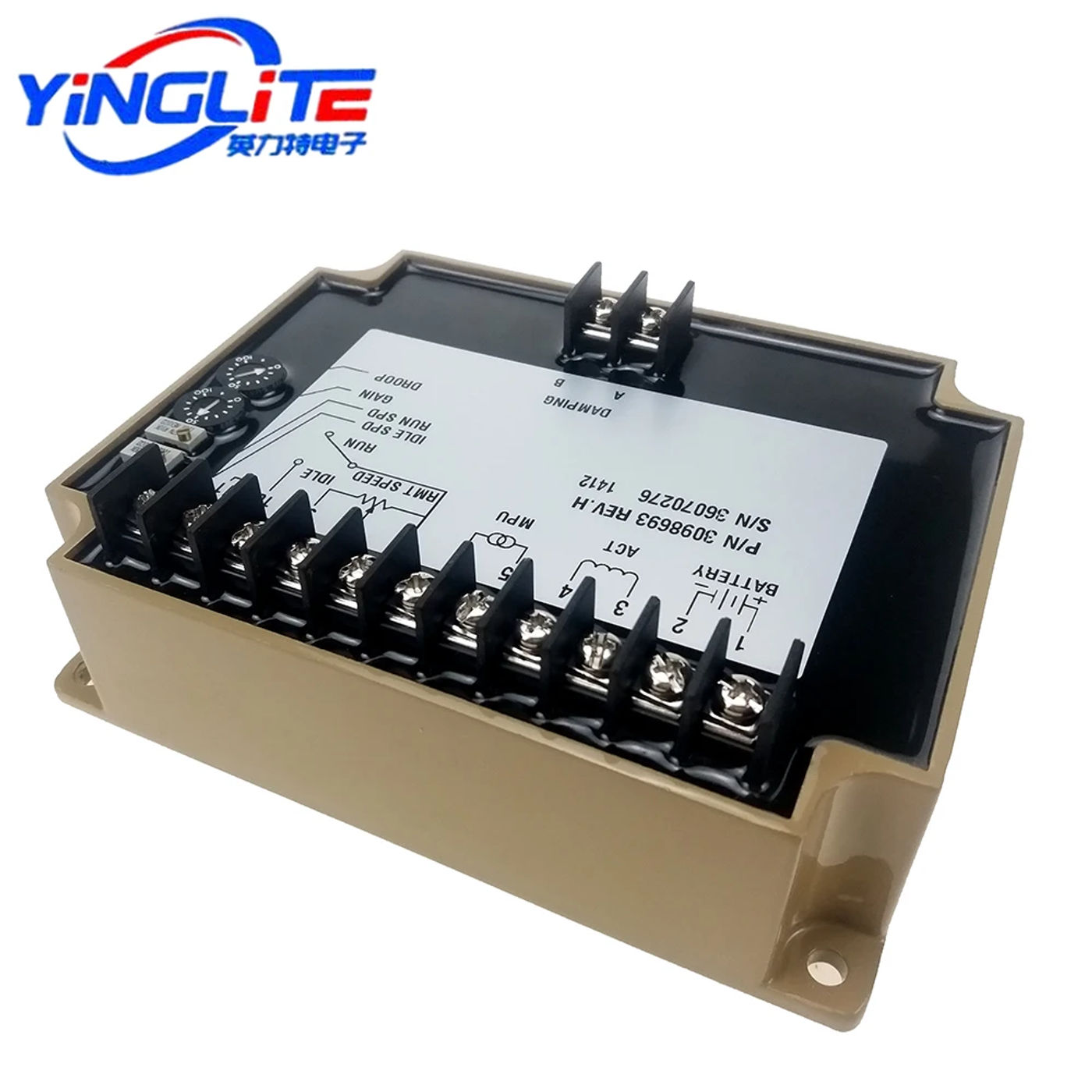

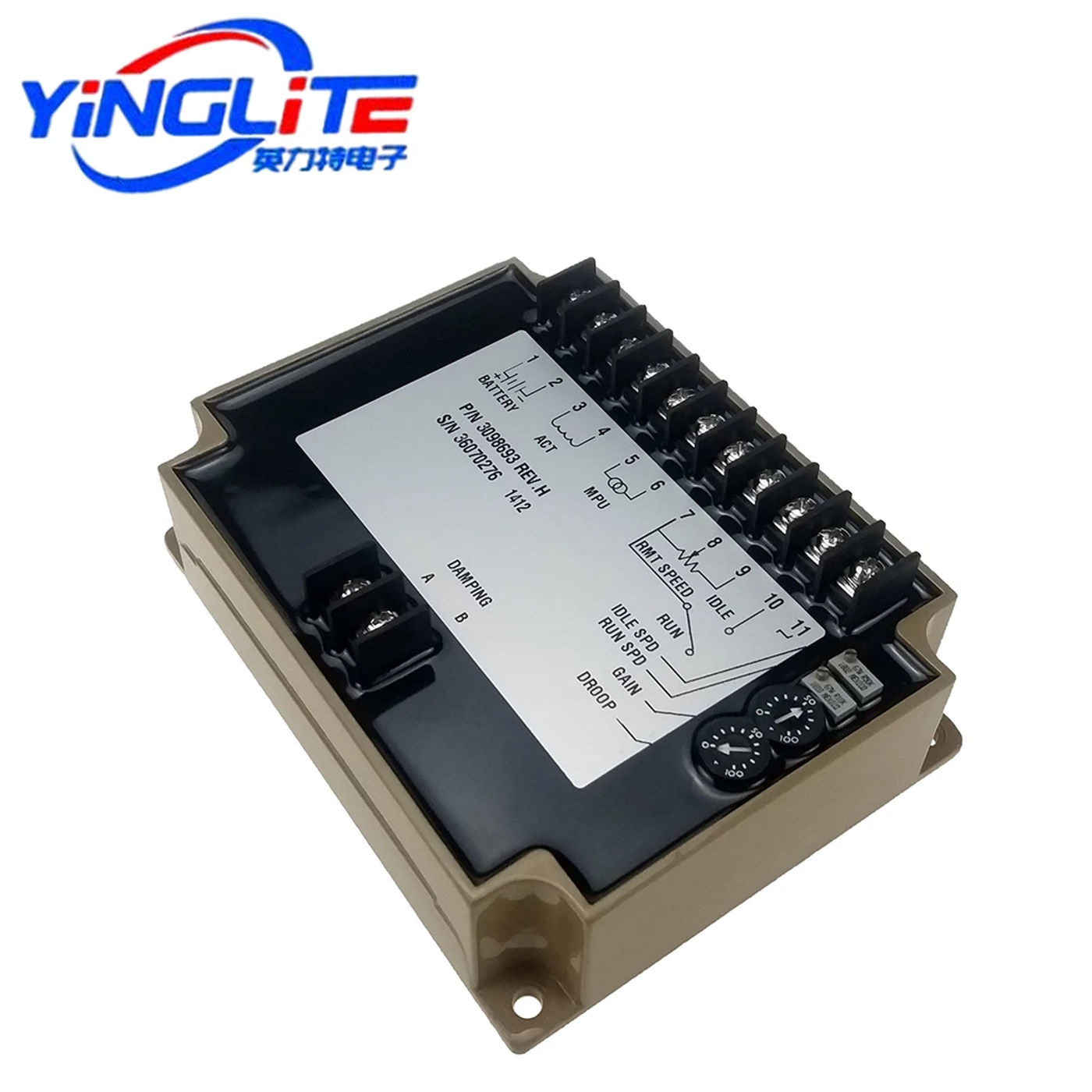

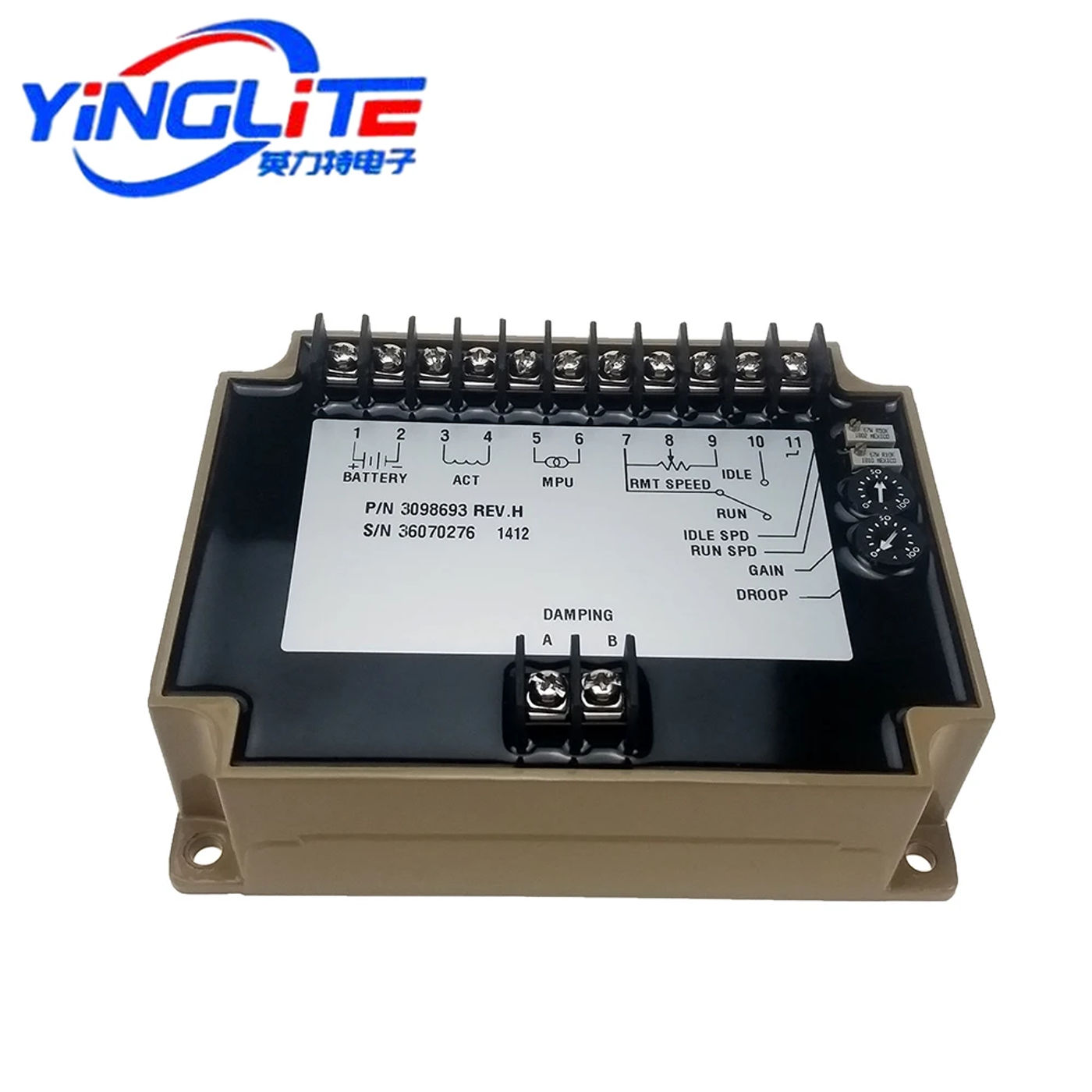

• 3098693 Genset Governor Slow Start Controller Module Remote Module Product Description 3098693is a engine velocity controller designed via all digital device, it can instant and exact response to brief load modifications It has a large velocity control range For these controllers, separate circuits allow modifications of proportional, integral and derivative values These parameters all interact to supply a control that leads to fast and stable engine reaction to load adjustments whereas conserving precise speed law of diesel FEATURE 3098693 RPM Stability <±0% Speed Range 1KHz ~ 6 Thermal Stability Max ±0% IDLE Regulation 260 ±20Hz DROOP Regulation Minimum 15Hz ±6Hz/ 1 Amp Maximum: 400Hz ±75Hz/ 1 Amp External Speed Regulation ±200Hz (with 1 KΩ connected) AUX Input Sensitivity 148Hz / 1V, ±10Hz Impedance 1MΩ Working Temp Range -40 ~ 85 °C Working Humidity Range Maximum 95% Stocking Temp -55 ~ 92 °C Shocking 20-100HZ 500mm/Sec Voltage 12 or 24V Grounding Pole Negative pole Power Supply 40mA Actuator Continuous Current Minimum 1A, Maximum 4 Signal 2 ~ 120V RMSlease upload our store and won&;t leave out new products~

•
•
•
•
•
