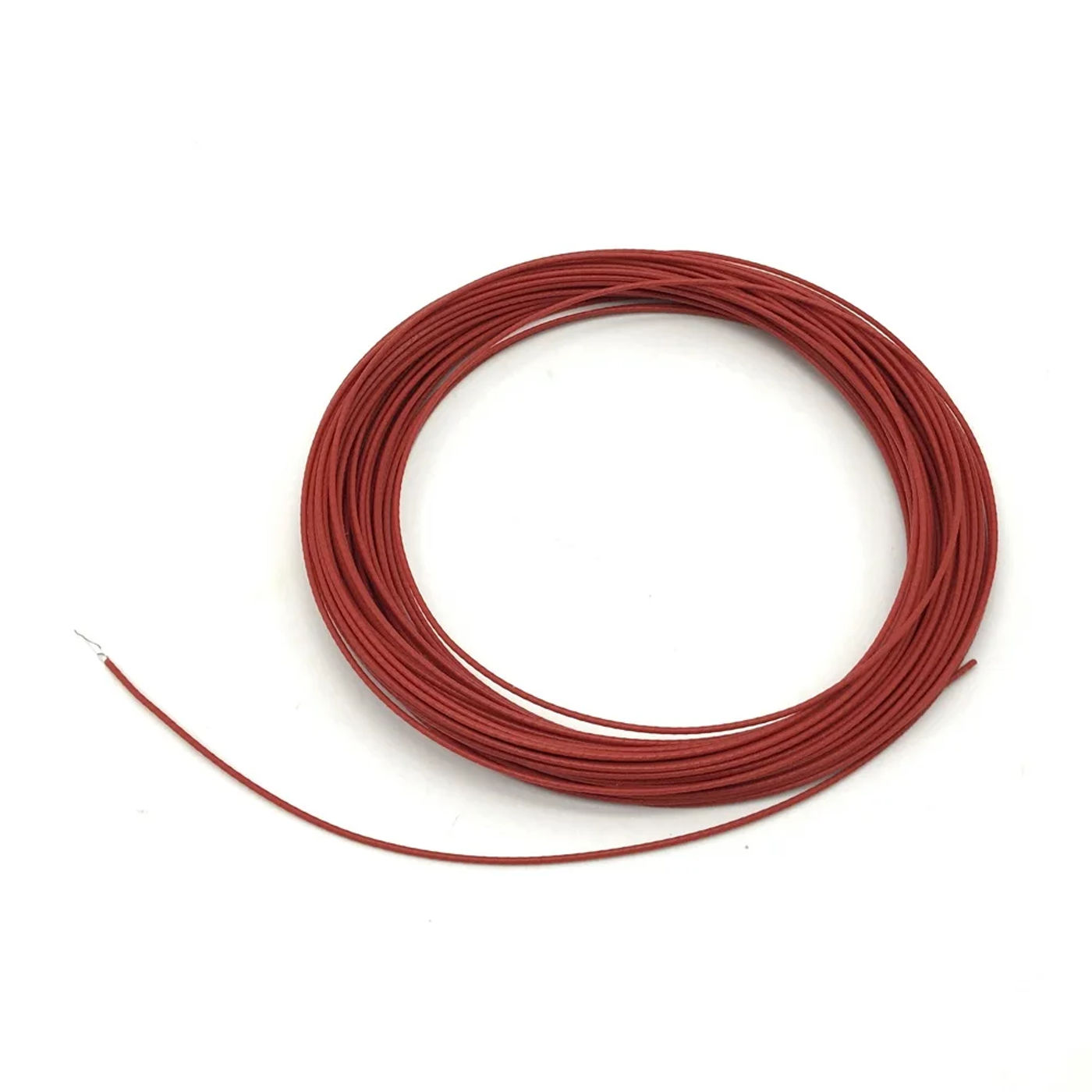

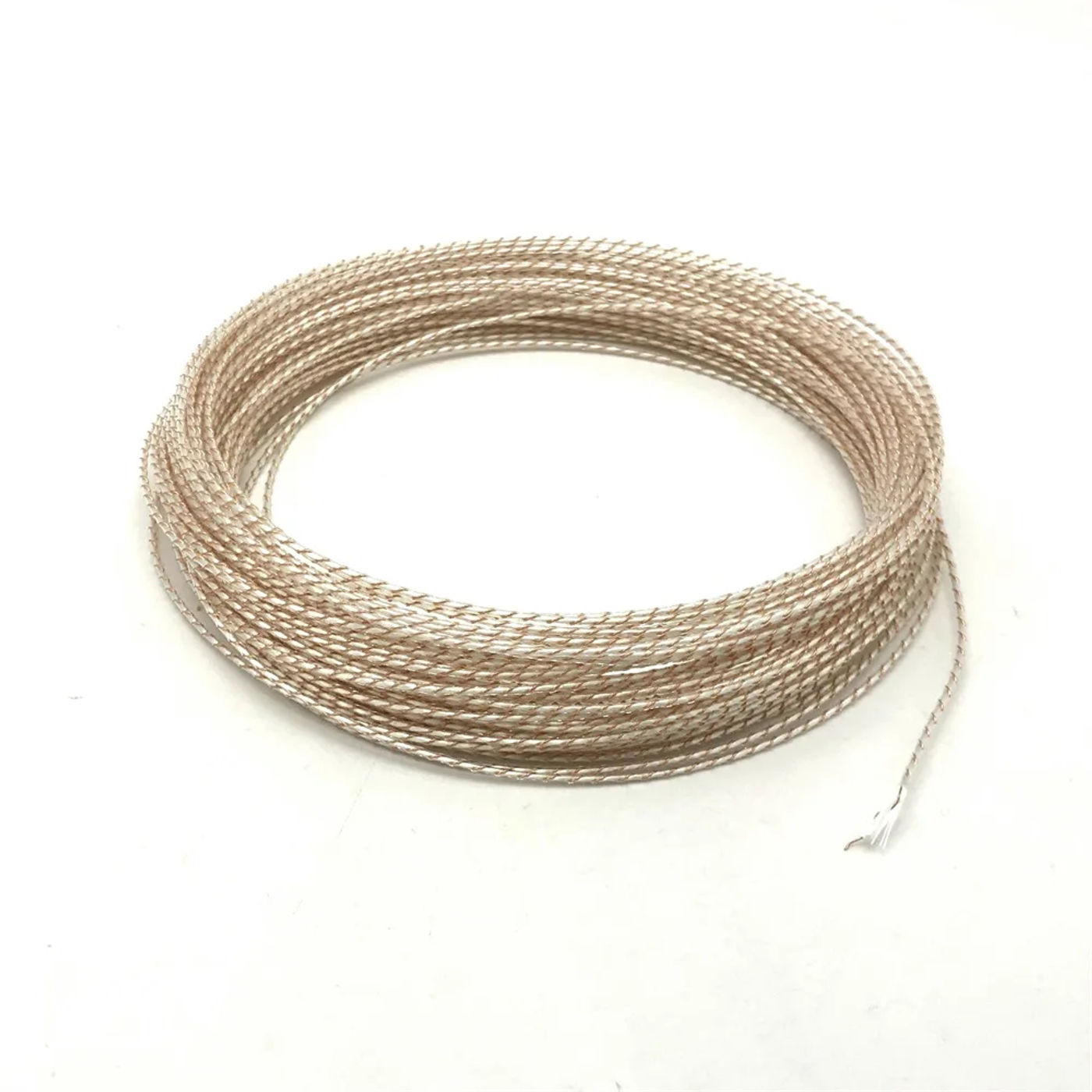

• High Quality Electric Heating DIY Heated Blansket Steering Wheel Heating Wire, 5V 12V 24V 36V 48V Heating Cable Important Notice: The resistance you choosed is resistance according to meter!!! Description: Material of heating element: Nickel Chrome, copper constantan of jacket: Fluoropolymer(resistance two hundred degrees, strong acid and alkali resistant oil resistant, non aging, high voltage arc resistance, flame retardant etc)Max enduring temperature: 250 C degrees resistance: 0, 1, 1, 3, 4, 5, 8, 10, 15, 20, 25, forty Ohm/m, please desire in line with your need: 1~1: send at randomHow to calculate the power:Power=Voltage*Voltage/(Resistance*Length)For example:Using 2m 5 Ohm/m cable on 12V, the flexibility is:12V * 12V / 2 meters * 5 ohm = 14/2m=7/mUsing 15m 1 Ohm cable on 24V, the flexibility is:24V * 24V / 15 meters * 1 Ohm=27/15m=1/mQuestion:What is the ability of the cable? And what's heating temperature?Answer:1 The power of the cable is based on the length that you use, you could possibly calculate the power per above examples Power = 5W/m, the temperature is about 30~40C degrees;Power = 10W/m, the temperature is set 40~50C degrees;Power = 15W/m, the temperature is about 50~60C degrees;Power = 20W/m, the temperature is set 60~70C degrees;Please be aware that here is in your reference, now not exactly appropriate thanks to different examine conditions you don&;t know which resistance to choose, please contact us and supply the data of your application:1 The working voltage The heating temperature that you want to heat up The size of using according to piece cord applications:suitable for makingcar warm seat and steerage wheel heating,refrigerator, air conditioning, heating USB sneakers particular heating wire, electrical blanket, towel rack, foot massager, electric cooker, puppy pad, electrical heat clothing, window heating, pipe freeze protection, electric slimming belt, pet incubator, health care equipment Frozen and defrost equipment: due to the different manufacturing batch, the colour may be sent at randon, the standard are same, solely the adaptation of the colour Thank you

•
•
•
•
•
