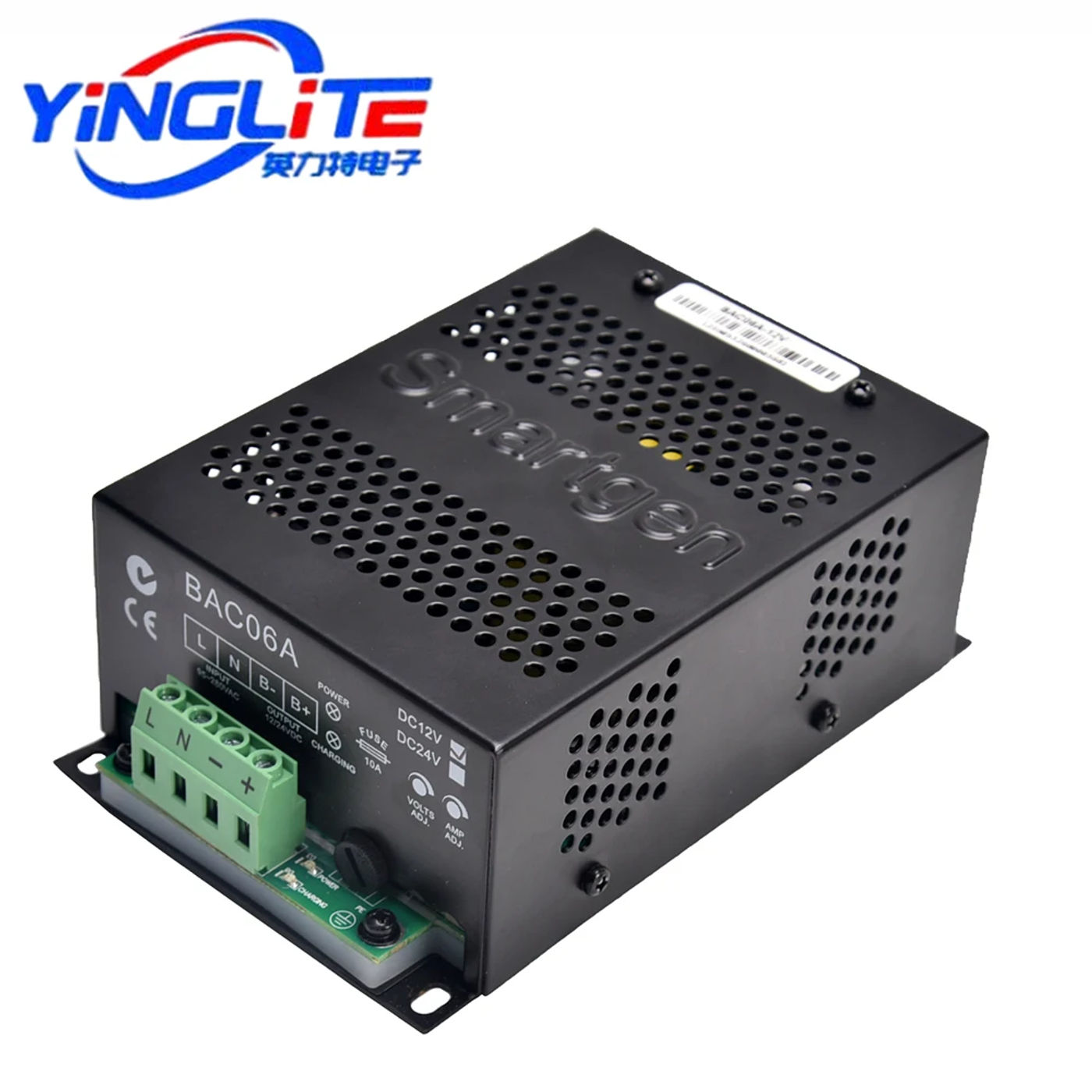

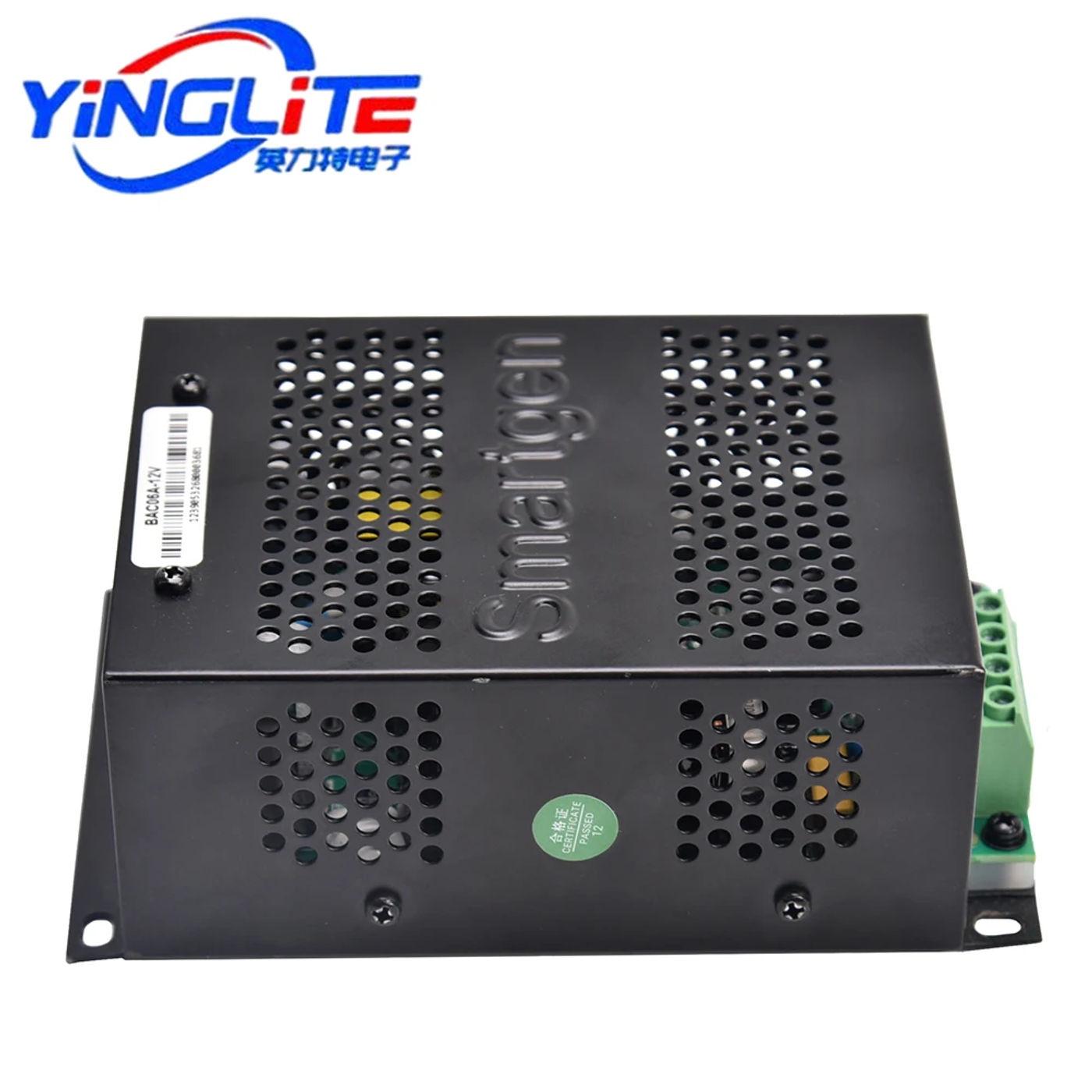

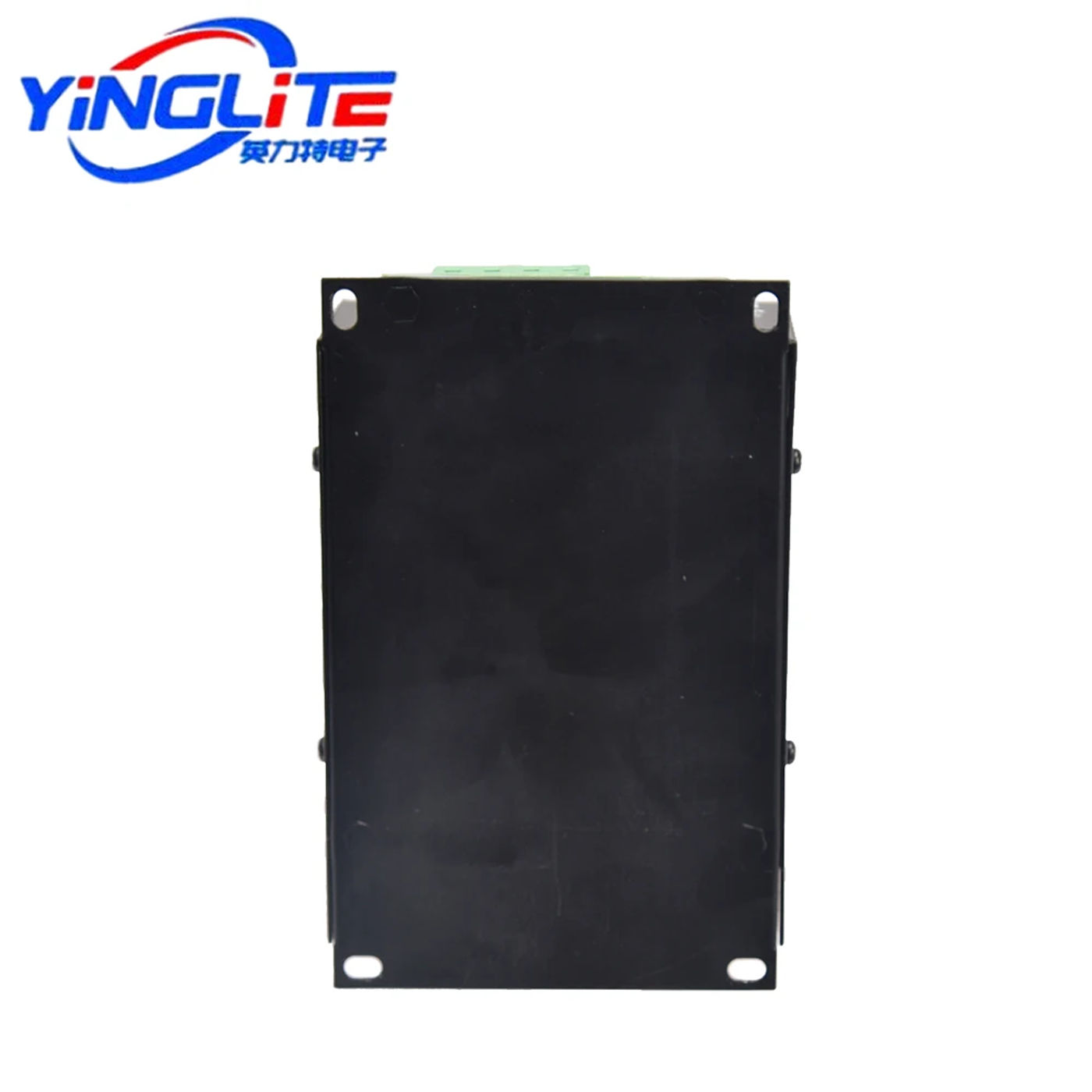

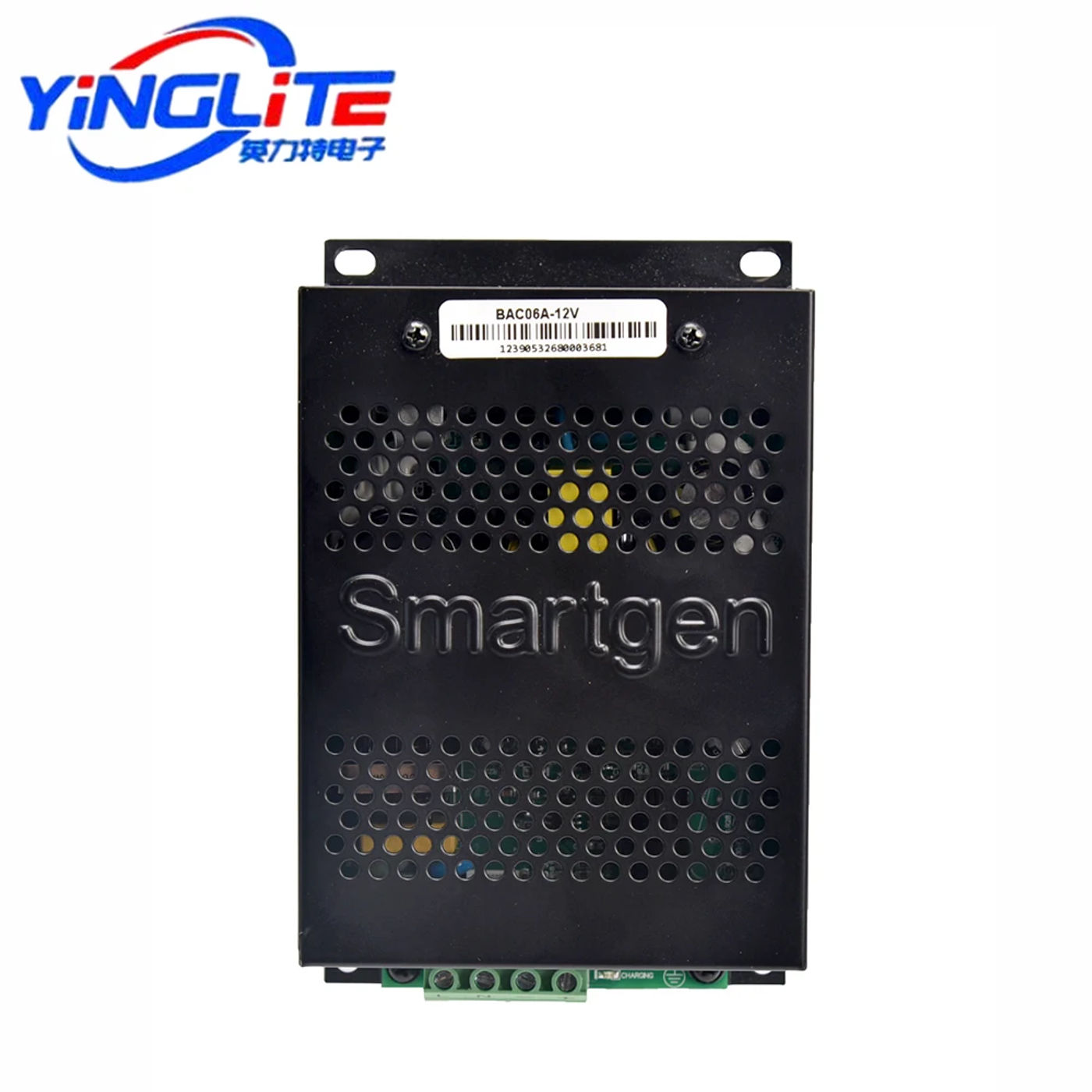

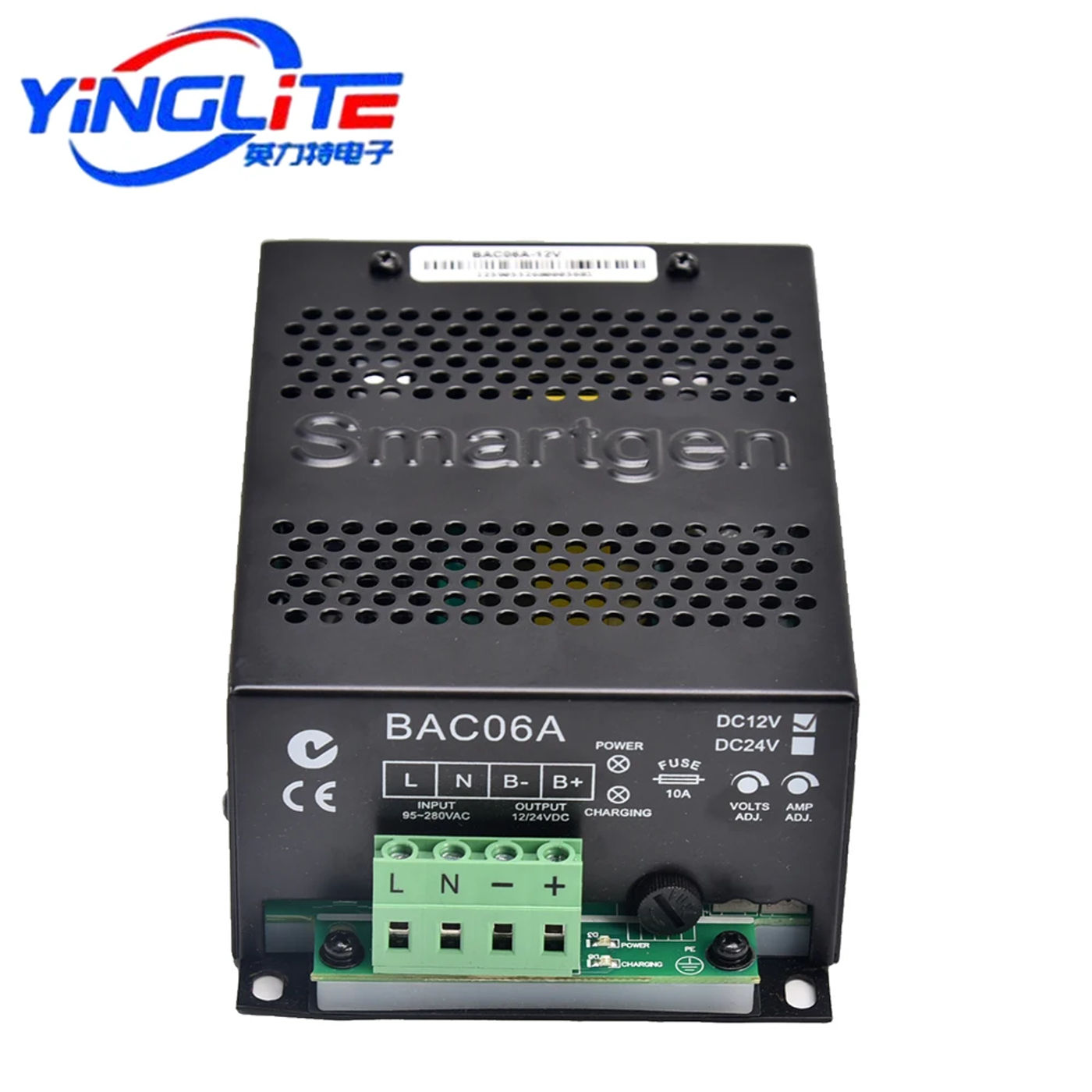

• Smartgen BAC06A 6A 12V/24V Diesel Generator Intelligent Float Battery Charger1、OVERVIEW BAC06A switching battery charger adopts the newest swap energy components, which is designed for charging lead-acid beginning battery according to its property The charger is acceptable for lead-acid battery waft fee The maximum payment recent for 12V charger is 6A; the maximum payment current for 24V charger is 3A 2、PERFORMANCE AND CHARACTERISTICS Characteristics are as below: — Designed in switching power structure, big selection of AC voltage input, small volume, mild weight and high efficiency; — Two-stage charging formulation (constant latest in the beginning after which fixed voltage), totally pondering charging property of the lead-acid battery, can keep away from overcharging and make bigger the battery lifestyles to the fullest; — With short circuit and opposite connection protection; — Charging voltage and latest could be adjusted by way of potentiometer on site; — LED display: Power indication and charging indication; — Horizontal type for installation of BAC06A, smooth to install; 3、SPECIFICATION Battery Voltage：12V/24V Max Charge Current：6A/3A Charge Voltage Range：(13~14)V/(26~29)V Charge Current Range：(3~7)A/(1~3)A AC Voltage：(95~280)VAC AC Frequency：50 Hz/60Hz Power Consumption：120W/115W No-Load Power Consumption：Less than 3W Efficiency：More than 80% Working Temperature：(-40~60)°C Storage Temperature：(-40~85)°C Weight：0 Case Dimensions：143 mm×92 mm×55mm BAC06A usual BAC06A generic

•
•
•
•
•
