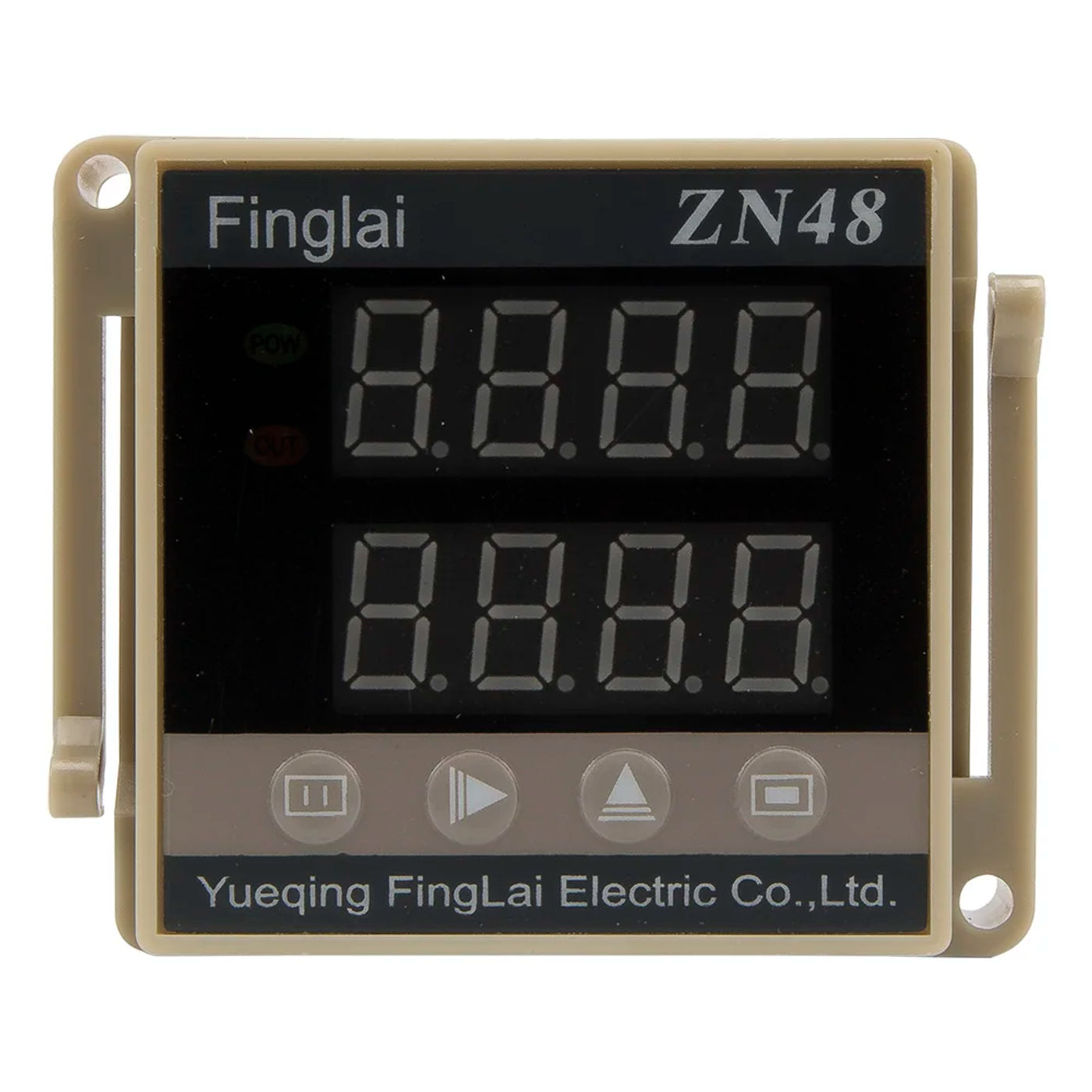

• ZN sequence electronic time relay counter▇ Model quantity and parameters Model number Input sign External dimensions Perforate dimensions Related product ZN48 Contact, sensor 48x48x91mm 461/0x46 1/0 mm Visiting ZN72 Contact, sensor 72x72x115 mm 681/0x68 1/0 mm Order ▇ ZN48 counter model quantity legendZN48Parent Model NumberSupply voltage-220VAC: 220VAC-110VAC: 110VAC-24V: 24V-12V: 12V-380VAC: 380VAC▇ General Model quantity ZN series Supply voltage 36, 220, 380VAC 50/60 Hz; 12VAC/DC, 24VAC/DC Operating mode Single put off (Up): 99/9999s//9999min/99min59s/99h59min out code: 1-6 Single delay (Down): 99/9999s//9999min/99min59s/99h59min out code: 1-6 Double delay (Up): 9999s/9999min/99min59s/99h59min out code: 1,2 Double put off (Down): 9999s/9999min/99min59s/99h59min out code: 1,2 Accumulation (reset immediately): 99h59min59/999h59min59s/9999d23h59min out code: 1-6 Accumulation (reset after 8s): 99h59min59/999h59min59s/9999d23h59min out code: 1-6 Frequency: 9999Hz/999 out code: 1,3 Rotation: 60-9999RPM out code: 1,3 Frequency/Rotation: 0-9999 out code: 1,3 multiple: a,b Reversible count: 0-9999 out code: 1,3,5 Reversible count: 0-9999 out code: 1,3,5 multiple: a Reversible count: 0-99999999 out code: 1,3,5 Reversible count: 0-99999999 out code: 1,3,5 multiple: a Output mode 1 When strength on, the counter work, attain or exceed the set value, relay activate 2 When strength on, the counter don&;t paintings (can make it paintings by reset button or reset terminals), attain or exceed the set value, relay turn on three When strength on, the counter work, reach or exceed the set value, relay switch off four When energy on, the counter don&;t paintings (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch off 5 When power on, the counter work, attain or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, initiate work back 6 When energy on, the counter don&;t paintings work (can make it paintings by means of reset button or reset terminals), reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, start up paintings back Input Signal Contact, sensor (NPN type) Max counting pace 10KHz Control kind SPDT Contact rating 5A@250Vac, 7A@24Vdc Mechanical existence 1x106 Electrical lifestyles 1x105 Power intake 3W max Setting method Dial switch Indication system 8-segment 4-digital show Counting error ≤1 Reset time ≥0 Power reset ≥1s Dielectric energy 2000Vac, 50/60Hz for 1min Insulation resistance 100MΩ min at 500 VDC Matched sensor NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn Operating temperature -10 to 50 °C Operating humidity 30-85% RH max, non-condensing Alias name ZN sequence time relay, counting relay, frequency meter, tachometer ▇ ZN48 counter connected products No Model Number Supply Voltage Related Product 1 ZN48-220VAC(-110VAC, -24V, -12V, -380VAC) 220VAC; 110VAC; 24V; 12V; 380VAC Visiting Product manual: ZN sequence digital time relay counter manual: www/att/comp/fl-en/relays/counters/ZN/ZN_en:If you are convinced to our product and service, please depart a five star positive feedback, we very recognize it If not, please contact us first, we can try to solve your challenge
