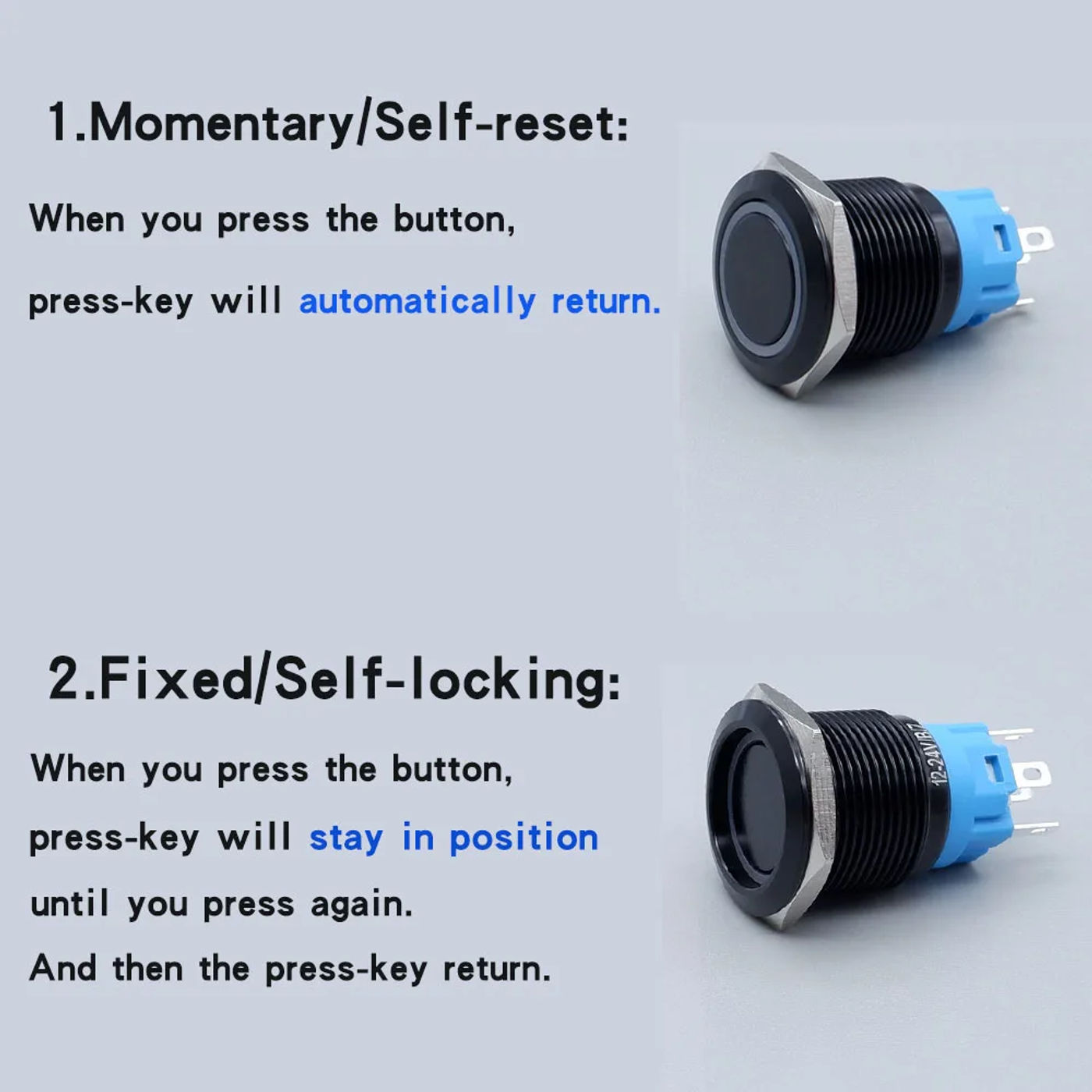

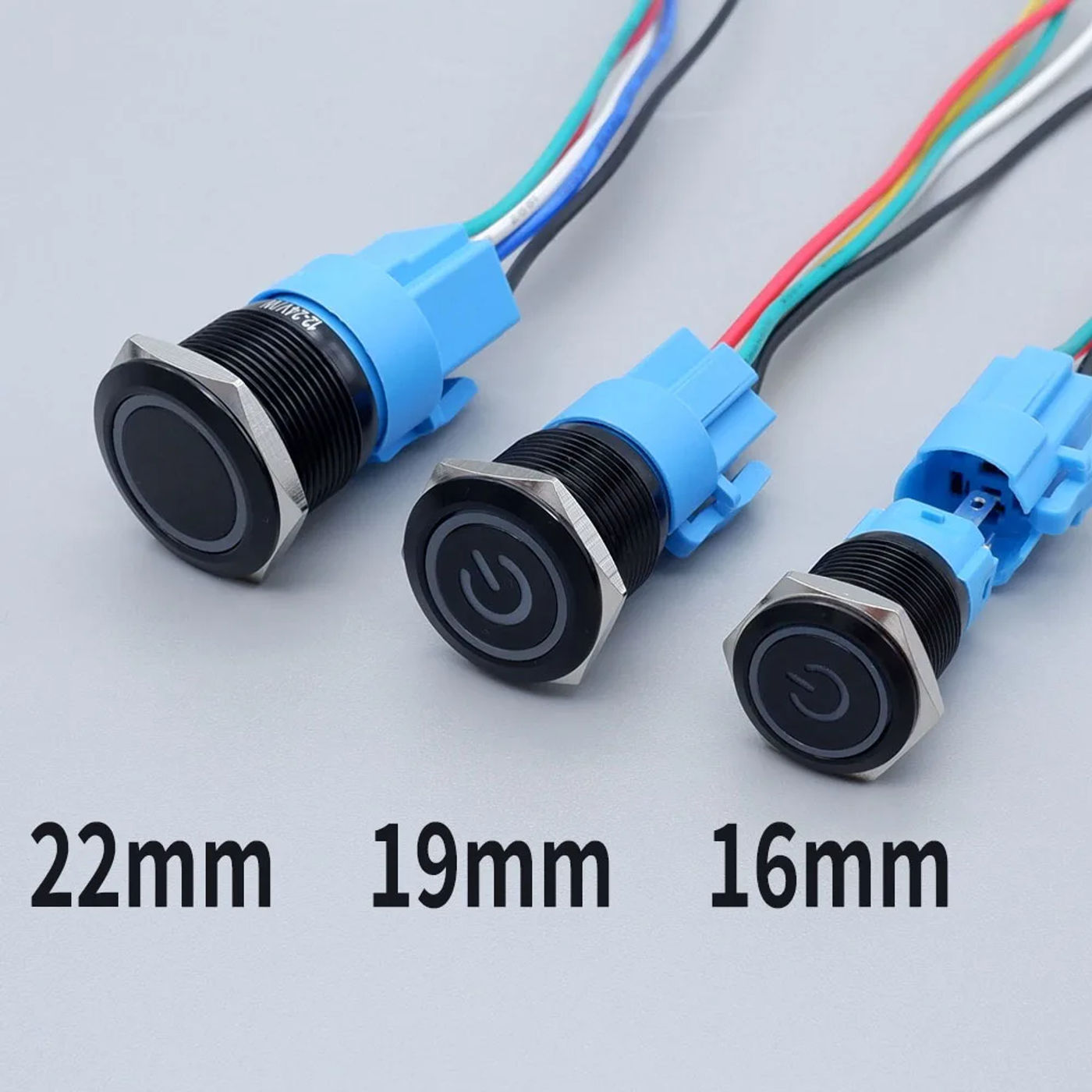

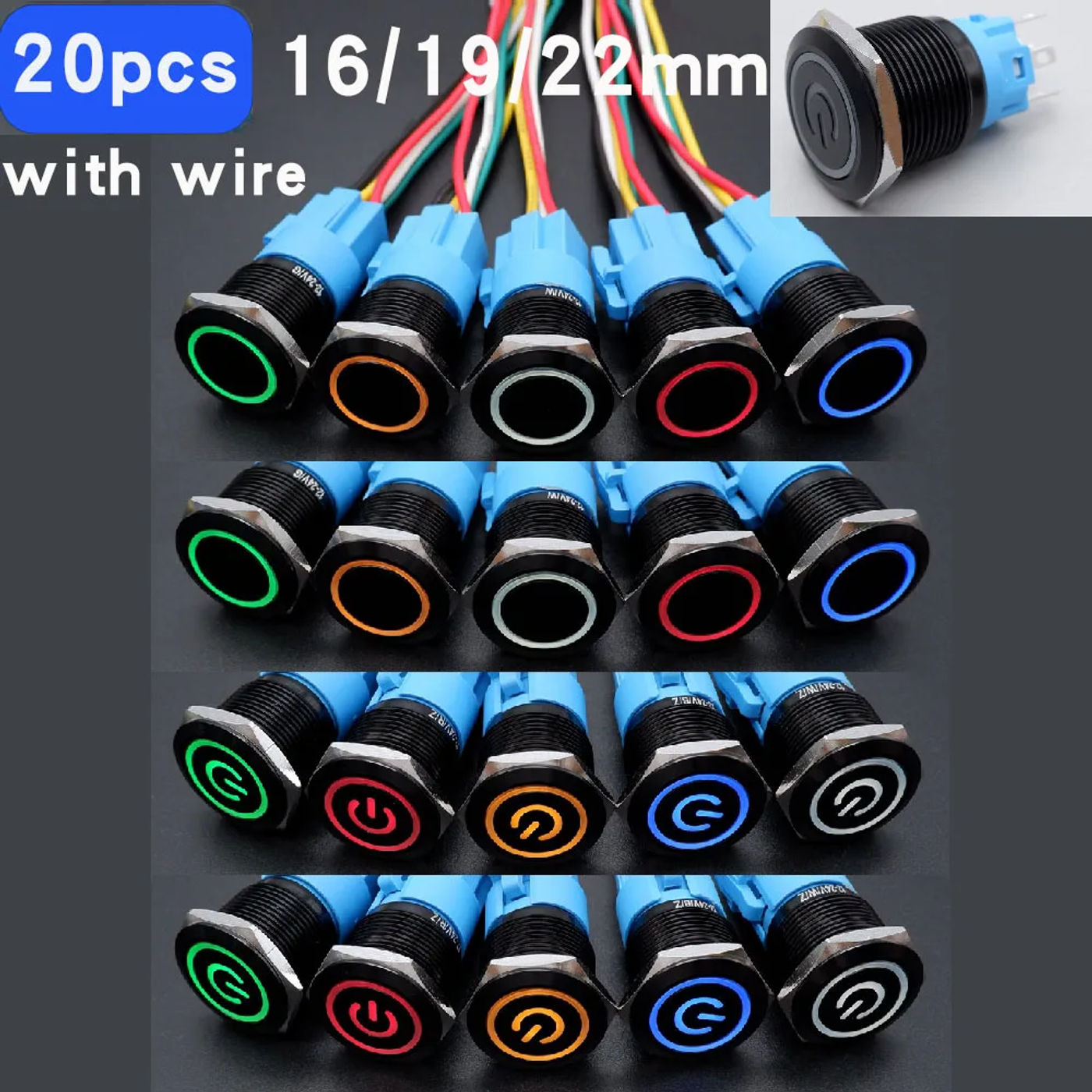

• Including: 20 pcs switches + 20 pcs connectors Switch type:Metal Switch Button Hole diameter:16mm/19mm/22mm Led color:Red/Yellow/Green/Blue/White Shell color:Black Operation method:Momentary self-reset/Latching self-locking Led Voltage:3-6V/12-24V/110-220V Maximum current:3A Waterproof level:IP65 Contact type:1NO1NC Difference between Momentary self-reset and Latching self-locking: 1/Self-reset: When you press the button, press-key will robotically return(Like a automobile horn change it-power on, release it-power off) 2/Self-locking: When you press the button, press-key will dwell in position until you press again then the press-key return(Like a light switch it-power on, press it again-power off) Manual measurement, there may be a little error Wiring Diagram(16/19/22mm) 1、The button turns the LED gentle on and off，the circuit is alway open unless press the button 2、LED lights are continuously on，the circuit is alway open unless press the button 3、 The button turns the LED gentle on and off，the circuit is alway shut except press the button 4、LED lighting fixtures are continuously on，the circuit is alway close unless press the button Certificate authentication

•
•
•
•
•
