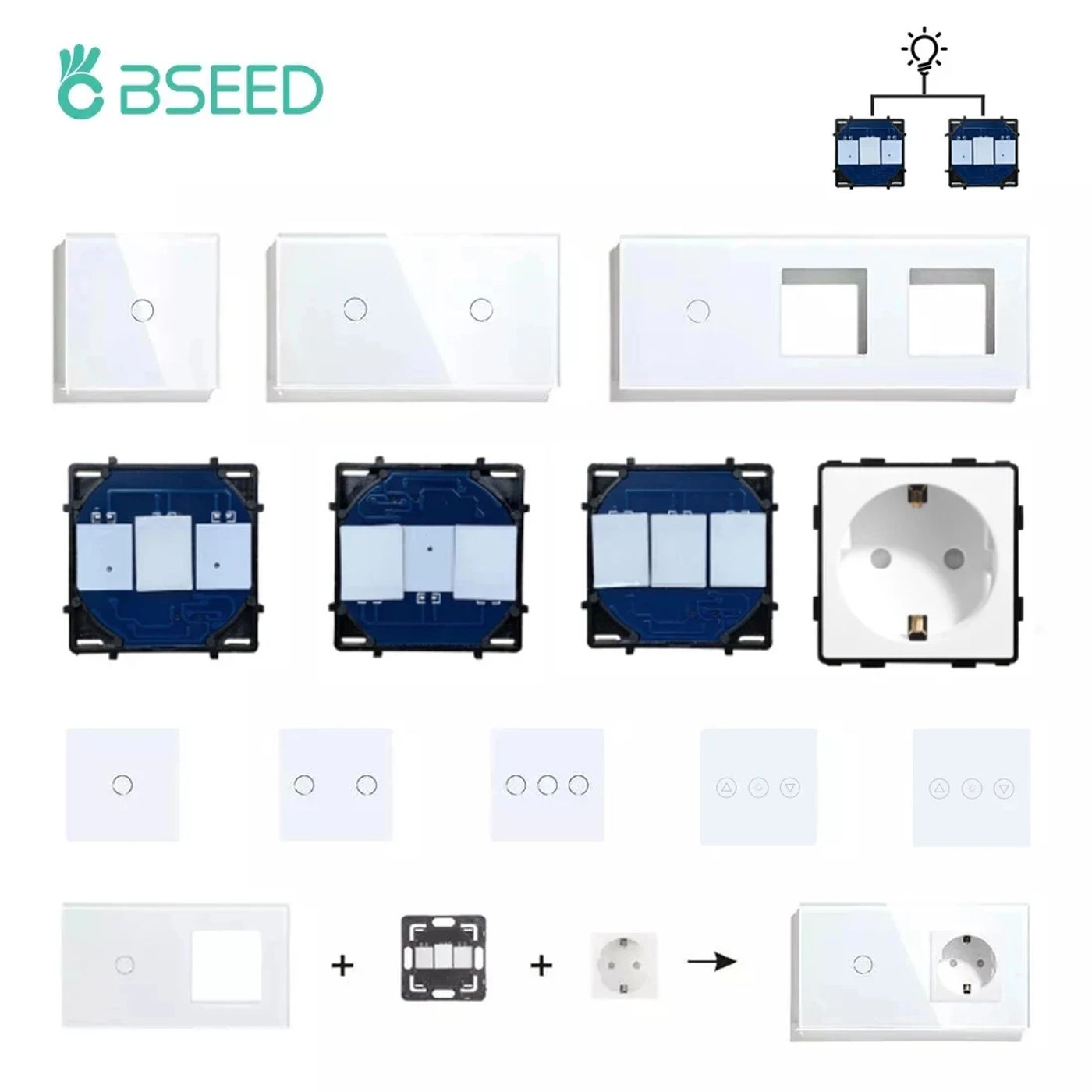

• BSEED 1/2/3Gang Touch Light Switches 1/2/3Way Function Parts EU Wall Socket USB Type-c Plug Glass Panel DIY Part Free Combine Notice:☆Our 1/2/3gang 2way change has updated, they couldn&;t work with the previous ones from your preceding orders before June 1st 2024, please be sure you purchase 2-3pcs together☆The glass panel is just a panel and doesn&;t involve switch operate keys ,Function Keys need to be purchased separately☆The Metal Plate is incorporated in the panel 【Touch Light Switch】 Introduction: Rated Current: 10A Rated Voltage: 110V-240V AC 1wayLoad: 3-300w/Gang, 500W Total 2wayLoad: 3-800w/Gang, 2000W Total Capability allowance: -15%~+ 10% Working temperature: -20°C~ +70"C Relative humidity: 10% -93%(non-condensing) Operating frequency: 50/60Hz Wireless consumption: ≤0 Certifications: CE, BS, RoHS, GCC, FC Life time: 100,000 times Wire:NO need Neutral Wire WIFI:No wifi operate Back Light: ON-light Blue OFF-Weak Blue (can not be canceled) Moduel shape:Round 【Socket】 Introduction: Socket Type :EU Standard (not sensible )Current:16ANormal USB Current :2 (For Double)20W USB Current 3 (Four Double)Working Voltage:110 V-250 VUSB Voltage:5VCertifications:CE, BS, RoHS, GCC, FC Wire:with ground wire Module shape:Round Module Note:A Regular Touch Switch can only paintings with another Touch Switch and will not paintings with Mechanical Switches or Smart Switch 1Way can management light from one position,2way can paintings with identical switches from two or three positions Bseed 2 manner Touch Switch can solely connect with another Bseed 2-3 way touch swap 3 need to bring to an end the ability and through the installation 2Way Switch Matching Steps: 1 Press The Master Switch (Connectig with mild wire) Until The Backlight Flashing the Slave Switch A and B Slightly for one moment to make the flashing quit then the matching is accomplished 1&2 step for matching moment or third button

•
