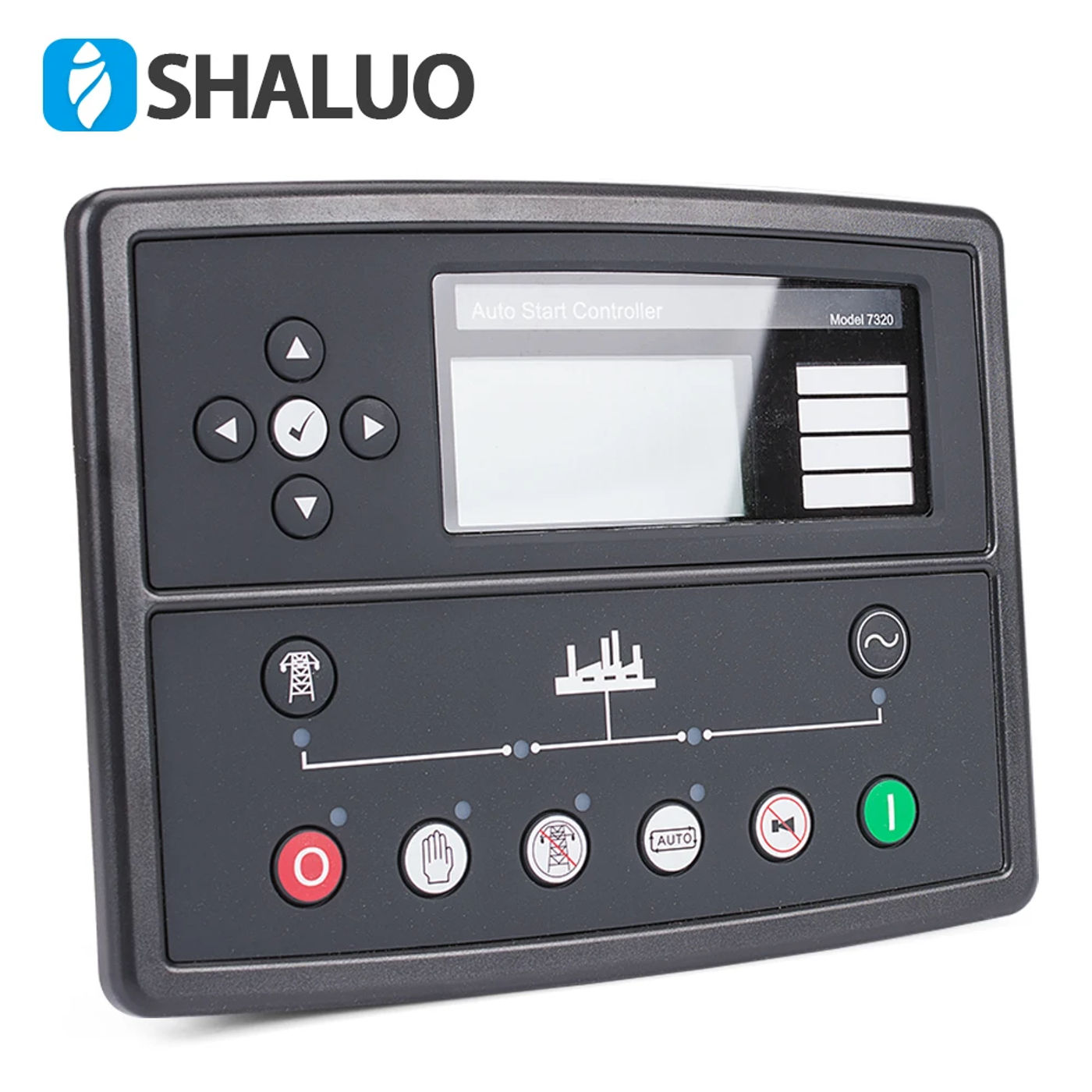

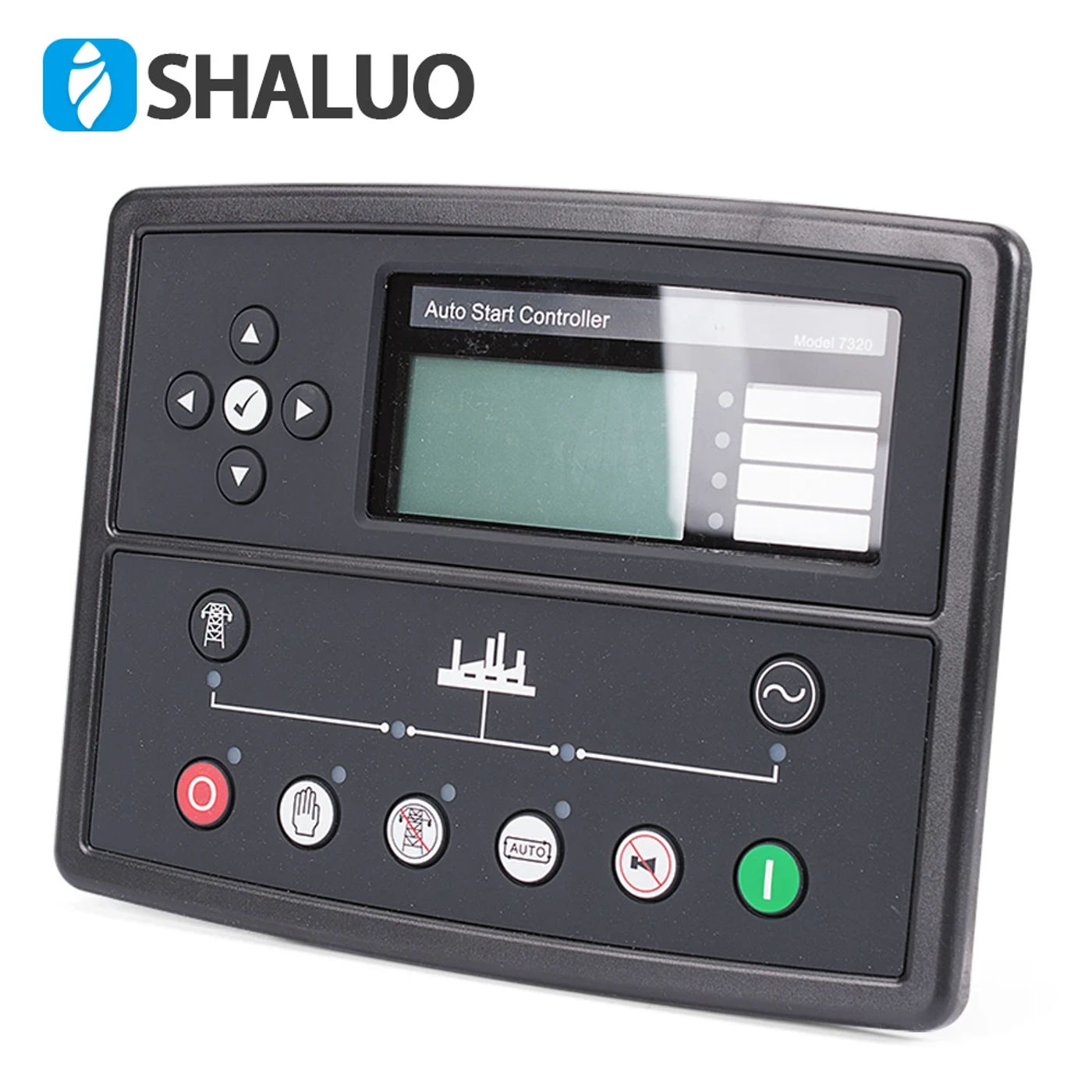

• 7320 auto delivery module generator controller led controller with english handbook Product Description The 7320 is an Auto Mains (Utility) Failure Control Module compatible for a good selection of single, diesel or gas, gen-set functions an in depth variety of engine parameters, the module will show warnings, shutdown and engine repute information at the back-lit LCD screen, illuminated LEDs, distant PC and via SMS textual content alerts (with exterior modem) The 7320 will display screen the mains (utility) delivery and involves USB, RS232 and RS485 ports in addition dedicated terminals for components expansion Feature: 4-Line back-lit LCD text show Five key menu navigation Front panel modifying with PIN protection LED and LCD alarm indication Customisable fame screens Power save mode Support for as much as three distant demonstrate items nine configurable inputs 8 configurable outputs Flexible sender inputs Configurable timers and alarms 3 configurable maintenance alarms Multiple date and time scheduler Configurable occasion log (250) Control common sense centers Easy access diagnostic page CAN and Magnetic Pick-up/Alt sensing Fuel utilization monitor and occasional gasoline alarms Charge alternator failure alarm Manual speed control (on like minded CAN engines) Manual gas pump control Engine exerciser ?Protections disabled? feature kW overload protection Power tracking (kW h, kV Ar, kV A h, kV Ar h) Load switching (load shedding and dummy load outputs) Automatic load move Unbalanced load protection Independent Earth Fault day out USB connectivity Backed up genuine time clock Fully configurable via Configuration Suite PC utility Configurable exhibit languages Remote SCADA tracking via Configuration Suite PCsoftware User selectable RS232 and RS485 communications SMS Messaging (additional external modem required) Additional show monitors to assist with modem diagnostics II: 132 x sixty four pixel ratio demonstrate for readability Real-time clock gives accurate occasion logging Multiple date and time scheduler Set upkeep intervals can be configured to maintain optimum engine performance Ethernet communications (via860/865 modules), presents stepped forward remote tracking at discount Modules would be included into constructing management programs (BMS) Increased input and output growth capability by way of shaluo 7320 Licence-free PC software IP65 ranking (with provided gasket) presents elevated resistance to water ingres III: DC SUPPLY CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous CRANKING DROPOUTS Able to survive zero V for 50 mS, offering delivery become no less than 10 V before dropout and provide recovers to five V This is completed with out the need for internal batteries LEDs and backlight should not maintained throughout cranking MAXIMUM OPERATING CURRENT 340 mA at 12 V, one hundred sixty mA at 24 V MAXIMUM STANDBY CURRENT a hundred and sixty mA at 12 V, eighty mA at 24 V CHARGE FAIL/EXCITATION RANGE zero V to 35 V MAINS (UTILITY) VOLTAGE RANGE 15 V - 333 V AC (L-N) FREQUENCY RANGE 3 Hz to 75 Hz OUTPUTS OUTPUT A (FUEL) 15 A DC at supply voltage OUTPUT B (START) 15 A DC at delivery voltage OUTPUTS C & D 8 A 250 V (Volt free) AUXILIARY OUTPUTS E,F,G,H 2 A DC at delivery voltage GENERATOR VOLTAGE RANGE 15 V - 333 V AC (L-N) FREQUENCY RANGE three Hz to 75 Hz MAGNETIC PICK-UP VOLTAGE RANGE +/- zero V to 70 V FREQUENCY RANGE 10,000 Hz (max)

•
•
•
•
•
