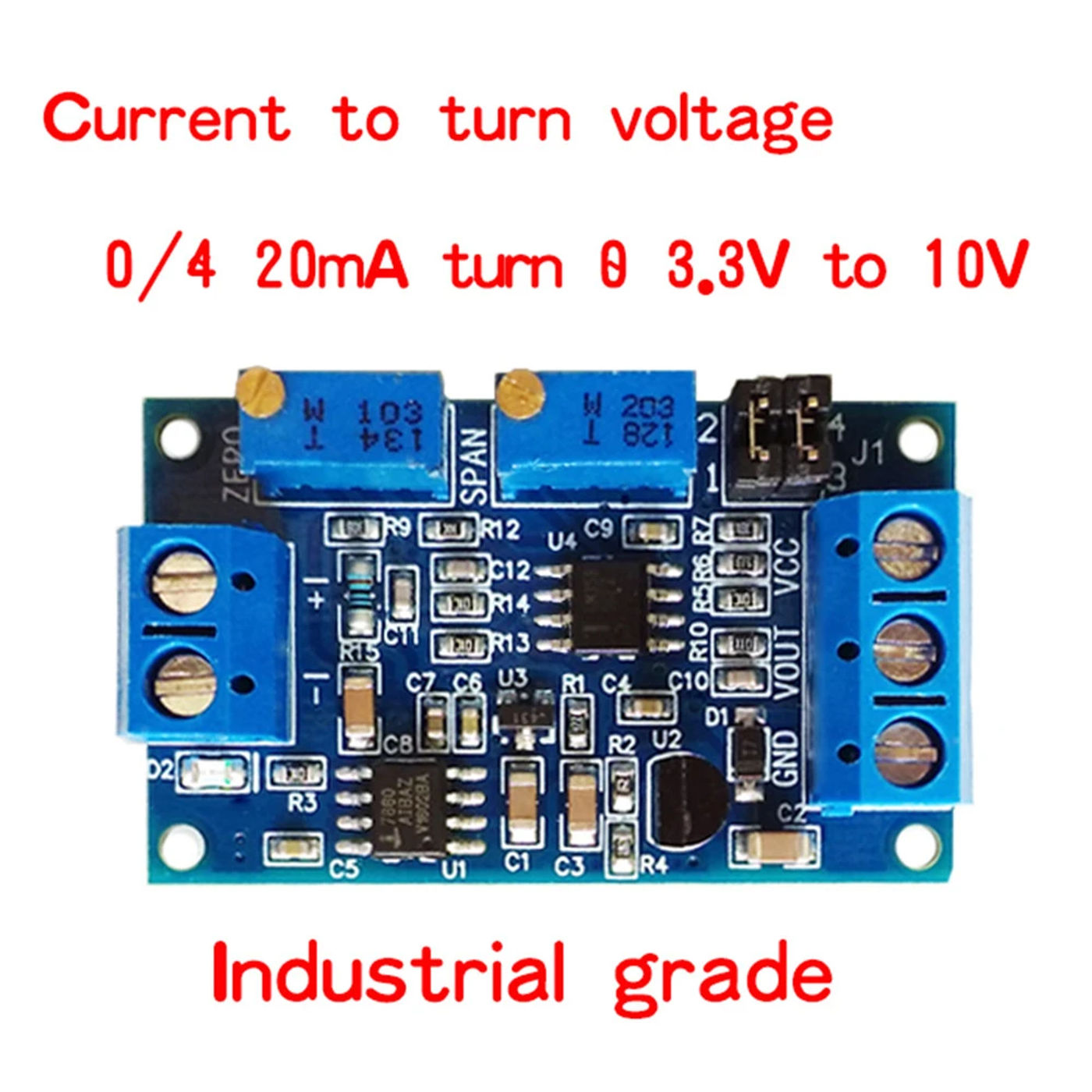

• Description: In the method of circuit signal transmission, the voltage signal will weaken with the rise of the transmission distance, and the current transmission can avoid the weakening of the sign The module is used for the top of recent sign transmission, the signal is switched over into voltage signal for SCM detection The current input helps 4-20mA and 0-20mA, and the voltage output supports 0-3 0-5V 0-10V Highlight: The energy supply voltage vary is wide, and the output voltage supports a number of ranges; Zero and entire vary can be adjusted automatically; High stability, nice linearity, business grade; The sampling resistor of latest sign adopts excessive precision coloration ring resistor, which has high precision, small temperature float and excessive strength Instruction: 1 The module is hooked up in keeping with the definition, the provision voltage is 7-36V (if the output is to 10V, the availability voltage must be more than 12V) 2 After strength on, the D2 light needs to be bright, in any other case please examine the road connection Board with reverse connection protection, reverse connection not burning 3 When the present input is minimal (0mA or 4mA), adjust the ZERO potentiometer, so that the output of VOUT is minimal (0 or different voltage) 4 When the current enter is the utmost (20mA), alter the SPAN potentiometer, so that the VOUT output is the maximum value (3 or 5V or 10V, when the enter is 4-20mA, the minimal output would be 2) According on your needs, select the corresponding vary by jumper cap: 4--20ma:0--2 range: J1 1, 2 feet quick connection, 3, four ft short connection 0--3 range: J1 1, 2 toes off, 3, four toes off 0--5 range: J1 1, 2 toes brief connection, 3, four toes quick connection 0--10 range: J1 1, 2 ft short connection, 3, 4 feet off 0--20ma:0--3 range: J1 1, 2 feet brief connection, 3, four ft quick connection 0--5 range: J1 1, 2 ft brief connection, 3, 4 ft quick connection 0--10 range: J1 1, 2 toes short connection, 3, four feet off Package Included: 1 * Current To Voltage Module zero -20mA/4 -20mA to 0- 3/0 -5V/0 -10V Voltage Transmitter Signal Converter Module

•
•
•
•
•
