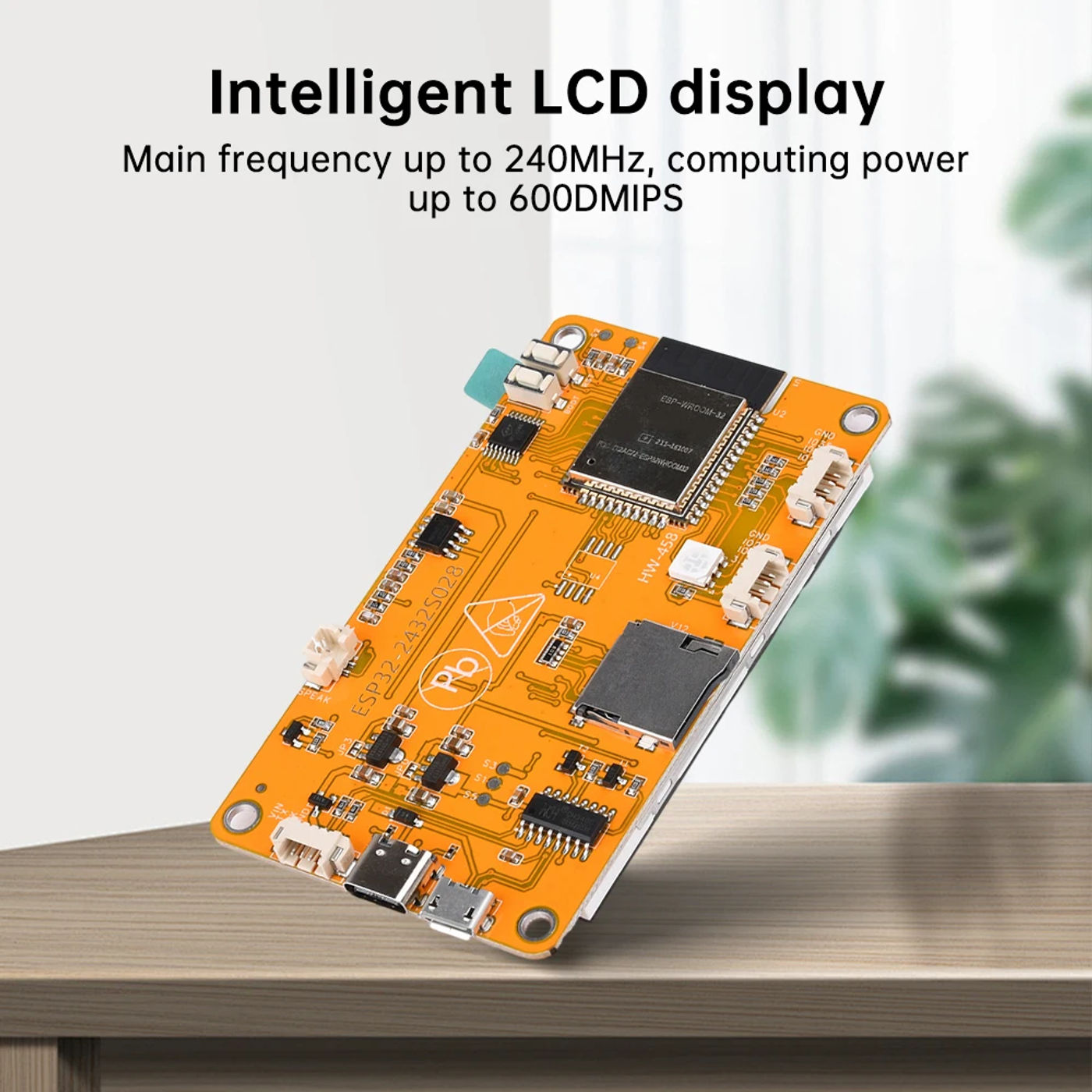

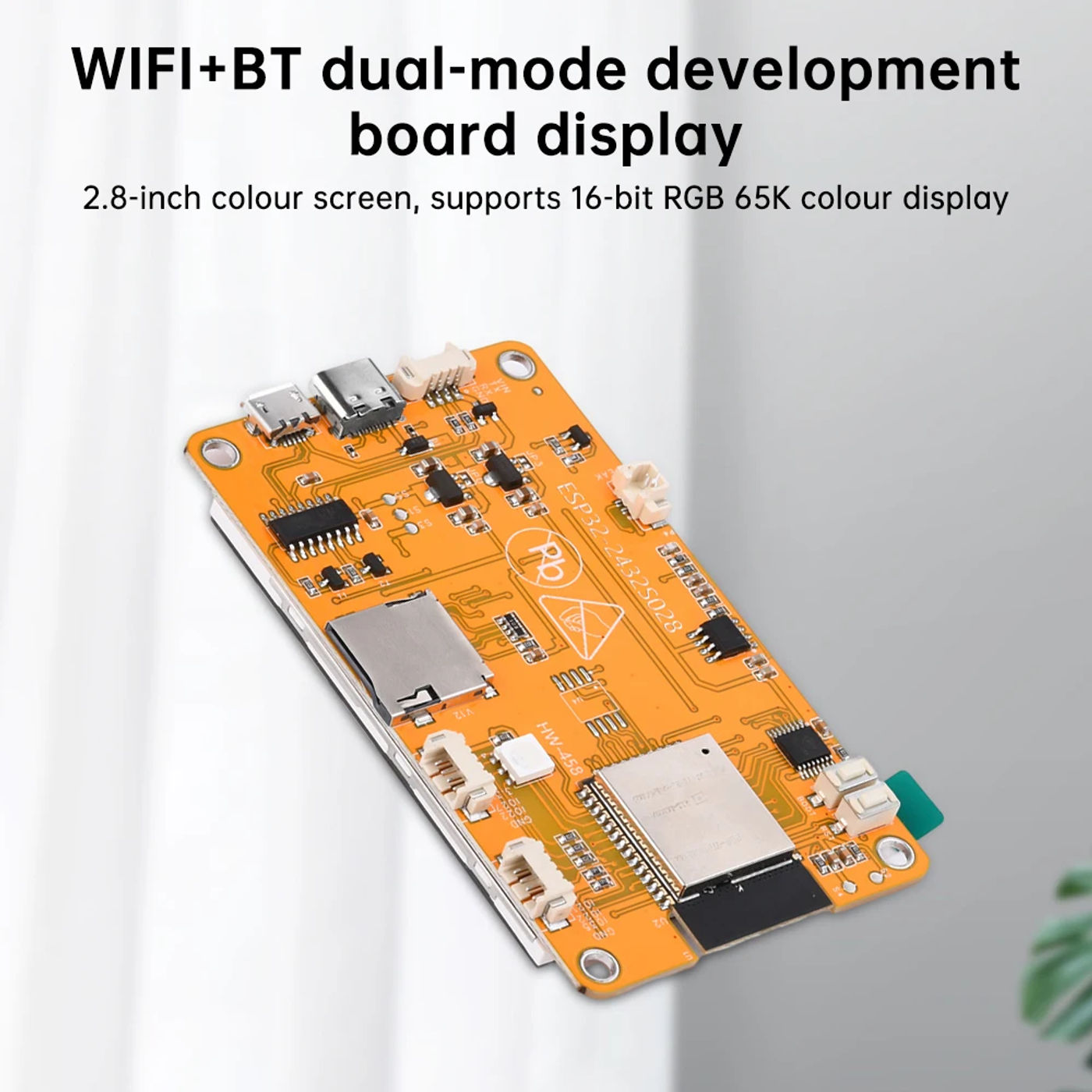

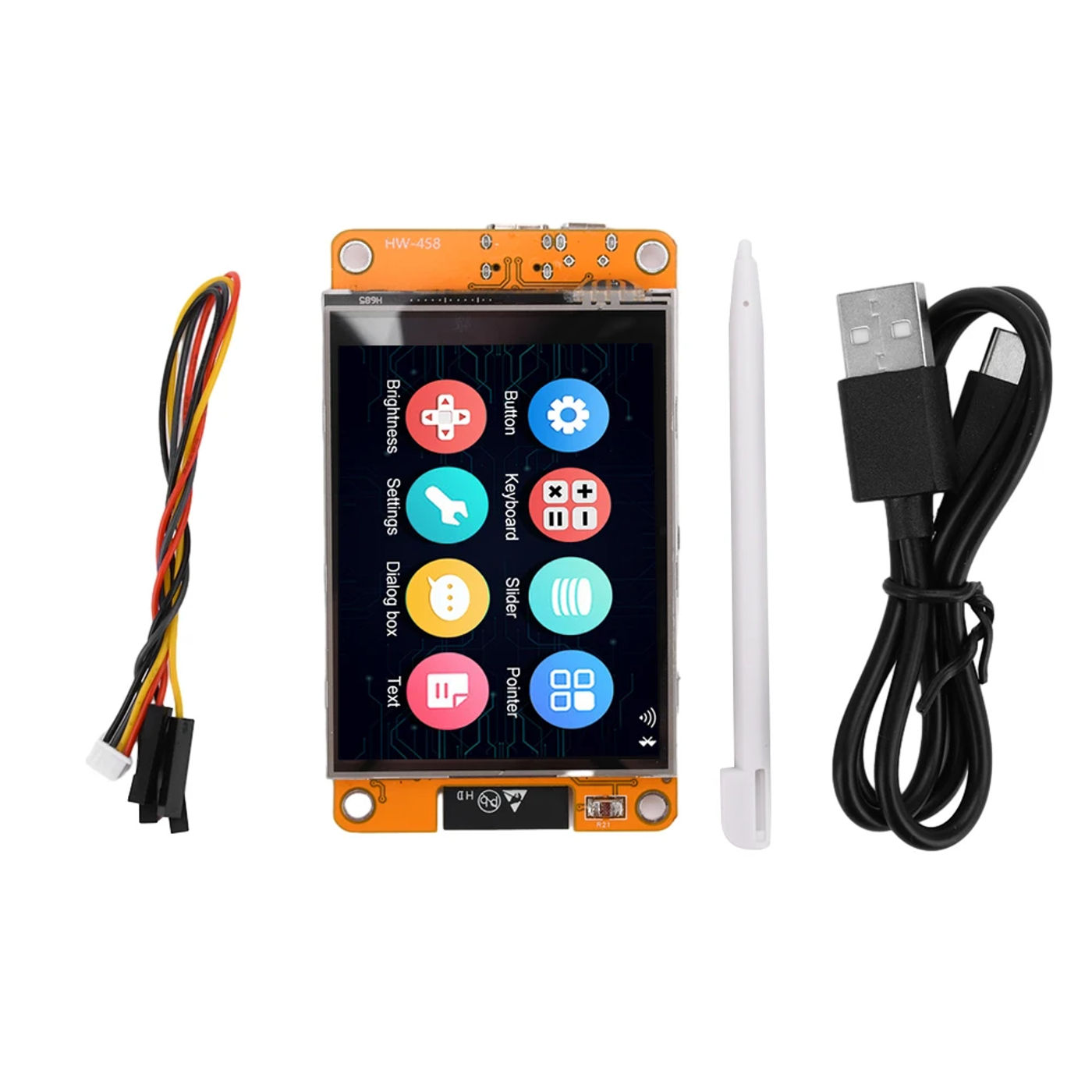

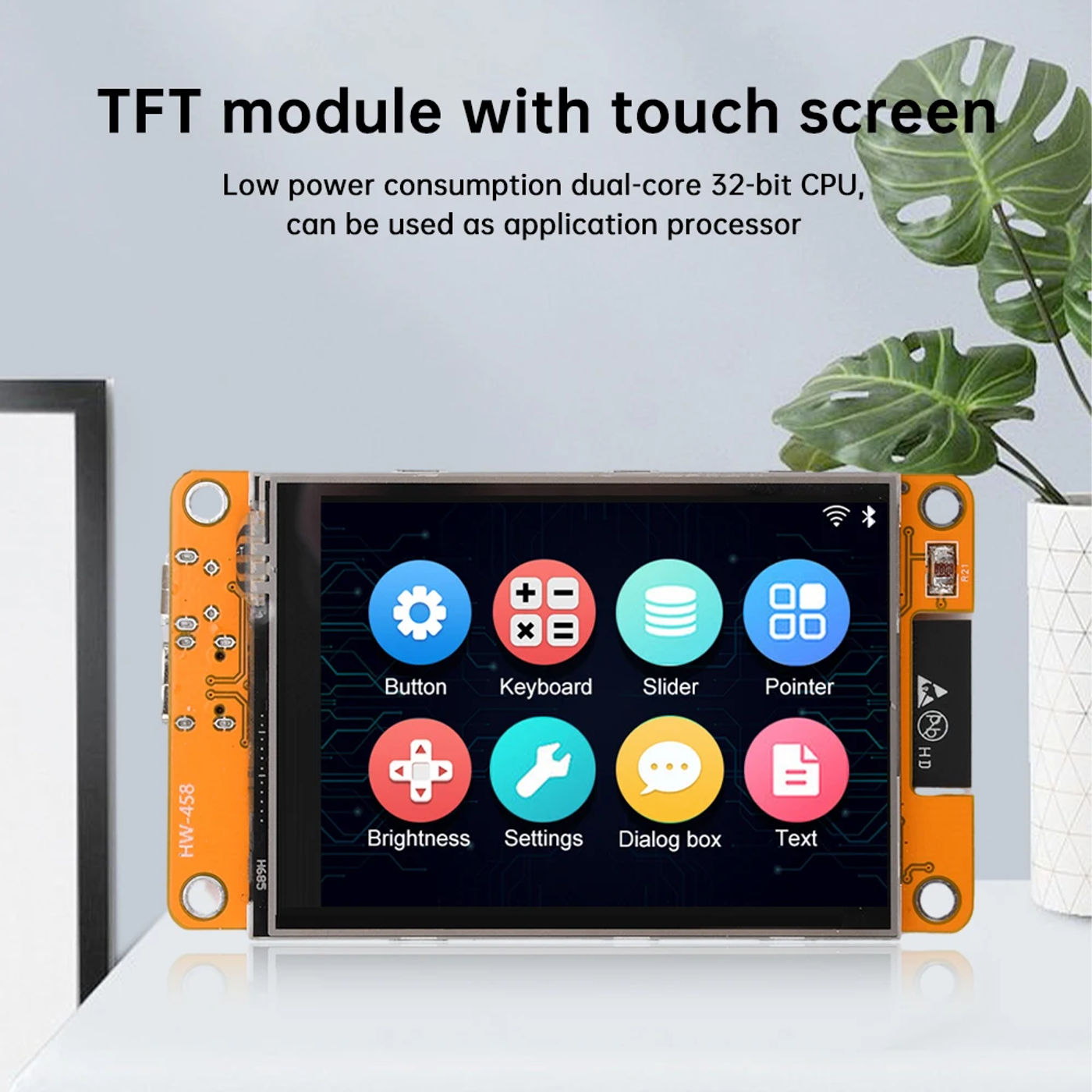

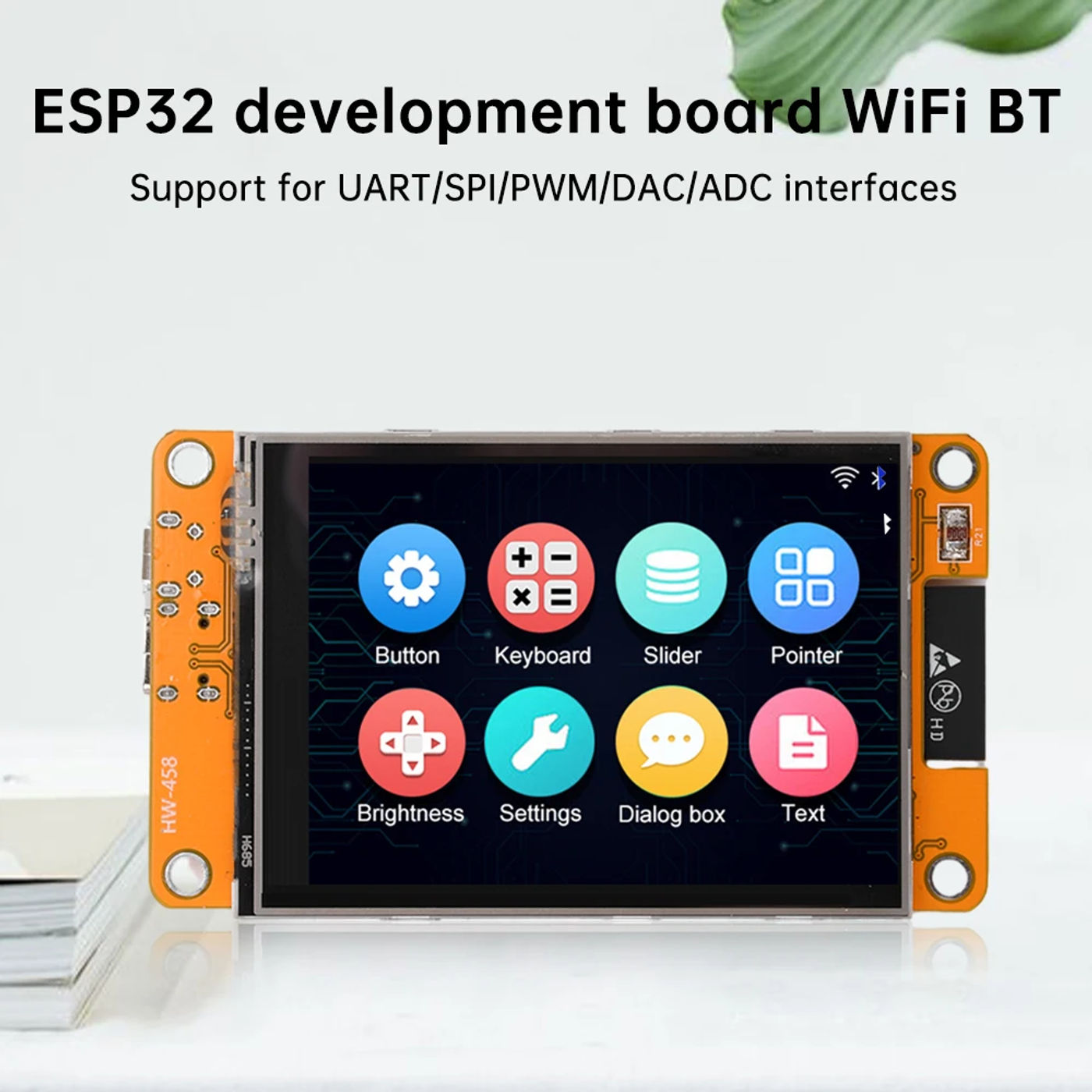

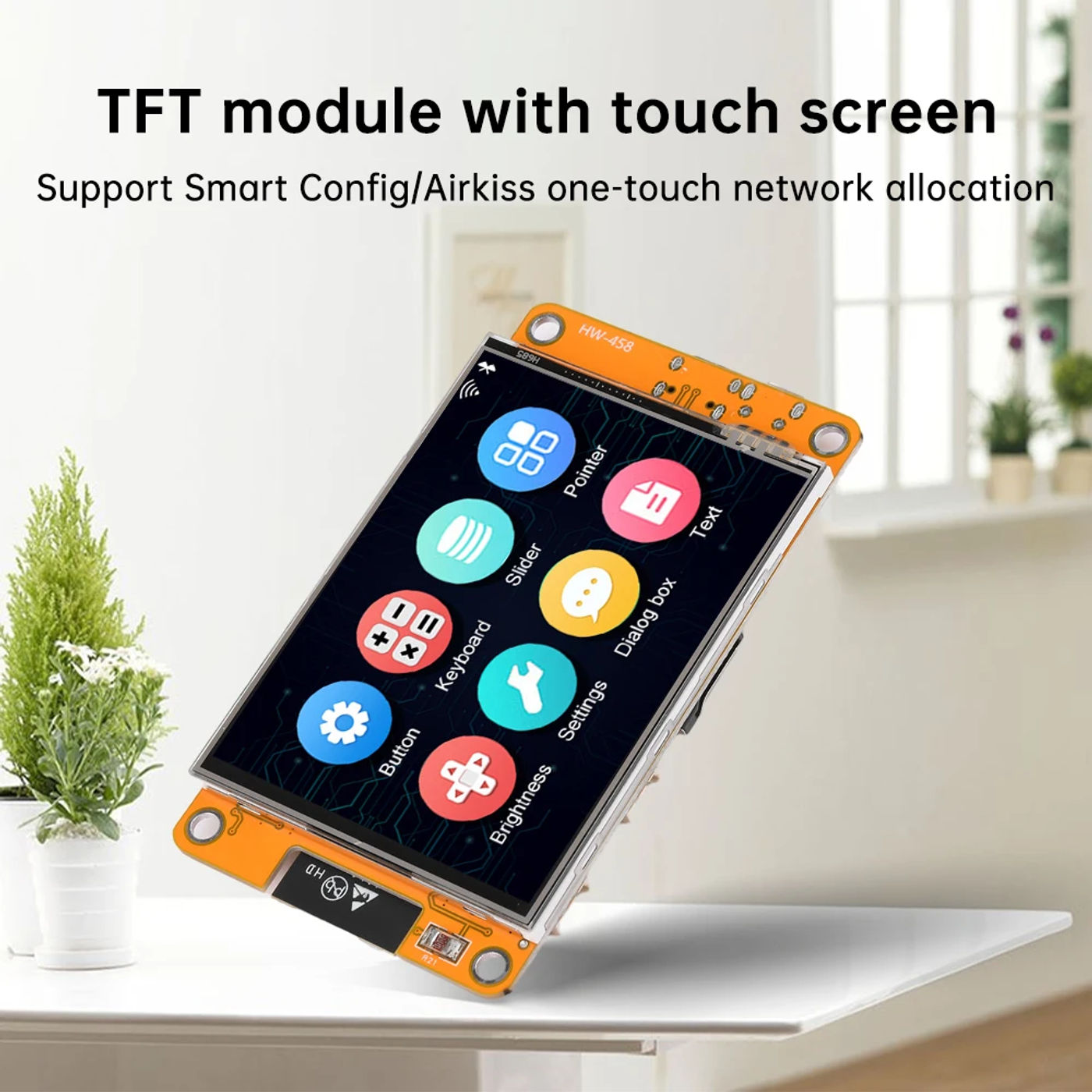

• Features: 1 energy dual core 32-bit cpu, can be utilized as an utility processor 2 a clock frequency of as a lot as 240mhz and a computing calories of up to 600dmips three in 520kb sram 4 uart/spi/pwm/dac/adc and assorted interfaces five with a tf card slot for simple development of storage 6 color screen, supporting sixteen bit rgb 65k coloration show 7 clever config/airkiss one click on distribution network Parameters: Product name:esp32 wifi+bt dual mode development board video display Display color:rgb 65k shade Size:2 inches Type:tft Driver chip:ili9341 Resolution:320*240 Visible area:43*57 Perspective:>60° Working temperature:-20~70℃ Working voltage:5v Power consumption:115ma Bluetooth:Bluetooth 4/edr and ble criteria Wifi:802/g/n/ Supported interfaces:uart spi、sdio、i2c、ir、adc、dac、pwm Io ports:22 Serial port speed:default 115200bps Spectrum range:2412~2484mhz Antenna form:onboard pcb antenna, receive 2dbi Security:wpa/wpa2/wpa2 enterprise/wps Transmission frequency:802:17±2dbm (@11mbps) /802:14 ± 2dbm (@54mbps)/ 802:13 ± 2dbm (@mc57) Interface sensitivity Cck,1mbps:-90dbm Cck,11mbps:-85dbm 6mbps(1/2bpsk):-88dbm 54mbps(3/464-qam):-70dbm Mcs7(65mbps,72):-67dbm Packageinclude: Display screen*1 Touch pen*1 Type-c news cable*1 4p terminal to dupont wire*1

•
•
•
•
•
