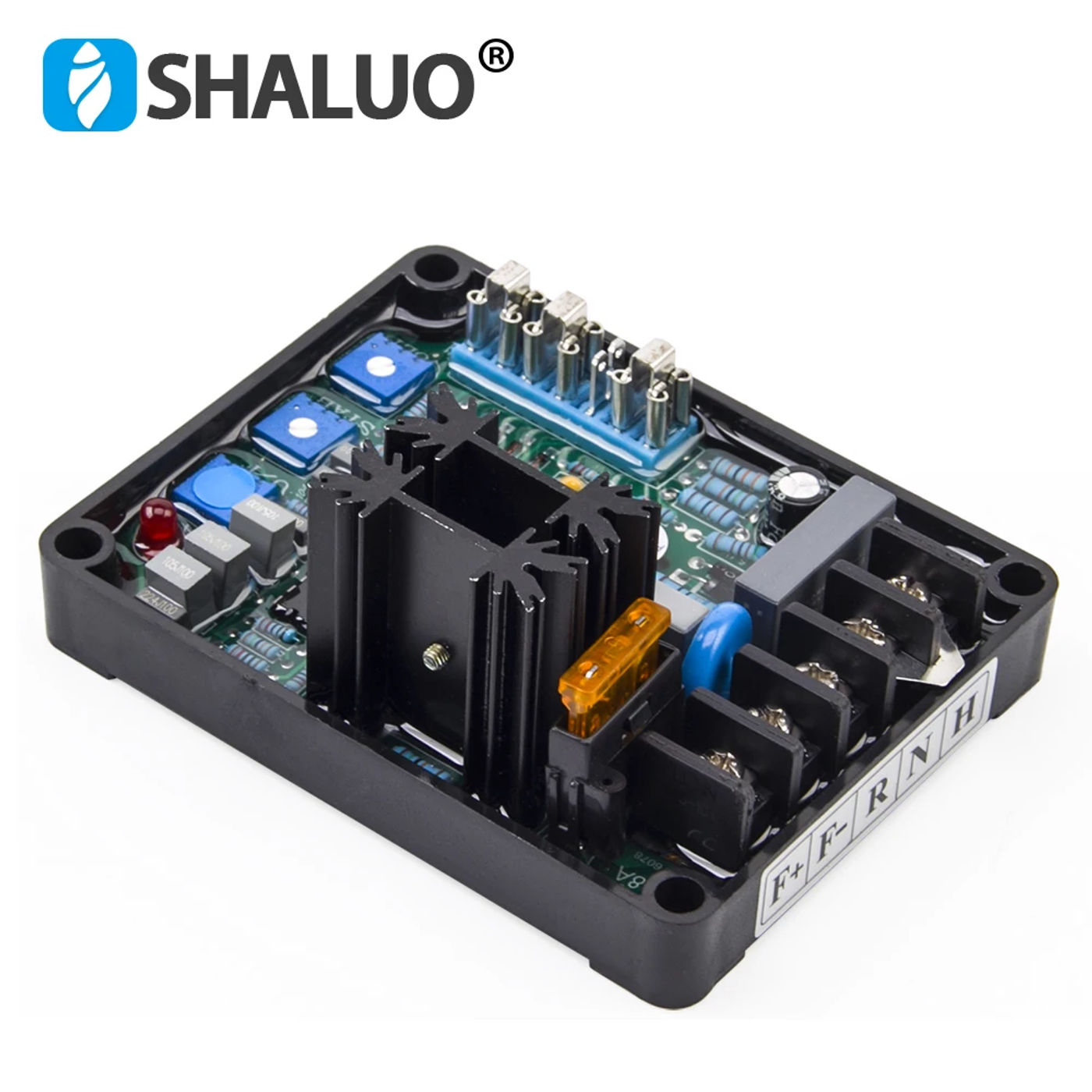

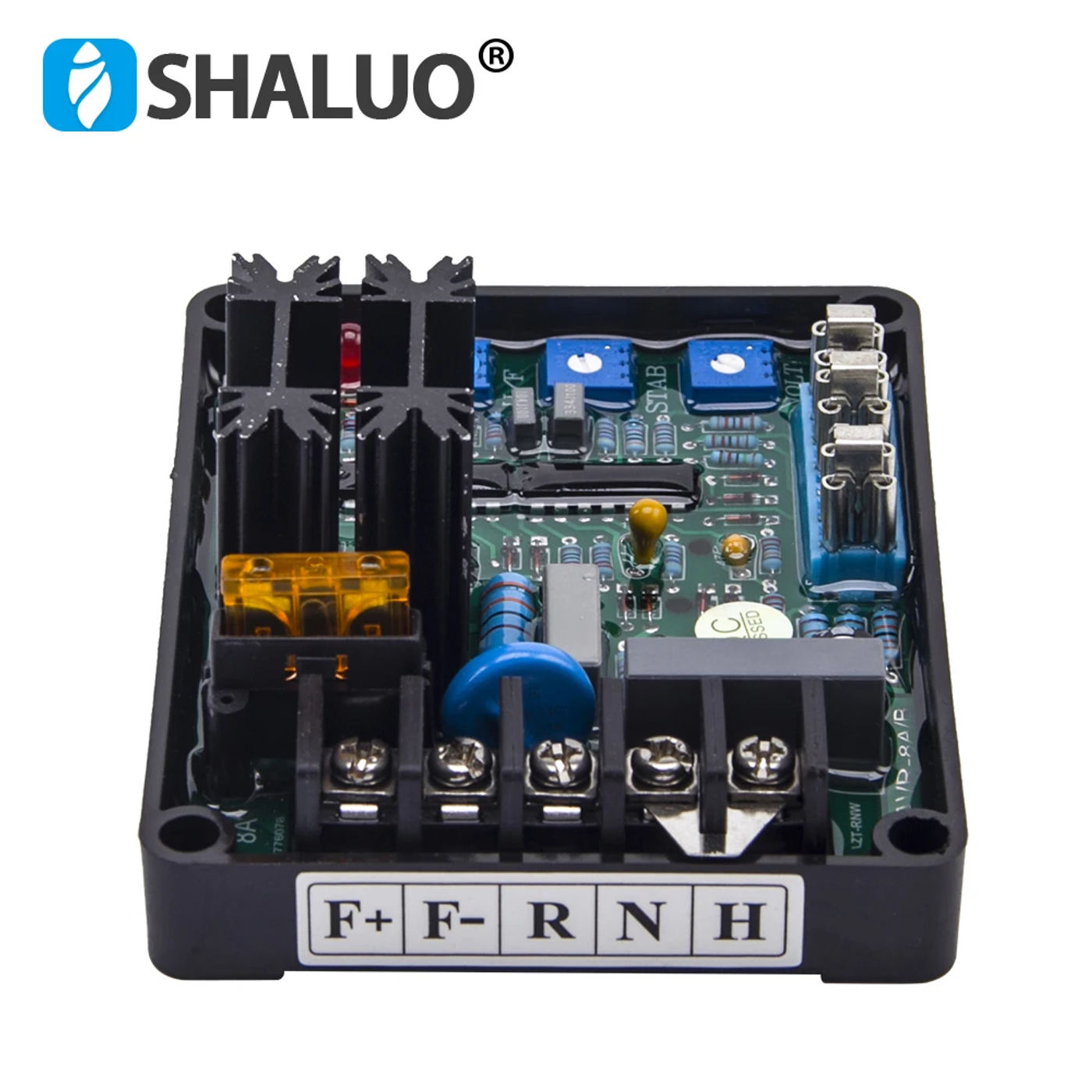

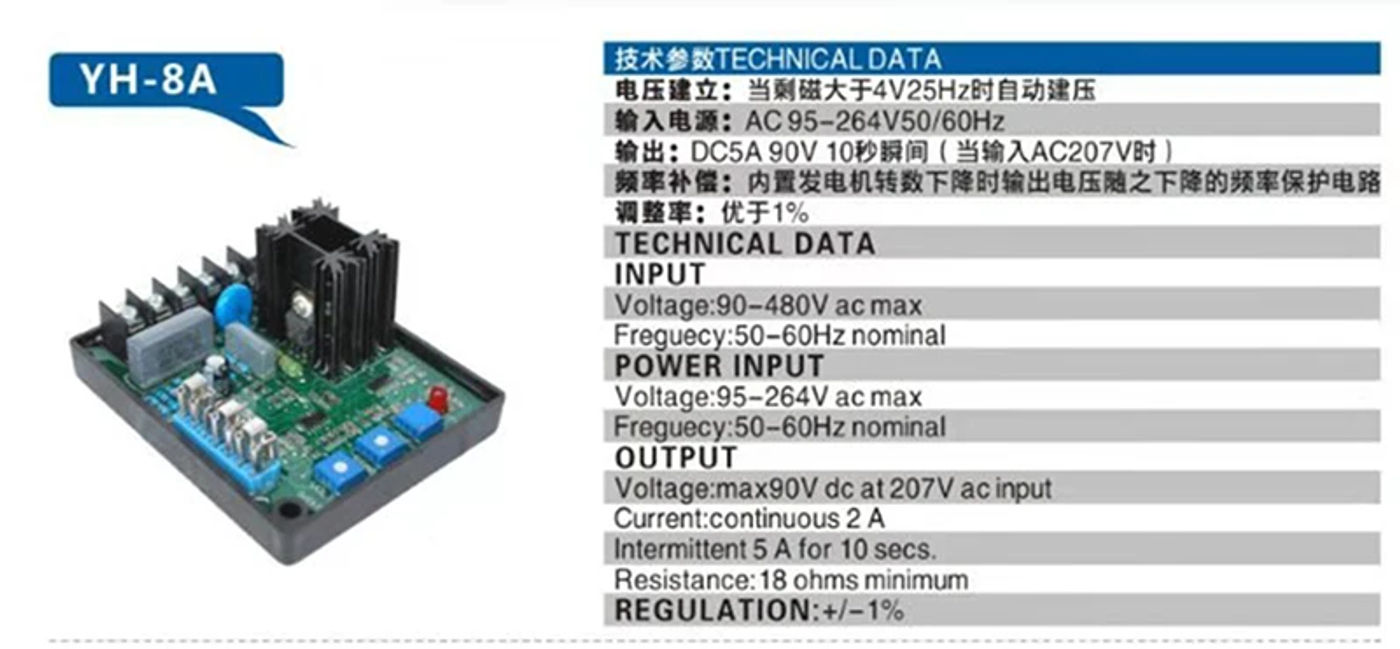

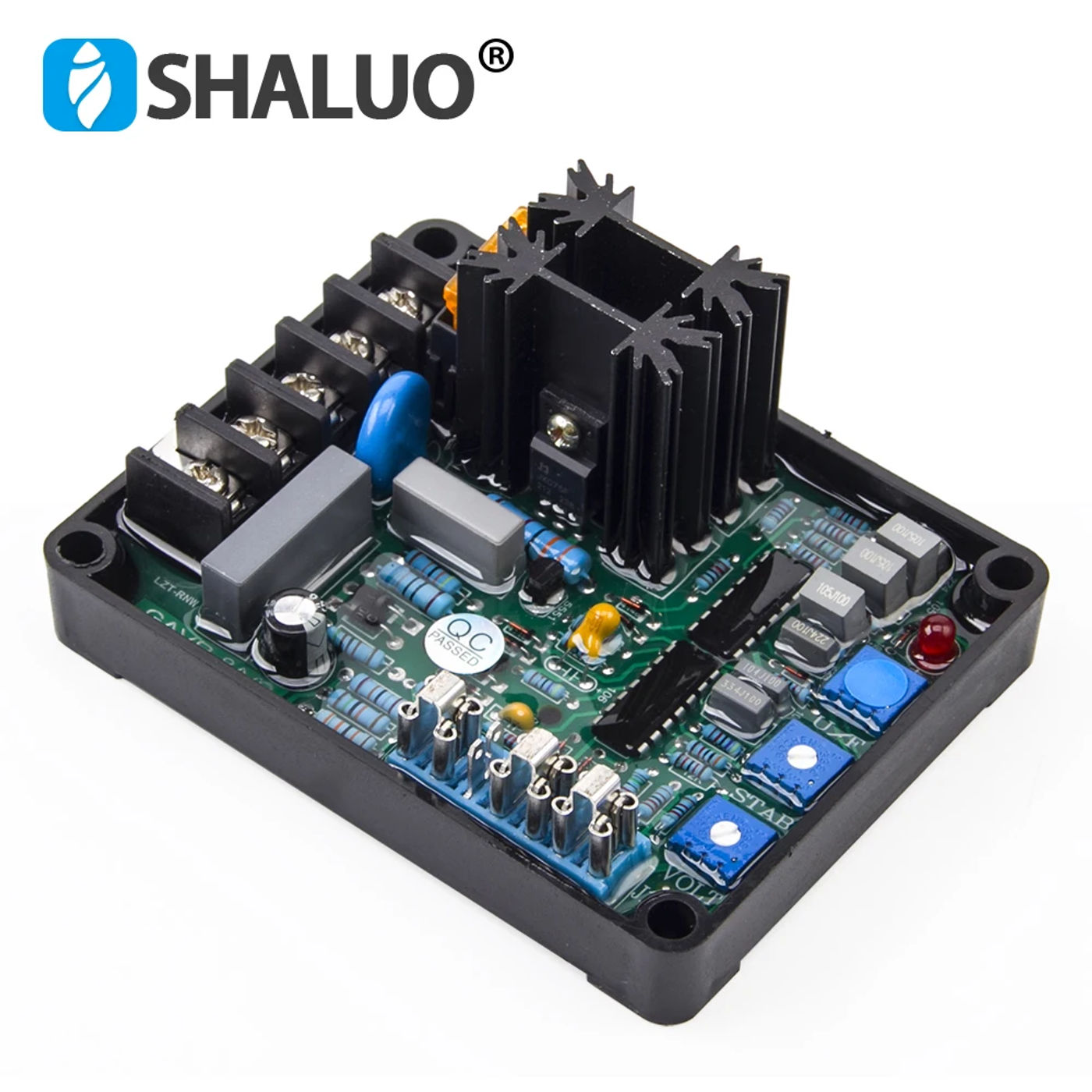

• Universal Brushless Generator Automatic Voltage Regulator 8A AVR Gavr-8A Universal 8Amp half Wave Self Excited Dip-Switch Progmmable avr Voltage Regulation < ±1% 220/440VAC Programmable Input Rugged Compact Desigh Soft Start Voltage Ramping With Under Frequency Roll Off Protection EMI Suppression Built-in High Capacity 8Amp Fuse Sensing input Voltage 110/220/400VAC , 1 phase 2 cord Power Input voltage 100-260VAC , 1 phase 2 twine Output voltage max ninety VDC at 240VAC enter Current Continuous three A , intermittent 5A for 10secs Resistance Min ohm , Max 100ohm Voltage Build-up residual voltage at avr terminal >5VAC Voltage Regulation <±1% with 4% engine governing Operating Temperature (-40°C to +60°C Storage Temperatue (-65°C to +85°C External Volts Adjutment ±7% with 1k ohm 1 watt trimmer EMI Suppression Internal electromagnetic interference filtering Unit Power Dissipation Max watt Under Frequency Protection 60Hz system presets knee level at 55Hz 50Hz formulation presets knee point at 45Hz Dimensions 107mmL*82mmW*50mmH

•
•
•
•
•
