Beschreibung

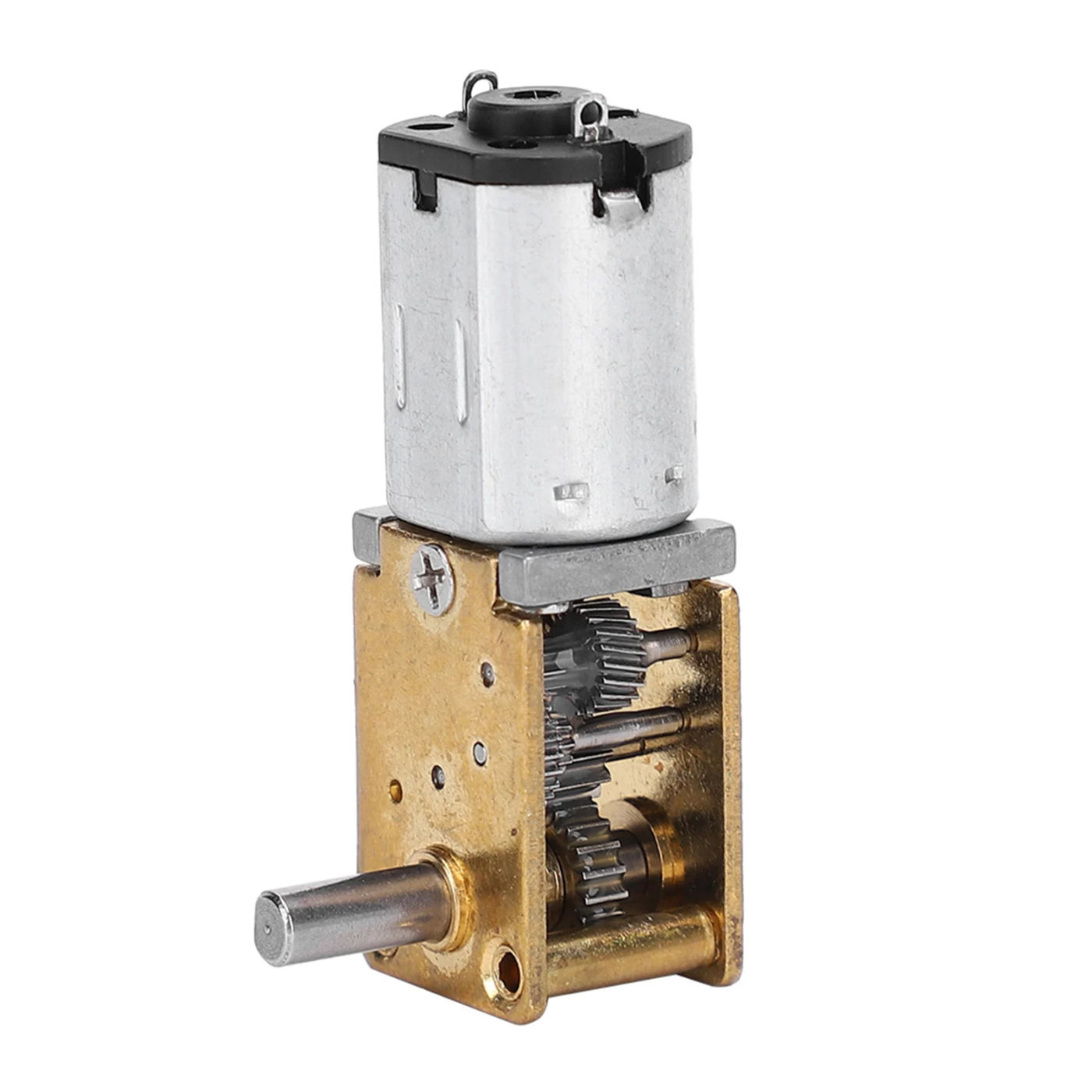

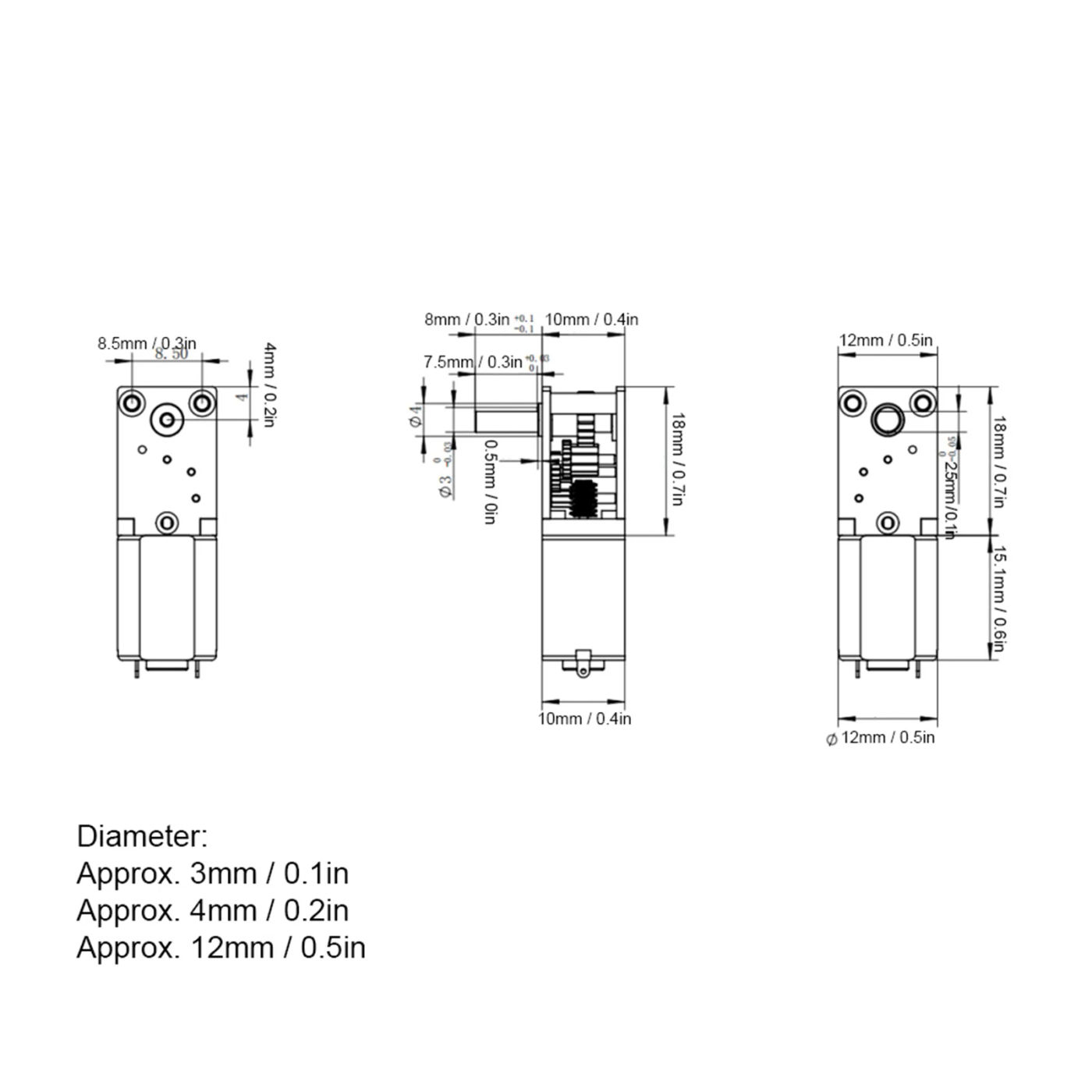

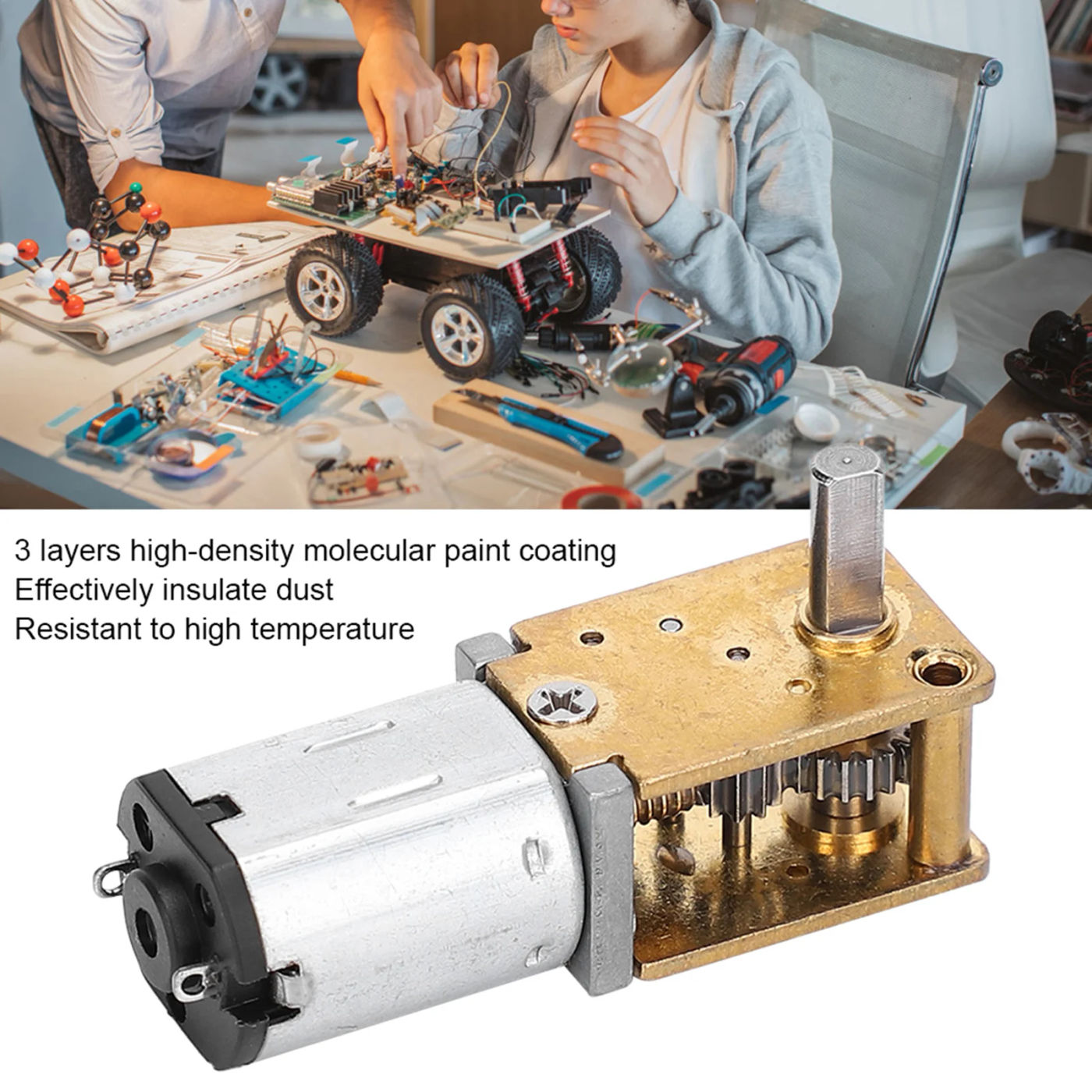

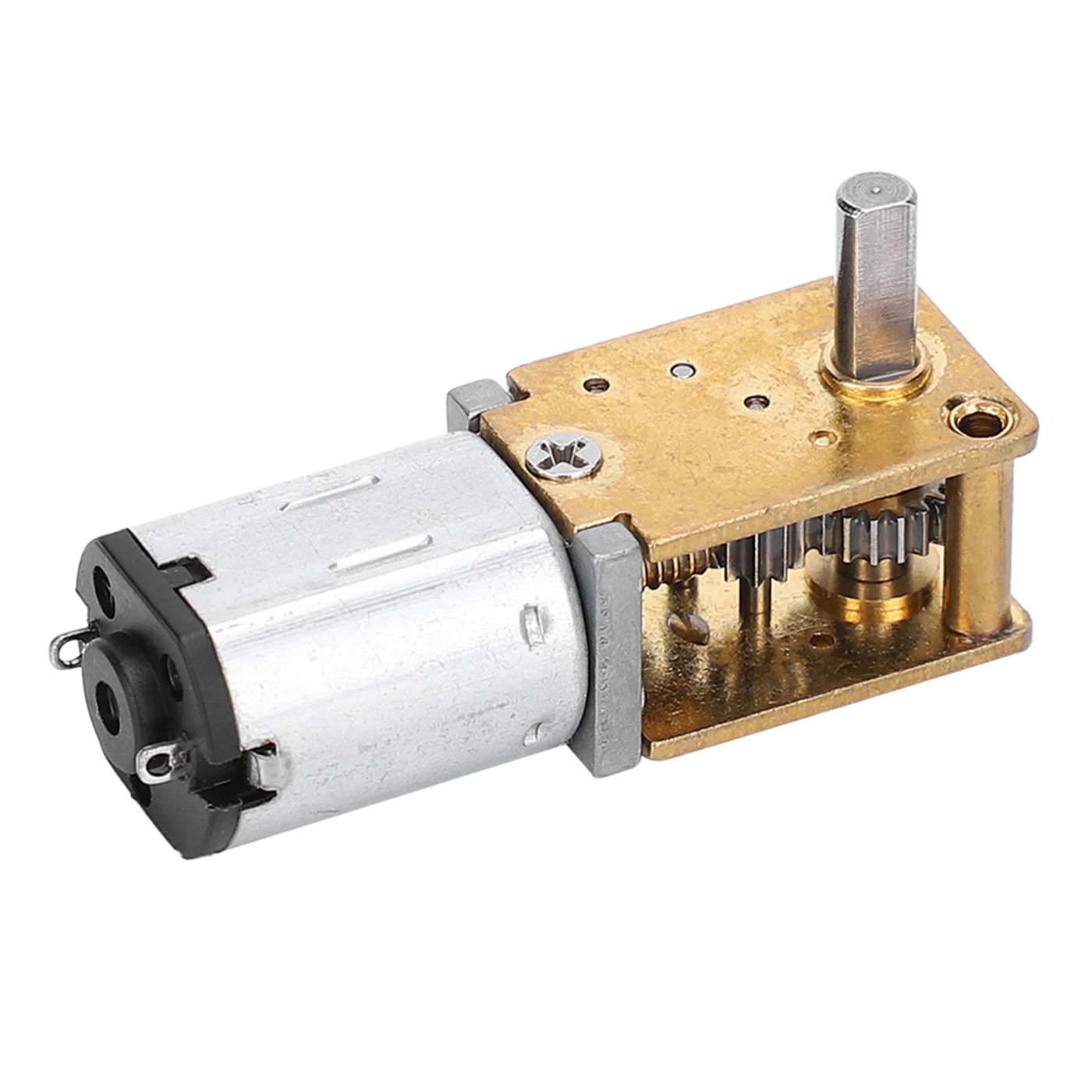

• Mini Gear Motor Micro Worm Gear Reducer Brush DC Motors Electronic Devices 1218GEN20 Feature: 1 Gear transmission is stable, wear‑resistant, and possess broad transmission torsion 2 three layers of high‑density molecular paint coating can effectively insulate dust and resistant to high temperature three This brush DC motor have strong motor power output, which is powerful and real looking four Made of copper, brass and zinc alloy material, durable and durable for a protracted carrier lifestyles five The product is Mainly used for electronic locks, sensible car, robots, cameras, and many others Specification: Item Type: Mini Gear Motor Material: Copper, brass, zinc alloy Model: 1218GE-N20 Motor Type: Brush DC motor Mainly utilized in electronic locks, wise car, robots, cameras, and so on Parameter: Voltage Reduction ratio No-load Load Block load Rotate velocity Current Rotate velocity Current Torsion Current Torsion 3V 1:236 16RPM ≤30MA 13RPM ≤40MA 120g ≤0 2 3V 1:236 30RPM ≤30MA 25RPM ≤40MA 160g ≤0 2 6V 1:236 35RPM ≤50MA 28RPM ≤40MA 220g ≤0 1 6V 1:236 70RPM ≤60MA 61RPM ≤40MA 320g ≤0 2 Size: Approx eight / 0 Approx 4mm / zero Approx 8mm / 0 Approx 10mm / 0 Approx 7 / 0 Approx 0 / 0in Approx 18mm / zero Approx 10mm / 0 Approx 12mm / zero Approx 2 / zero Approx 18mm / 0 Approx 15 / 0 Diameter: Approx 3mm / zero Approx 4mm / zero Approx 12mm / 0 Package List: 1 x Mini Gear Motor Note: Please enable 0 error thanks to handbook measurement Thanks to your knowing

•
•
•
•
•
