Beschreibung

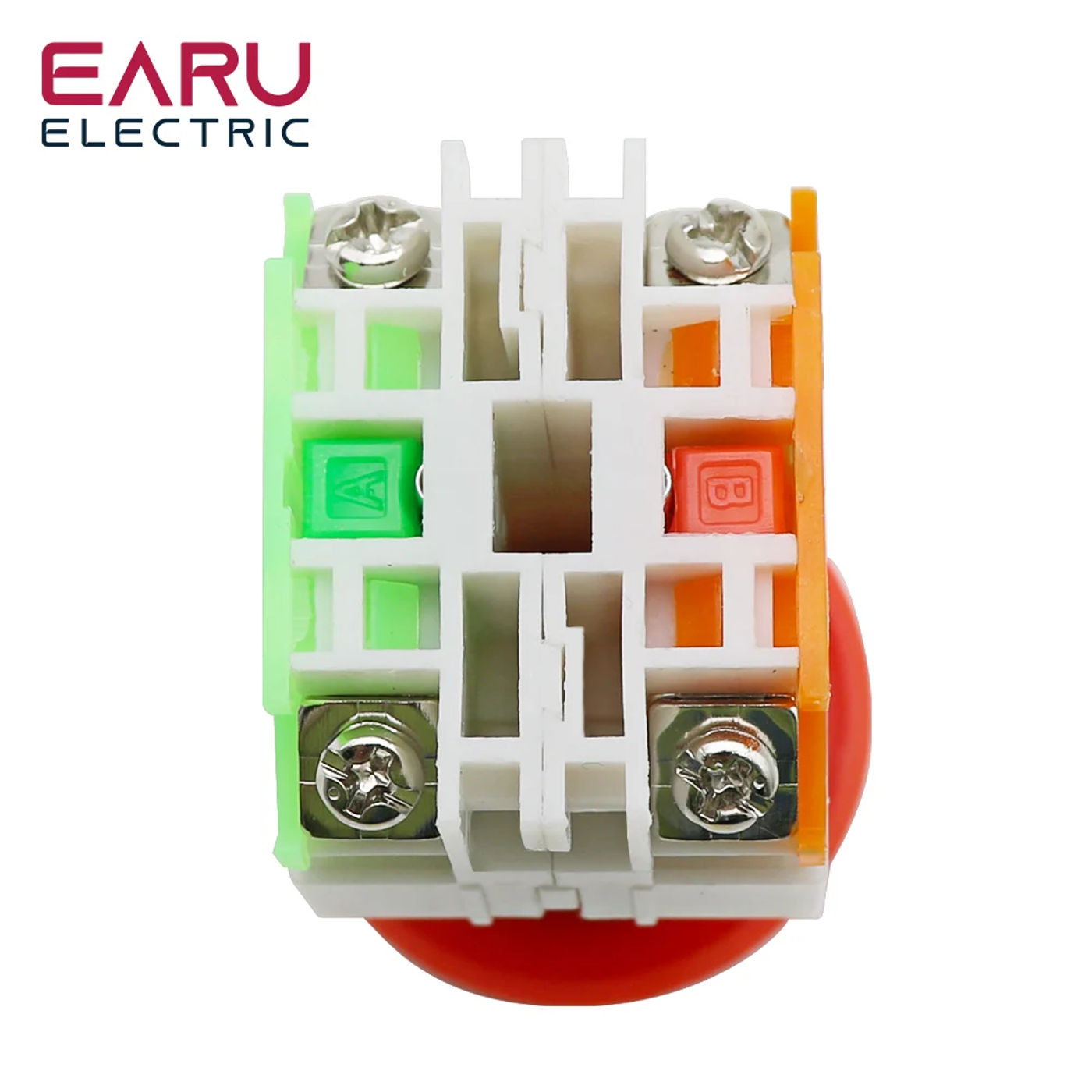

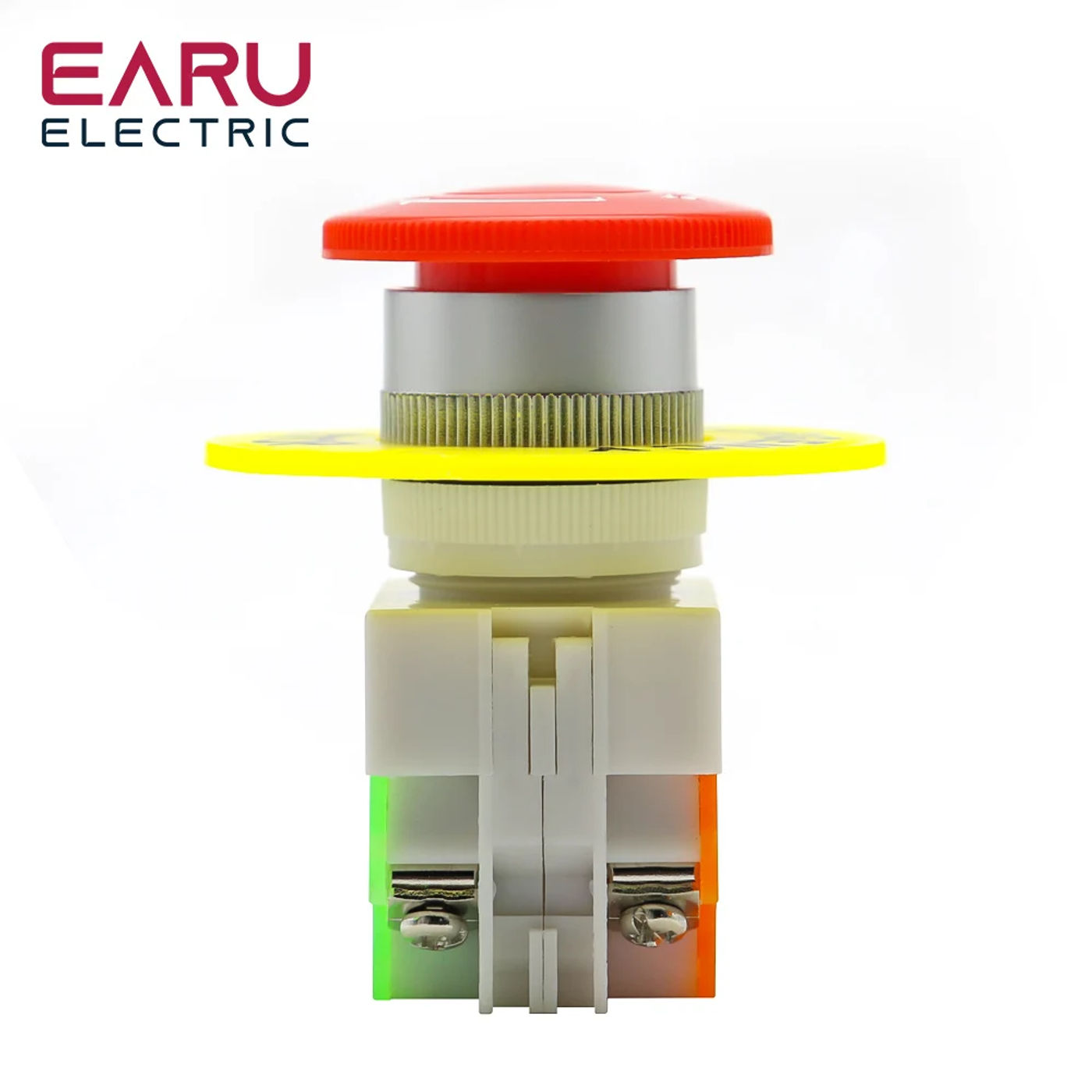

• Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock Product Name : Push Button Switch; Action Type : Lacthing; Contact Type : 1 NO + 1 NC; Poles : DPST Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins Button Diameter : 40mm/ 1"; Mount Hole Diameter : 22mm / 7/8"; Fit Panel Thickness(adjustable) : 6mm / 15/64"(max) Size : 60 x 70mm/ 2" x 2" (Max*H); Cap Lamp : Red; Material : Plastic,Metal Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A * Features: four terminals, 22mm mounting hole, 1NO+1NC contact type, purple mushroom emergency give up latching push button change with yellow cap * Used widely to control the electromagnetic starter, contactor, relay and other computerized control electric circuits

•
•
•
•
•
