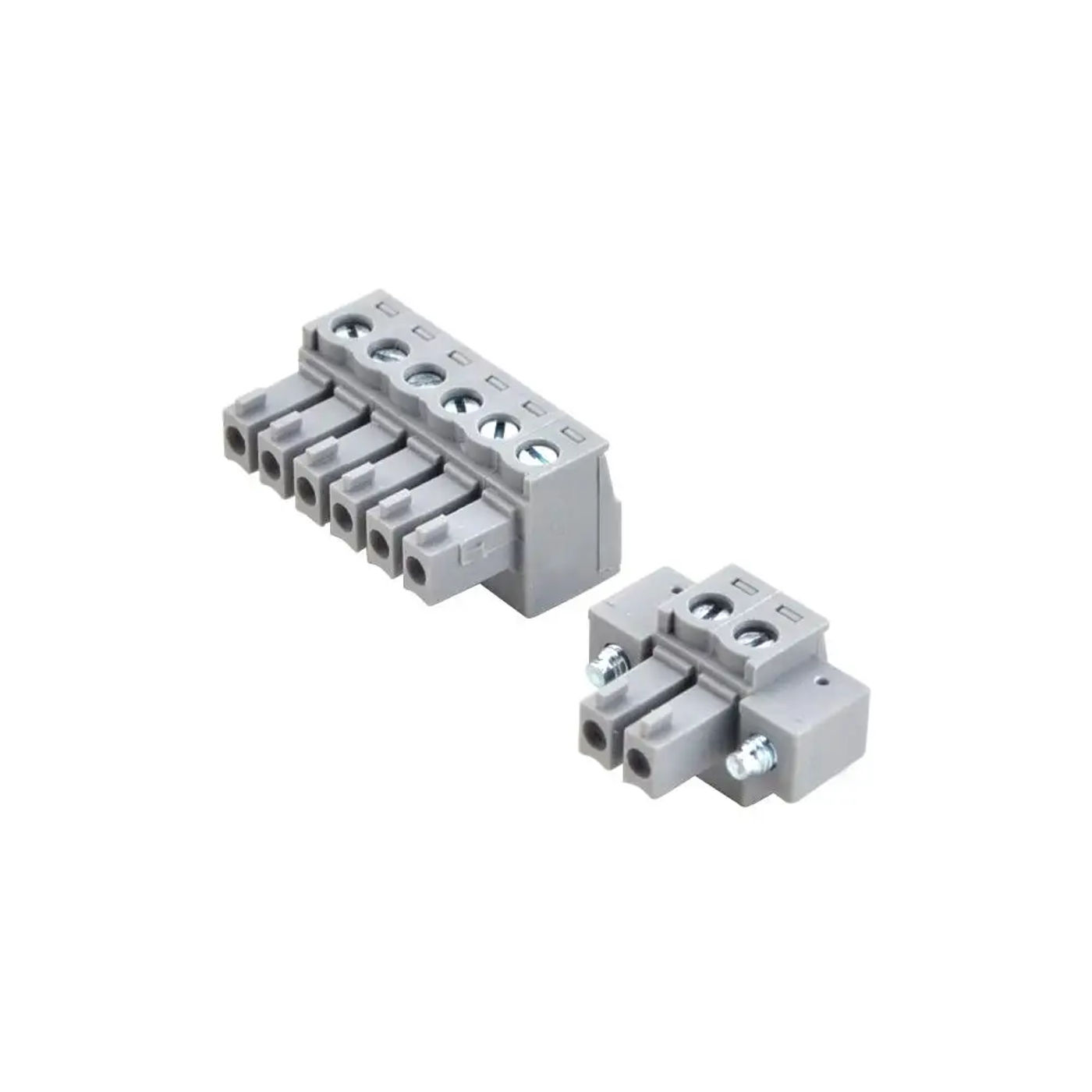

• Introduction ISV57T-130S incorporated servo motor is a 57mm body length brushless motor incorporated with a 16bit encoder and a servo pressure At very compact size and with all substances integrated, the ISV57T-130S can save mounting space, get rid of encoder connection & motor wiring time, cut interference, and cut/reduce cable and exertions prices Integrated compact length for saving mounting space & setup time, and reducing electric interference Features Input voltage 20-50VDC, output peak recent 0-6A Step & path command enter for position management Compatible mounting length with stepper motor Smooth motor movement and ideal reply time Isolated control inputs of Pulse, Direction In-position and fault outputs to external motion controllers for whole formulation controls Over voltage, over-current, and position-error defense Manufacturer Part Number: ISV57T-130S Rated Power(W): a hundred thirty Input Voltage: +20~50VDC (Typical 36VDC) Rated Torque(Nm/oz): 0/63 Peak Torque(Nm/oz): 1/155 Rated Speed(rpm): 3000 Peak Speed(rpm): 4000 Output Peak Current: 0~6A Logic Signal Current: 7~16mA (Typical 10mA) Pulse Input Frequency: 0~300kHz Pulse Voltage: 5V(Connect a 2K ohm resistor in series, if it is 24V) Isolation Resistance: 100MΩ Frame Size: 57 x 57mm Body Length: 128mm Shaft Diameter: 8mm D-cut Shaft Length: 15mm Shaft Length: 21mm Weight: 1 Cooling: Natural Cooling or Forced cooling Environment: Avoid dust, oil fog and corrosive gases Ambient Temperature: 0℃ - 40℃ Humidity: 40%RH - 90%RH Operating Temperature(Heat Sink): 70℃ Max Vibration: 10-50Hz / zero Storage Temperature: -20℃ - 65℃ Connectors and Pin Assignment RS232 Communication Cable Connections Note1: The RS232 verbal exchange port is not remoted Please use an isolated strength delivery for the ISVxxx when thePC’s serial port is not isolated: Do no longer plug or unplug the connector when strength is on DIP Switch Settings

•
•
•
•
•
