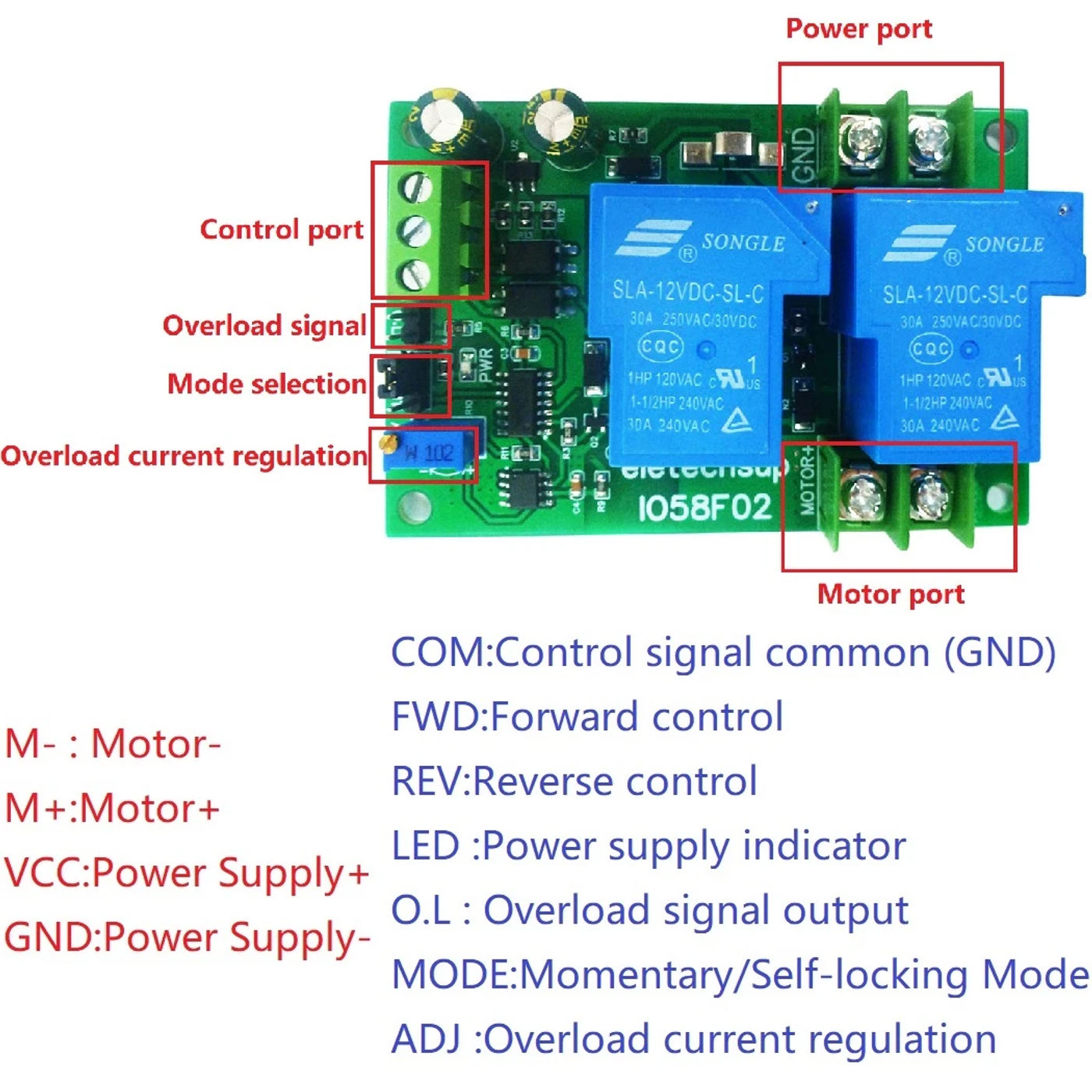

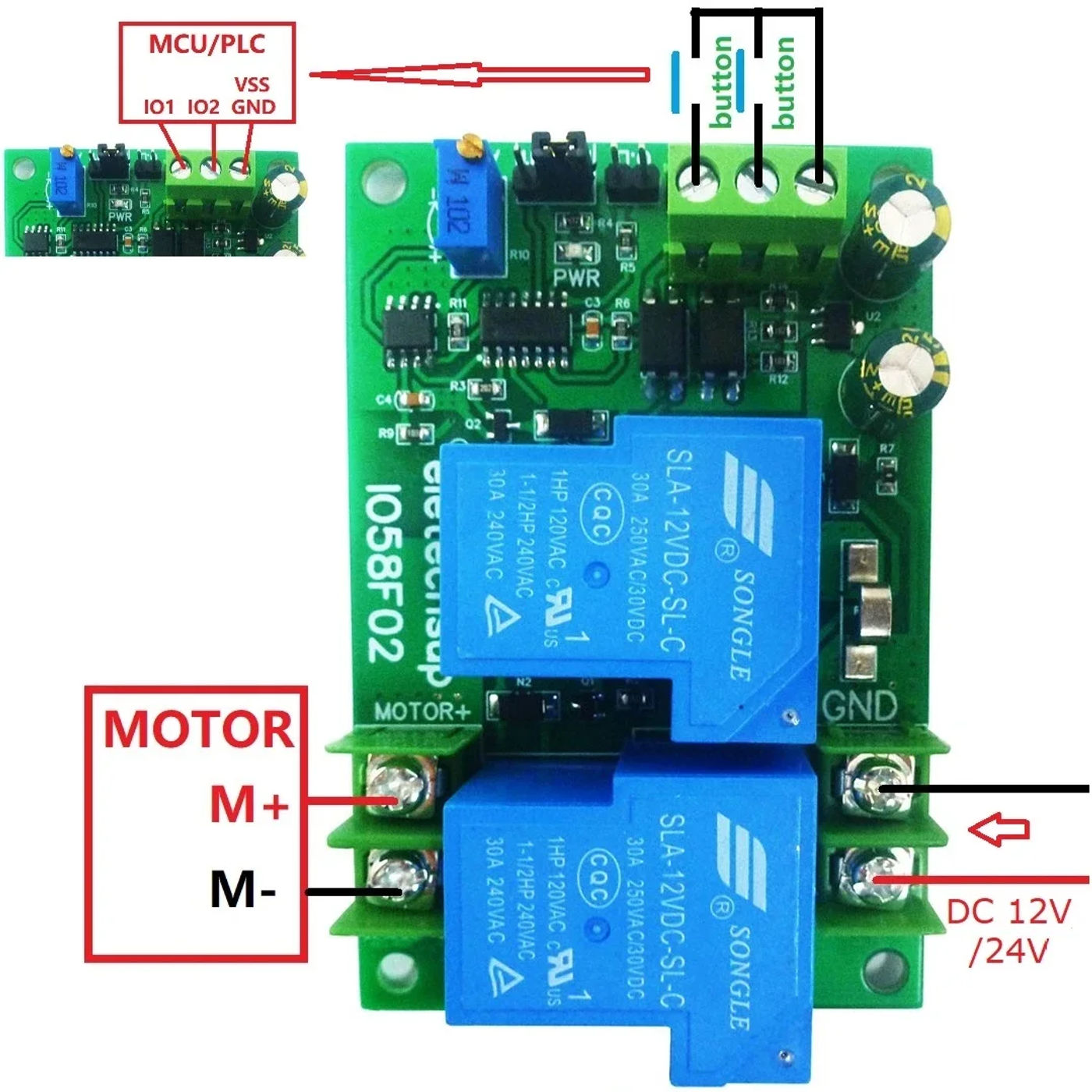

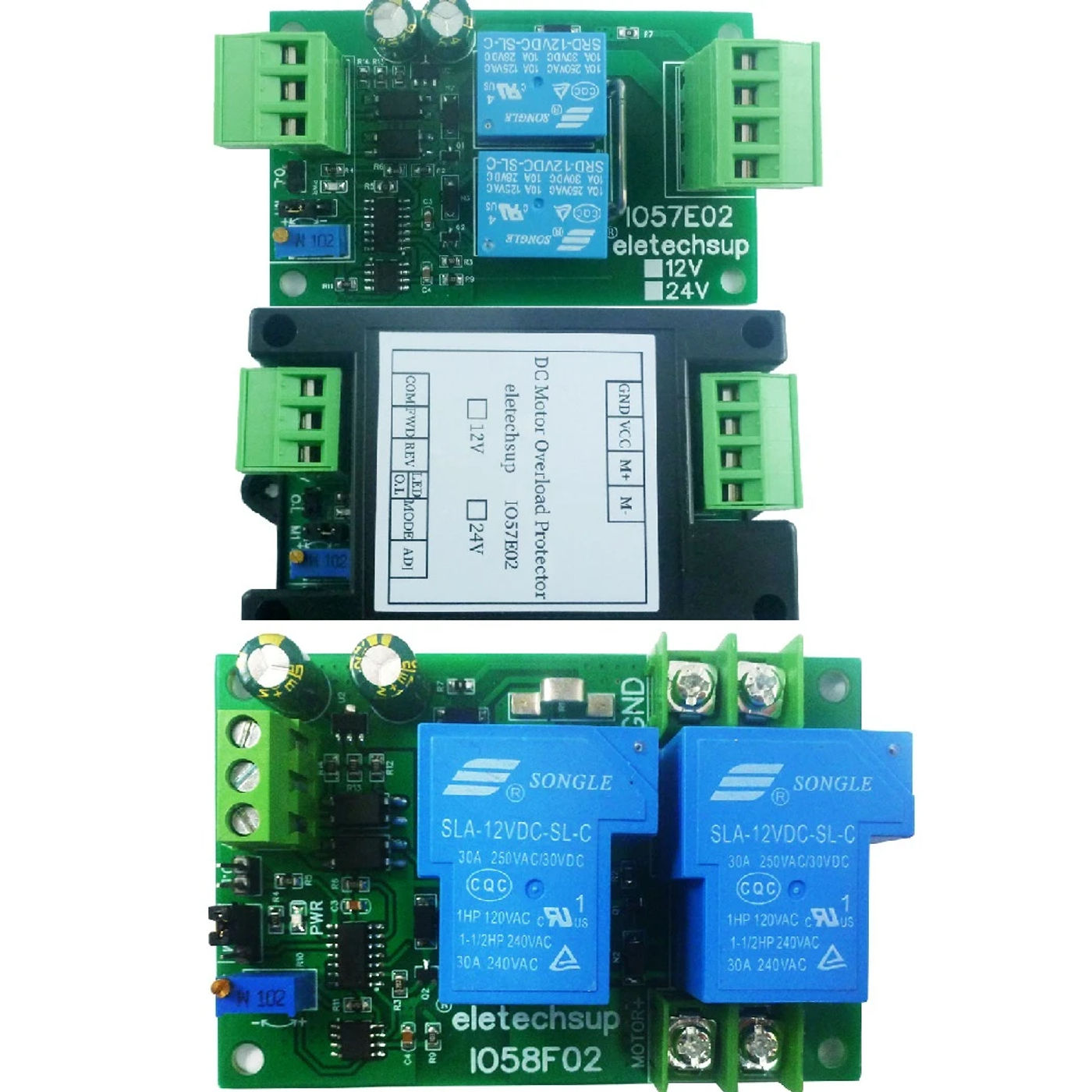

• Product Name:Brushed DC Motor Overload Overcurrent Short Circuit Protector Module Forward Reverse Controller 10A 20A 30A DC 12V 24V Power Product Included: 1pcs DC 12V/24V 10A/20A/30A DC Motor Overcurrent Overload defense Board Product parameters: 10A Version: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC strength supply energy ≥ motor power x3); 2 Applicable motor: 12V/24V Brushed DC motor; three Maximum current: Short-term operating latest 10A, long-term operating current 3A; four Protection latest adjustment range: 0~10A; five Motor control: Forward, Reverse; 6 Working modes: 2 optional modes, Non-locking and self-locking; 7 Working latest (excluding motor): 40mA; 8 Size: 97*50*32mm (with shell), 79*48*19mm (without shell); 9 Weight: 80 grams (with shell), 45,5g(without shell) 20A/30A Version: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC strength delivery strength ≥ motor power x3); 2 Applicable motor: 12V/24V Brushed DC motor; three Maximum current: Short-term working current 20A/30A, long-term working current 10A; four Protection latest adjustment range: 0~20A/0~30A; five Motor control: Forward, Reverse; 6 Working modes: 2 optional modes, Non-locking and self-locking; 7 Working recent (excluding motor): 5-70mA; 8 Size: 87*58*25mm; 9 Weight: eighty grams Please touch me for detailed instructions Pin Description M- : Motor- M+:Motor+ VCC:Power Supply+ GND:Power Supply- COM:Control sign common terminal(GND) FWD:Forward management REV:Reverse control LED :Power delivery indicator O : Overload sign output MODE:Momentary/Self-locking mode choice ADJ :Overload recent regulation Application Motor Overload Protection Motor Overcurrent Protection Motor Short Circuit Protection LED Overcurrent Protection

•
•
•
•
•
