How to attach the sensor?

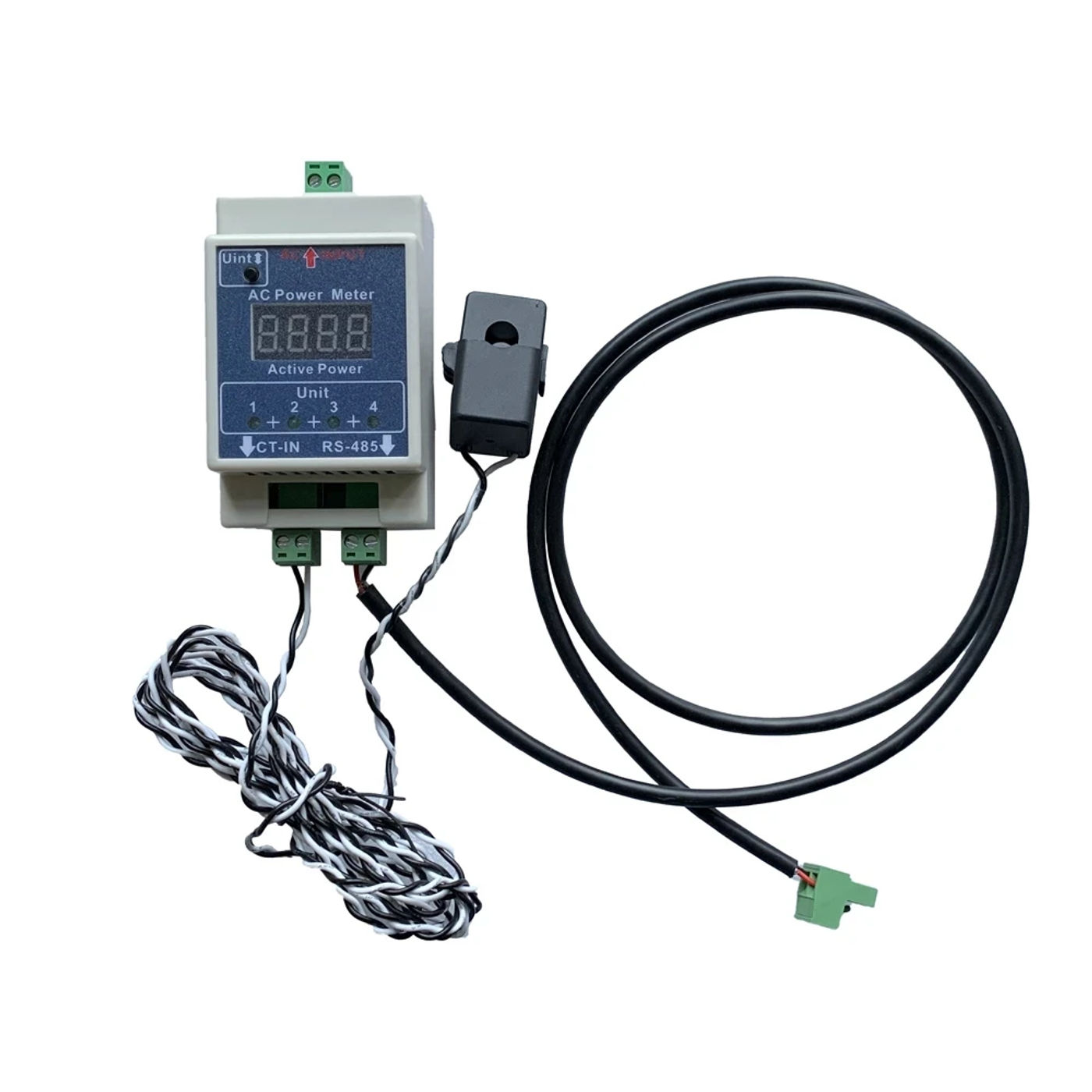

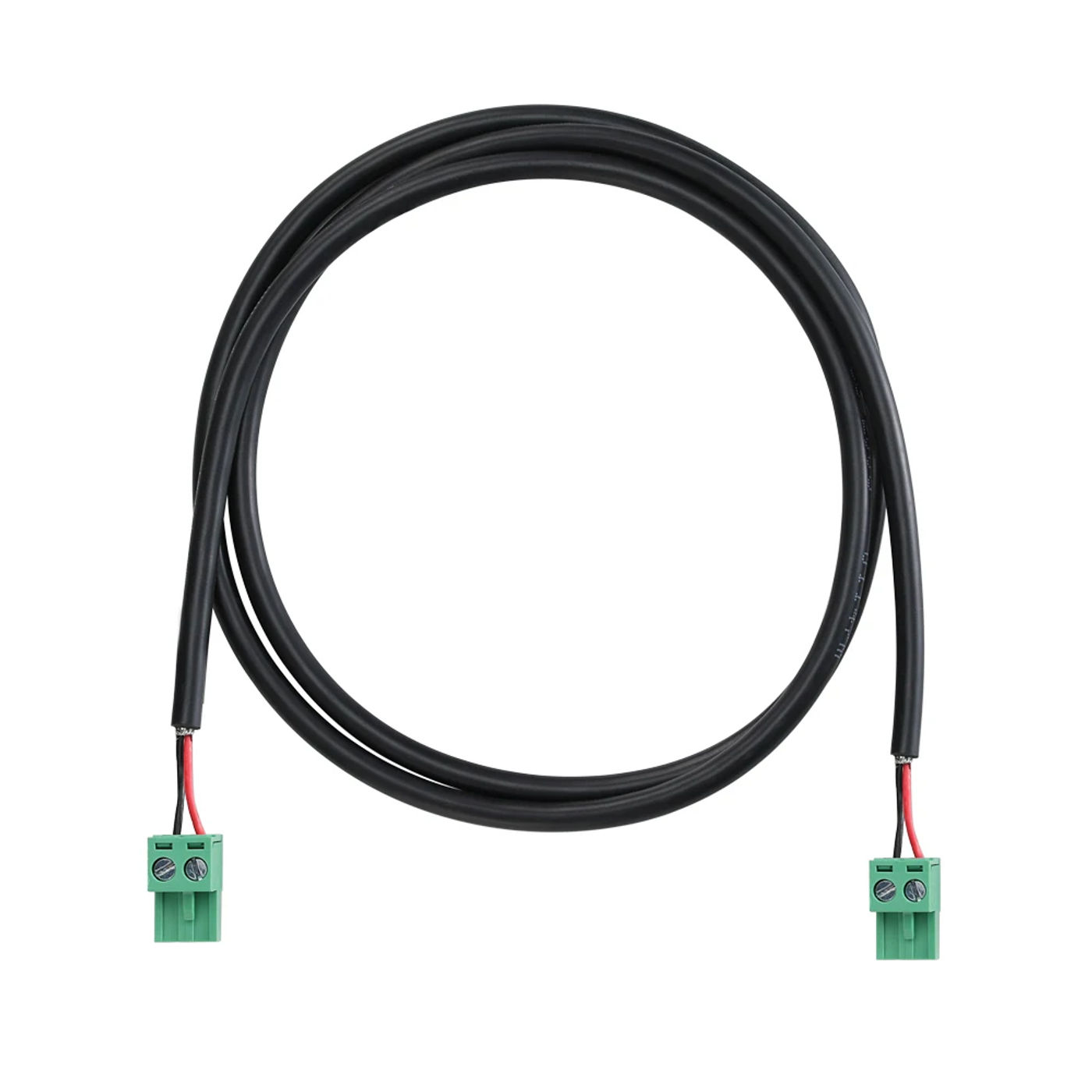

1 the RS485 cable of the AC strength acquisition meter to the 485 port of the inverter
2 the relationship terminal of the transmitted recent sensor into the port of the collector "CT-IN" (no +-)
three
the AC strength supply port "AC-IN" of the collector to an identical AC energy
delivery for the burden After the connection, it's going to illuminate
five
the inverter to AC energy first, then connect the battery, the inverter
will mechanically output a similar strength because the strength detected by means of the
collector, the inverter won't have excess electrical energy to be
despatched to the grid (ie: computerized limiter function)
6 old acquisition meter can connect 5 unit grid tie inverters,one upgraded acquisition meter can connect10 unit grid tie inverters upgraded collector is extra accurate
