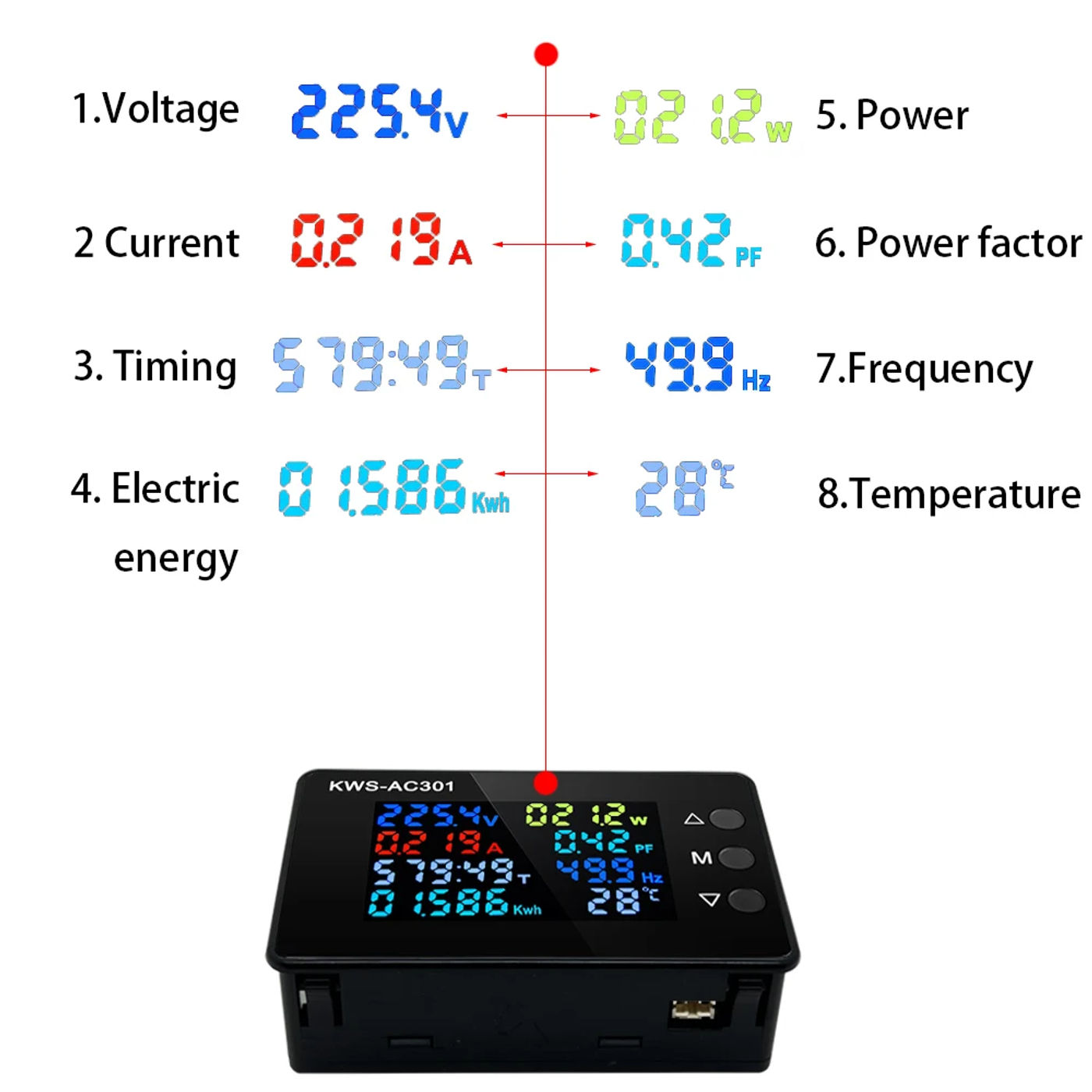

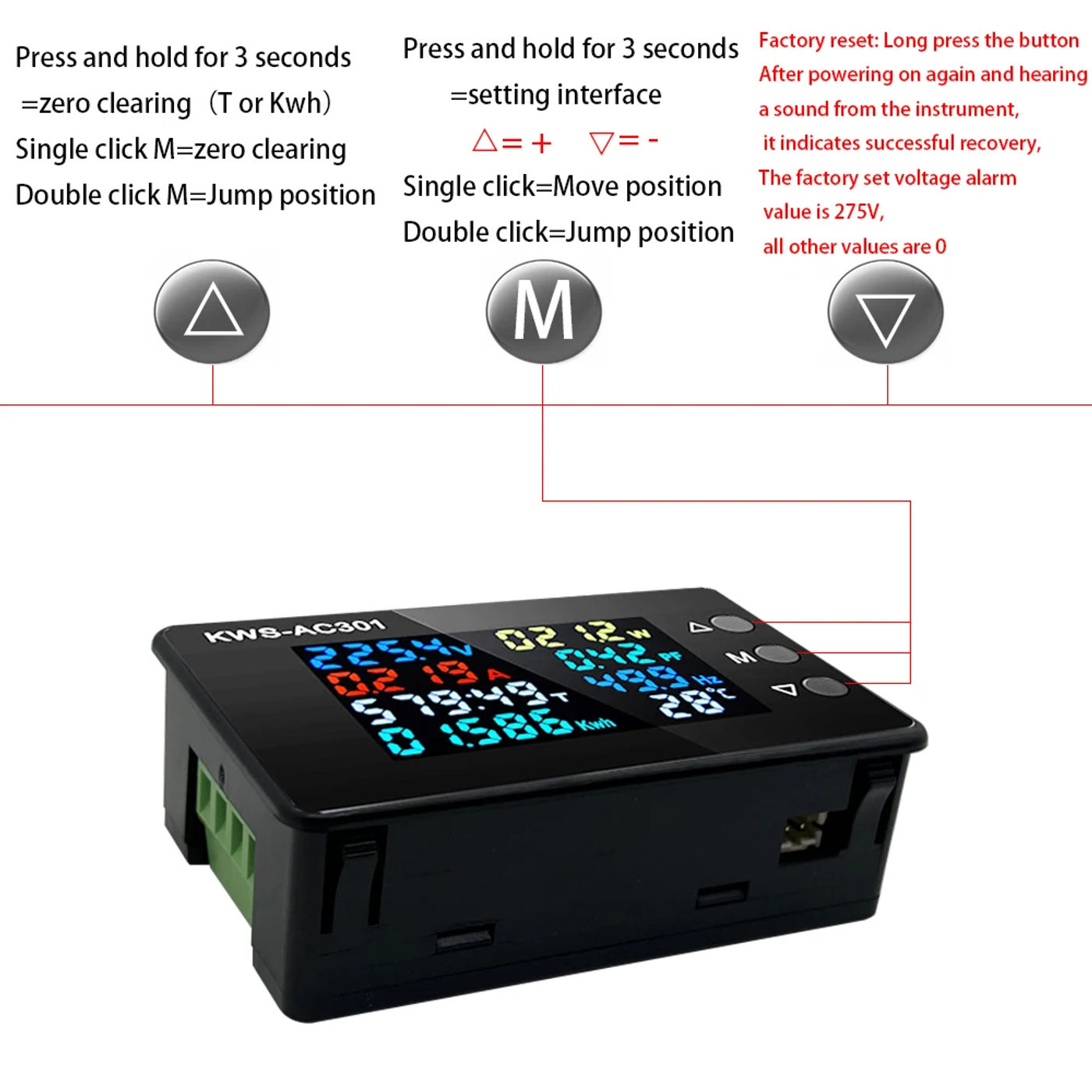

• Features: eight most important functions: current, timing, electric energy, voltage, power, temperature, strength factor, frequency PVC flame retardant material, all-round buckle design, secure installation, flame retardant and safer Full-view color display for clearer commentary Dedicated metering chip The calculation information is simple, convenient and instant Wide differ of functions Power saving and worry-free rational use of electricity Package Included: As proven within the photo of the chosen genre Instructions: 1 Press and hold the M key for 3 seconds to enter the settings, double-click the M key to wrap, and click on the M key to shift 2 Alarm immediate setting, when the worth is set, press the M key for 3 seconds to save The alarm immediate will appear only when the particular check price is greater than or equivalent to the set price or more than or equivalent to the set cost When the device has an alarm, it'll make a valid At an identical time, the numerical unit will flash on the display screen For example, if the present is decided to 1, an alarm will appear, and a immediate will seem when the particular current used is bigger than 1 Turn off the alarm prompt method: set the alarm value greater than the actual cost or set all alarm values to zero Electric calories and timing reset method: press the up button for three seconds and the timing flashes, click the M button to clear the timing, double-click the M button to wrap to the electrical energy, and click on the M button to clear Restoring manufacturing unit settings: Press and preserve the down key, and then activate the power and listen to the sound of the meter, indicating that the recovery is successful The manufacturing facility default voltage alarm price is 275V, others are zero Model: AC301-20A Model: AC301-100A Diversion method: integrated Diversion method: exterior Voltage: AC 50-300V Voltage: AC 50-300V Current: 0-20A Current: 0-100A Electric energy: zero Electric energy: 0 Power: 0-4 Power: 0-22KW Timing: zero Timing: 0 Temperature: -20~150 ° C Temperature: -20~150 ℃ Frequency: 50-60Hz Frequency: 50-60Hz Power factor: zero Power factor: 0

•
•
•
•
•
