Description

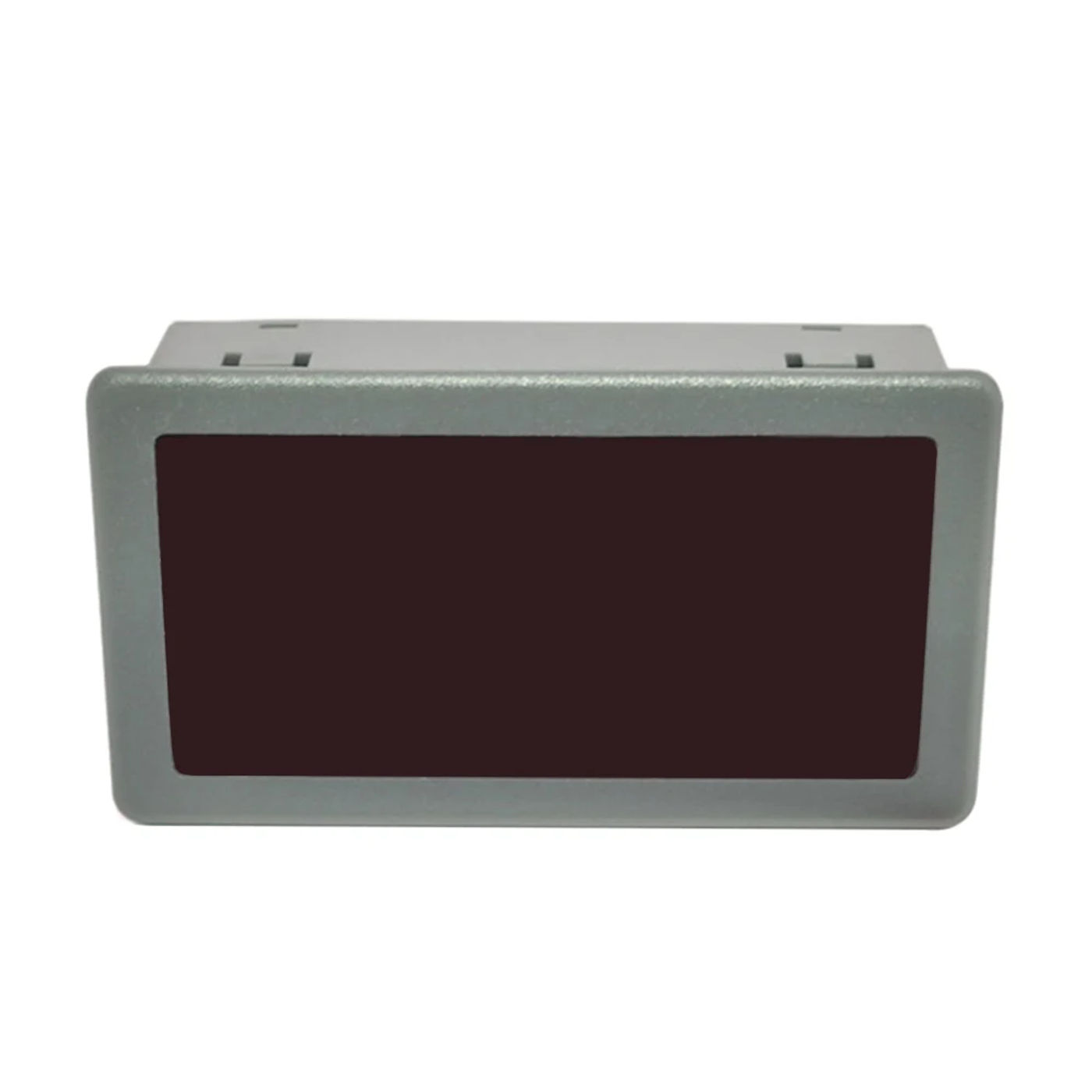

• 0 Inch DC 5V 24V 5 Digit LED Display Tachometer RPM Speed Meter Panel 5135FR Reversible Counter Meter Count With Cables Features: 1 response to meter/count input, without lacking a pulse 2 algorithms make meter counting extra dependable and accurate 3 appearance, excellent craftsmanship, and convenient use four can press the foremost to change various show items and step coefficient items 5 excessive reliability, solid anti-interference ability, huge dimension range, and excessive dimension accuracy Description: The YM5135RT-H sequence reversible meter counter uses a high-performance microprocessor from Microchip Corporation within the United States because the central processing unit It has the characteristics of high reliability, solid anti-interference ability, wide size range, and excessive measurement accuracy The use of utility reimbursement correction components reduces the deviation of meter counting, enabling the software to achieve a qualitative bounce in measurement accuracy Multiple ranges come in for customers to choose from, making it clean to use Therefore, this sequence of instruments would be broadly used in assorted industries that require high-precision size Specifications: Parameter items: meter counting and counting (parameter set to 0 1 1, step coefficient set to 100) Display digits: 5-digit LED Nixie tube (0 inch) Measurement reveal range: adjustable from 9 mm to 99999 meters The demonstrate unit could be adjusted in meters, centimeters, and millimeters X The decimal level positions of XXXX, XX, XXX, XXXX, and XXXXX are adjustable Step coefficient vary Note: Each fantastic or adverse signal The cumulative or lowering cost of the quantity 000 micrometers to 999 centimeters The step coefficient can be set in centimeters, millimeters, and micrometers, with a cost of XXX Signal enter frequency range: 0-10KHZ (dual pulse, duty cycle 50%, signal amplitude 5V measurement) Input sign description: Reversible meter counting requires alerts offered by means of A and B dual signal encoders and twin output sensor sensors so as to be used Single output sensors is also mixed into dual outputs for use, but it surely is necessary to ensure the integrity and correctness of the sign with a view to use it correctly Input signal type/amplitude: dry contact (not recommended), PNP, NPN, pulse (recommended)/3-30V (special customizable) Input resistance: 100K Ω/resistive Power supply: DC5V, 7-12V, 12-24V optional, with a latest of about 30mA (special power delivery can be customized) Withstand voltage: AC2000V 1min between exterior terminals and housing Vibration resistance: 1-100HZ, acceleration of 50m/s2, 5minX10 in X, Y, and Z instructions Operating environment (temperature: -35 ℃ -+60 ℃ with out condensation Operating surroundings (humidity): relative humidity 10-90%, no condensation Storage temperature: -35 ℃ -+60 ℃ without condensation Boundary dimension (mm): 79X43X25 (length × large × High) Installation opening size (mm): 75X39 (length × Width (reference value, precise price ought to be desperate based on the thickness of the box) Method of Use: Example of meter counting: meter wheel circumference 200 mm, encoder 400 lines, should demonstrate unit of meter, preserve three decimal areas First set the step factor to the theoretical price of 200/400 = 0 mm = 500 microns Parameter 2 is determined to 500, parameter 1 is decided to 3-1-3 At this time, the size could be carried out for the 1st time, since the theoretical and precise circumference hole of the meter wheel, assorted friction coefficients, varied stretching degrees of the measured object, and so on will trigger a difference between the worth displayed in the dimension and the particular value, at this time, in step with the ratio dating adjustment, for example, the desk displays 10 meters, the particular 10 meters, that step coefficient is modified to (10/10)*500 (the calculated step coefficient price set in front) = 529 Terminal Description: 1:Signal enter A 2:Signal input B 3:Clear 0 (low valid) 4:Power ground 5:Power supply fantastic (according to the back decal directions voltage access) Input connection: (the diagram is only marked A channel input signal, B channel input and A an analogous o two indicators to meet the conditions) Note: 1 should be utilized in the conventional operating surroundings of this instrument 2 the correct working mode and set the correct parameters per the particular usage requirements three enter sign must meet the requirements of impedance matching, and impedance transformation must be performed on signals with high inner resistance Package Included: 1 * Counter

•
•
•
•
•
