Description

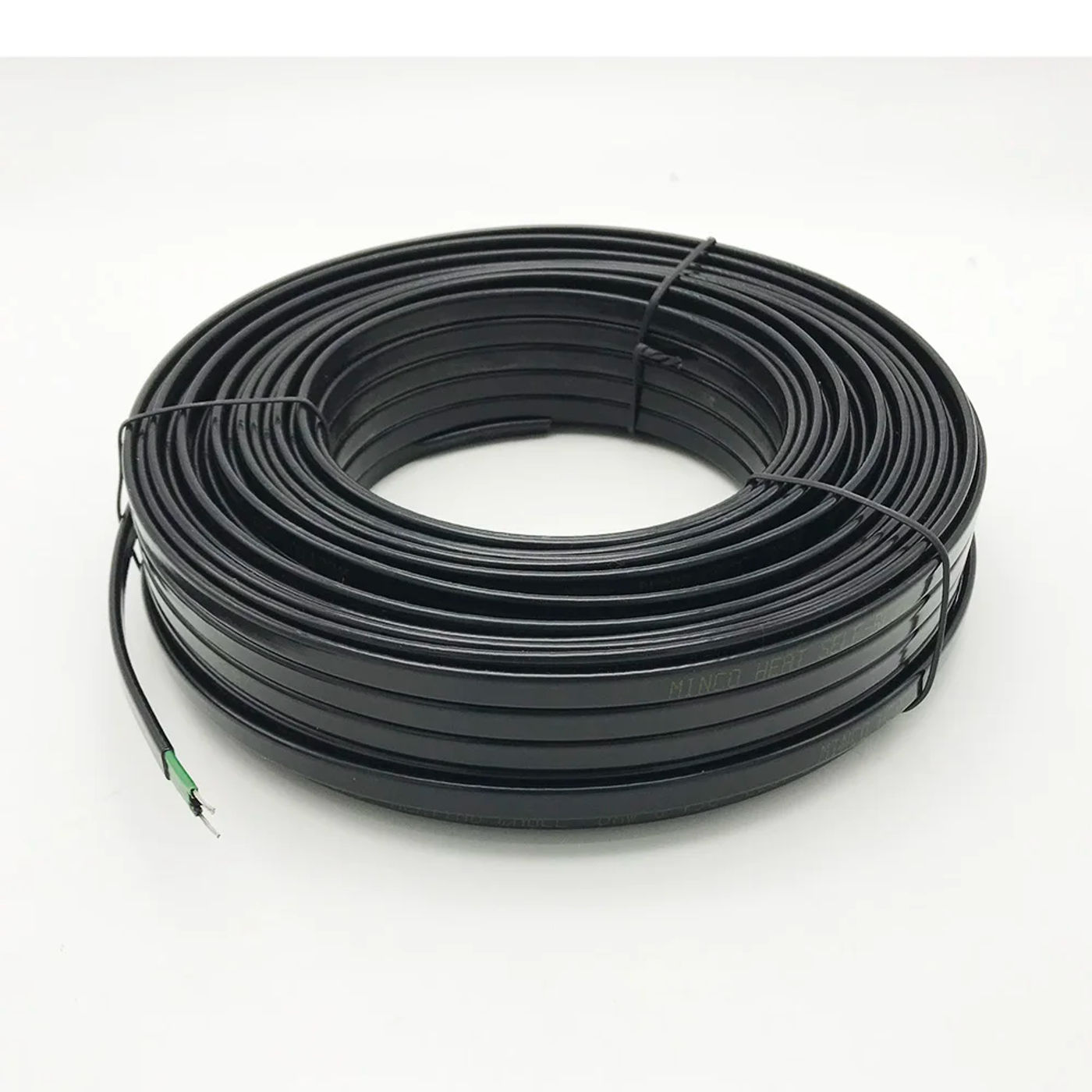

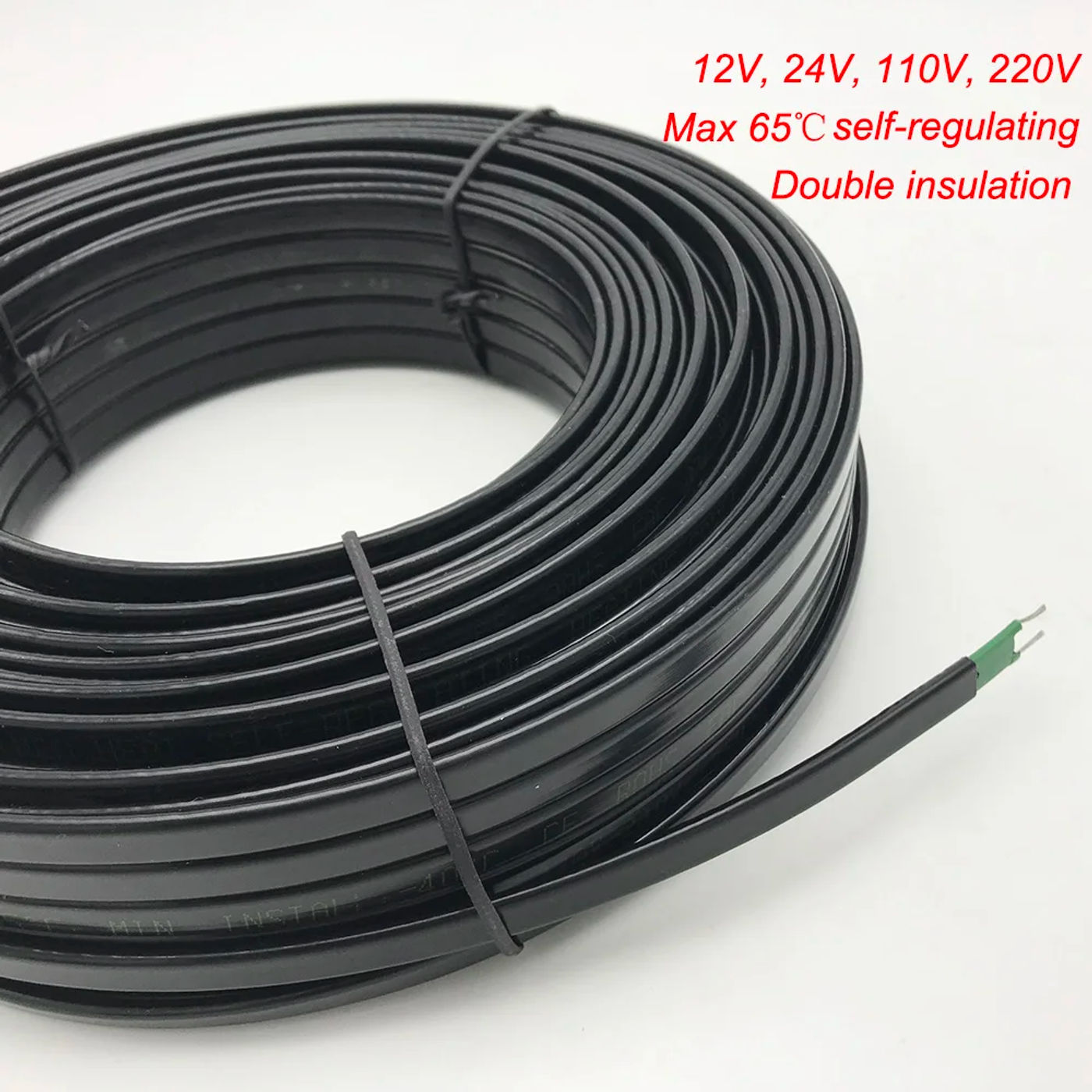

• 12V 24V 110V 220 Volts Water Pipe Anti-freeze Frost Protection Heating Cable For Roof Self Regulating Electric Heater Wire Self-regulating Working Principle: >>This cable is appropriate for family drinking water pipe, drain pipe freeze protection in winter and other heating applications >>The cable can self alter the output strength per the temperature, it won't overheat, so the temperature controller is not needed >>The cable is with superb PE jacket, and inner has the PE composite insulation layer, larger water-resistant and nice high quality Technical Datas: Cable type: self-regulating heating cable 1 Working voltage: 12V, 24V DC, 110V, 220V AC 2 Rated power: 15W/m, 20W/m, 25W/m (at 10C degrees) three Max hold temperature: 65C degrees 4 Max enduring temperature: 135C degrees 5 Width * Thickness: 12V, 24V, 110V (8mm * 3mm); 220V (10mm * 3mm) 6 Min bend radius: 15mm 7 Conductor: tinned copper cord eight Jacket: PE nine Max circuit length: 220V,50m; 110V,30m; 24V,20m, 12V,5m 10 110V type heating wire only 50m as 1 roll in stock when you order a 100m of 110v type, you will get a 2pcs 50 meters heating wire, thanks! Structure: 1 Copper conductor 2 Conductive heating detail 3 Inside more insulation 4 PE outer sheath Real Photos: Installation Steps: 1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape DO NOT join the two conductors together! 2) Connect the other finish with cold cord or plug (for connecting to the ability supply) 3) Wrap the heating cable on water pipes or fastening immediately on pipes, both are ok Put the entire cable at the pipes and connect it each 30~60cm with thermal tape or aluminum tape(sold in my store) 4) Suggest to wrap a layer of rubber insulation at the pipe, enhance efficiency of the heating cable and save energy, can also preserve the heating cables 5) Connect or plug into 12V, 24V, 100~120V, 220~240V (according to your cable) The heat hint components is done Tips: Max circuit length ~ 50 meters (220V); Max circuit length ~ 30 meters (110V); Max circuit size ~ 20 meters (24V); Max circuit size ~ 5 meters (12V) --->We have the rubber caps for smoothly making the connections, if need, please click on the following photograph to purchase : )) Installation on Pipes: Company Information Hefei Minco Heating Cable Company is specilized in production heating cables, heating mat for many years MINCO HEAT brand products are certificated by way of CE and RoHS authority FAQ Q:Self Regulating Heating? Best Choice Or Not? -------Self regulating heating cable controls the temperature isn't always too excessive nor too low in comparison with different heating devices, since the temperature is mechanically adjusted With explosion-proof, all-weather performance, excessive reliability and lengthy provider existence It can resolve other demanding issues, such as: long-distance pipeline warmth tracing, narrow area heating and so on May be self regulating heating cable one-time funding is higher,but it is the most economical heating measures in long running Notice of the shipping: Because of the variations between all the countries, we can choose a most right delivery technique to ship your order

•
•
•
•
•
