Description

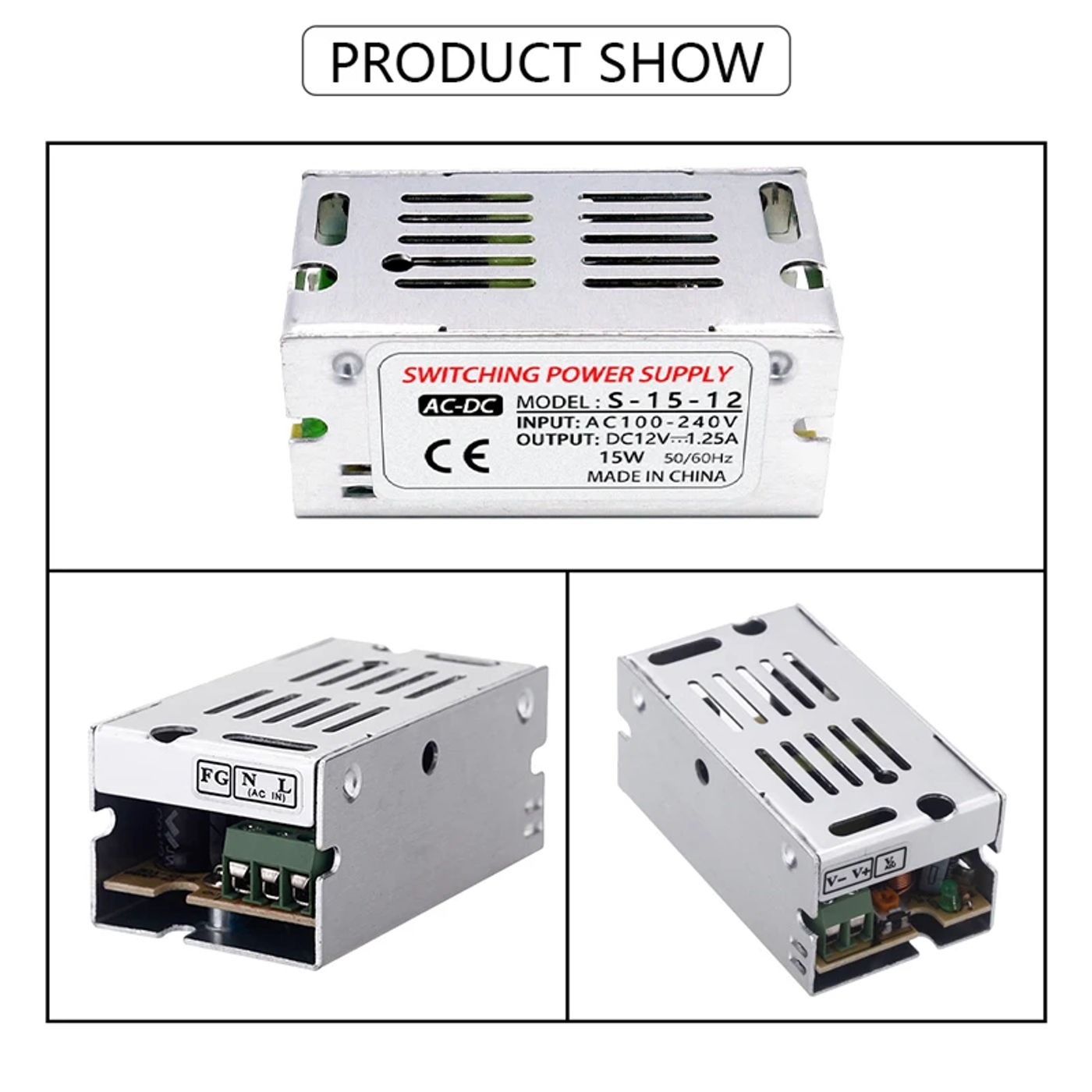

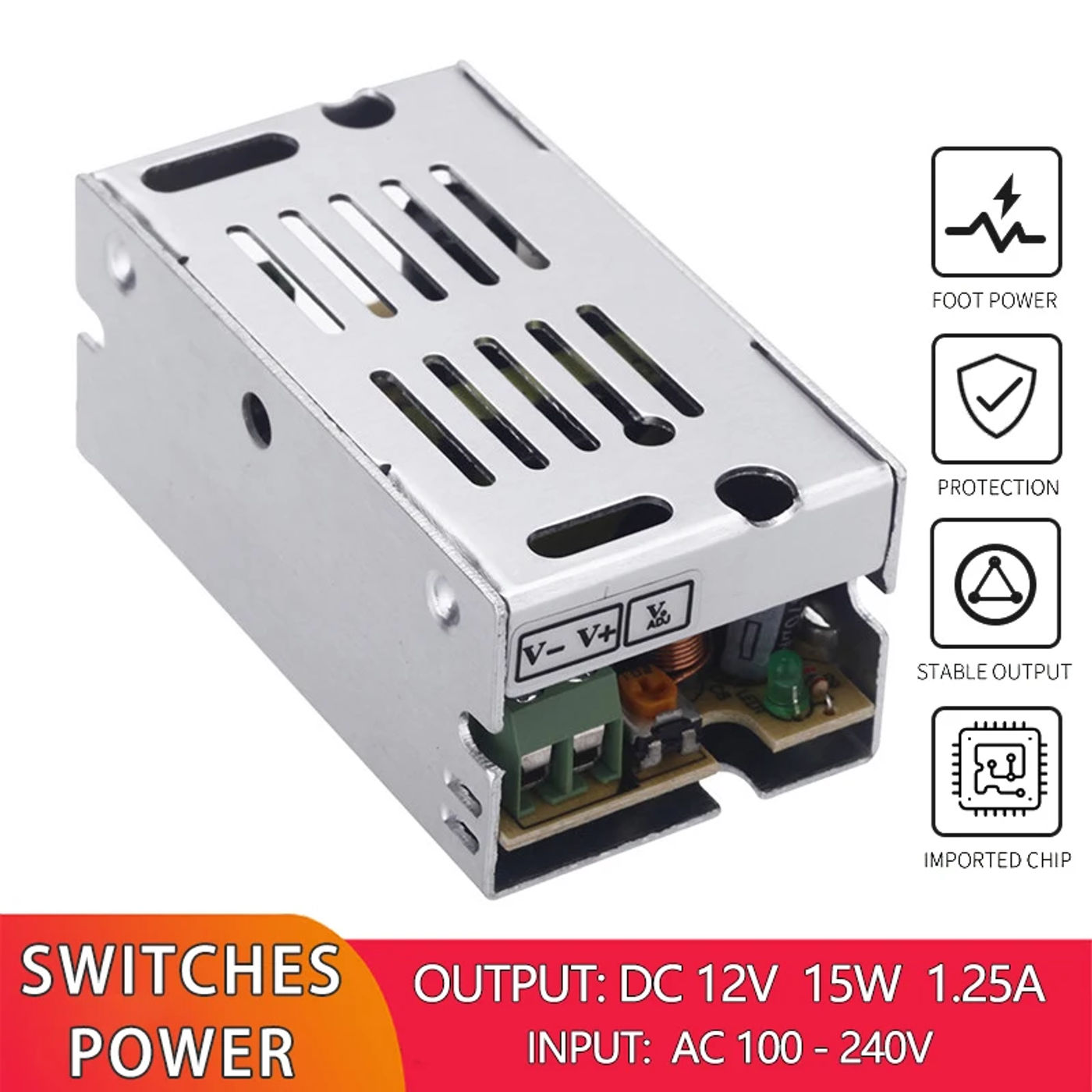

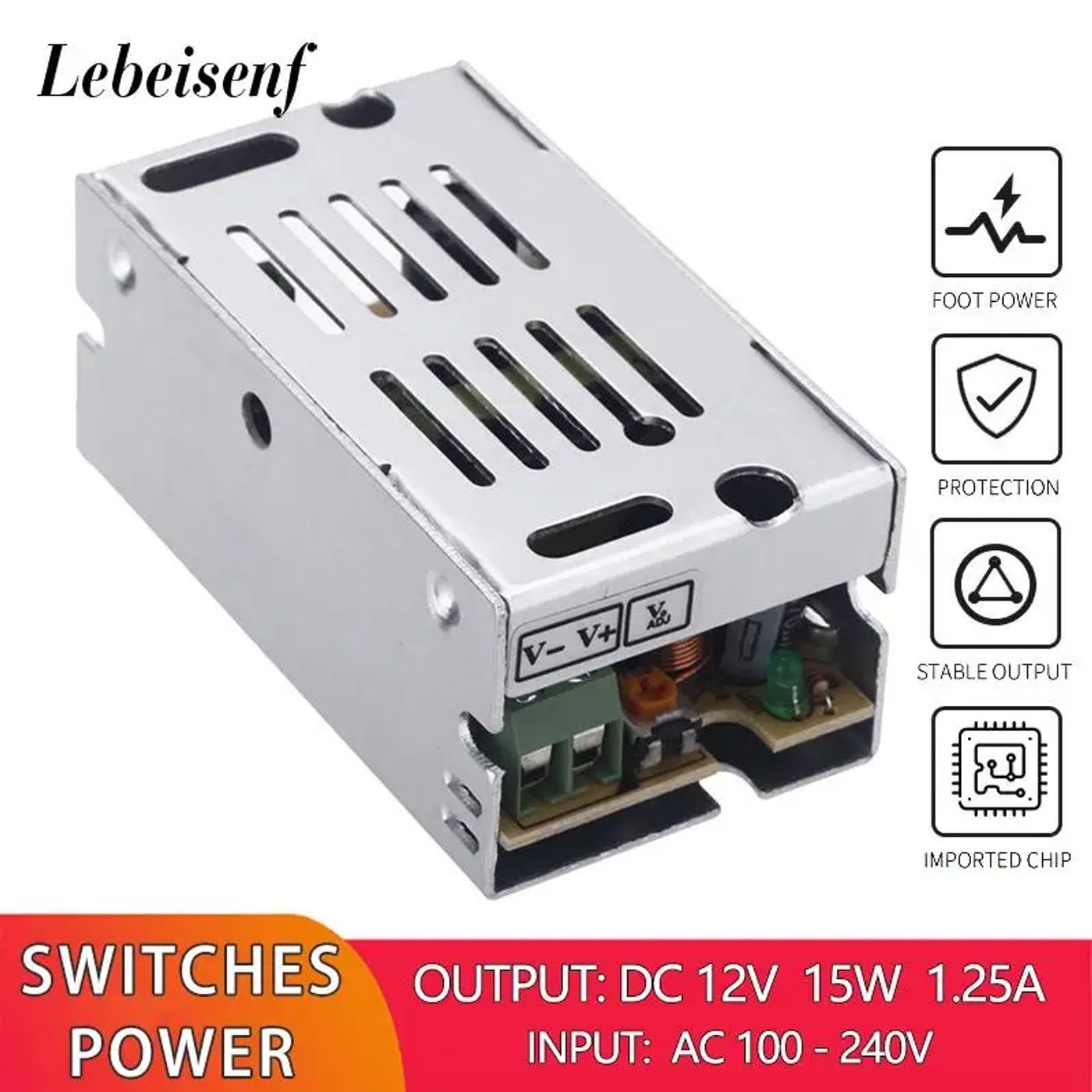

• AC/DC-enclosed SMPS Converter 100-240V AC to DC 12V 1 15W Switch Mode Power Supply Features: 1 Input voltage range: 100-240VAC 2 Low standby strength consumption and excessive efficiency 3 Low ripple noise four Output short circuit, over current, over voltage defense 5 Scope of application: LED, avenue mild control, electricity, security, commercial control, communication, instrumentation, laboratory, sensible home, electrical appliances and other fields Detailed parameters: Product Type： Switch Mode Power Supply Function： AC/DC Converter Modulation method： Pulse width modulation (PWM) variety Transistor connection： 1/2 bridge Input voltage： AC100-240V Output power： 15W Output voltage： 12V Output current： 1 Size (mm)： L70*W40*H30 Weight： 73g Work efficiency： 87% Output ripple noise： 120mVp-p Output voltage accuracy： ±1 (%) Voltage adjustment range： 10 (%) Product certification： ce ROHS Protection class： IP20 Working frequency： 47-63HZ Shell material： steel Scope of application： LED, security, business control, motor Working surroundings temperature： -40℃ to 65℃ Installation method： screw installation Reset method： self-recovery Cooling Type： Free Cooling Output Protection： SCP , OLP, OVP

•
•
•
•
•
