Description

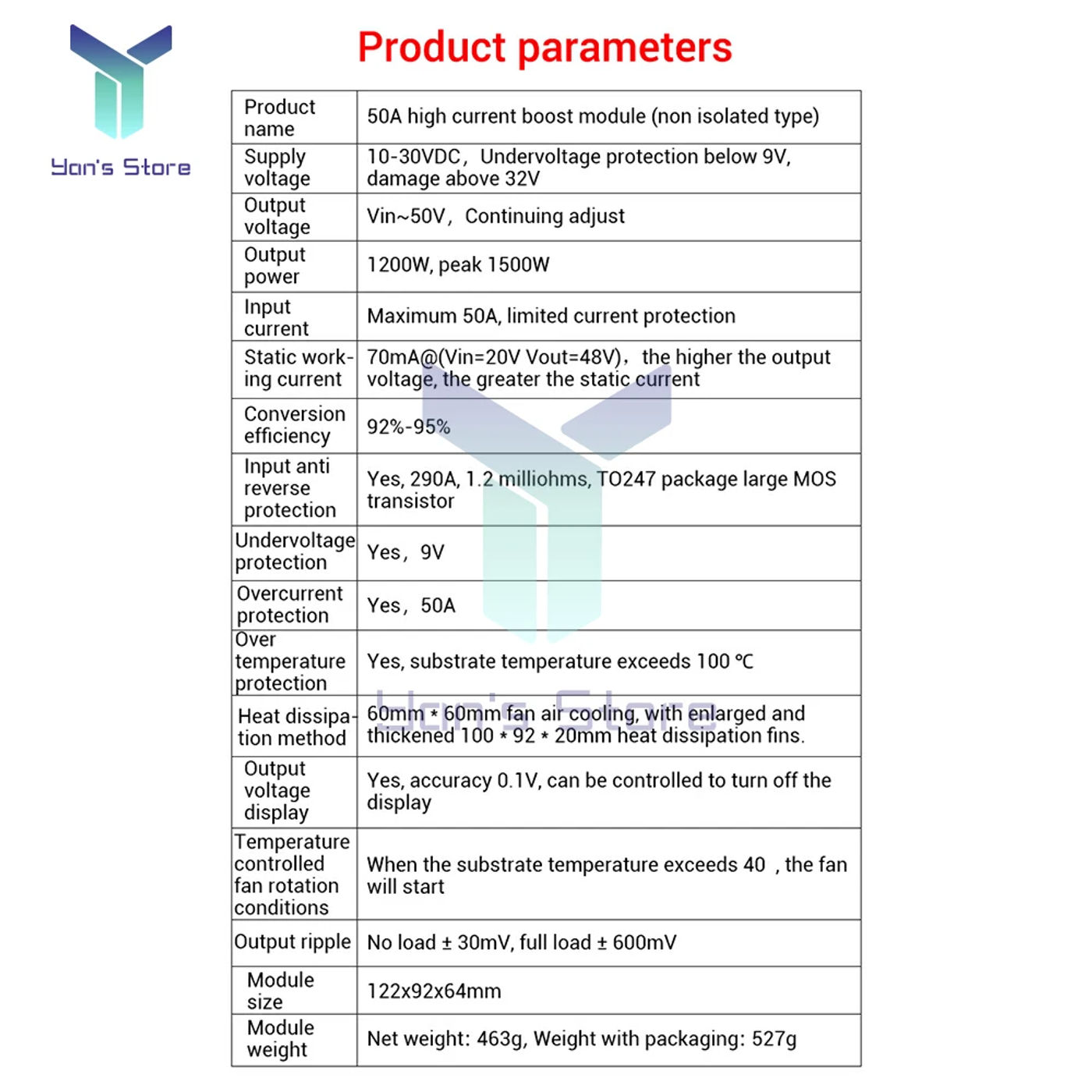

• Features: 1 Dual inductor design, to guarantee complete energy output, steady help for 1200W high-power applications 2 Extremely low ripple output, optimized for high-fidelity audio amplifier equipment sound high quality functionality three Maximum assist for 50A high current, to fulfill the anxious needs of high-performance package on the recent 4 Products with enter anti-reverse connection protection, over-current protection, under-voltage protection five On-board voltage display, output voltage at a glance Parameter: Product name: 50A high recent enhance module (non-isolated) Supply voltage: DC10-30V, below 9V undervoltage protection, larger than 32V could be damaged Output voltage: Vin~50V, continually adjustable Output power: 1200W, top 1500W Input current: Maximum 50A, current-limited defense Static working current: 70mA@(Vin=20V Vout=48V) the higher the output voltage, the better the static current Conversion efficiency: 92%-95 Input anti-reverse protection: Yes, 290A, 1, T0247 kit broad MOS tube Undervoltage protection: Yes, 9V Over-current protection: Yes, 50A Over-temperature protection: Yes, the substrate temperature exceeds one hundred ℃ Heat dissipation: 60mm * 60mm fan air-cooled, broaden the thickened 100 * 92 * 20mm warmth sinks Output voltage display: Yes, precision 0, can be controlled off the exhibit Temperature management fan rotation conditions: substrate temperature over 40 ℃ C fan beginning Output ripple: no load ± 30mV, complete load ± 600mV Package include: Power delivery module *1

•
•
•
•
•
