Description

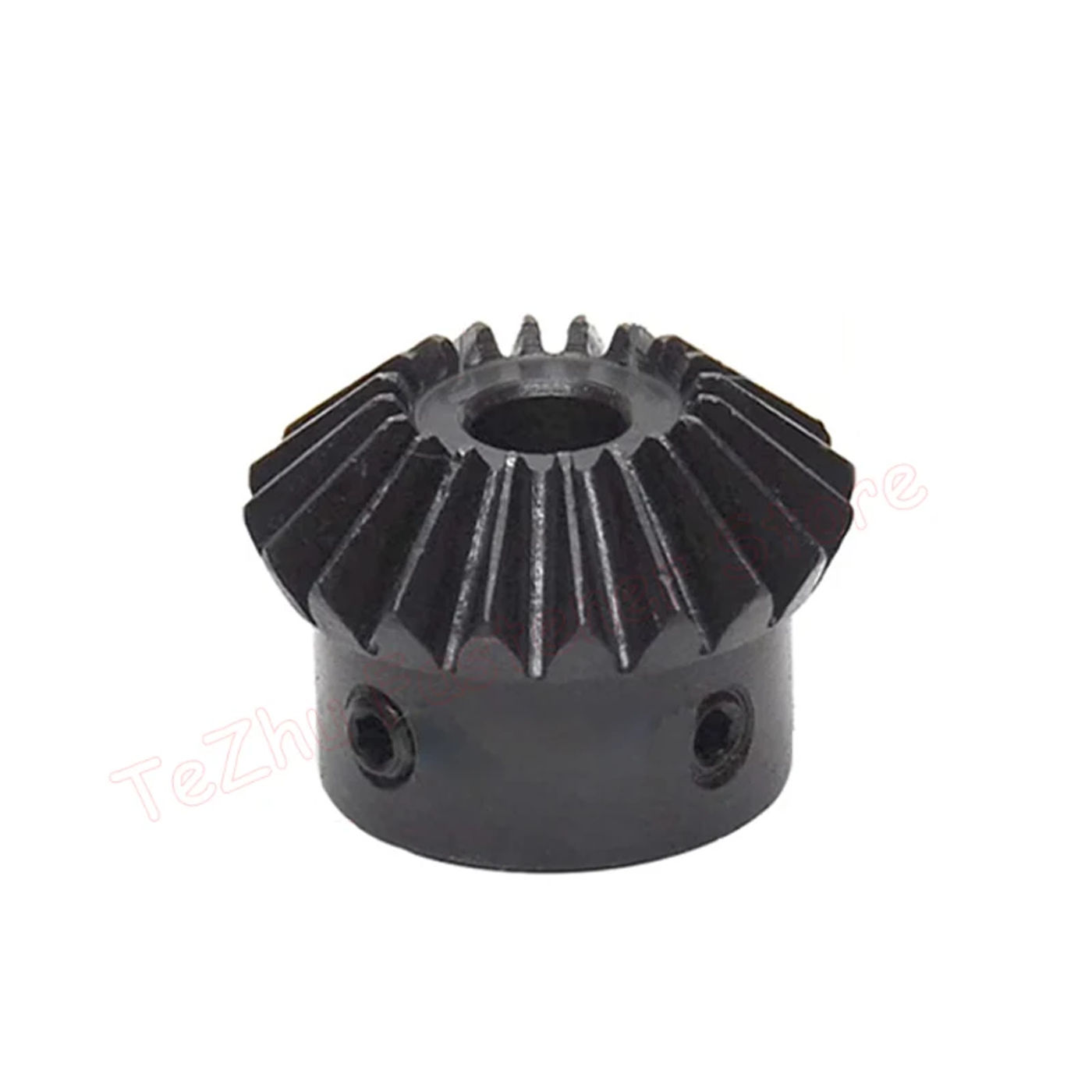

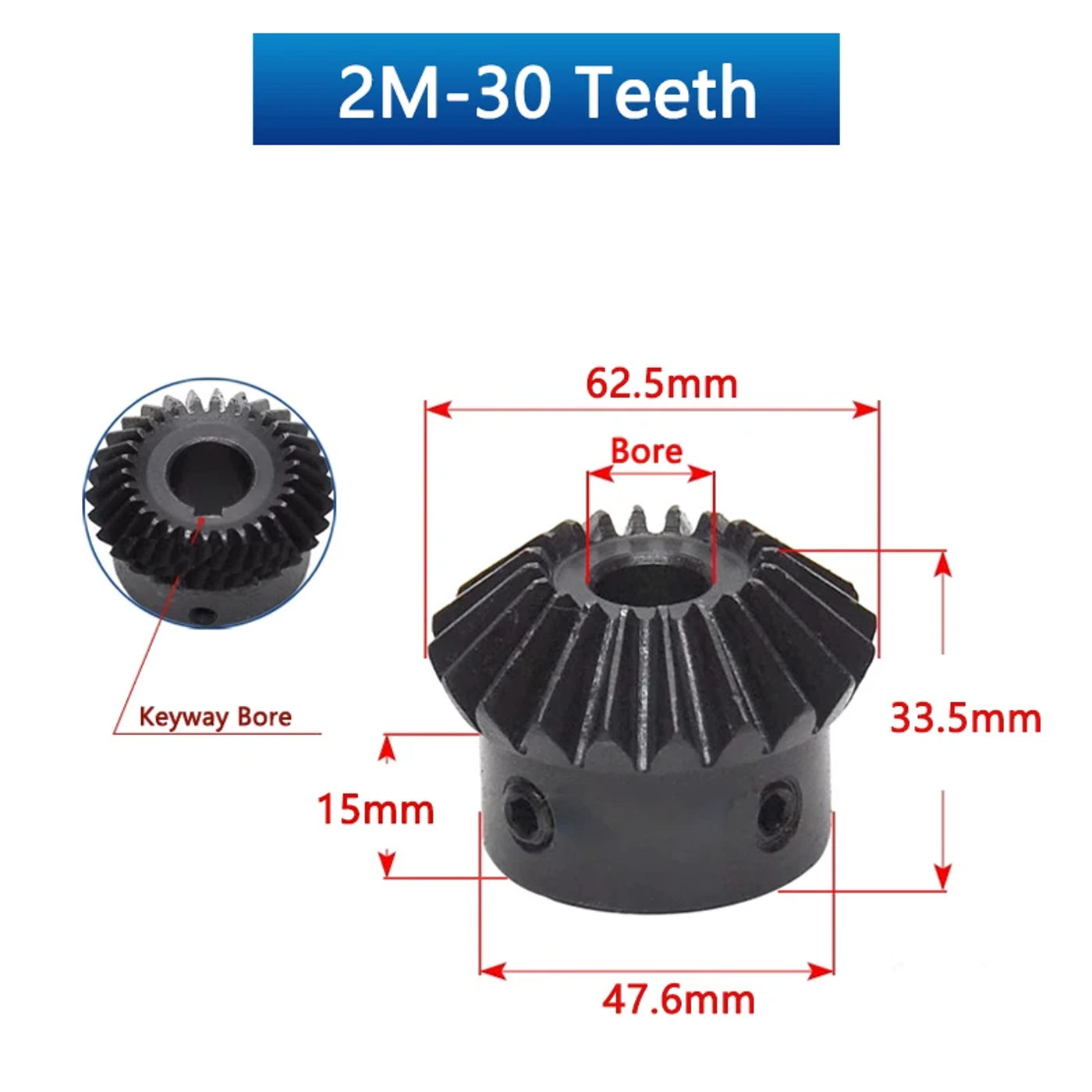

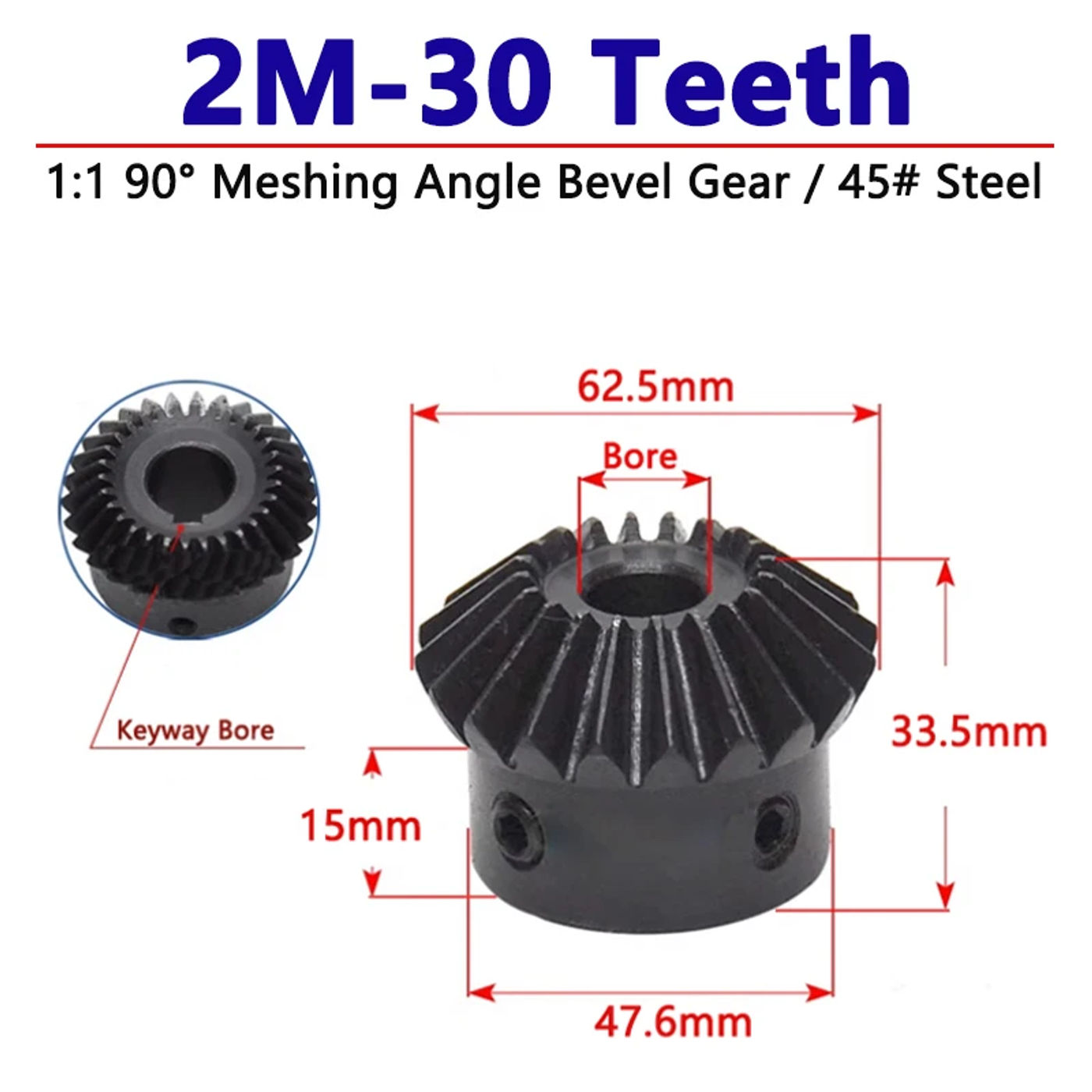

• Specification:Name: 1:1 Bevel GearMaterial: 45 SteelSurface treatment: Blackened Tooth Treatment: High-frequency QuenchingModule: 2 Module (2M) Rotational Speed Ratio: 1:1Tooth Angle: 90°Number of Teeth: 30 TeethRound Bore: 12/14/15/16/17/19/20/22/24/25mmKeyway Bore:12mm (keyway 4mm) 12mm (keyway 5mm) 14mm (keyway 5mm) 15mm (keyway 5mm) 16mm (keyway 5mm) 17mm (keyway 5mm) 19mm (keyway 6mm) 20mm (keyway 6mm) 22mm (keyway 8mm) 25mm (keyway 8mm) Note:1.Bevel gears are unmarried price, please decide to buy in step with their actual needs of the variety of options.2.The hyperlink bevel tools is 1:1 velocity ratio, can solely be used in a similar modulus, an identical number of teeth.3.Different batches (step diameter, height, screw hole and different data) will change, without further notice, please refer to the particular subject.Package :Packing : Plastic bag / Carton box.Quantity : According in your Choose!

•
•
•
•
•
