Description

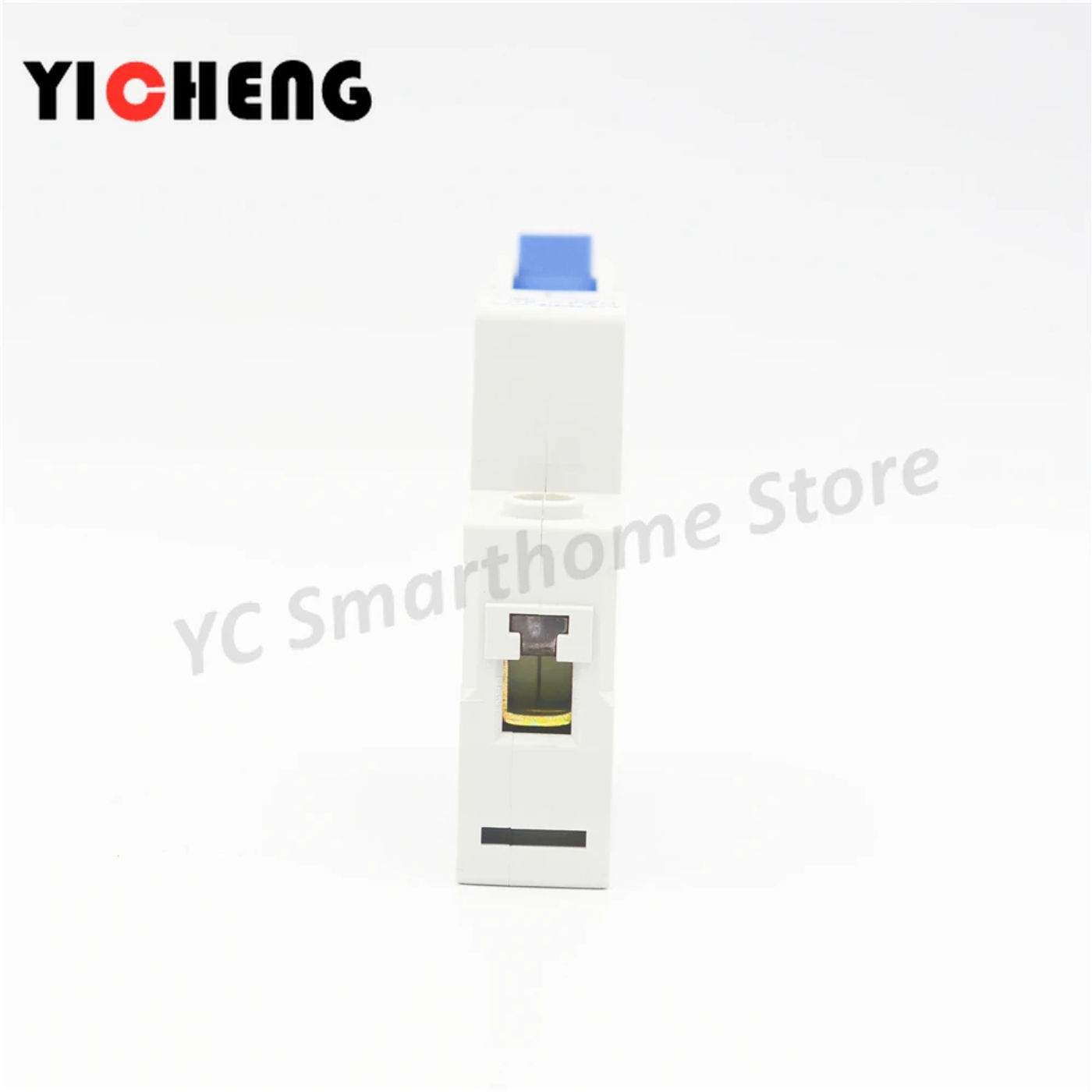

• 1 DZ47-60 miniature circuit breaker DZ47-60 miniature circuit breaker is suitable for lighting power distribution components (C type) or electrical motor energy distribution formulation (D type) Mainly used for AC 50Hz/60Hz, rated voltage up to 400V, rated latest as much as 60A for overload and short-circuit protection At an identical time, it will also turn on and stale electrical instruments and lighting circuits not often below traditional situations DZ47-60 miniature circuit breaker complies with GB10963 and IEC60898-1 standards Obtained CCC, CE, CEBEC, FIMKO, SEMKO, PCT, RCC certification 2 Model and that means of DZ47-60 miniature circuit breaker Frame rated latest Design code Plastic case circuit breaker 3 Main parameters and technical functionality of DZ47-60 miniature circuit breaker three Main specifications: 3 According to the rated recent In: 1, 2, 3, 4, 5, 6, 10, 15, 16, 20, 25, 32, 40, 50, 60A three Divided by the variety of poles: a Unipolar; b Two poles; c Three poles; d Quadrupole three According to the kind of the prompt release of the circuit breaker: a Type C (5In ~10In); b Type D (10In ~16In) three Technical parameters: 3 Rated working short-circuit breaking ability (see Table 1 and Table 2); 3 Mechanical and electrical lifestyles a Electrical life: now not lower than 4000 times; b Mechanical life: no longer less than 10,000 occasions

•
•
•
•
•
