20pairs xSolar Connector male feminine 30A Cable Plug Connector Solar Panel branch series Connect solar systemDescription :They are used to attach multiple solar panels or teams of solar panels together in a solar field, and customarily utilized in parallel purposes The steel pin is made of tremendous machined copper and sealed tip (compare to the cheap sheet metallic pin) that may make sure superb electrical contact:
-Compatible with PV cables with assorted insulation diameters
-It can be used in harsh surroundings
-With preferrred ageing resistance and UV endurance
-Double seal rings for greater waterproof impact
-Created seal, design of grime evidence
-Load capacity with large latest and excessive voltage

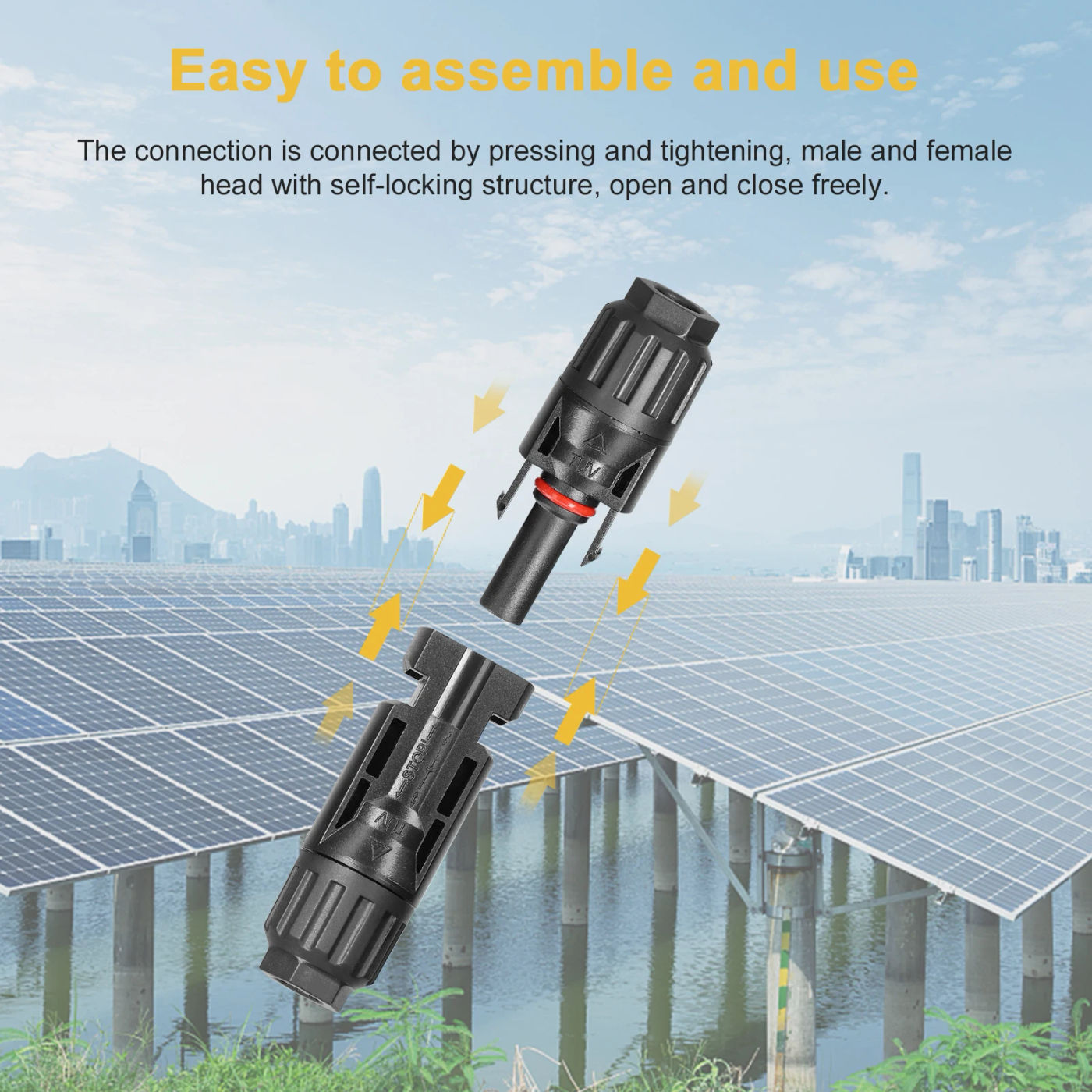

-Quick & simple meeting processing and simple removal of plugs without assistance from any extra device
-Strong pulling force capacity
-Resistance of extra high & low temperature and fireproof
-Lower touch resistance
Technical parameters:
-Rated Current: 30A
-Rated voltage: 1000VDC
-Suitable cable: 2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0Ω
-Waterproof degree:IP67
-Safety Class: II
-Withdrawal force: ≥50N
-Pin dimension: four dia
-Insertion force: ≤50N

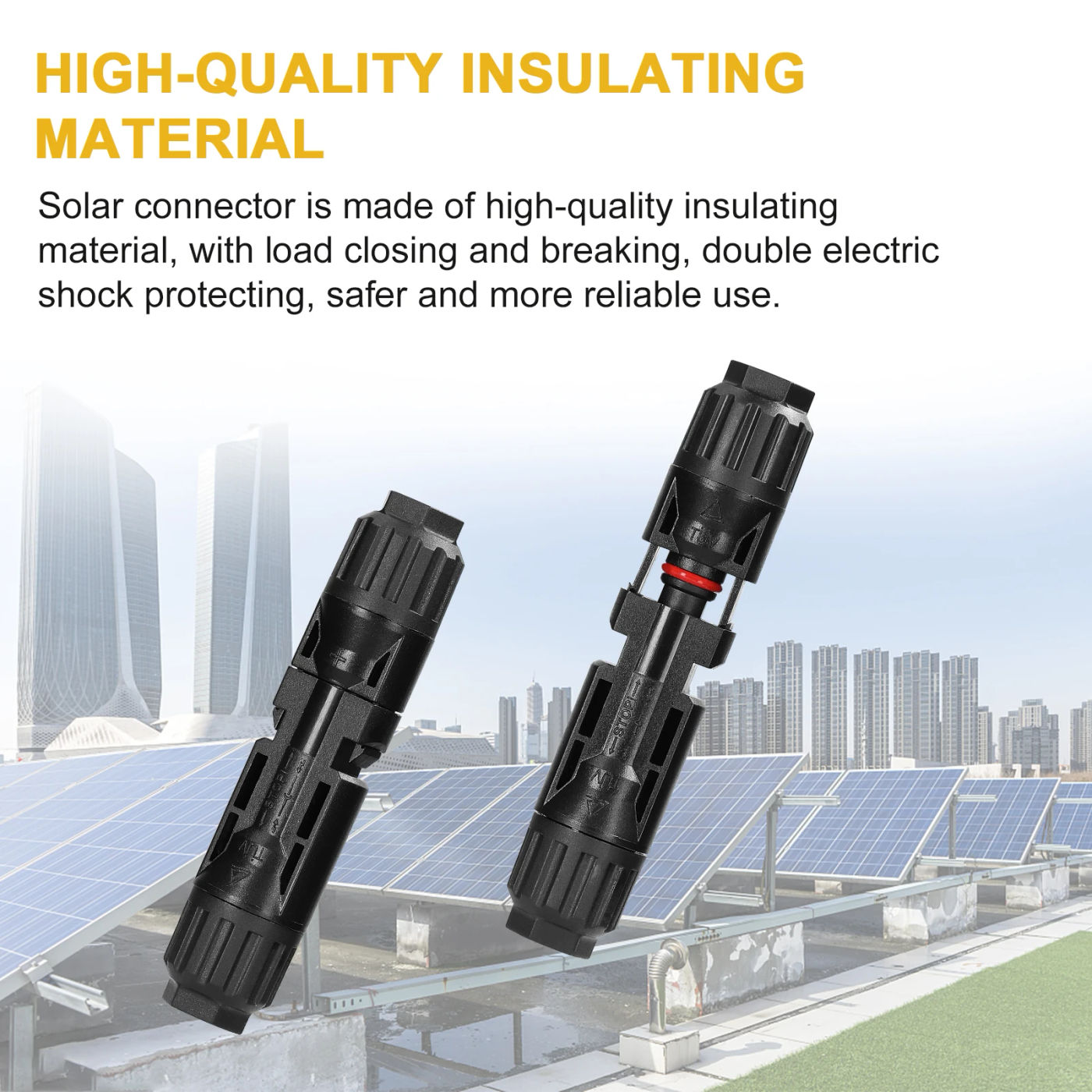

-Insulation material: PPO+PA
-Connecting system: crimping connection
-Contact material: copper, tin plated
-Temperature range: -40 °C ~ +90 °C
Package includes:

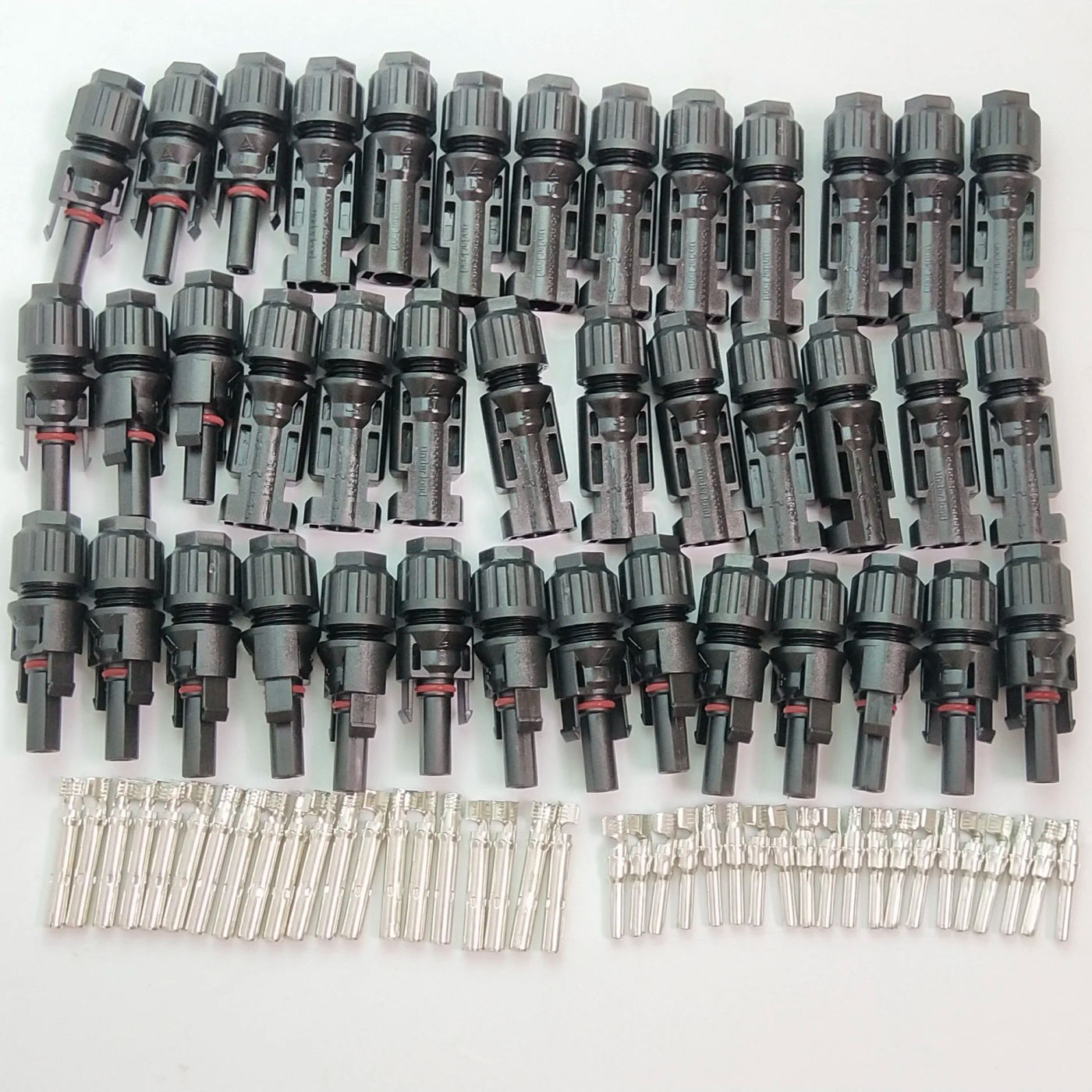

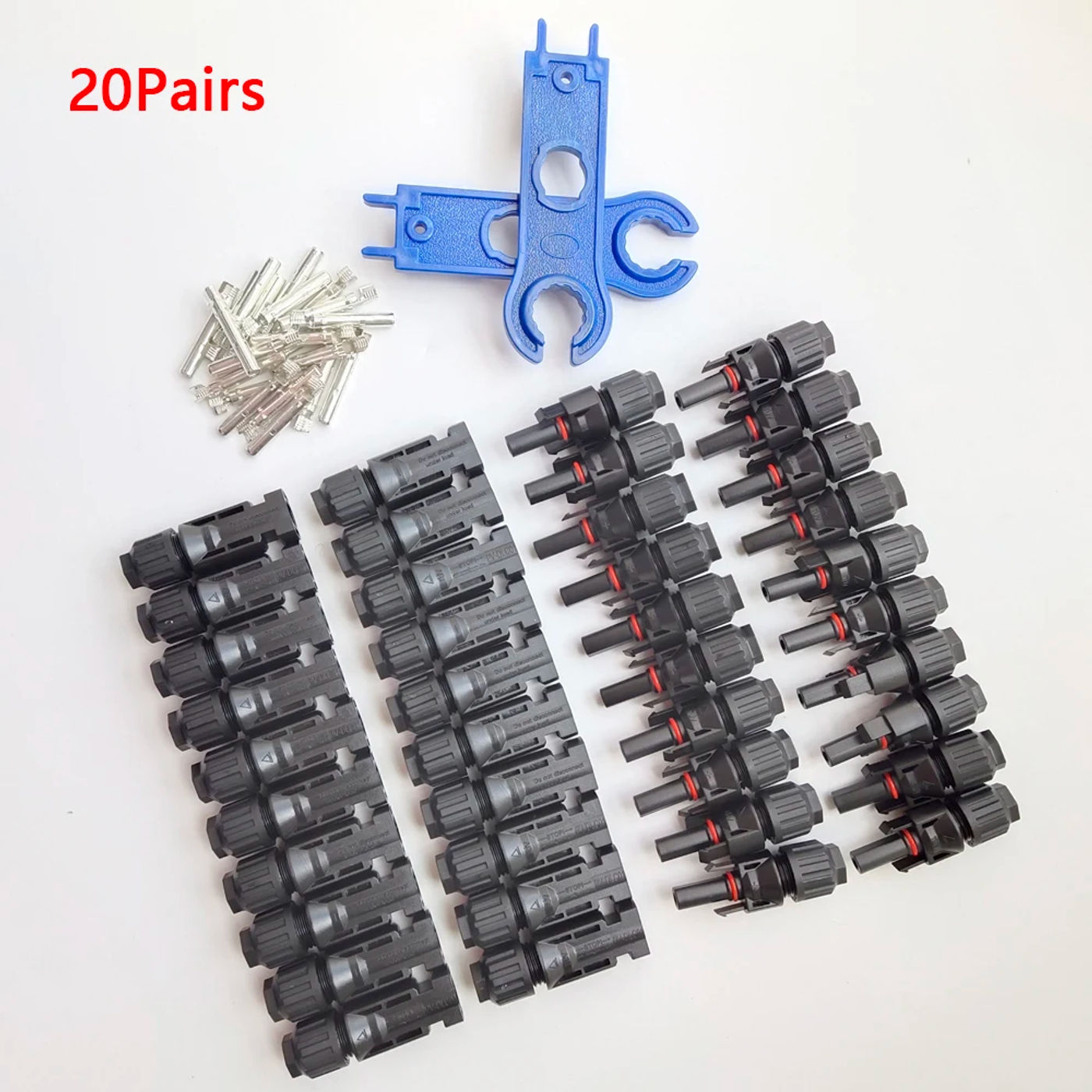

-20 Pairs of Solar Panel Cable Connectors (20 Male&20 Female)
-20 pairs of solar connector pins (20 male & 20 female)

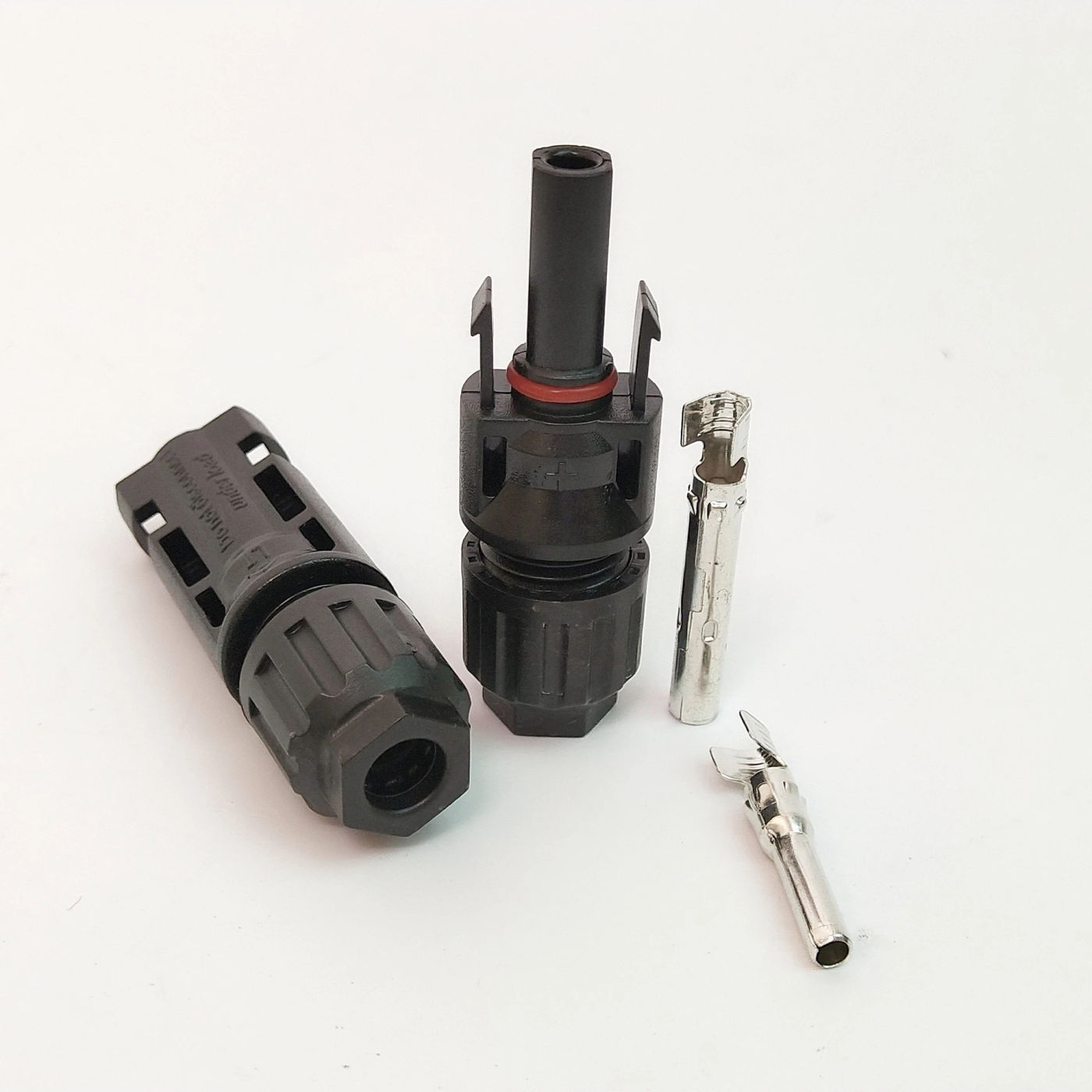

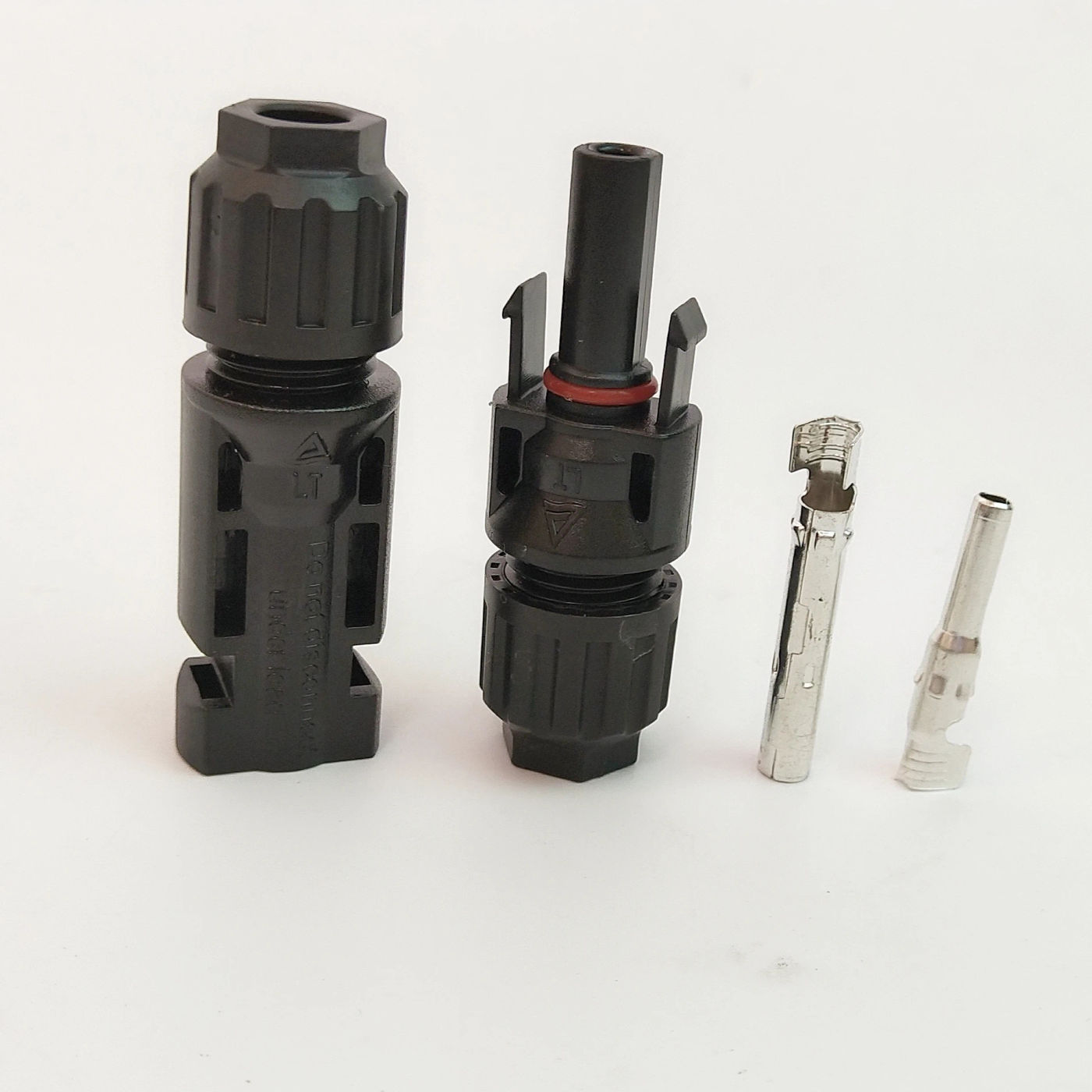

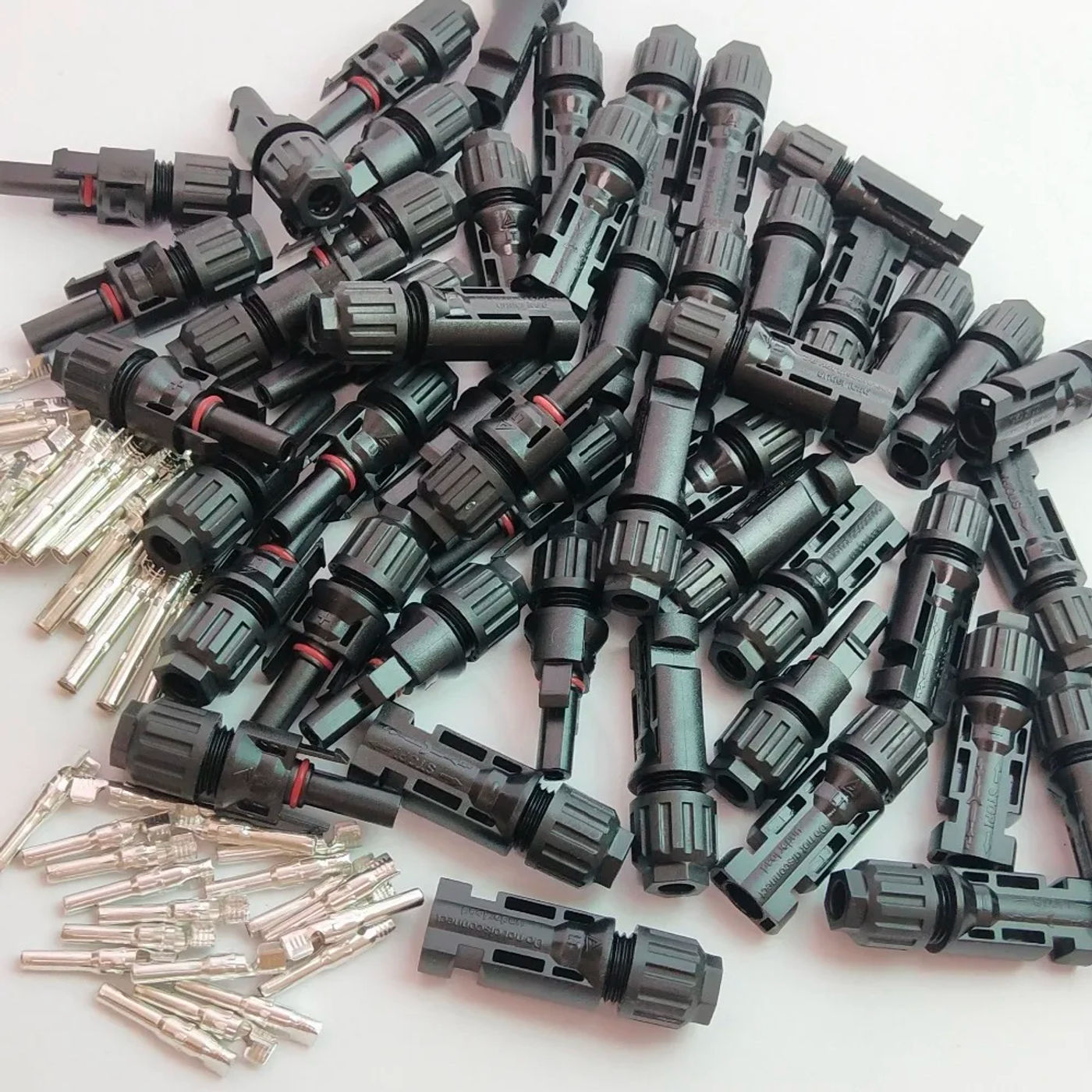

Product show:
