Description

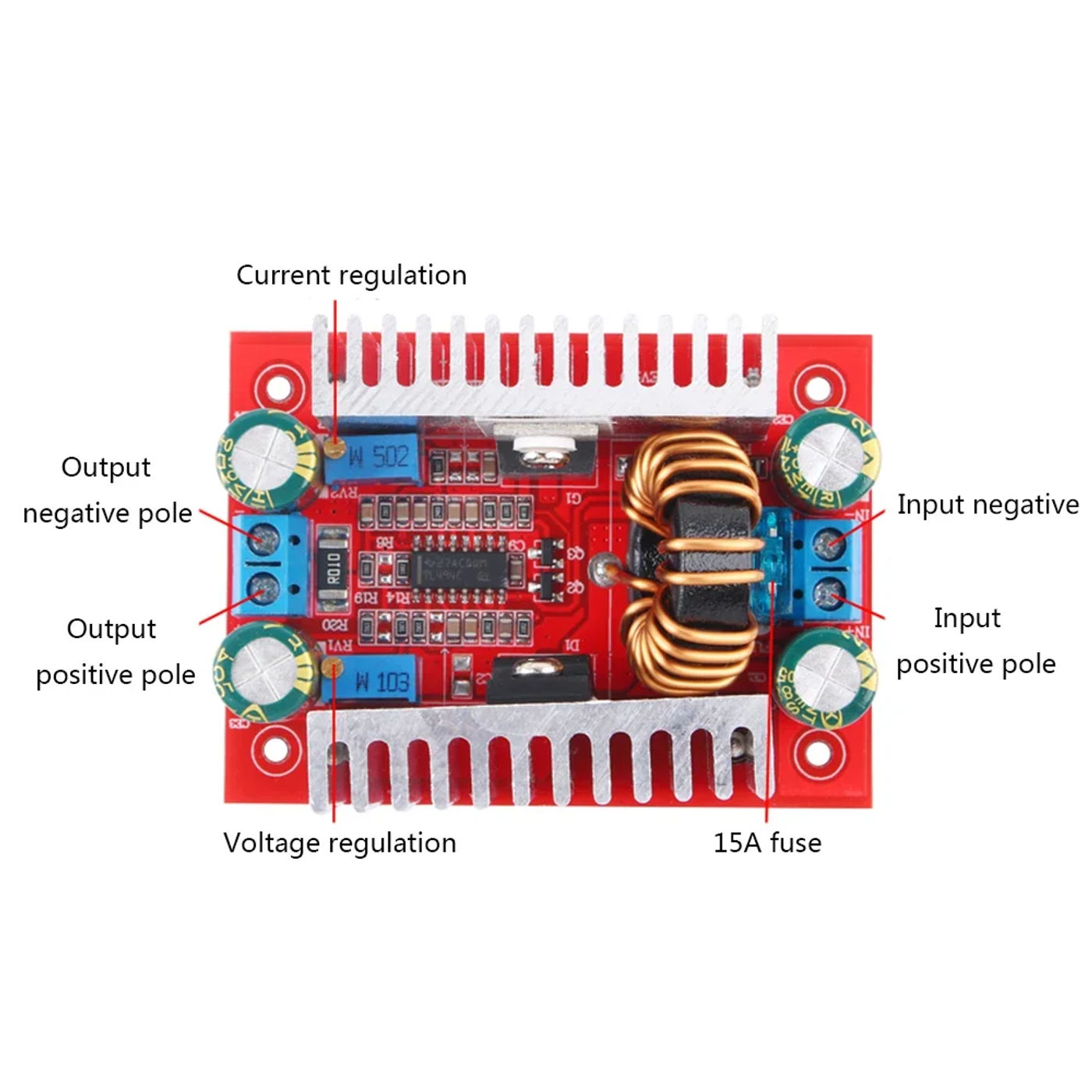

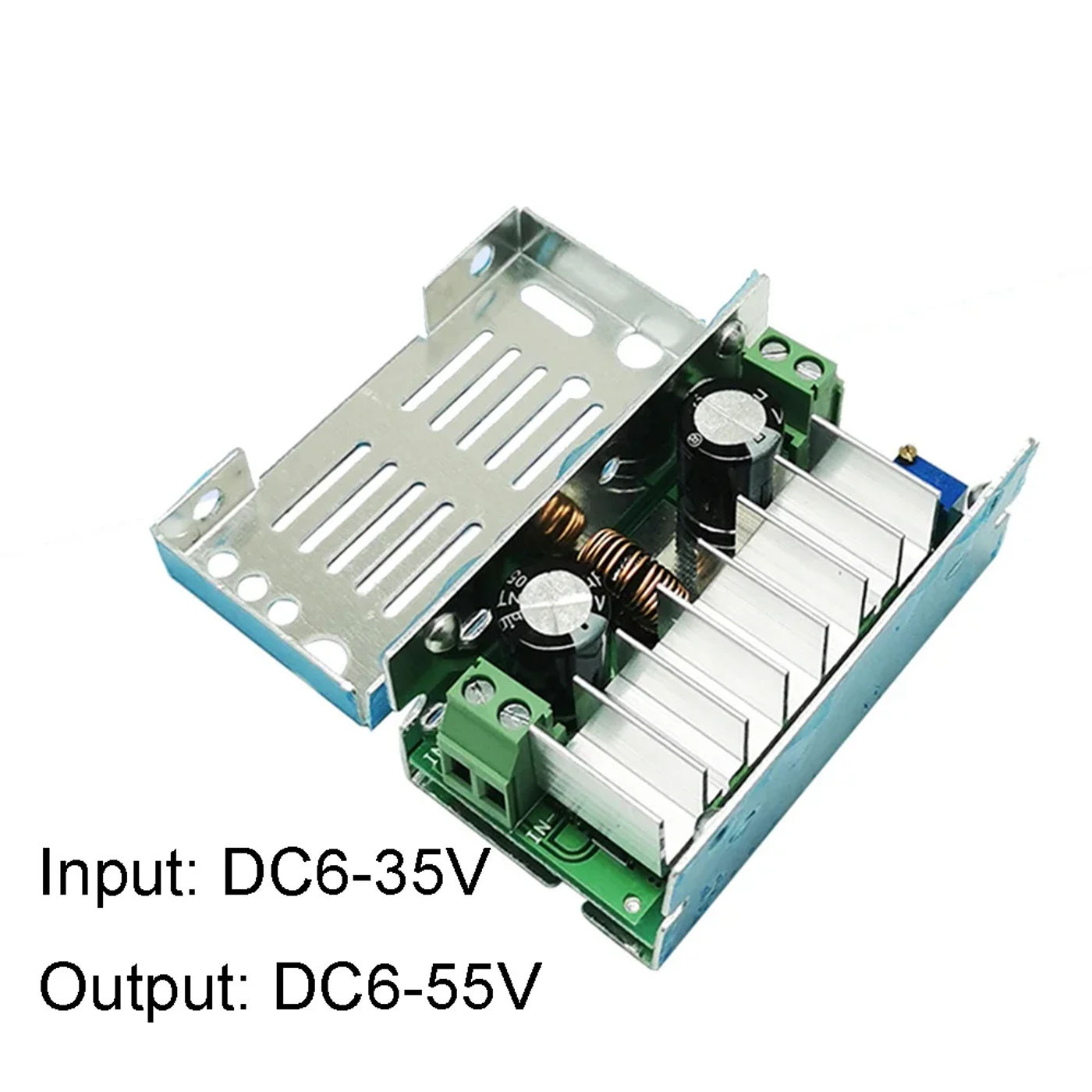

• Power Supply Module 200W/ 400W DC-DC Boost Converter 6-35V to 6-55V And 8 to 10-60V 10A/15A Step Up Voltage Charger Switch 200W high-power DC-DC boost module, 6-35V to 6-55V, with aluminum casing Input Voltage: DC 6-35V Output Voltag: DC 6-55V Max Input Current: 10A (If long time working, it is going to be decrease current) Max Output Current: 7A (If long time working, will probably be lower current) Max Output Power: 200W (Only when Input voltage is greater than 30V, it'll attain 200W ) 400W DC-DC high-power constant voltage and relentless recent boost power module LED increase drive laptop computer battery charging 【 Module Name 】 400W Booster Constant Current Module 【 Module Nature 】: Non remoted boost module (BOOST) Input voltage: DC8 [Input Current]: 15A (MAX) More than 8A, please strengthen heat dissipation [Static operating current]: 10mA (When 12V rises to 20V, the better the output voltage, the higher the static latest will increase) 【 Output voltage 】: 10-60V continuously adjustable (default output 19V for shipment, if you want other voltages, please explain to the shopkeeper) 12-80V fixed output (for bulk customers) 【 Output Current 】: If the 12A MAX exceeds 7A, please strengthen warmth dissipation (related to the enter and output pressure differences, the bigger the stress difference, the smaller the output current) Constant recent range: 0 [Output Power]:=Input Voltage * 10A, such as: Input 12V *=60W, Input 24V *=120W, Input 36V *=180W, input 48V *=240W, [Working temperature]: -40~+85 degrees (please make stronger heat dissipation when the ambient temperature is simply too high) Working frequency: 150KHz Conversion efficiency: 96% (efficiency is expounded to enter and output voltage, current, and voltage difference) Overcurrent protection: Yes (if the enter exceeds 1, the output voltage will be mechanically reduced, with a certain range of error) [Input opposite protection]: None, (If you need the next reverse current, please enter a diode in series) 【 Installation components 】: 4 2 screw holes [Wiring method]: Wiring output

•
•
•
•
•
