Description

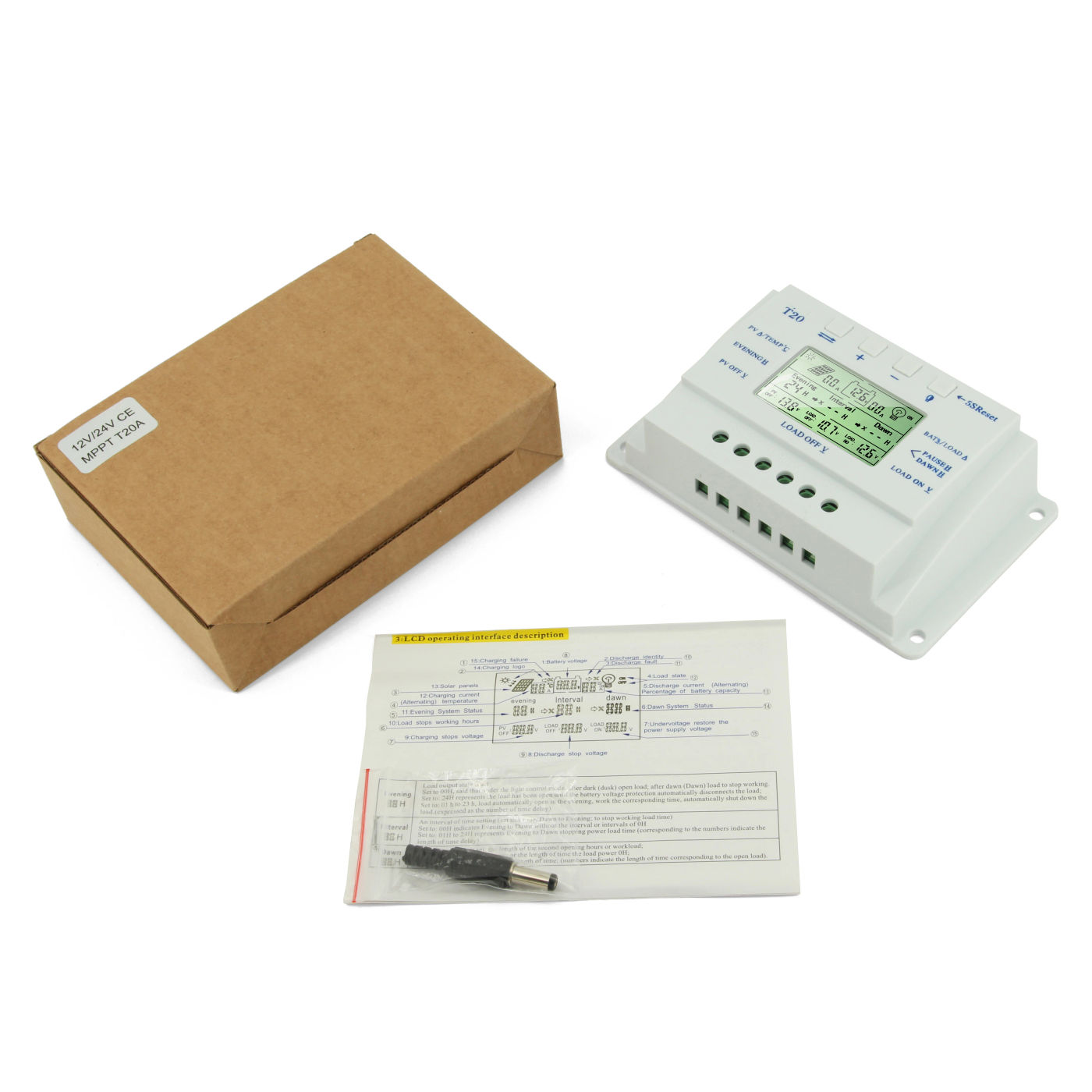

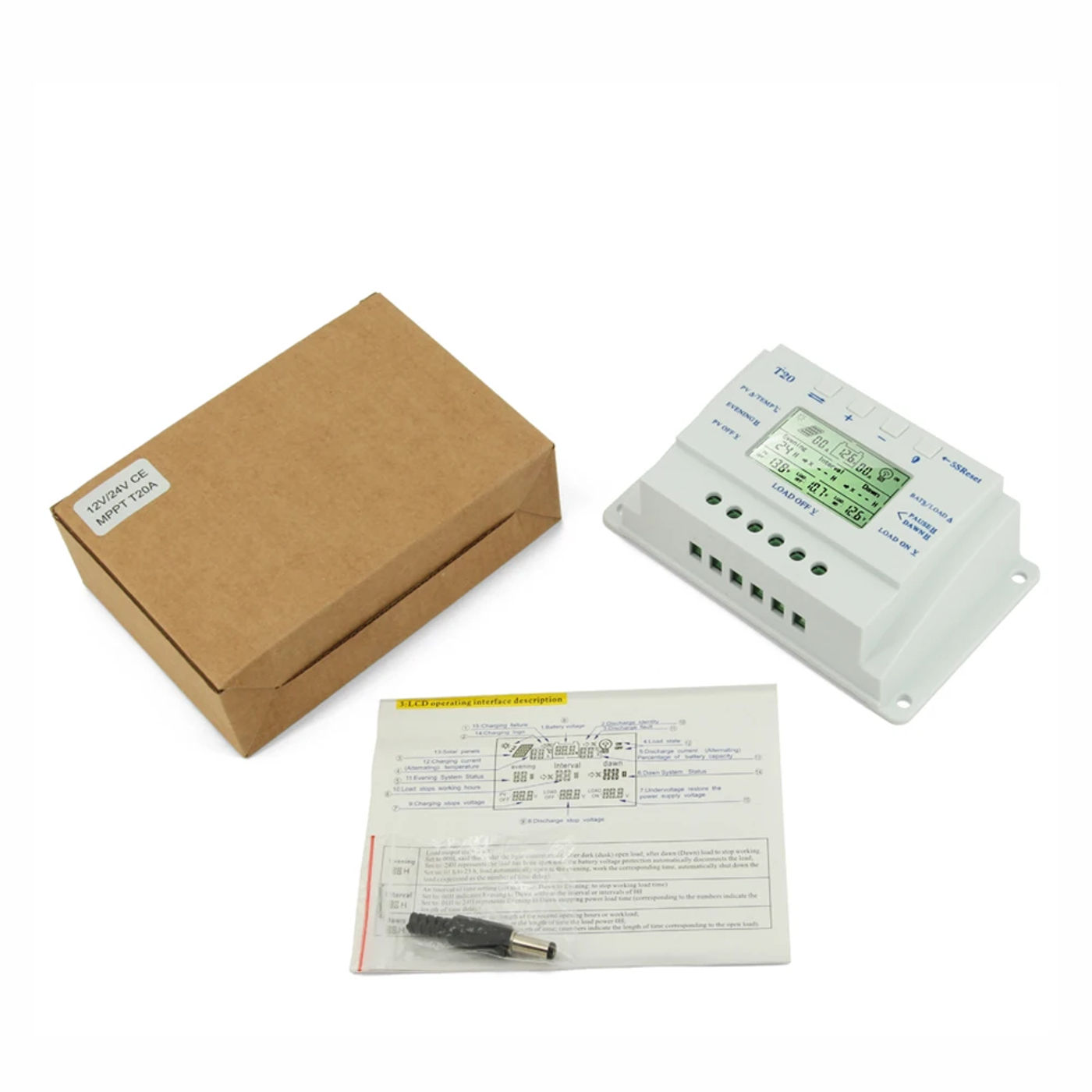

• 20A 30A 40A 12V/24V Auto LCD Display Solar Charger Controller for Lighting System Solar Panel Battery Regulator T20 T30 T40 Note:It is advantageous like minded MPPT + PWM Solar Controllers ,not one hundred pc Ture MPPT Please contact us for checking more details if essential Thank you 40A T40Solar Charge Controller Dual timer This is a compatible MPPT charge controller PWM clever / effective / calories saving, he not only has a efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% larger than the normal controller charging efficiency, but also has standby calories saving, more than 30% calories than normal controller, the standby power consumption of solely 10mA-15mA LCD display screen demonstrate Battery reverse discharge defense Easy operation interface Battery reverse polarity protection MPPT+ PWM charging mode Battery beneath voltage protection Parameter consumer can reset Overload Short-circuit protection A key to revive the manufacturing unit settings USB 5V charging ( 500mA(White) 1500mA(Sliver) for cellular phone A key to open and close the load Automatic temperature repayment function T20 20A Solar Charge Controller Dual timer This is a three-time controller into the evening working time,an period of remainder of pause time,Dawn operating time(morning mild function), the user can consistent with their needs,set a distinct time Dual Timer function Specification Parameters / Model T10 T20 T30 T40 Maximum power recent 12A 20A 30A 40A Installation Lin(mm2) 4mm2 8mm2 10mm2 12mm2 Installation Line(AWG) 10(AWG) 8(AWG) 7(AWG) 6(AWG) Weight 280g 300g 475g 480g Dimensions 143×89×46(mm) 187*97*61(mm) System load loss ≤13mA Loop Buck ≤100mV Battery flow voltage 13(12V system)/27(24V system) Battery (under voltage) protection 10(12V system)/21(24V system) Battery (under voltage) restoration voltage 12(12V system)/25(24V system) Charge mode MPPT+PWM MODE Operating Temperature -10°C~60°C Storage Temperature -30°C~70°C Humidity requirements ≤90%, No condensation Temperature reimbursement -4mV/Cell/°C Temperature Probe (built components) NTC 100K thermistats Maximum open circuit voltage of the solar panel 18V-24V(12V system)36V-48V(24V system) Solar panels most open circuit voltage (V) ≤48V (Cases) 12V formulation regular configuration

•
•
•
•
