Description

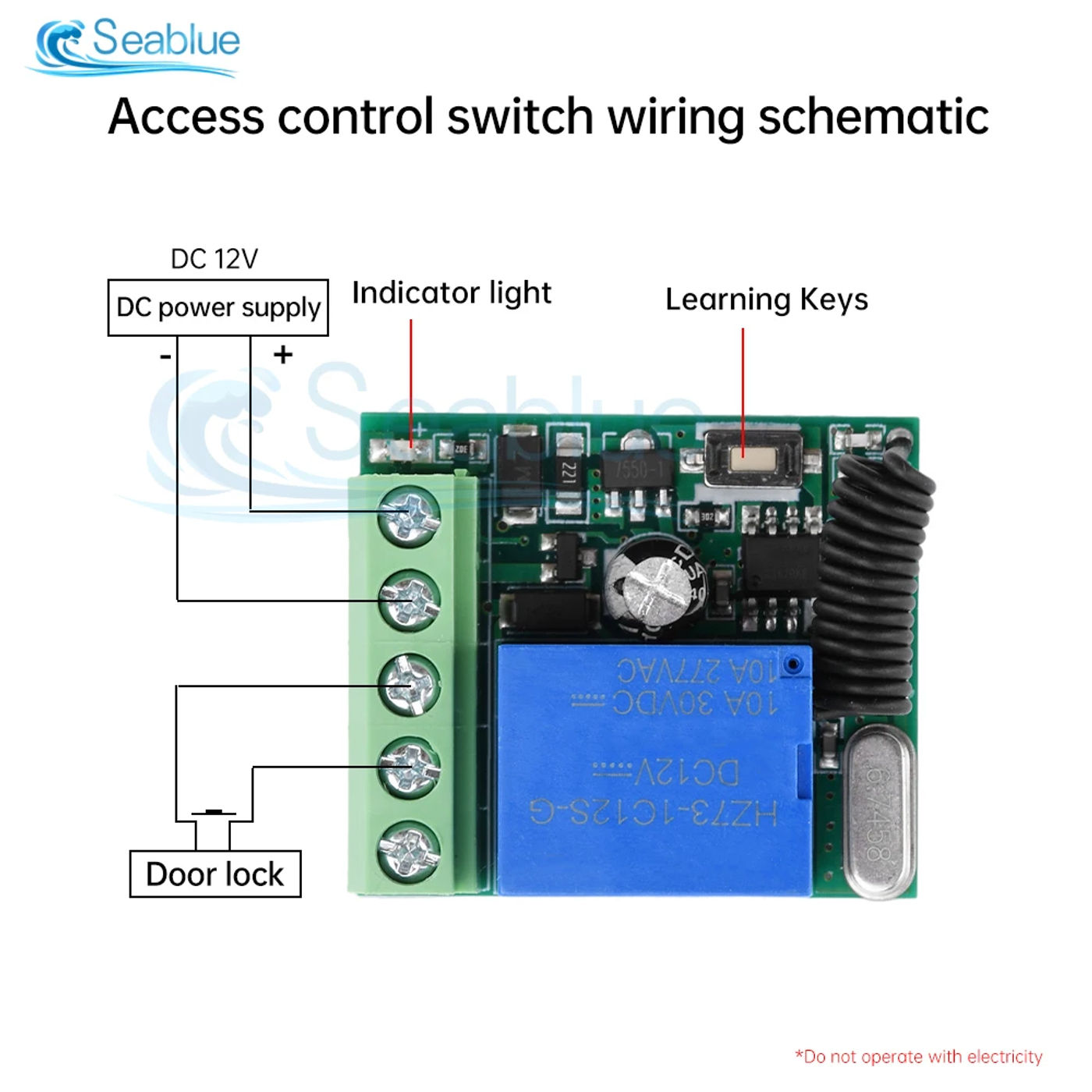

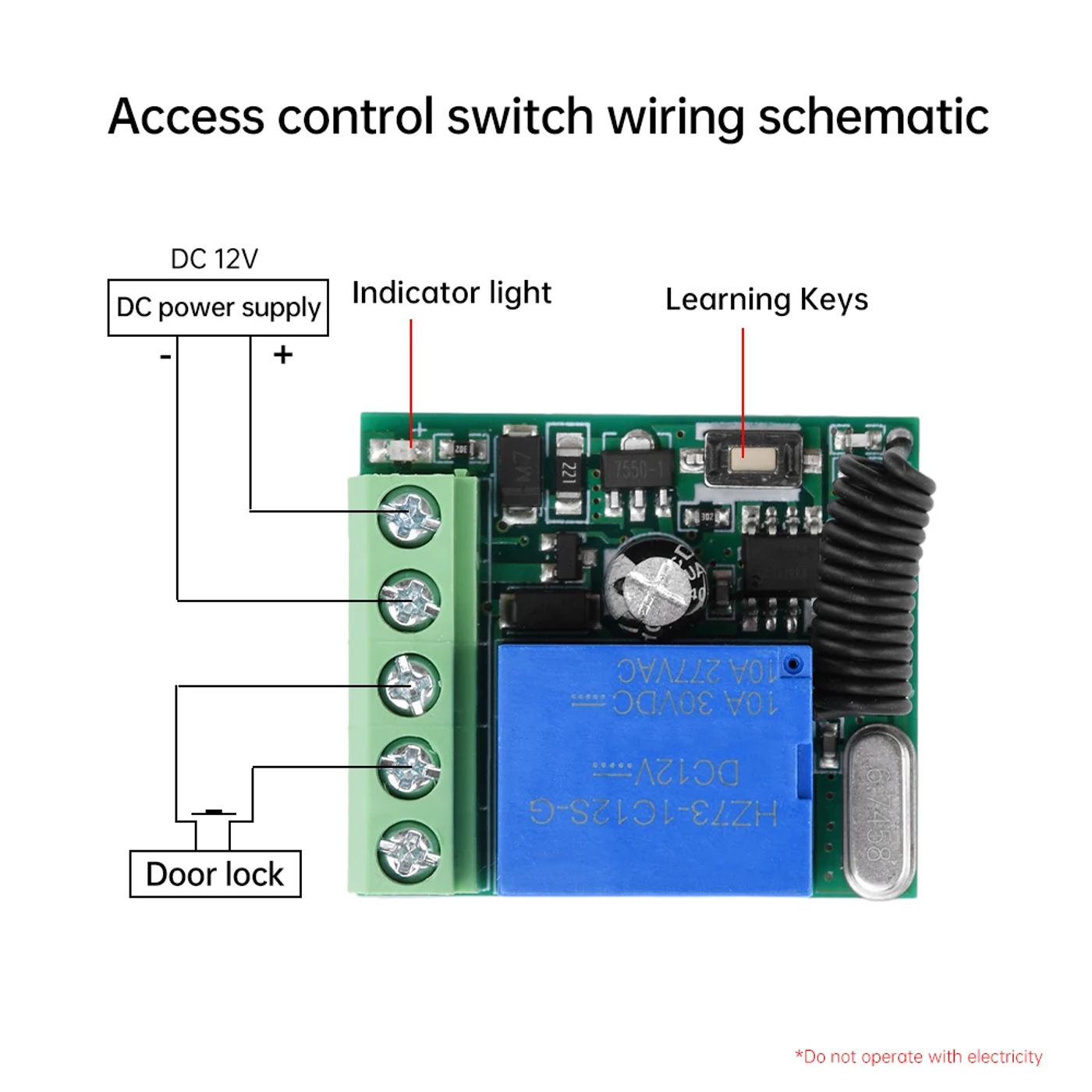

• Features: 1. Use fantastic materials with assured product positive 2. Exquisite and compact appearance, with exquisite arrangement of ingredients 3. Stable performance, receiving sensitivity -105dbm 4. Easy to use, jog/self-locking/interlock can be freely set 5. Wide utility range, compatible for various business DIY events Parameter: Working voltage: 12V Standby current: 8mA Working frequency: 433Mhz Encoding types: constant code, learning code Receiving sensitivity: -105dbm Output: 1 passive swap number (dry contact, jog/self-locking/interlock could be set by way of oneself) Load recommendation: 10A relay (leave some margin during use). It is advised that the burden be less than 90w, the inductive load be less than 50w, and it isn't appropriate for frequent initiating quit Output method: Electric surprise output (can leadership AC and DC) Circuit board size: 34 * 31 * 16MM Shell size: forty two * 39 * 26MM Interface Description: 1. +V: Input 12V strength shipping advantageous pole; 2. - V: Input 12V energy delivery unfavorable pole; 3. NO: Output terminal; The starting up of relays; 4. COM: output terminal; Relay ordinary terminal: 5. NC: output terminal; The usually closed end of the relay;Explanation of working mode 1. Jog mode: Press the handheld handheld remote control relay to engage, launch the hand-held remote control relay to disconnect. 2. Self locking mode: Press the handheld remote control relay as quickly as to engage, then press the hand held handheld remote control again to disconnect the relay. 3. Interlocking mode: Press button A at the handheld handheld remote control to turn at the relay, and press button B at the remote control to disconnect it. 4. Delay mode: Press the handheld remote control relay to engage, launch the remote control and start timing. After 5 seconds, 10 seconds, and 15 seconds (3rd gear), the relay will routinely flip off include: 1X receiver 1X handheld handheld remote control (built-in battery)

•
•
•
•
•
