Product parameter:Wavelength :532nm
Output Power :50mw
Working Voltage :3-5VDC
Working Current:260mA
Laser Shape :Line 110°
Line thickness :2mm at 1m
Dimensions :18mmX75mm
Divergency :0
Focusable :None
Lens: Coated K9 Glass lens
Working Temperature: -40°C-43 °C
Duty Cycle: half-hour on, 5 minutes offNotes:1 laser locator/module has is widely used in clothing cutting, wooden cutting, mechanical positioning,laser engraving, laser marker, cosmetic equipment, examine or laboratory equipment etc.. This merchandise is barely imagined to be used solely through technique of professionals, educated operators, laser brands or diversified certified users.
2. A clamp/holder and a 5v AC/DC adapter are added for the user&;s convenience.
3. If you need delay the task cycle, please upload further heatsink, in some other case the laser diode &;s existence could be shorten greatly, and the output of the laser will minimize very soon:Anti-shock design
Anti-dust design
Stable Performance with High Quality Laser Diode

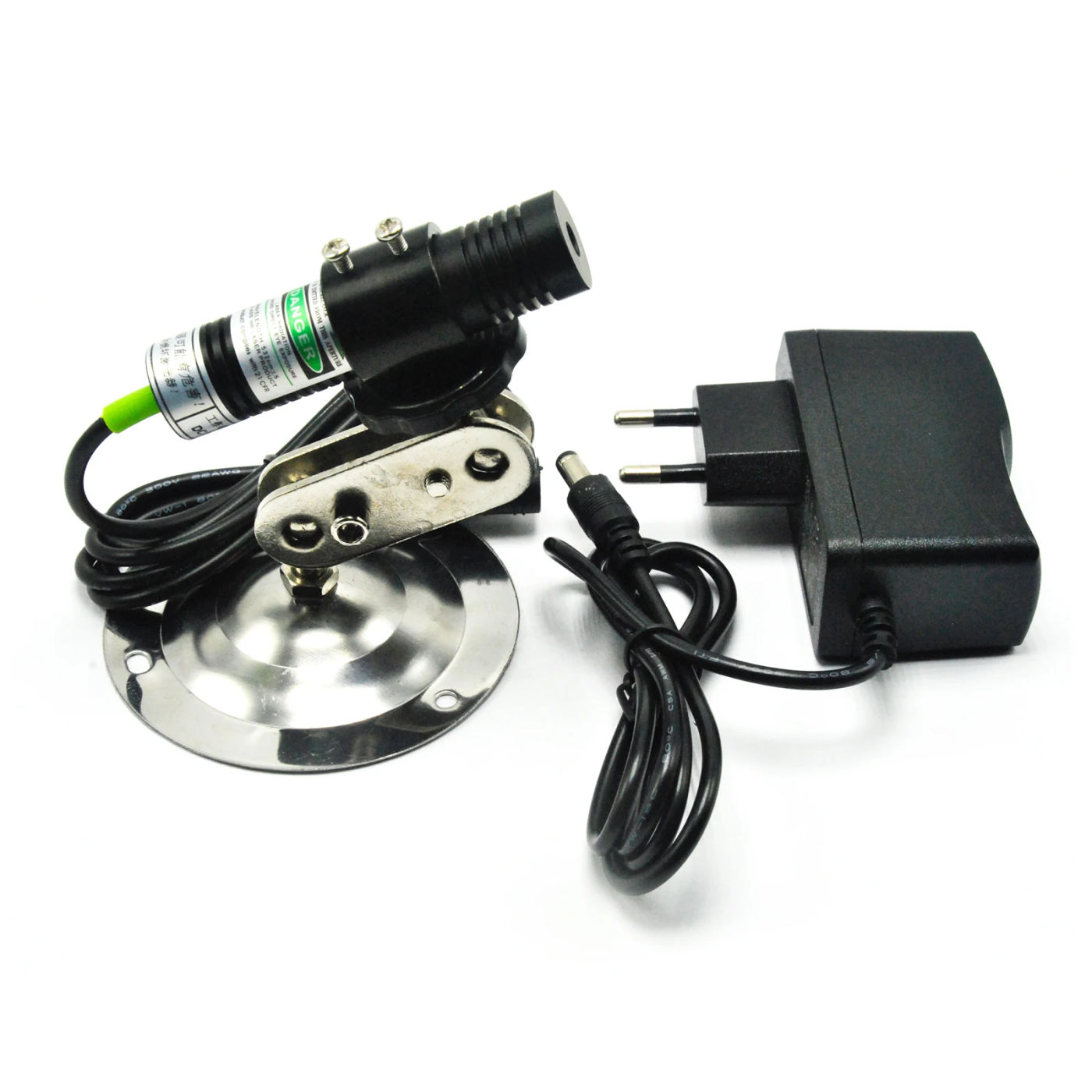

Easy Usage with AC-DC adapter and Fixture Mount

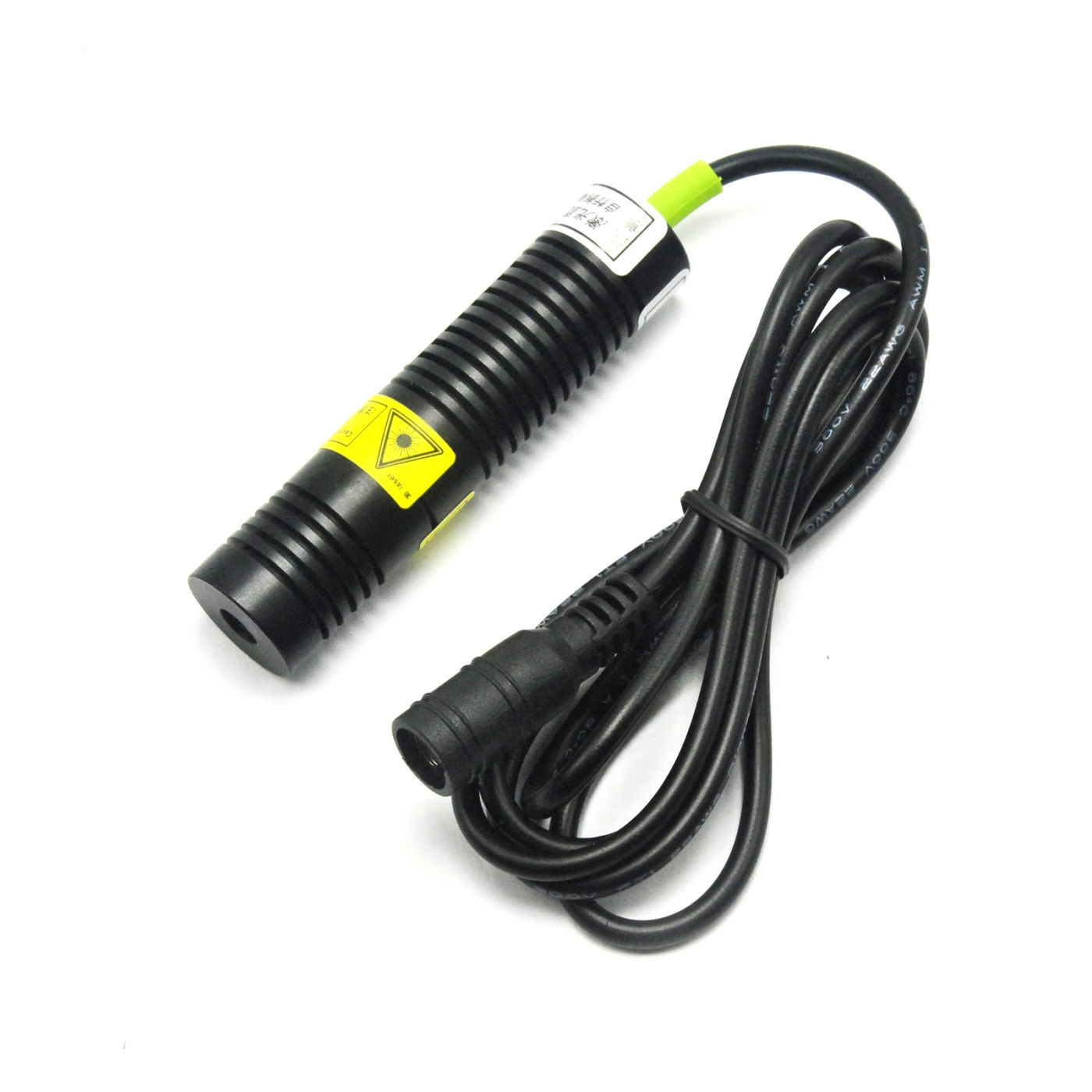

Glass Focal Lens and Glass Line LensPackage1pc 532nm 50mw Green Laser Module
1pc 5V Adapter
1pc φ18mm 360 diploma rotatable mounting bracket
