Description

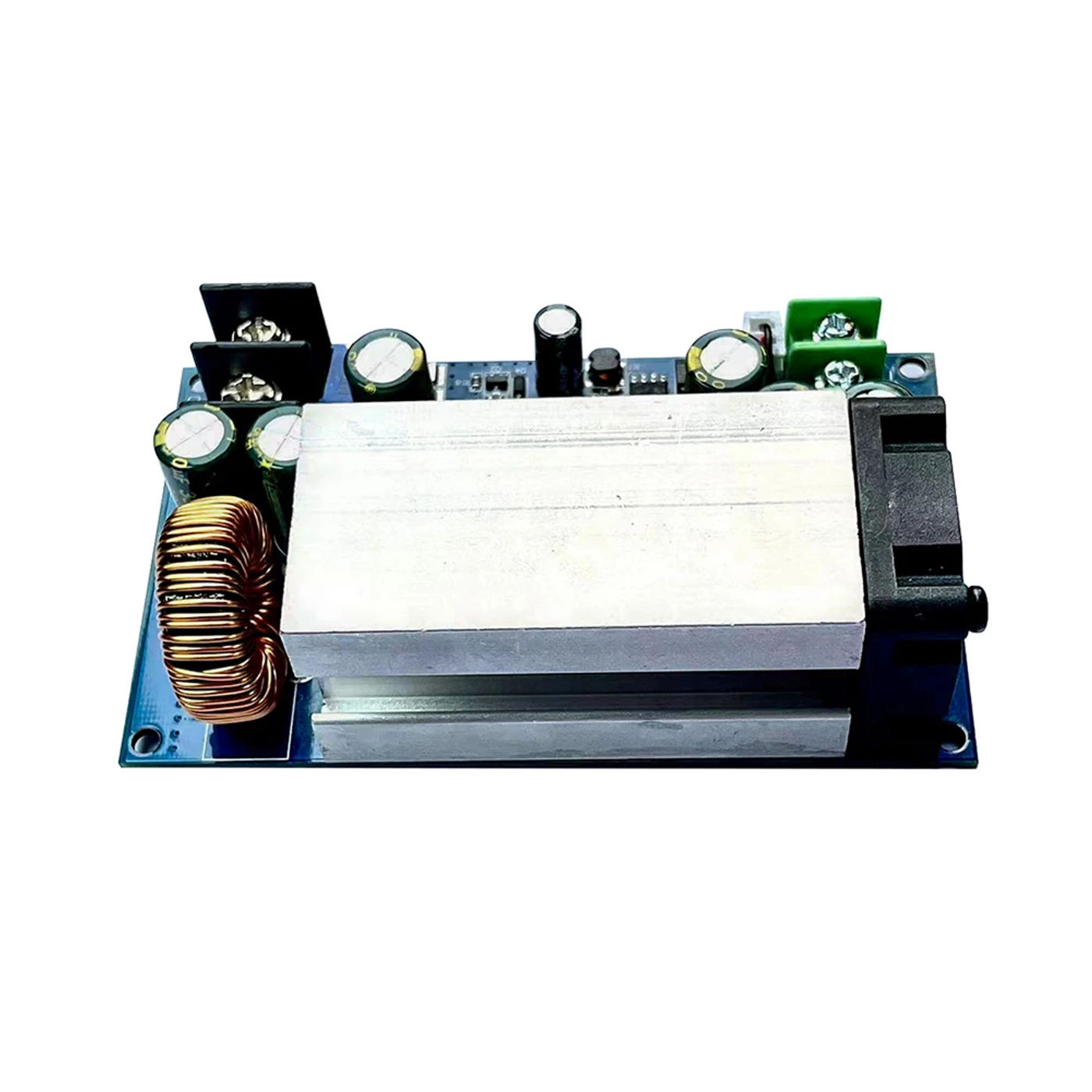

• 600W 25A DC-DC Buck Converter 12V-75V to 2, Adjustable CC/CV Step-Down Module with Fan for Arduino/Power Supply/DIY Features: 1 adjustable output voltage and recent 2 to use 3 to function 4 performance, with an enter voltage of as much as seventy five volts 5 efficient Description: *The module adopts a step rectification scheme, with extremely high efficiency, with a maximum efficiency of up to 95% *Continuous adjustable output voltage and latest *The enter voltage can attain up to 75 volts, and the output voltage can attain as much as 60 volts (at seventy five volts input) with a most current of 25 amperes Specifications: Product model: SZ-8025CCCV Module name: 600W step-down constant voltage fixed latest adjustable energy module Module nature: Non isolated greenback module (BUCK) Input voltage: 12-75V Output voltage range: 2 (must meet voltage reduction conditions, IN enter multiplied by means of 0) Minimum output voltage: 2 Maximum output voltage: approximately equal to enter voltage * zero (for example, if the input is 40V, 40V * 0=32V, the maximum output voltage is 32V) Output fixed current: 1-25A (continuously adjustable) Maximum output power: 600W (working environment should be effectively ventilated) Continuous most working power: 500W (in a ventilated environment) Continuous maximum working current: 25A (in a ventilated environment) Heat dissipation method: air-cooled warmth dissipation Input undervoltage protection: None Input overvoltage protection: None (overpressure prohibited) Working temperature: -10~+65 degrees Celsius Working frequency: 80KHz Conversion efficiency: as much as 95% (efficiency is said to input and output voltage, current, and voltage difference) Short circuit protection: Yes (constant latest protection) Input opposite protection: None Output anti backflow: None (charging the battery, connecting the output to an inductive load, reminiscent of adding anti backflow diodes when connecting to the motor) Work indicator light: Yes (output voltage blue LED light) Wiring method: Equipped with solderless terminal blocks Module size approximately: 100mm long, 60mm wide, and 35mm excessive Net weight: approximately one hundred forty grams Wiring: "IN" is the input &;OUT&; is the output Package Included: 1X power module

•
•
•
•
•

Review
