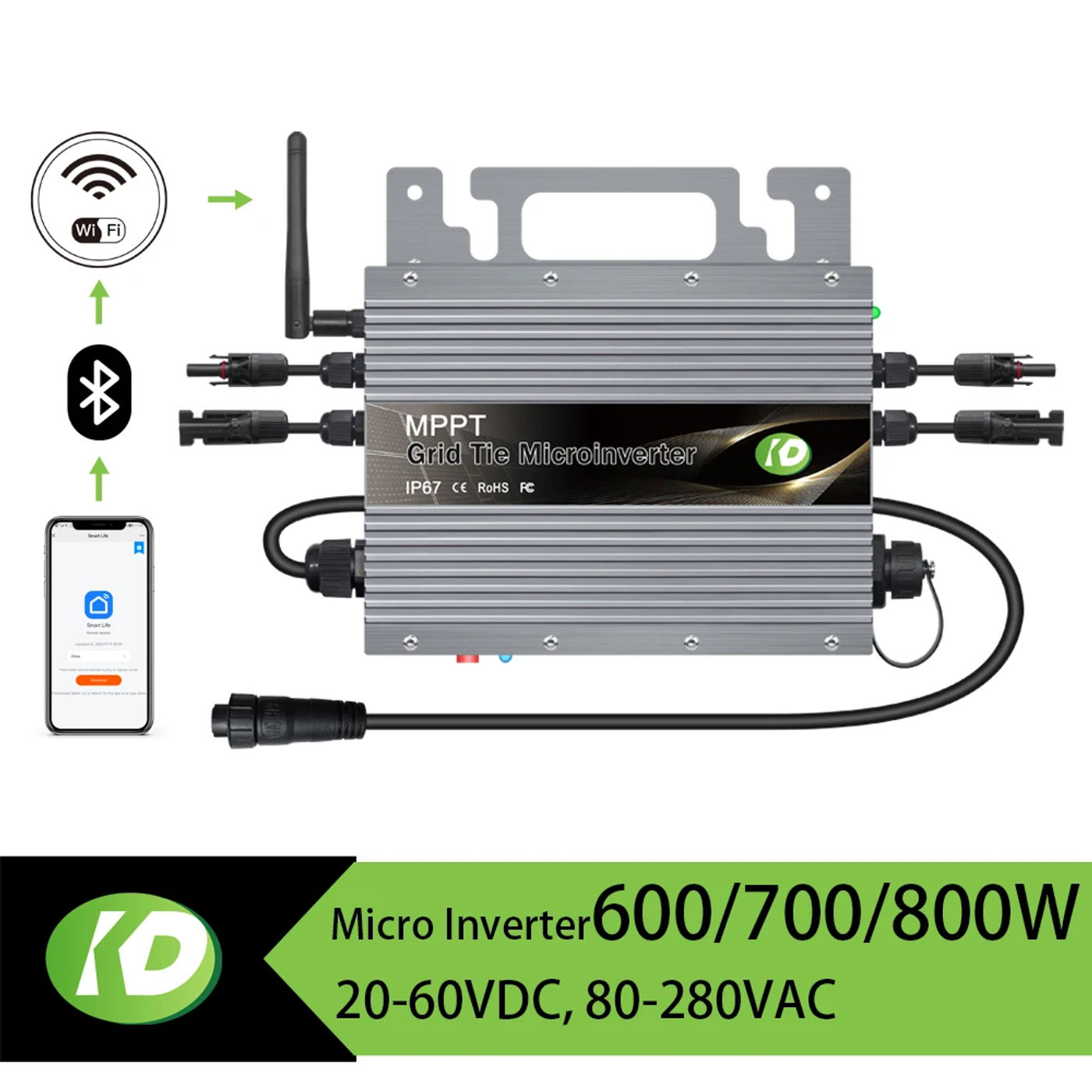

HM600W/700W/800W Micro inverter, twin channel design, could be linked to two photo voltaic panels at most, the output voltage is 20V~60VDC, and the output voltage is 80V~265VAC, which is appropriate for 24V 48V photovoltaic photo voltaic panels
Description:
The new classic version is supplied with wifi inverter, which makes wifi connection and operation easier Non professionals can also set up it via themselves The complete physique 4 sided tools design maximizes the direct touch with the air to achieve the bodily cooling impact
INVERTER PARAMETER:
Model:HM600W-WIFI/HM700W-WIFI/HM800W-WIFI
MPPT Voltage Range:25V-55V
Operation Voltage Range:20V-60V
Maximum Input Voltage:60V
Startup Voltage:20V
Maximum Input Power:600W/700W/800W
Maximum Output Power:600W/700W/800W
Nominal Output Voltage:80V~265VAC
Communication:WIFI With Cloud Monitoring
Product Paramenters
Model
600W
700W
800W
Input Data
Recommended Input Power(STC)
210~300W(2 PCS)
210~350W(2 PCS)
210~400W(2 PCS)
Max Input Voltage
60V DC
MPPT Voltage
25~55V DC
Operating Voltage
20~60V DC
Max Input Current
2*13A
Output Data
Max Output
600W
600W
700W
700W
800W
800W
Rated voltage
@127V
@230V
@127V
@230V
@127V
@230V
AC workable scope
80~160V
184~265V
80~160V
184~265V
80~160V
184~265V
Rated output current
four
2
5
3A
6
three
Max items according to branch
4PCS
7PCS
3PCS
6PCS
3PCS
5PCS
Frequency
Auto switch 50/60Hz(45%55/55~65Hz)
Output Efficiency
Static MPPT
0
Power aspect
>99%
Max output
0
CEC Weighted
@127V:92%
Self consumption
50mW
THD
<5%
Exterior
Ambient temperature
- 40℃to +65℃
Dimensions(W×H×D)
18X18X45mm
Weight
1 KGS
AC Cable stand up to max recent
40A
Waterproof Rating
IP65
Cooling
Natural cooling
Feature
Compatibility
Compatible with 60~72 cellular PV modules
Isolation
High frequency transformer isolation
Power transmission
Reverse transfer, load priority
Protection
Islanding,Over-temperature,Over / low AC & AC voltage
Communication
2 wireless(Inverter to DataBox)
Grid Connection Standard
EN50549-1, VDE0126-1-1, VDE4105, ABNT NBR16149, ABNT NBR16150, ABNT NBR62116, RD1699, UNE206006 IN, UNE206007-1 IN, IEEE1547
Safety EMC/Standard
UL1741, IEC62109-1/-2, IEC61000-6-3, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Feature:
1 Production of inexperienced and pollution-free energy Reduce power cost
2 Dual channel output, flexible three-phase photovoltaic method
three WIFI with cloud monitoring
four Overheating protection In order to preserve low heat, the inverter will give up producing power when passing the programmed temperature milestone or cut the generating potential via "derating", otherwise you can call it strength discount
5 Multiple units are combined into a huge solar method
6 Integrated AC bus cable, ready for use
7 Grid connected inverter has low cost, easy set up and coffee maintenance cost
Regarding the heating issue of the inverter:

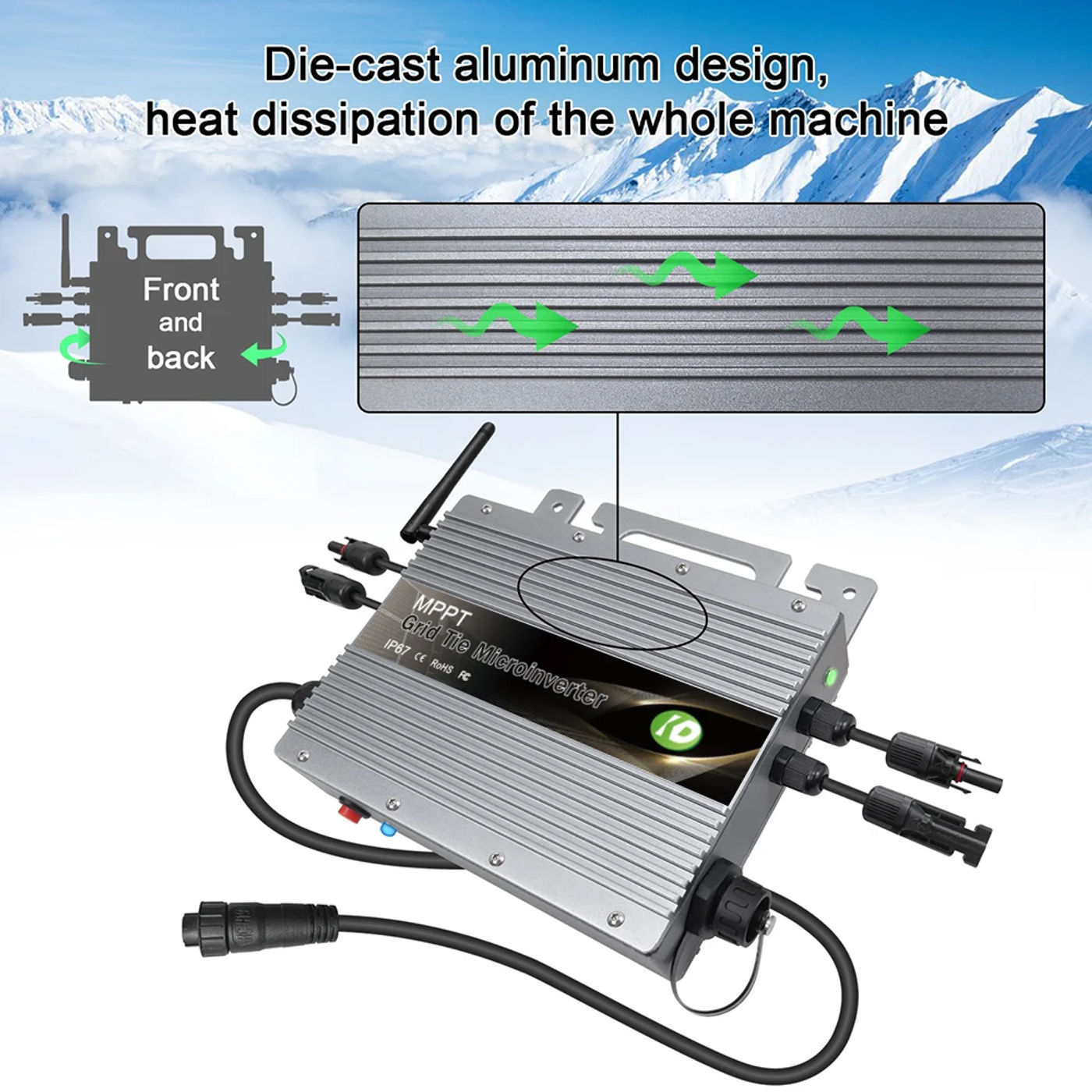

this is ordinary phenomenon All digital devices generate warmth throughout operation The inverter makes use of aluminum alloy material Metal can conduct warmth better The inverter also has over-temperature defense if the temperature is high Then the inverter will mechanically lower the working output performance Or quit working After cooling down, restart It is suggested to install the inverter in a ventilated, dry and cool position
Correct set up location:
Avoid daylight - when installing an inverter, you should avoid direct daylight to trigger immoderate temperature
Avoid rain - the installation of the inverter needs to prevent rain or other liquid from getting moist or soaking
Keep air flow -the inverter must be installed in a nicely ventilated environment to facilitate heat emission
Why Choose HM Micro Inverter?
Microinverters- Microinverters are the most productive and technologically improved type of inverter for sale In the finest and worst conditions, a microinverter will produce essentially the most energy This is as a result of only the individual panel obstructed through coloration or covered through grime could be affected, whereas the others continue to accomplish to their fullest prospective
1 phase 230V voltage connection diagram2 section 120V voltage connection diagram3 part 208/240V voltage connection diagram4 part 380V voltage connection diagram5 phase 208/240V voltage connection diagram6 part 208/240V voltage connection diagram
