Description

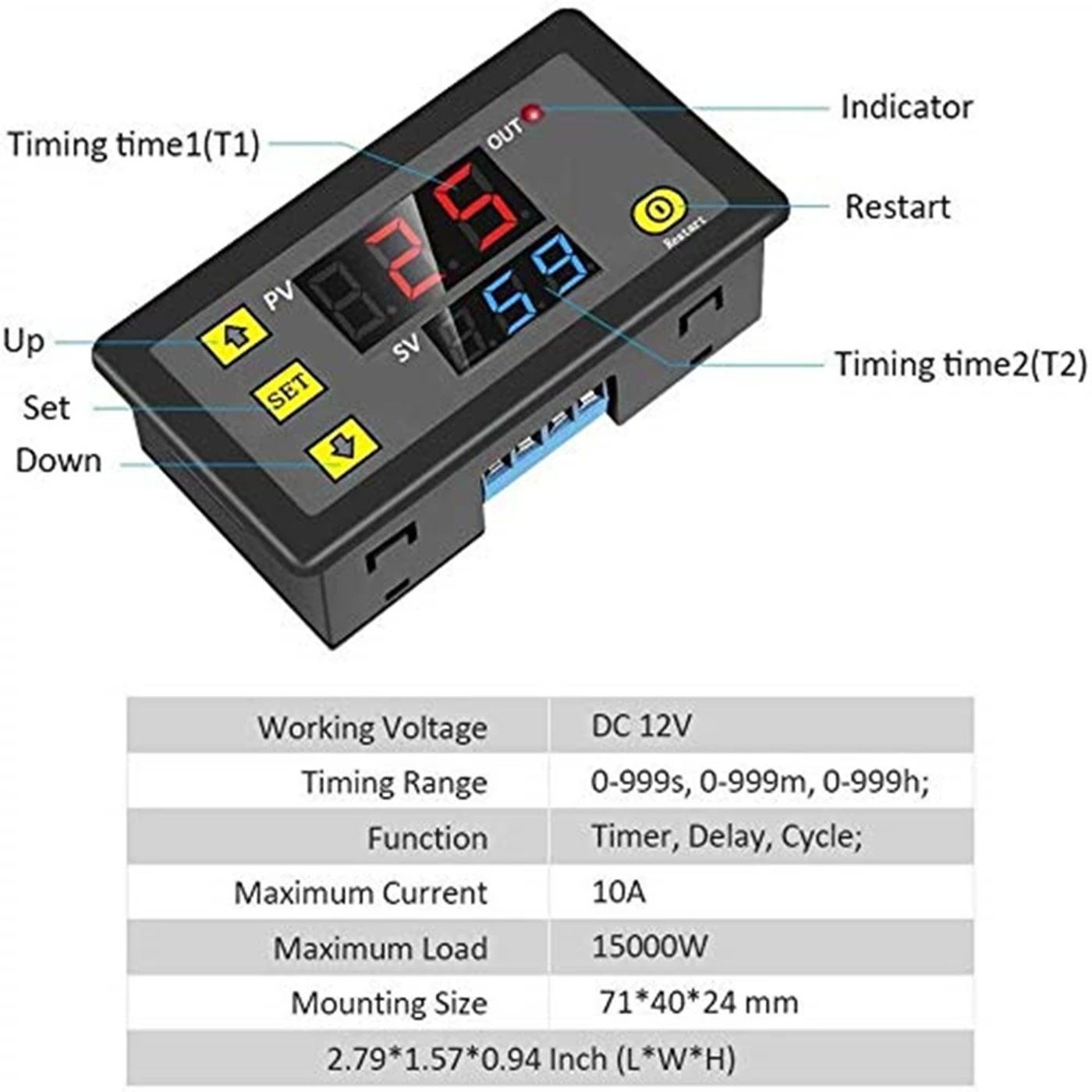

• Specification: Timing range: 0-999s,0-999m,0-999h Power delivery voltage: DC12V / DC 24V /AC110V-220V Relay: 20A Working current: 10A(maximum) Power: 1500W (maximum) Size: seventy nine x 26 x 43mm/2" x 1" x 1" Hole size: 72 x 40mm/2" x 1" Instruction Manual: 1 atmosphere the data, it's best to wait 6 seconds,6s put up modules routinely save memory set information 2 SET key once to go into the time surroundings mode,the red LED flashes, press the foremost to extend or decrease the setting time T1 three surroundings time T1,short press the SET key again, the green LED flashes,and the time is decided via pressing the key Time T2, T2 time setting is completed,press SET key again, the system will automatically save the reminiscence setting time or watch for 6s, 6s module will automatically save the information memory four press SET,enter parameter atmosphere mode are two units of parameters for the user to choose P0, P1 press SET in the latest mode to modify between P0 and P1 five P0 parameter can be set by pressing the major to adjust their own timing mode the P1 parameter would be set via adding and subtracting keys work mode P0--0:T1 Timing mode is moment P0-1: T1 timing mode is mins P0--2:T1 Timing Time mode is hour P1--0:Delay T1 time,relay pull(T1 timer) P1--1:Relay release after T1 time delay (T1 timer) P1--2:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timing),then it's carried out P1--3:Relay launch after T1 time delay(T1 timer),then postpone T2 time,relay pull(T2 timing),then it's achieved P1--4:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timer),cycling P1--5: Relay launch after T1 time delay(T1 timer),then put off T2 time,relay pull(T2 timer),cycling null null null null null null null null null null null null null null null null null null null null null null null null null null

•
•
•
•
•
