Description

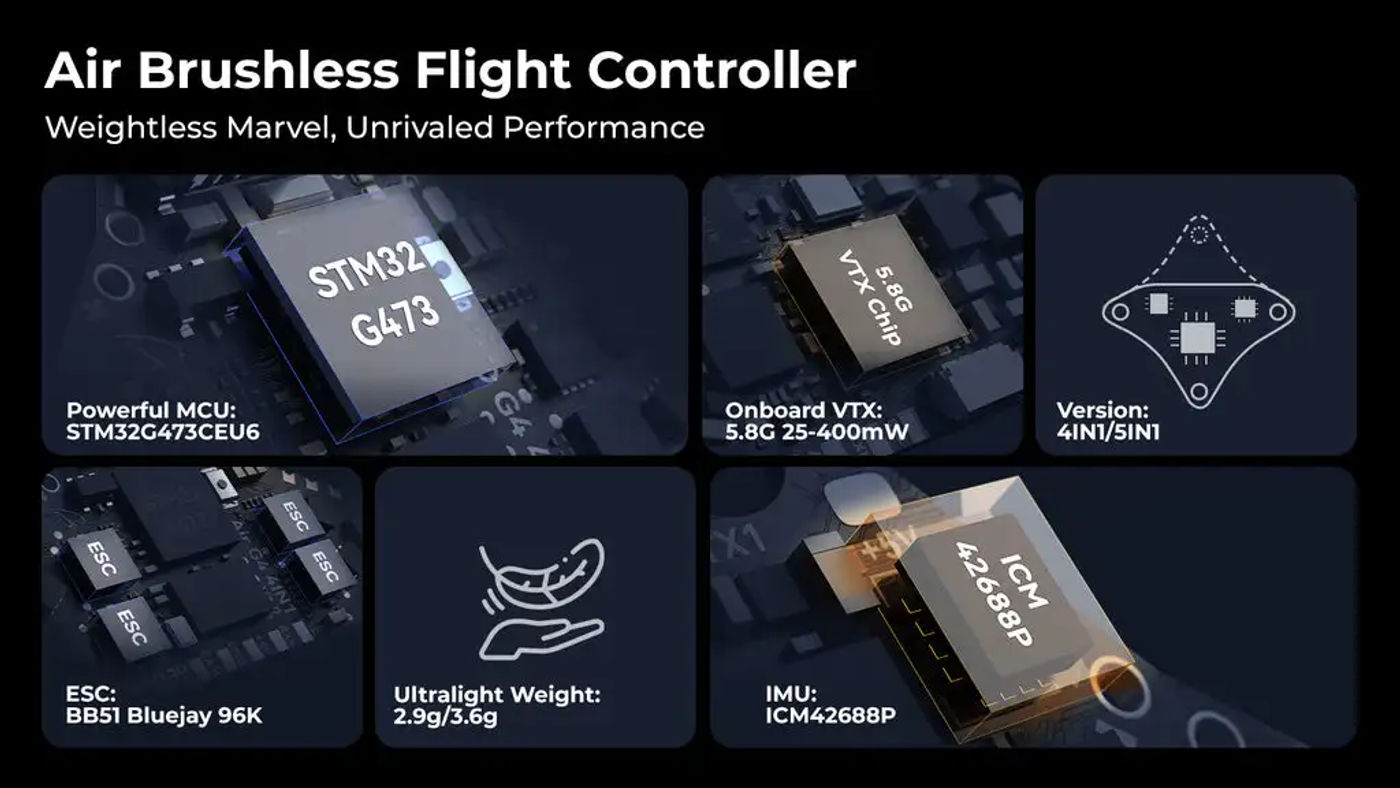

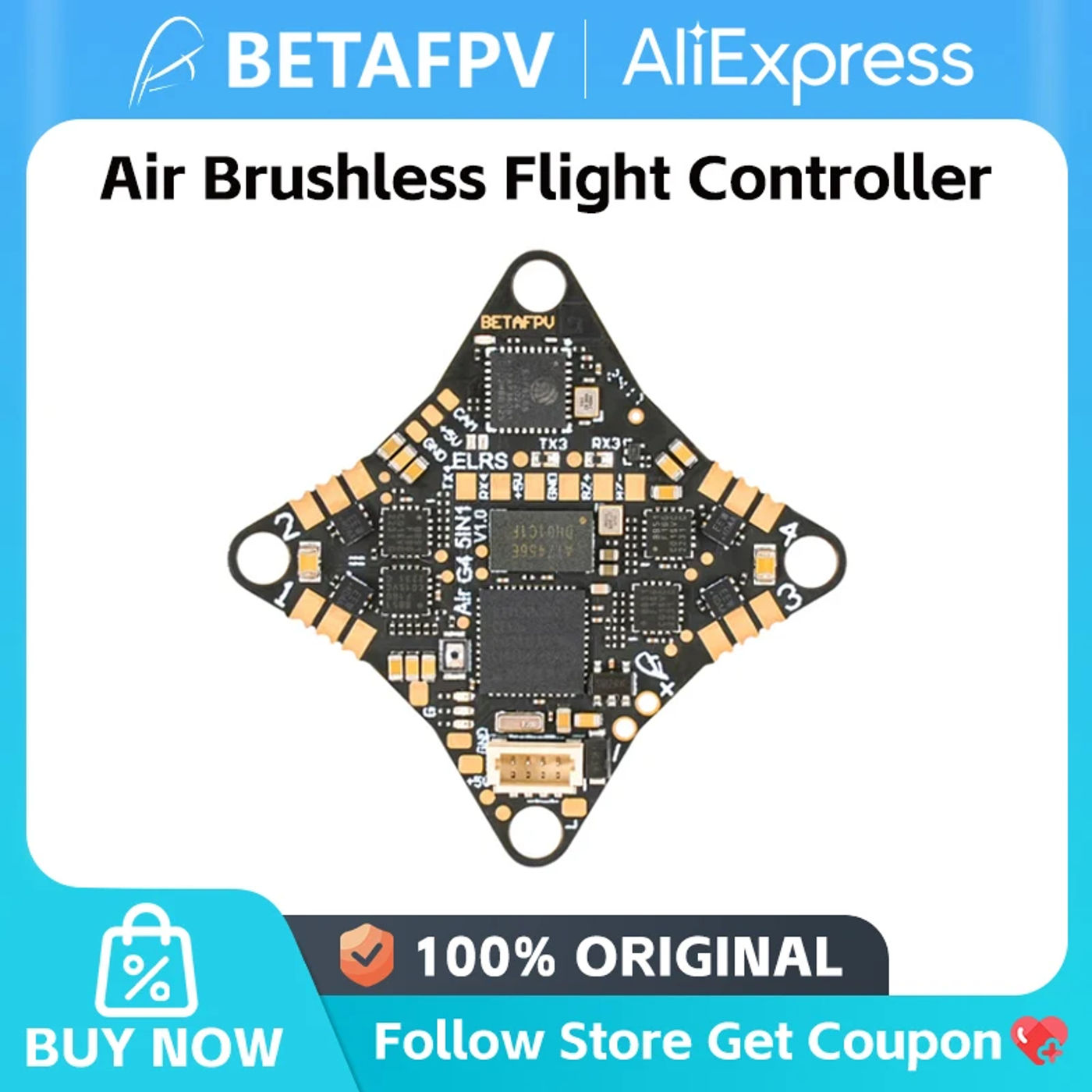

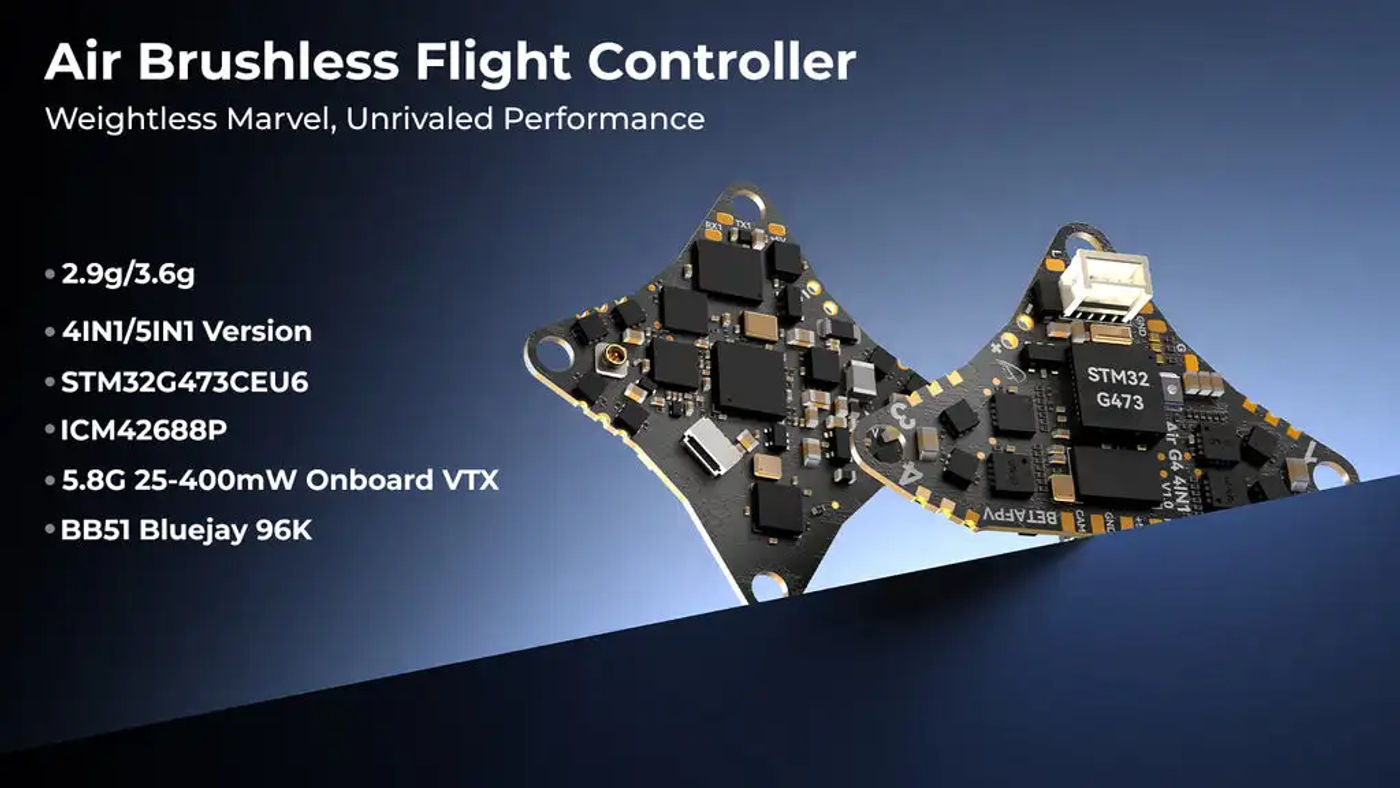

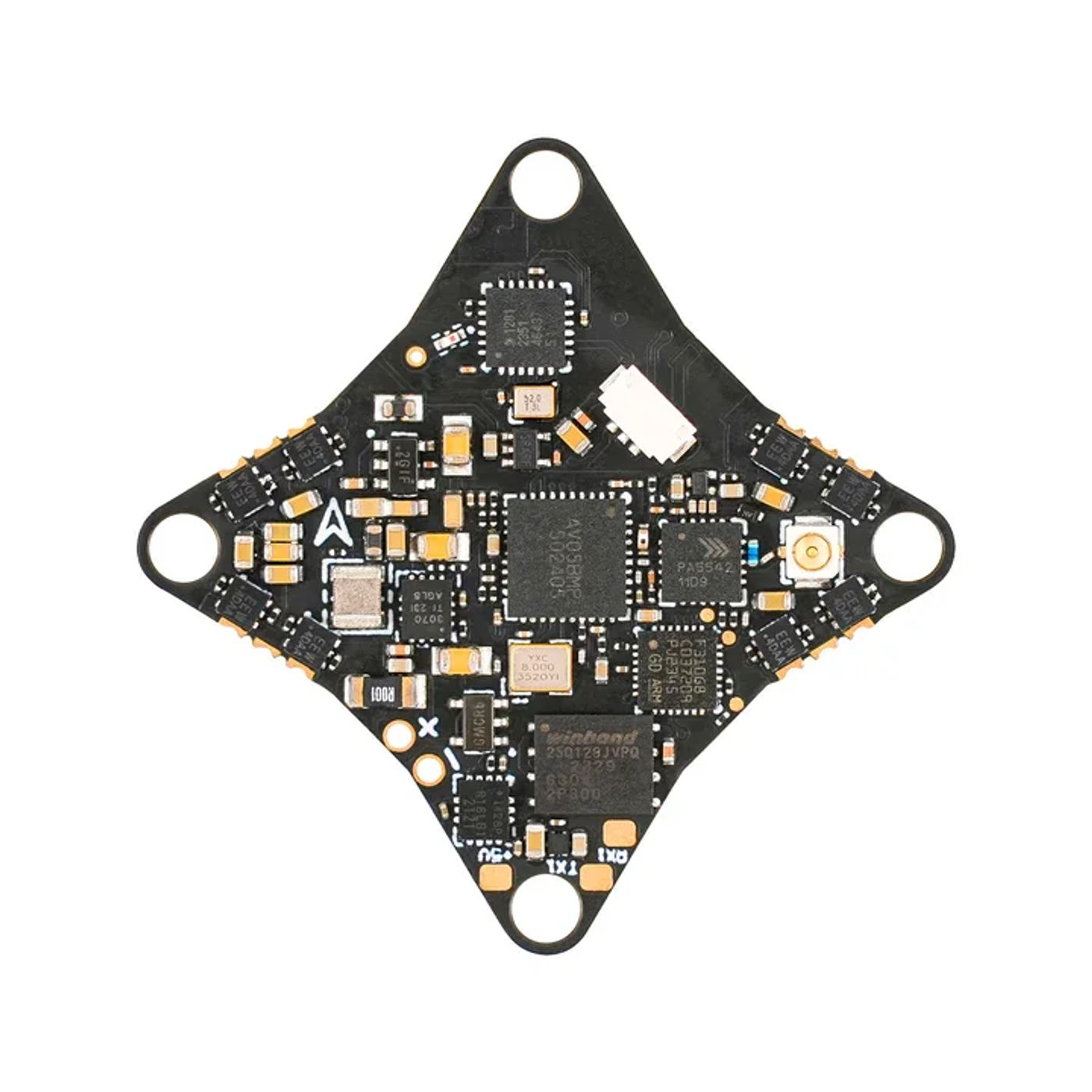

• Air Brushless Flight Controller, the 1st 1S FC that utilizes the STM32G473CEU6, skilled a remarkable 55% expand in computing pace and lightning-fast reaction times, surpassing the F411 Equipped with the industry-leading ICM42688P gyro and onboard five 25mw~400mw VTX, it affords both 4IN1 with 2 and 5IN1 with 3 Versions, which takes your drone&;s posture and movement accurately to the next level Immerse yourself without problems in the drone international of Finger-Tip control Unmatched cost and undeniable superiority with it, depart maximum of the competition in the grime It often is the progressed desire for future ultralight 1S whoop drones!Note: The 5IN1 Version is expected will launch in roughly 1-2 months Please click on the ;EMAIL ME WHEN AVAILABLE; button to subscribe and receive an electronic mail notification as soon as it is back in stock: BETAFPV is immensely grateful to this testing crew adding &;&;Don Johnson, Tokyo_Dom, BLACKHORSE, wKich, Travis, Coitti FPV, Tdog, Anthony Knight, Issac, Albert, sub250g, Wk Breeze&;&; for beneficial ideas within the design of this Air Brushless Flight Controller Point Air Brushless Flight Controller, the 1st 1S FC that utilizes the G473 processor, experienced a unparalleled 55% develop in computing pace and lightning-fast reaction times for exact racing and complex freestyle maneuvers, surpassing the F411 Higher integration yet lightweighter design, that includes a custom miniature OSD chip Weighing solely 2 (4IN1 Version) or three (5IN1 Version), it provides more UART port options for easy function expansions, adapting flawlessly to any flight situation Default incorporated onboard 25-400mW VTX Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC modifications The 5IN1 Version even integrates the Serial ELRS 2 RX Elevate your drone&;s precision with the industry-leading ICM42688P gyro, integrated accelerometer, state-of-the-art sensor calibration, and filtering algorithms, and a pattern charge of as much as 8K, which takes the drone&;s posture and motion accurate and precise drone to the next point Unlock huge flight data recording and evaluation with an impressive as much as 16MB potential black box Maximize performance and diagnose faults effectively, leveraging the total potential of your drone Specification of FC Weight: 2(4IN1 Version) / 3(5IN1 Version) Mounting Hole Size: 26mm x 26mm CPU*: STM32G473CEU6 (168MHz) Six-Axis: ICM42688P (SPI connection) Blackbox Memory: 16MB Sensor: Voltage&Current 5V BEC*: 5V 3A USB Port: SH1 4-Pin Built-in ESC with 5A continual RX: Serial ELRS 2 (V3) (Only 5IN1 Version) 4IN1 Version: FC+ESC+OSD+VTX 5IN1 Version: FC+ESC+OSD+VTX+RX Specification of ESC Input Voltage: 1S FC Firmware Version: Betaflight_4 ESC Firmware: A_X_5_96KHz_V0 for BB51 Bluejay hardware Signal Support: D-shot300, D-shot600 Specification of VTX Output Power: 25/100/200/400/PIT Frequency: five forty eight channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2 Modulation Type: FM Frequency Control: PLL All Harmonic: Max -50dBm Frequency Stability: ±100KHz (Typ) Frequency Precision: ±200KHz (Typ) Channel Carrier Error: ±1 Antenna Port: 50 Ω Operating Temperature: -10℃~+80℃ DiagramBelow is the diagram for the Air Brushless Flight Controller (4IN1 Version) is the diagram for the Air Brushless Flight Controller (5IN1 Version) Between G473 and F411 Say goodbye to boundaries and embrace the cutting-edge technology of the G473 flight controller for an unprecedented flight ride Air Brushless Flight Controller elements up to 168MHz superior CPU Clock Speed and 4 richer serial ports, enabling lightning-fast response occasions and advanced computing power, making it perfect for anxious flight, which takes your flying journey to a better point and demonstrates excellent performance, surpassing all 1S FC options accessible on the market in the present day 4IN1&5IN1 Choose this higher integration Air Brushless Flight Controller, for an ultra-light 1S whoop installation, tailored to fulfill the needs of discerning pilots It is default integrated onboard 25-400mW VTX, the 5IN1 Version that integrates FC+ESC+OSD+VTX+RX goes a step additional by integrating the Serial ELRS 2 RX, streamlining set up to avoid wasting space and decrease weight, and enhancing convenience for VTX and FC modifications The 4IN1 Version gets rid of the RX port for added versatility, providing pilots with more external RX options Serial ELRS 2 RX Serial ELRS 2 RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board So the Serial ELRS 2 RX is available to support upgrading to ELRS V3 while not having to flash Betaflight flight controller firmware Enter binding fame by energy on/off three times Plugin and unplug the flight controller 3 times; Make sure the RX LED is doing a quick double blink, which signifies the receiver is in bind mode; Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse; If the receiver has a stable light, it&;s sure The Serial ELRS 2 RX would be updated by way of Wi-Fi or Betaflight serial passthrough Here is find out how to update the Serial ELRS 2 RX firmware through passthrough Plug on your FC in your computer, but do NOT connect with betaflight configurator; Choose target ;BETAFPV 2 AIO RX;; Flash using the BetaflightPassthrough possibility in ExpressLRS Configurator How to flash firmware via Wi-Fi right here Betaflight Firmware and CLI Betaflight reliable developers put forward using edition 42688 of the gyroscope, and plenty of disorders with ICM42688 were fixed in edition 4 Please be taught extra from version four FC firmware: Betaflight_4, Download the firmware and CLI sell off dossier Reference link: Bluejay ESC Firmware With BB51 ESC solution, Air Brushless Flight Controller relies on A_X_5_96KHz_V0 for BB51 Bluejay hardware, it helps D-shot300, D-shot600, or even RPM filtering in Betaflight, provides 24KHz, 48KHz, and 96KHz constant PWM frequency for options, and custom start-up melodies DO NOT flash the firmware with a shorter interval, otherwise, there will be a undeniable likelihood of stalling and burning the flight controller Download BLHeliSuite16714903 Download the Bluejay ESC firmware Please favor A_X_5_96KHz_V0 Connecting External RX/VTX Please be aware that UART2 has linked to the VTX via default This FC reserves three whole full-featured serial ports that can be used for exterior CRSF/SBUS receivers, GPS, HD VTX, or different serial devices You can check with the below photos Attention VTX Power: Higher VTX strength consumes more calories and generates more heat, reducing flight time For greater flight time in indoor scenarios, use 25~100mW power Motor Wiring: Only soldering is supported for motor wiring at the flight management Avoid terminal plugging VTX Antenna: Connect and set up the image transmission antenna earlier than powering at the flight management Alternatively, set transmission energy to 0 to circumvent burnout Recommend Parts Drones: Air65, Air75 Frames: Air65, Air75, Meteor65, Meteor65 Pro, Meteor75 Pro Motors: 0702/0702SE, 0802/0802SE, 1102 Receiver: ELRS Lite Receiver, ELRS Nano Receiver Package 1 * Air Brushless Flight Controller 1 * 2 Antenna (Only 5IN1 Version) 1 * Type-C to SH1 Adapter 1 * SH1 4Pin Adapter Cable 1 * 5 VTX Antenna 1 * BT2 U Whoop Cable Pigtail | 40mm four * M1*4 Self-tapping Screws four * Shock Absorbing Ball Note: The under packaging pic is the 4IN1 Version Note: The under packaging pic is the 5IN1 Version

•
•
•
•
•
