Description

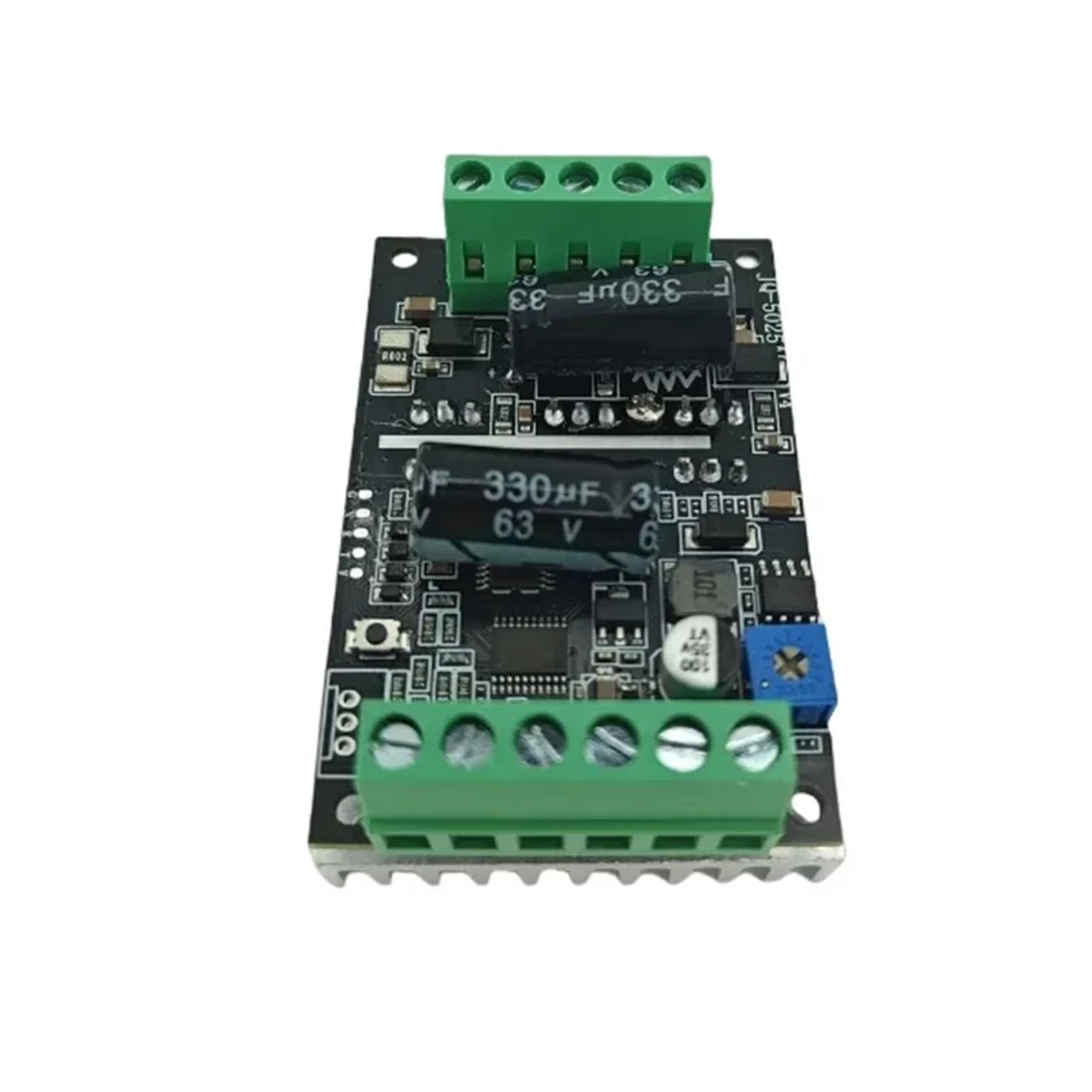

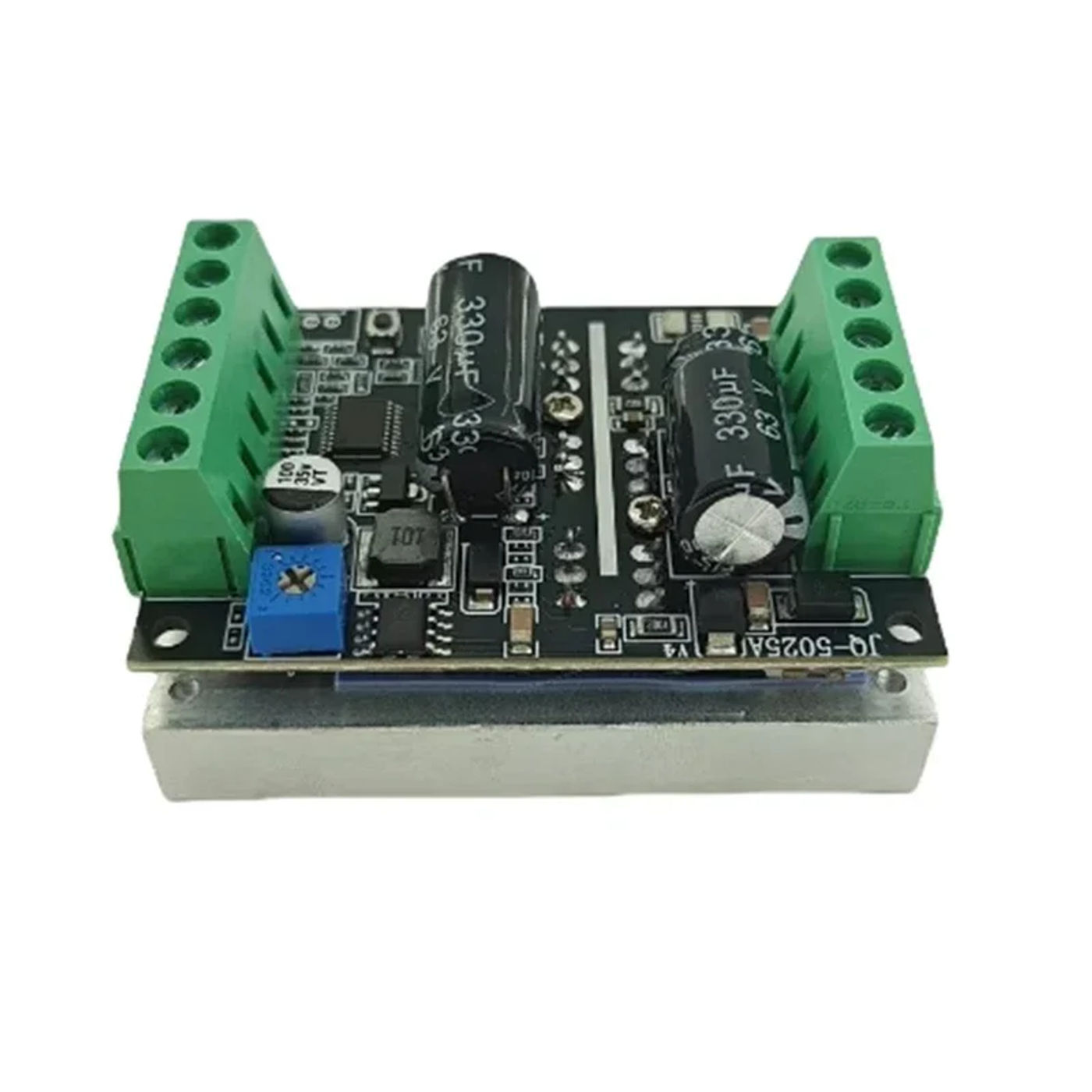

• Specification: Operating voltage: DC 6 - 50V Control mode: 0 - 5V / PWM Peak Current: 35A Rated current: DC 12V-25A / DC 24V-12A Hall or not: No Hall Dimension: 63mm*45mm*31mm Maximum speed: 130,000RPM STOP: default excessive level 5V, hook up with GND to forestall BRAKE: Default high level 5V, hook up with GND to prevent directly DIR forward and reverse: Default high level, connect to GND to opposite 0-5V/PWM: Default is 0-5V pace control, 0V is stop, 5V max pace Press key to modify PWM speed control, PWM requirement 1-10KHZ, amplitude three 5V: Output voltage, current about 100mA, strength delivery for exterior instruments 13V: Output voltage, recent about 100mA, for external kit power supply FG: Speed pulse output, connect with tachometer Decelerate to the left, speed up to the correct ①: Speed management mode button: Long press for three seconds to change 0-5V or PWM mode ②: When exterior potentiometer or PWM pace regulation, this potentiometer is adjusted to the left to the maximum so as to not impression the sign Twist clockwise to the end ①: To PWM pace control, you have to press the button at the board and the indicator gentle flashes thrice to change to PWM mode

•
•
•
•
•
