Description

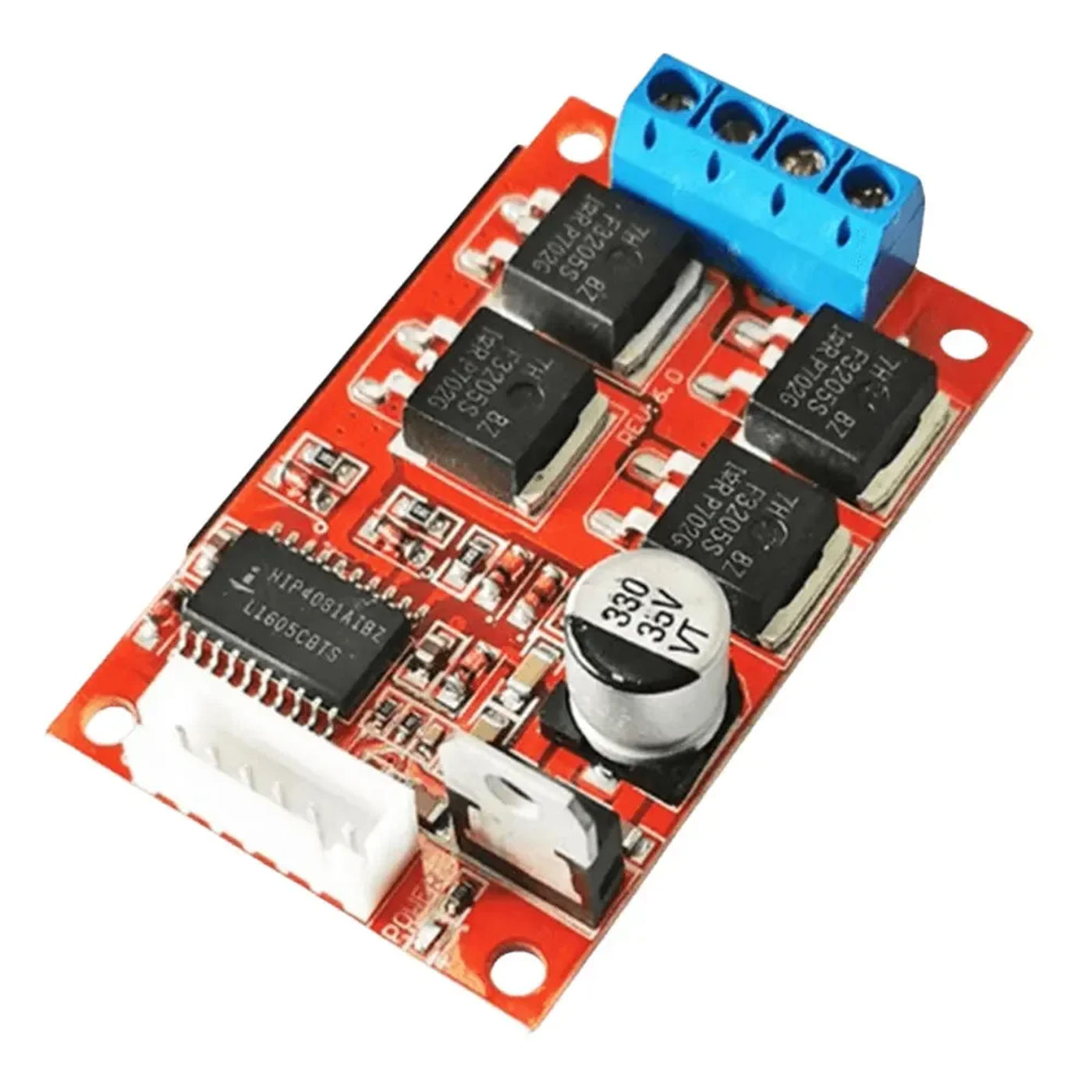

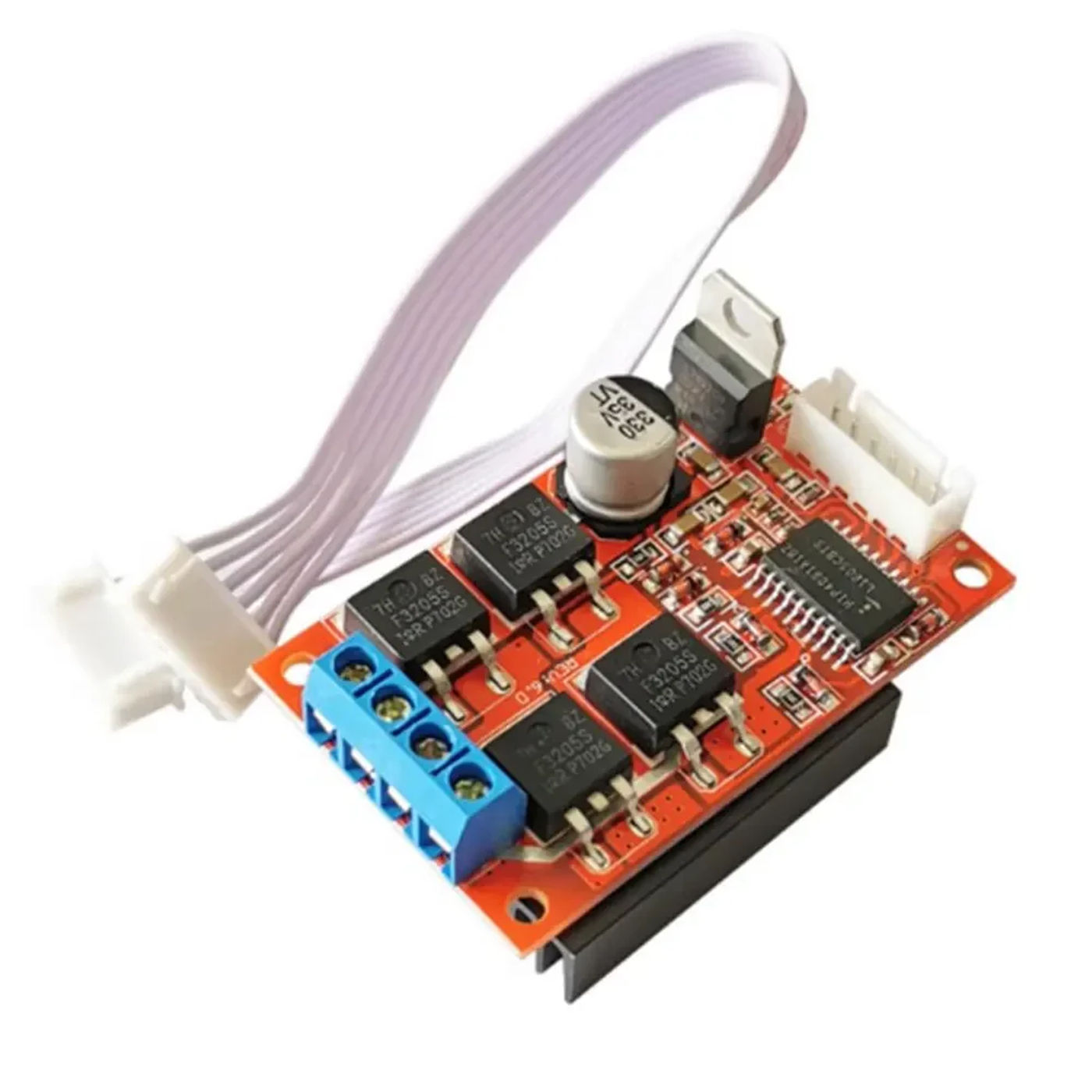

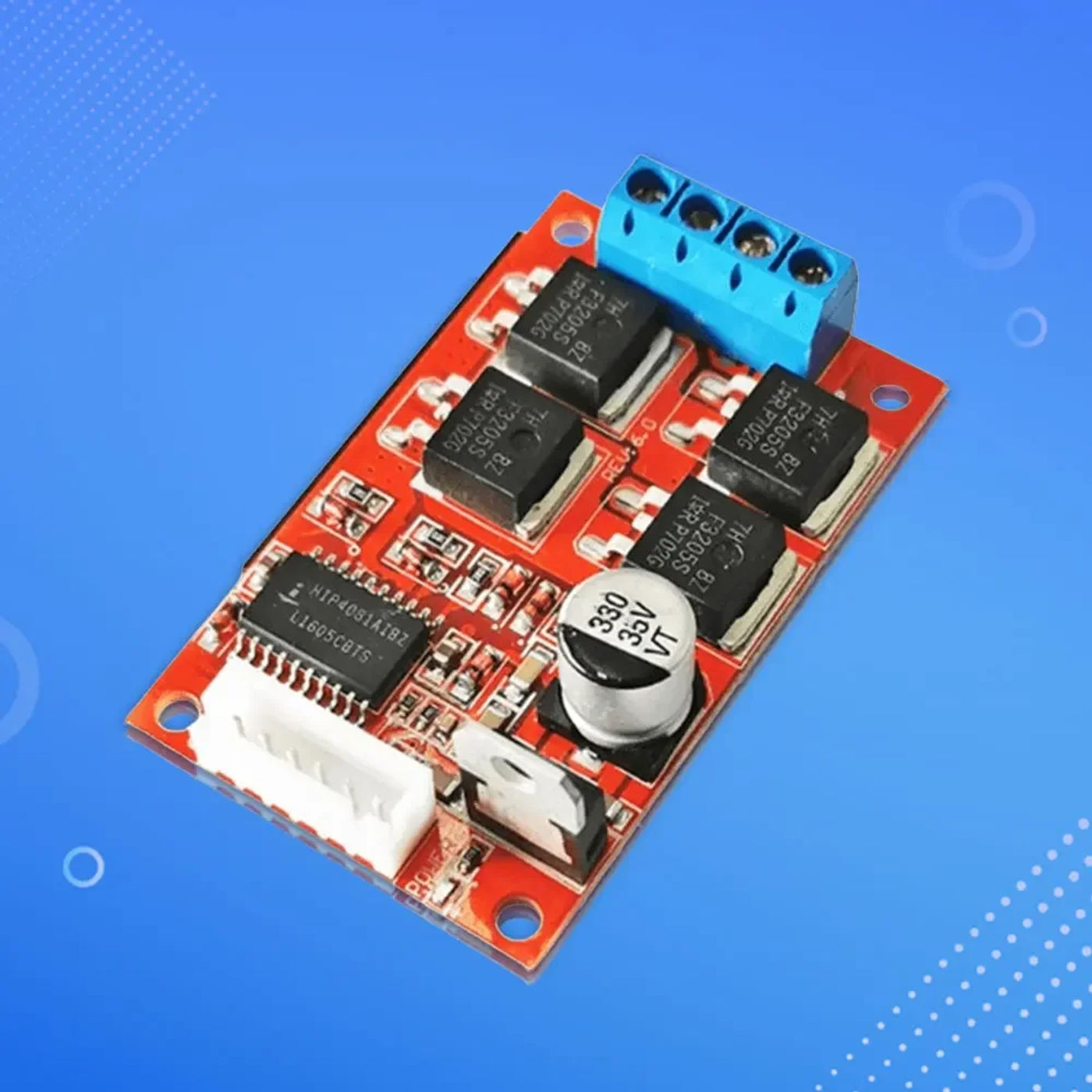

• High Power DC Motor Driver Board H-Bridge Brush Motor Driver Controls Module 450W DC 12V/24V/36V Reversing Brake Features: 1 Size: With dimensions of simply 6 x 3, this brushed PWM motor motive force module is incredibly compact Even with a 1cm thick warmth sink attached, the total top remains at simply 2, making it easy to combine into various setups 2 Voltage Support: This high energy DC motor motive force board supports a large voltage fluctuate of 10-36V, offering versatility in usage It affords undervoltage protection and can be independently powered up to a most of 50V, making certain dependable functionality in diverse applications three Load Capacity: Capable of maintaining a most continuous load current of 20A (with a straightforward warmth sink attached), this PWM DC motor speed controller can handle stressful tasks It may even stand up to short-time top currents of up to 110A, enabling efficient control of high-power motors 4 Control Options: This brush motor motive force controls module allows for three-wire pace control, bidirectional rotation, and brake functions It helps full PWM control and might be smoothly operated utilizing buttons for route control The PWM range spans from 0% to 100%, offering precise motor control 5 Integration with Microcontrollers: Seamlessly interface this brushed DC motor motive force board with PLC systems and 3/5V microcontroller IO ports It features integrated point buffering capabilities, putting off considerations about unfavourable the microcontroller IO pins Enjoy hassle-free integration and reliable control performance Specification: Origin: Mainland China Motor Type: DC Motor Module Nature: H-Bridge Brush DC Motor Driver Module For 3-36V High Power DC Motors Scope of Application: High-Power DC Motor Drive Wide Input Voltage (11-36v) Requirements Of The Occasion Such As Large Cars, Robots And Other Various Control Driving Voltage: DC 11-36V Input DC Voltage (Prohibited Input AC) Output Current: Rated Continuous Output 24V 15A 360W Or Less Without Heat Sink, Maximum 36V 15A 450W Output Power: Natural Cooling Rated 450W Measured At 36V 15A Power Supply Operating Temperature: Industrial Grade (-40°C To +85°C) Full Load Temperature: 45°C Weight: 293g Product Size: 66/2 Note: Due to the several visual display unit and light effect, the actual colour of the article is probably slightly diversified from the colour confirmed on the photos Thank you! Please enable 1-2cm measuring deviation thanks to handbook dimension 1*Brushed PWM Motor Driver Module

•
•
•
•
•
