Description

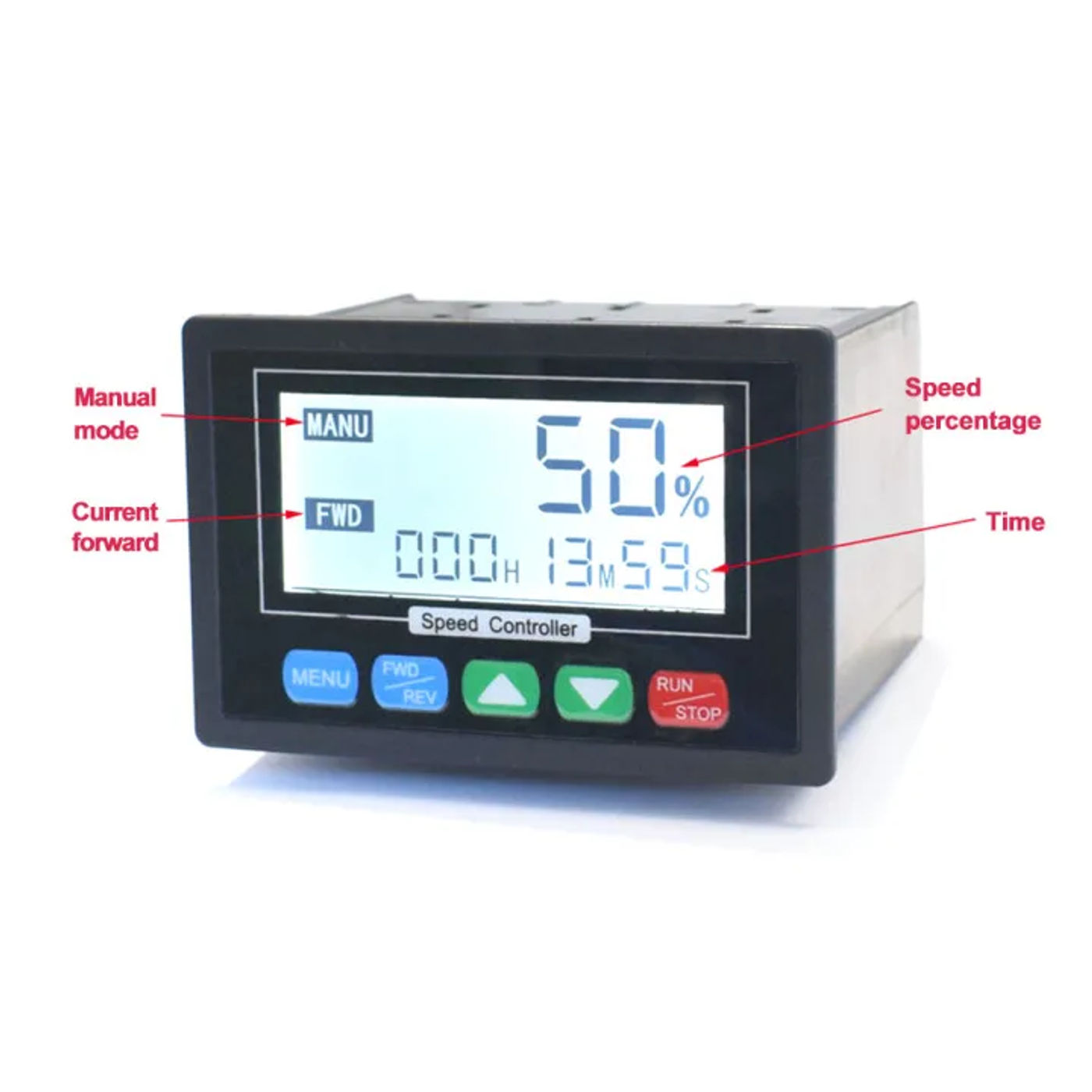

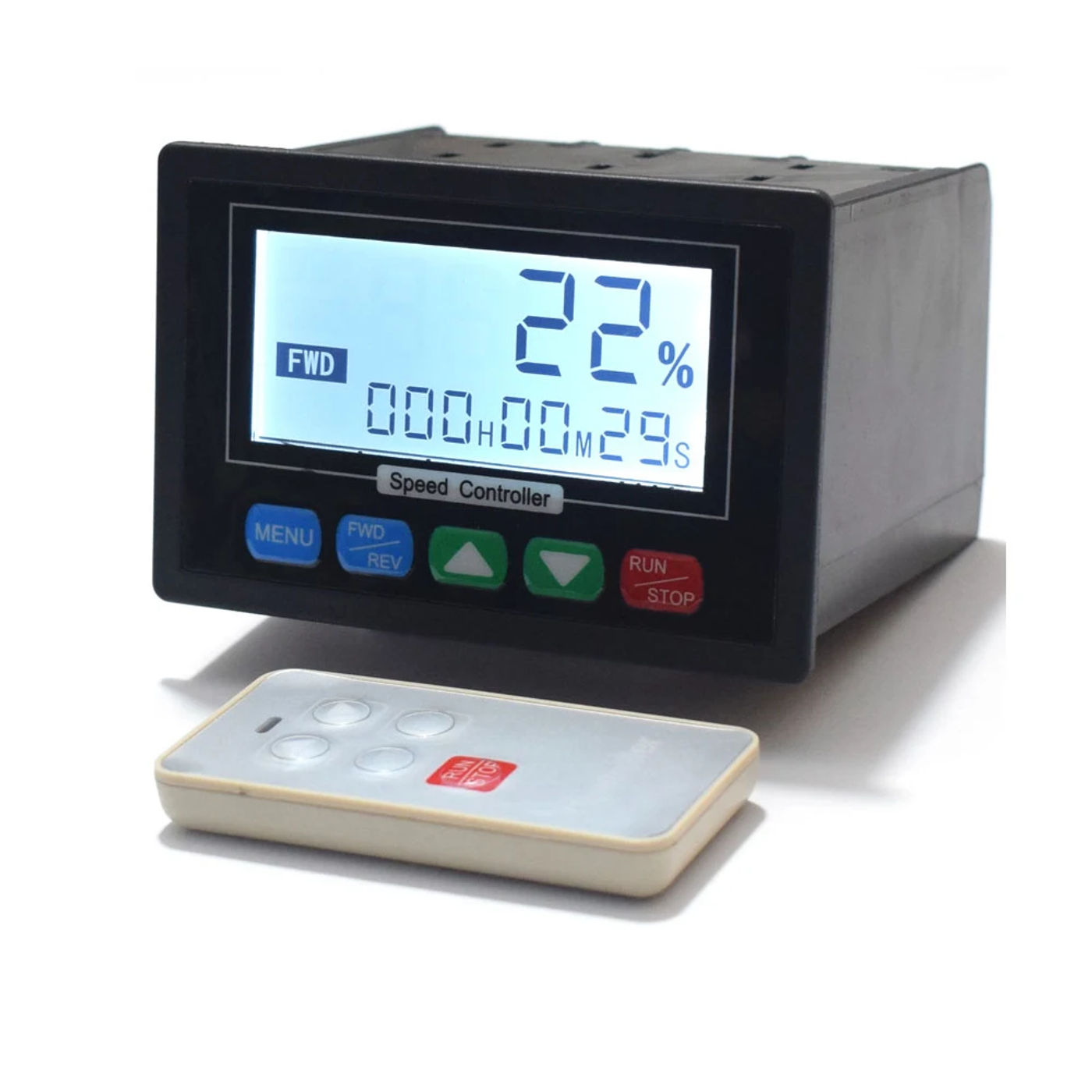

• Product Features Intelligent LCD display screen with backlight can demonstrate the operating time, pace percentage, latest mode, forward rotation, opposite rotation status, and so on Equipped with wireless handheld remote control Various limit modes accessible Slow birth and sluggish quit time would be set Upper pace restrict and lower pace limit can be set Total working time could be set, preventing on the finish of time Support dual-speed control, forward pace and opposite pace separate speed control Two modes of handbook and automated can be selected Automatic mode in the set time automatic ahead and reverse rotation Touch change to modify ahead and reverse pointing acceleration and deceleration to solve the ancient potentiometer clean to break the issue Product parameters Input voltage: DC10-55V (the specific voltage is equal to the rated voltage of the motor) Output voltage: linear below load Instantaneous current: 50A Continuous current: inside 30A Forward and reverse rotation: help Wireless remote control: Yes Timing: Yes Limit function: Yes Slow beginning and stop: could be set Speed electronic display: 0-100 share desk Type of pace regulation: recent law Speed legislation mode: level + - Speed range: 0 - one hundred pc Control frequency: 15KHZ Wiring type: fence sort terminals Support motor: brush motor Module Size: L*H*D 105mm*70mm*95mm Product net weight: 275g Panel opening: L*W98mm*63mm Installation: Embedded Press and maintain MENU button to show off and switch at the backlight Press FWD/REV to opposite beginning if you need to reverse beginning Note: Input must be divided into high quality and negative The input voltage should be equal to the rated voltage of the motor (within 10-55V) For example, if the motor rated voltage is 12V and the governor is 12V, and the motor rated voltage is 36V and the governor is 36V, the motor rated voltage is 36V and the governor is 36V Input 220V will burn Instructions for use: Support normally open mechanical switch, NPN form photoelectric switch, steel proximity switch, Hall magnetic swap 0-1-2-3-4-5-6-7-8-9-E sort of function settings as follows Manual-automatic mode selection Function 0: 1 for handbook mode 2 for automated mode Default is 1 for handbook mode Slow beginning time setting Function 1: 000 - a hundred Slow start to 100 percent velocity time is adjustable between 0-10 seconds Default is 1 second Slow quit time surroundings Function 2: 000 - a hundred Slow stop time is adjustable between 0-10 seconds Default is 1 second Lower Speed Limit Setting Function 3: 000 - 080 The minimal pace is adjustable from 0-80% and less than the maximum speed surroundings price Upper Speed Setting Function 4: 000 - one hundred The maximum speed is adjustable from 0-100% and is bigger than the minimal pace surroundings cost Default is one hundred pc Acceleration and deceleration price setting Function 5: 001 002 005 010 015 020 025 Every time you press the acceleration and deceleration keys, the speed will substitute 1%, 2%, 5%, 10%, 15%, 20%, 25% accordingly Total motor running time environment Function 6: 0 sec min - 999 hrs 59 min fifty nine sec max Default is 0 hrs 0 min zero sec No timer operate The following functions 7 are time environment in full automatic mode Function 7: 0sec min - 999h 59m 59sec max Default is 10sec Stop time setting Function 8: 0sec min - 999hrs 59min 59sec max Default is 10sec Reverse Time Setting Function 9: 0sec min - 999hrs 59min 59sec max 10sec via default Limit Mode Selection Function E: E1 Infinite function Default countless role E2 Press to start motor forward ahead to fantastic restrict motor give up Press forward and reverse key to opposite birth E3 Press delivery motor ahead forward to fantastic restrict motor opposite reverse to opposite limit motor give up E4 Press to start motor ahead forward to effective limit motor reverse Cycle operation Manual-Auto Mode Selection Press MENU key 1 to demonstrate zero to enter manual and full-auto mode selection 1 for manual mode 2 for auto mode Press plus/minus key to switch Press RUN/STOP to save lots of and exit Slow beginning time setting Press MENU key 2 to enter operate 1 surroundings key floor Press plus/minus key to set time Press RUN/STOP to save and exit (10 is 1 moment 100 is 10 seconds) Product List 1X Speed Controller 1X remote control

•
•
•
•
•
