Description

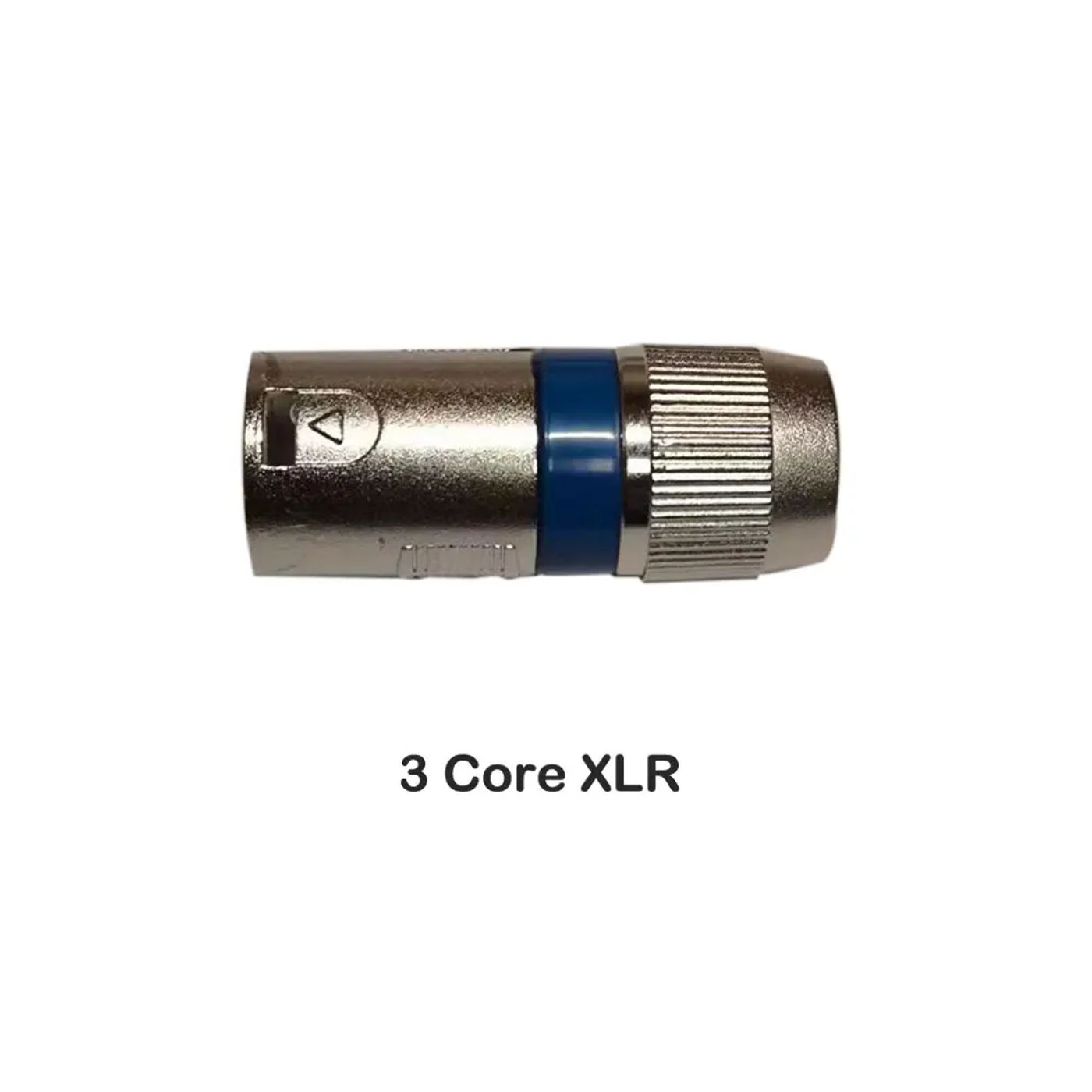

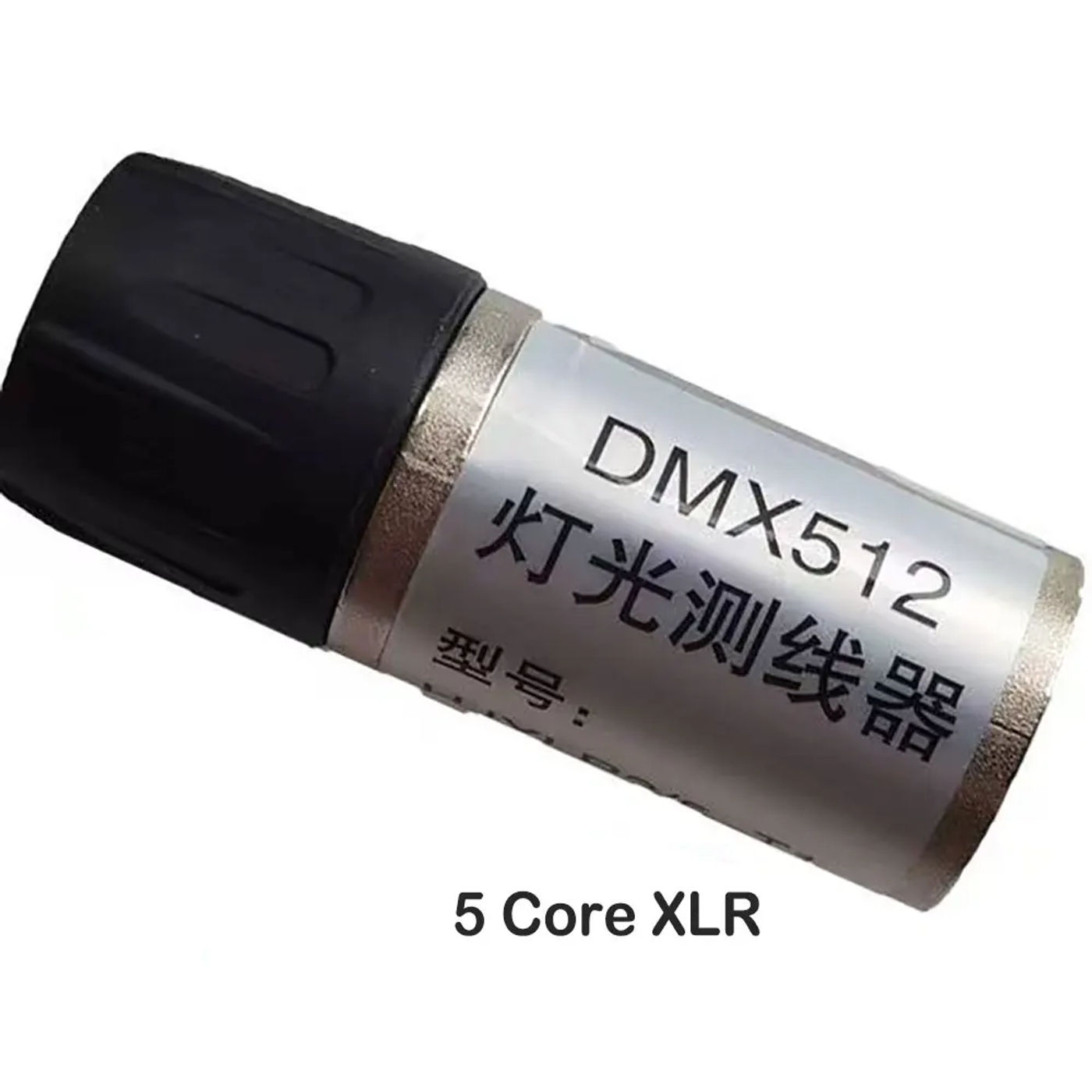

• DMX512 Stage Light Signal Detector Line Tester Moving Head Light Connect Line Tester Amplifier Beam Light TroubleshooterDMX512 Light Signal Tester Directions to be used There are three lamp beads on the DMX512 mild sign tester: L1 red, L2, green, and L3 blue, similar to the 1, 2, and three pins of XLR, respectively. (1) The 3 lamp beads of L1L2L3 are all bright, indicating that the sign output is normal. (2) When there's no sign or open circuit at pin 1, the indicator light is just pink on L1. (3) When there is no signal or open circuit at pin 2, the indicator mild is just green on L2. (4) When there is no sign or open circuit at pin 3, the indicator gentle is simply on L3 blue. (5) When the signal of the 1-2 pin function is short-circuited, the indicator comfortable L1 is crimson and L2 is green. (6) When the signal of the 1-3 pin function is short-circuited, the indicator mushy L1 is crimson and L3 is blue. (7) When the sign of the 2-3 pin role is short-circuited, the indicator mild L2 inexperienced L3 blue mild is on. (8) When there is not any signal or open circuit at more than 2 feet, all the indicator lights aren't on. Reminder: The tester is limited to DMX512 gentle sign use. Do no longer check on diverse kit to avoid burning out the tester.

•
•
•
•
