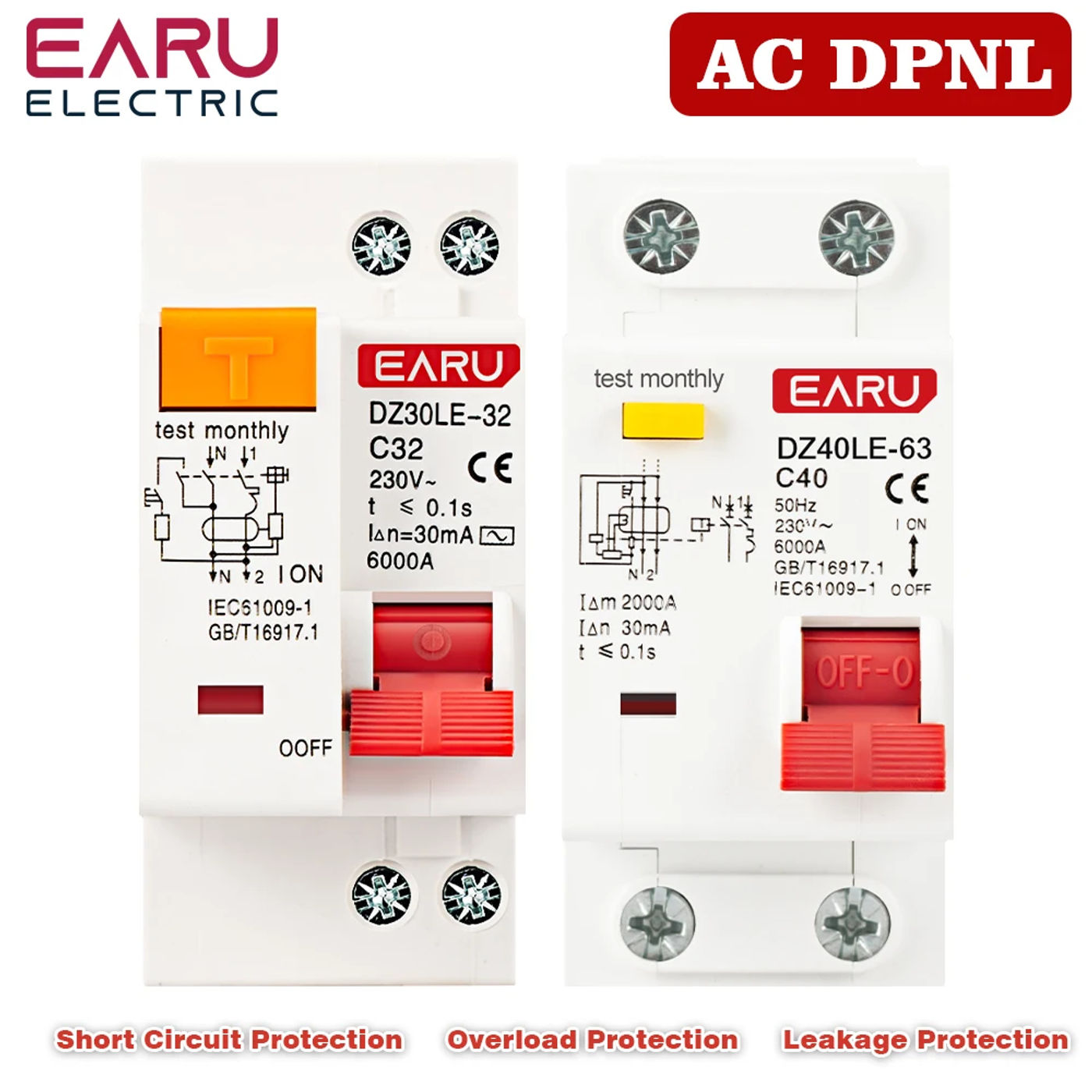

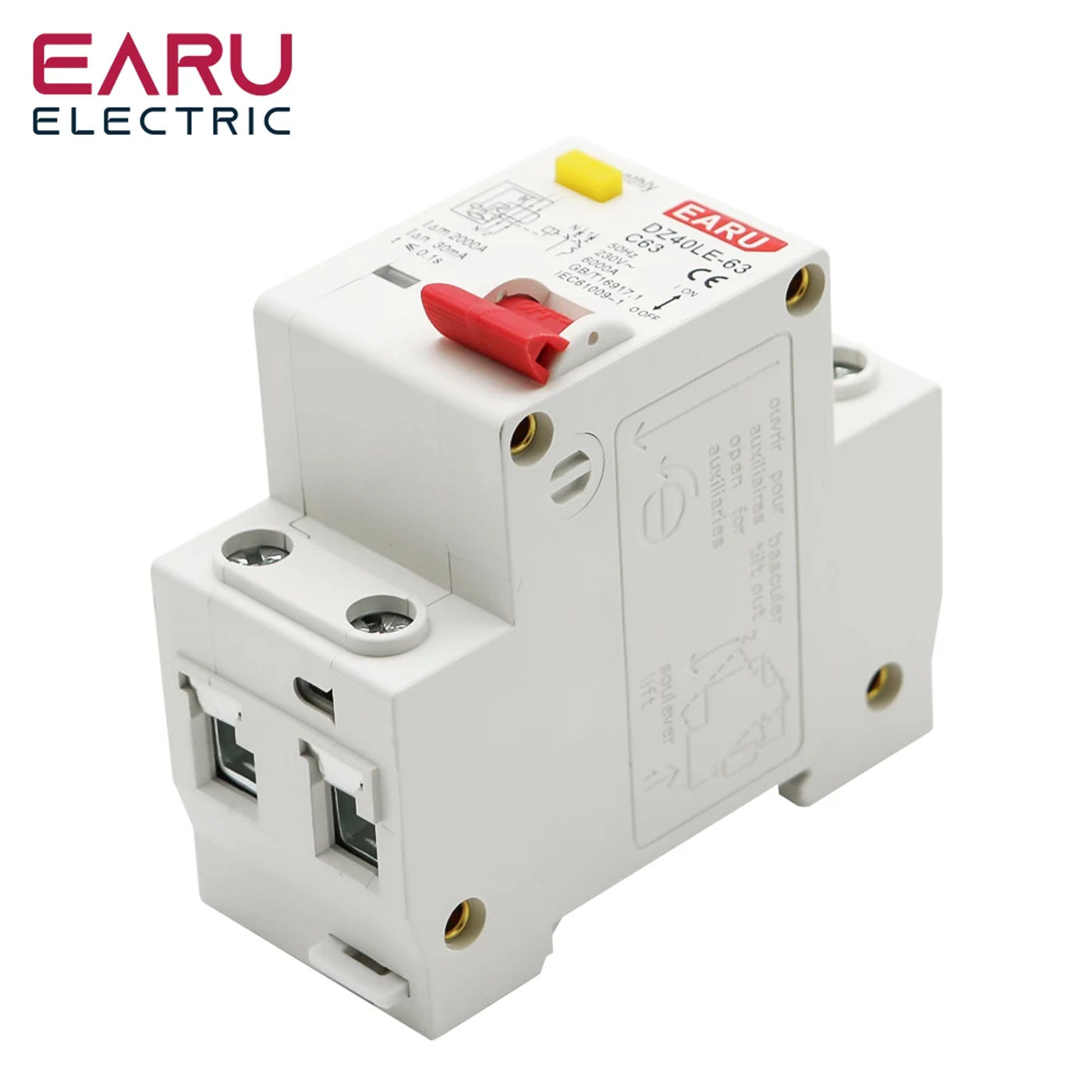

Description

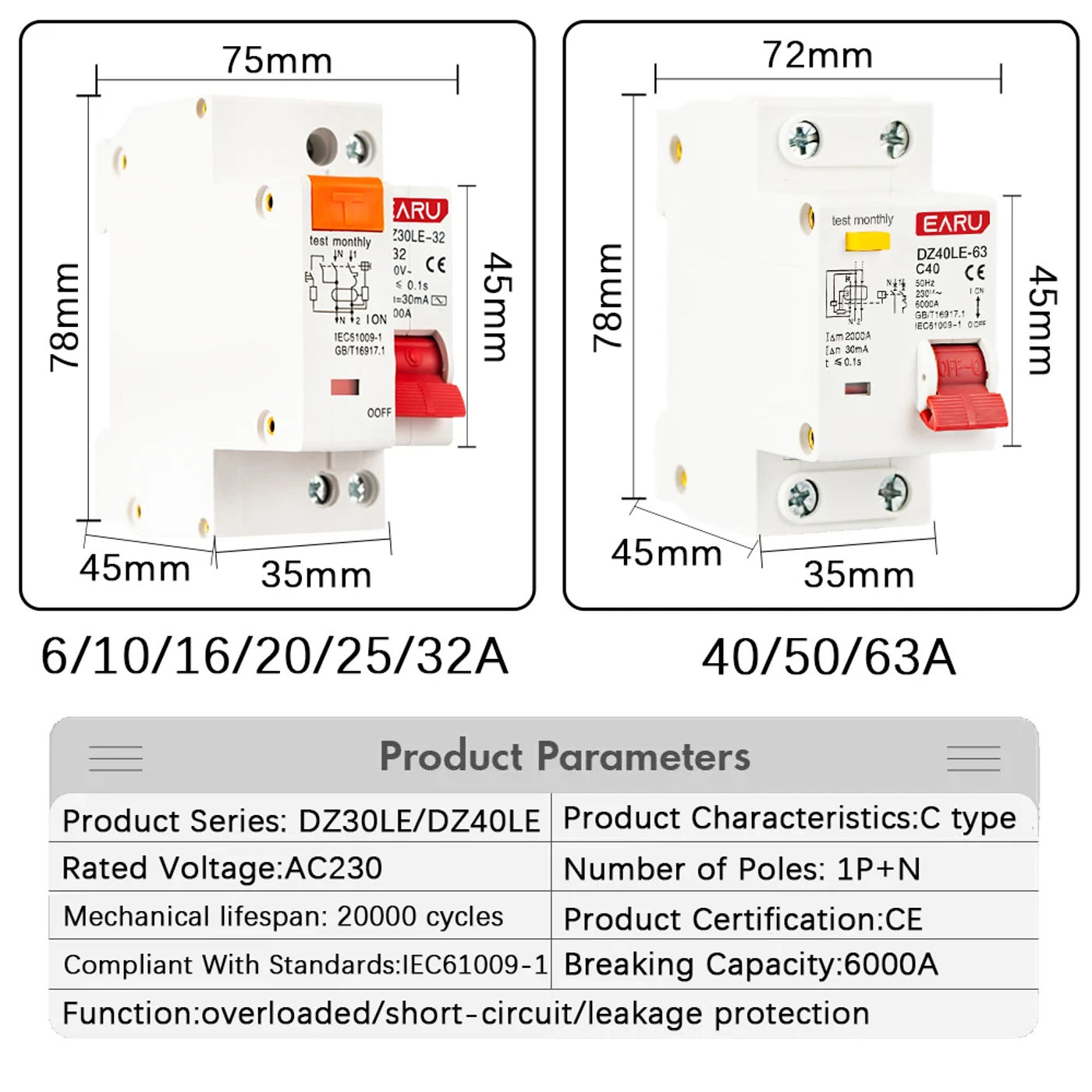

• Construction and Feature 1)Provides defense opposed to earth fault/leakage current, short-circuit,overload,and operate of isolation 2)Contact position indication 3)Provides defense opposed to oblique touch by human physique 4)Provides complementary protection against direct contact through human physique 5)Effectively protects electrical equipment opposed to insulating failure 6)Equipped with switched neutral and phase pole 7)Provides protection opposed to over-voltage 8)Provides comprehensive defense to household and advertisement distribution programs Technical Data 9)Type: Electronic kind 10)Residual recent characteristics: AC 11)Pole No: 1P+N 12)Tripping curve: C 13)Rated short-circuit capacity: 4 14)Rated Current(A): 6,10,16,20,25,32,63 15)Rated Voltage:230V AC 16)Rated Frequency:50/60Hz 17)Rated residual working current(mA): 30 (63A is 15mA) 18)Tripping duration:instantaneous below or equal 0 19)Electro-mechanical: pillar terminal with clamp 20)Terminal Connection Height: H1=16mm ,H2=21mm 21)Over-votage tripping: 280V±5% 22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 23)Installation: On symmetrical DIN rail 35mm, Panel mounting Accessories 24) S2 Shunt Tripper 25) U2+O2 Over-voltage and under-votage tripper

•
•
•
•
•
