Description

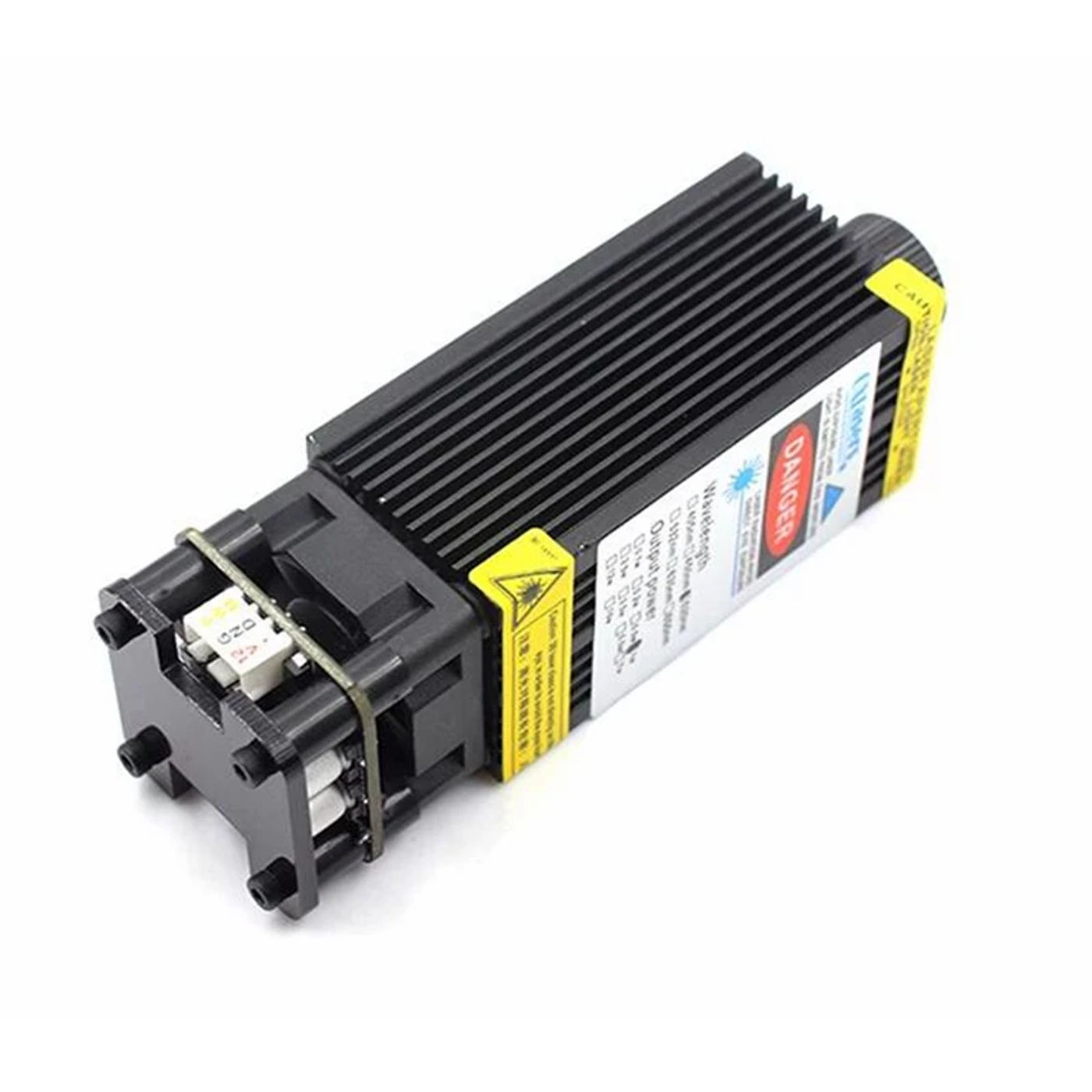

• Focusable 488nm 80-100mw Sky Blue Dot Laser Diode Module TTL/PWM Parameters:Model: 0X-AB60 Wavelength: 488nm (+-8nm) Output power: 80mW (+-10mW) Spot mode: Partial around spot (adjustable focus) Divergence angle: ≤ 3mrad Laser level: Class three Modulation mode: TTL modulation Input stability: ± 5% LD input voltage: 7V LD enter current: 180mA Rated strength consumption: 2 Recommended ambient temperature: -10~40C Service life: 10000h Wire length: 80cm Size: 33 * 33 * 105mmFeatures:The diameter of the output beam of this laser is determined 4-5MM, and it's going to switch the dimensions of the focus. It helps 5V PWM signal to adjust the power!Package:1 set 488nm 100mw laser module

•

Review
